Development of a machine learning predictive model for early detection of breast cancer

2.1 Study design and setting

This research was conducted within the Health Informatics Laboratory, Department of Health Information Management, Manipal College of Health Professions, Manipal Academy of Higher Education, Manipal, over six months (January–June 2022). The study aimed to develop and evaluate a machine learning predictive model for early detection and differential diagnosis of benign and malignant breast lesions.

2.2 Data source and inclusion criteria

The Wisconsin Breast Cancer Diagnostic dataset, available on Kaggle,¹⁸ was utilized. This dataset comprises 569 records and 33 features derived from fine needle aspirate (FNA) biopsy images, representing tumor characteristics. Key features analysed included tumor radius, texture, perimeter, area, smoothness, compactness, concavity, symmetry, and fractal dimension.

2.3 Data preprocessing

Data preprocessing was undertaken in several steps to ensure the dataset was both reliable and suitable for model development. Missing and null values were first removed. The features were then normalized using the Robust Scaler, which centers values on the median and scales them by the interquartile range. This choice was made to reduce the influence of outliers and to better accommodate the non-Gaussian feature distributions often present in medical datasets, while still preserving meaningful relationships between variables. To gain a deeper understanding of the data, Exploratory Data Analysis (EDA) was performed in Python using violin plots, box plots, and correlation matrices, which guided the identification of clinically and statistically relevant features. During this process, strong correlations were observed among certain predictors (e.g., 0.86 between concavity worst and concave points worst). To manage potential multicollinearity, we used tree-based algorithms such as Random Forest and Decision Tree, which are naturally robust to correlated inputs, while regularization in linear models (Logistic Regression and SVM) further reduced redundancy effects. Because our focus was on predictive performance rather than coefficient-level interpretation, these correlations were not expected to bias results. Finally, the dataset was split into input features (X) and target labels (y), with categorical diagnosis values encoded into binary form (0 = benign, 1 = malignant). Dimensionality reduction methods such as PCA or t-SNE were not applied, as the dataset included only 30 features, which allowed efficient computation and straightforward interpretation. Preserving the clinical interpretability of individual features was also prioritized over transformations like PCA, which produces composite variables, or t-SNE, which is mainly intended for visualization. Features were normalized using the Robust Scaler, which centers on the median and scales by the interquartile range to minimize the influence of outliers while preserving inter-feature relationships in high-dimensional medical data.

2.4 Model development

Five supervised machine learning algorithms were implemented: Logistic Regression, Support Vector Classification (SVC) with linear and radial basis function (RBF) kernels, Decision Tree, and Random Forest. The dataset was divided into training and testing subsets using a 60:40 split with Scikit-learn’s train test split function. Models were trained on the training set and optimized through hyperparameter tuning using GridSearchCV with five-fold cross-validation to improve model generalizability and reduce the risk of overfitting. For the SVC with RBF kernel, the parameter grid explored included C = [0.1, 1, 10, 100] and gamma = [‘scale’, 0.01, 0.001], with the kernel fixed as ‘rbf’. Similar tuning strategies were applied for the remaining classifiers. The optimal parameters identified through cross-validation were used for final model training. Logistic Regression with C = 1.0; SVC with linear kernel using C = 1.0; SVC with RBF kernel using C = 1.0 and gamma = ‘scale’; Decision Tree with max_depth = 5 and criterion = ‘gini’; and Random Forest with n_estimators = 100, max_depth = 6, and criterion = ‘entropy’. These parameters were selected based on the highest cross-validated accuracy and were subsequently used for final model evaluation.

2.5 Performance evaluation

The performance of the classification models was evaluated using accuracy, precision, sensitivity (recall), specificity, and F1-score. These metrics were calculated from the confusion matrix, where TP, TN, FP, and FN represent true positives, true negatives, false positives, and false negatives, respectively.

These evaluation metrics are widely used for assessing the performance of machine learning classification models and were calculated using the Scikit-learn library.

Among the models, SVC-RBF demonstrated the highest accuracy (99%), proving its efficacy for early detection and differential diagnosis of breast lesions. These metrics were evaluated using both the test dataset and during the 5-fold cross-validation phase to ensure consistent generalization across splits. This approach allows for a robust evaluation by averaging performance across multiple folds.

Root Mean Square Error (RMSE)

RMSE measures the average magnitude of prediction errors and was used as an additional indicator of model reliability.

where y_i is the actual class label, ŷ_i is the predicted class label, and n is the total number of observations. Lower RMSE values indicate better predictive performance and greater model consistency.

2.6 Statistical evaluation metrics

Accuracy represents the proportion of correctly classified instances among all observations.

Precision measures the proportion of positive predictions that are correct.

Sensitivity (Recall) measures the ability of the classifier to correctly identify positive cases.

Specificity measures the ability of the classifier to correctly identify negative cases.

The F1-score provides a harmonic balance between precision and recall.

G-Mean evaluates the balance between sensitivity and specificity.

MCC is a correlation-based measure that evaluates the overall quality of binary classifications.

2.7 Statistical tools and software

All analyses were performed using Python 3.8¹⁹ in Jupyter Notebook. Libraries used included Pandas (v1.2.4)²⁰ for data manipulation, Numpy (v1.20.3)²¹ for numerical computations, Matplotlib (v3.4.2)²² and Seaborn (v0.11.1)²³ for data visualization, and Scikit-learn (v0.24.2)²⁴ for machine learning, while data preprocessing and visualization were carried out using Pandas, NumPy, Matplotlib, and Seaborn. The experiments were executed on a workstation equipped with an Intel Core i7 processor, 16 GB RAM, and the Windows 10 operating system. Given the relatively small size of the Wisconsin Breast Cancer Diagnostic dataset, dedicated GPU resources were not required for model training or evaluation.

2.8 Ethical considerations

The dataset was extracted from the online open-source Wisconsin (Diagnostics) dataset. The study approval was obtained from Institutional Research Committee of Manipal College of Health Professions, Manipal on the 20^th of January 2022 (MCHP/Mpl/IRC/PG/2022/04). All procedures adhered to established ethical guidelines for secondary data analysis and data use policies. Consent is not applicable since the data was an extracted from the online open source Wisconsin (Diagnostics) dataset.

3.1 Exploratory Data Analysis (EDA) and data preprocessing

The breast cancer dataset, comprising 569 samples, was subjected to exploratory data analysis (EDA) to evaluate its structure and identify relevant features. During data preprocessing, two non-informative columns, ‘id’ and ‘Unnamed: 32’ (which contained only missing values), were removed. Analysis of the target variable (‘diagnosis’) showed that the dataset included 212 malignant (37.3%) and 357 benign (62.7%) cases, indicating a predominance of benign samples. A bar graph ( Figure 1) illustrates this distribution. Following data cleaning, the dataset was divided into feature variables (X) and the target variable (y), ensuring all numeric features remained in X while the categorical “diagnosis” variable was placed in y.

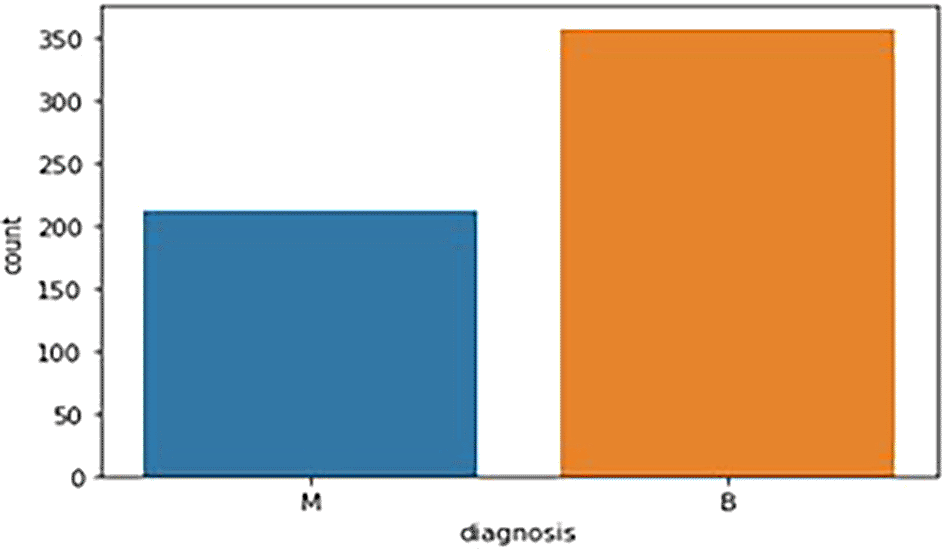

Figure 1. Bar graph showing the frequency of diagnosis column.

M - Malignant Tumor and B - Benign Tumor.

3.2 Feature extraction and visualization

3.2.1 Violin plots: - The distributions of the first thirty features in the dataset were visualized using violin plots to assess their potential for distinguishing between malignant and benign tumors. Key findings include the texture mean, which displayed distinct median values for the tumor types and a wider spread in the kernel density estimate (KDE) for malignant tumors, suggesting its potential as a useful feature for classification. In contrast, the fractal dimension mean showed similar medians for both tumor types, indicating limited discriminative power. Features such as concave points (se) and concavity (se) also exhibited overlapping distributions, making them less valuable for classification. On the other hand, area (se) demonstrated a clear separation between tumor types, highlighting its potential for classification. Similarly, the area (worst) feature showed a distinct separation between benign and malignant tumors, marking it as a strong candidate for classification models, whereas fractal dimension (worst) and concavity (worst) exhibited overlapping distributions, suggesting reduced utility. Overall, texture mean, area (se), and area (worst) emerged as the most promising features for classification, while the others showed limited differentiation between tumor types in the Figure 2(A, B, C).

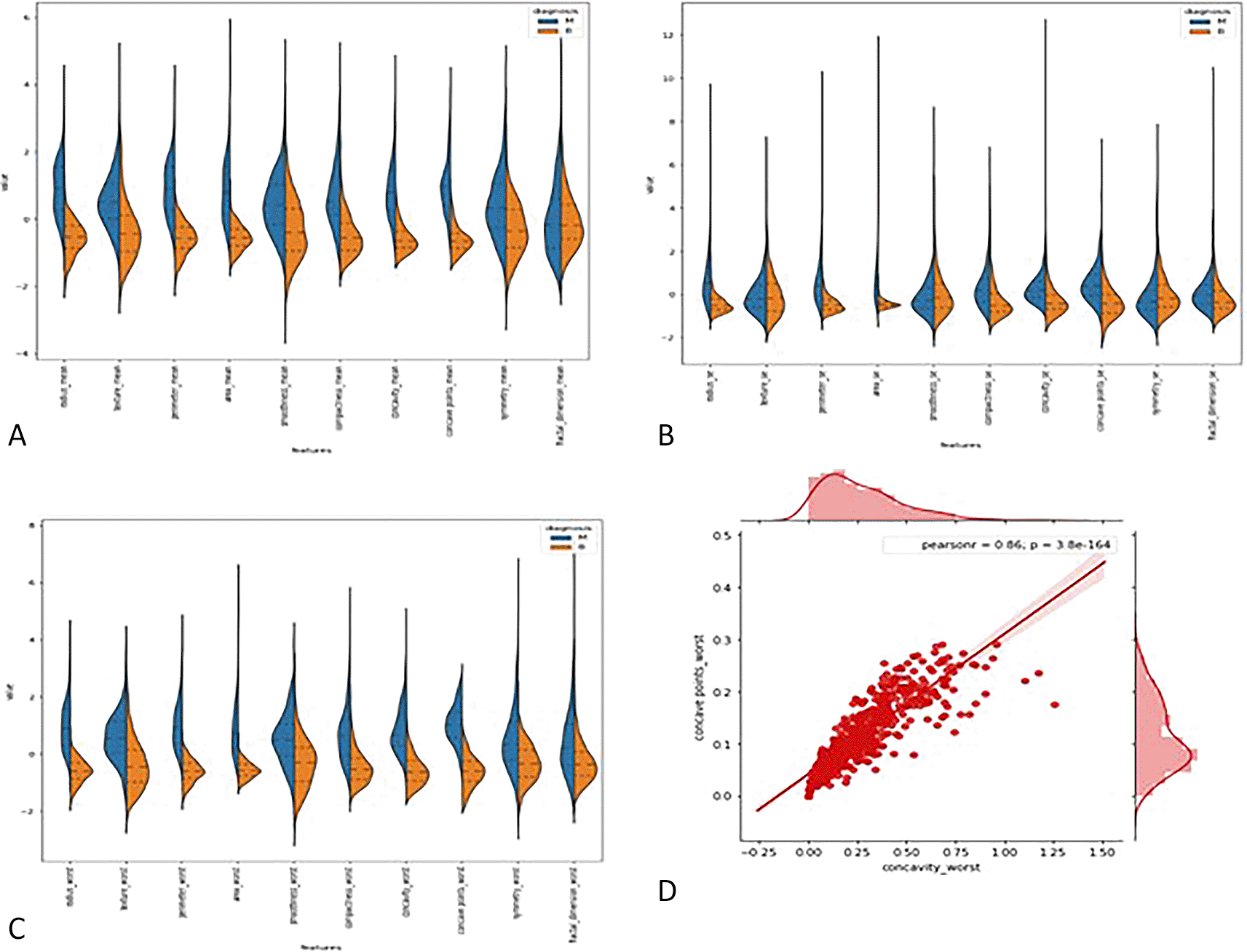

Figure 2. (A) Violin plot for first ten features (B) for second set of features (C) for last set of features (D) Joint plot for finding corelation between the concave wort and concavity worst.

3.2.2 Joint plot: - A joint plot was used to analyze the relationship between concavity worst and concave points worst, as their distributions appeared to be similar. The joint plot, which combines scatter plots and histograms, provides a comprehensive view of the data’s distribution and the relationship between two variables. The analysis revealed a strong correlation of 0.86 between the two features, accompanied by a statistically significant p-value. This indicates a high degree of linear association between concavity worst and concave points worst, suggesting that they capture similar information regarding the tumor characteristics. Given their strong correlation, retaining only one of these features in the classification model is advisable, as including both would introduce redundancy and not contribute additional discriminative power in Figure 2(D).

3.2.3 Box plot : - Box plots were used to visualize the distribution of key features across malignant and benign tumor groups, offering a clear representation of the data’s spread, central tendency, and variability. These plots divide the data into quartiles, highlighting the minimum, first quartile, median, third quartile, and maximum values, and can also identify potential outliers. Box plots are useful for comparing feature distributions between groups and identifying differences in spread and central values.

In this study, box plots were employed to explore the relationship between highly correlated features in the correlation matrix, such as texture mean and texture worst, as well as area mean and area worst. The analysis of these features in relation to the diagnosis column revealed similar distributions for malignant and benign tumors, indicating redundancy in the information they provide. For instance, texture mean and texture worst showed comparable distributions, suggesting that retaining both features in the model would likely result in redundancy. Consequently, one of these highly correlated features can be excluded from the classification process without sacrificing predictive power. These insights were further validated through the visual examination of box plots, which helped clarify how each feature discriminates between malignant and benign groups in Figure 3(A, B, C, D).

Figure 3. (A) Box plot graph of texture mean vs diagnosis of tumor (B) texture worse vs diagnosis of tumor (C) area mean vs diagnosis of tumor (D) area worst vs diagnosis of tumor.

3.3 Label encoding

Label encoding was employed to handle the categorical data within the dataset, specifically the diagnosis column, which consists of two classes: malignant (M) and benign (B). Label encoding is a technique used to transform categorical variables into numerical values, facilitating their inclusion in machine learning models that require numerical input. In this case, the diagnosis feature was encoded by assigning the value 0 to benign tumors and 1 to malignant tumors. This transformation of categorical data into binary values enables the classification algorithms to process the target variable effectively.

Label encoding is particularly useful for datasets with binary or ordinal categorical data, as it preserves the inherent order and structure of the classes. This method of encoding ensures that the diagnosis column can be used seamlessly in the machine learning models, enhancing the classification process and improving model performance. The encoded values (0 and 1) were then incorporated into the feature set, with the remaining extracted features, such as tumor radius, texture, perimeter, and others, remaining in their continuous form.

3.4 Dataset splitting and feature scaling

In this study, the dataset was divided into training and testing sets using the train-test split method to evaluate the performance of machine learning algorithms. The dataset was split with a 60:40 ratio, where 60% of the data was used for training the model, and 40% was reserved for testing. The primary goal of this split is to assess how well the model generalizes to unseen data by training it on the training set and evaluating it on the testing set. The training set allows the model to learn from known data, while the testing set is used exclusively for making predictions, providing an unbiased estimate of model performance.

The dataset was divided into input features (X) and the target variable (y). The target variable, diagnosis (benign or malignant), was assigned to y, and the remaining features used for classification were assigned to X. Consequently, the dataset was split into four variables: X train, X test, y train, and y test, representing the training and testing sets for both features and target variable.

Following the train-test split, feature scaling was performed to normalize the features within the dataset. Feature scaling is a preprocessing technique used to transform the features into a uniform scale, improving the performance of machine learning algorithms. In this study, the Robust Scaler was applied, which scales the data based on the interquartile range (IQR) while removing the median. This scaling method ensures that outliers have a minimal effect on the data, which is particularly beneficial when dealing with features that have different scales or units. The scaled data was then used for model training and evaluation, ensuring that all features contribute equally to the learning process.

Among the features, texture mean and area (worst) emerged as the most discriminative, supported by their strong correlations with diagnostic class labels and their consistently high importance rankings across tree-based models. Although advanced interpretability methods such as SHAP or mutual information scores were not employed, these complementary quantitative measures provided robust evidence of their significance.

3.5 Model development

In this study, various machine learning models were developed and evaluated using different supervised classification algorithms to identify the most accurate model for classifying benign and malignant breast lesions. A classifier algorithm is designed to map input data to specific categories, making it suitable for tasks such as classification of breast lesions. The algorithms utilized in this project include Logistic Regression, Support Vector Classifier (SVC) with a linear kernel, Support Vector Classifier (SVC) with a radial basis function (RBF) kernel, Decision Tree Classifier, and Random Forest Classifier.

The models were developed using the training dataset, with each classifier being imported from the learn library. The models were assigned to variables, and the fit method was used to train each model on the input features (X train) and target variable (y train). This method enabled the models to learn from the data and adjust their parameters accordingly to improve classification performance.

Following the training process, the accuracy of each model was calculated to assess their performance. The Decision Tree Classifier achieved the highest training accuracy of 1.0, indicating perfect classification performance on the training set. On the other hand, the SVC with the radial basis function kernel exhibited the lowest training accuracy among the classifiers. These results provide an indication of which models performed better in terms of training accuracy and highlight the potential for further model evaluation using additional metrics such as cross-validation, precision, recall, and F1 score to determine the most reliable classifier for the task ( Figure 4).

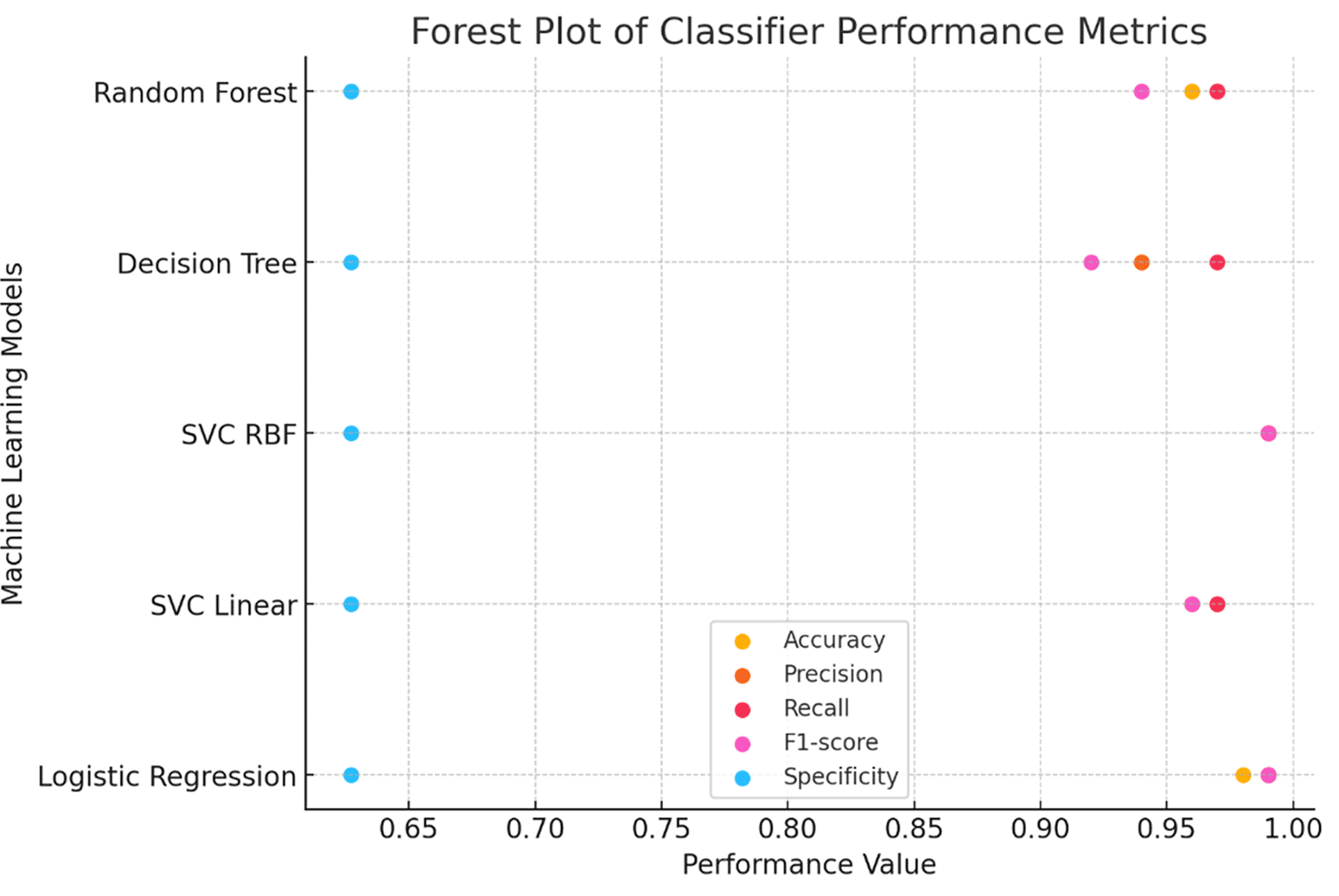

Figure 4. Forest plot comparing performance metrics across different classifiers.

3.6 Performance evaluation

The evaluation of the classification models was performed to determine their effectiveness in distinguishing between benign and malignant breast lesions. Testing accuracy was calculated using a confusion matrix, which summarizes the performance of the classification models in terms of actual and predicted values. The confusion matrix provided four key metrics: True Positive (TP), True Negative (TN), False Positive (FP), and False Negative (FN) values for each classification algorithm, as shown in Table 1.

Among the classification algorithms, the Support Vector Classifier (SVC) with a Radial Basis Function (RBF) exhibited the highest testing accuracy of 0.986, indicating its superior ability to predict correctly. In contrast, the Decision Tree Classifier demonstrated the lowest testing accuracy of 0.942, suggesting room for improvement in its predictive capability.

The classification model was evaluated based on key performance metrics, including accuracy, precision, recall, and F1-score. Accuracy measures the overall effectiveness of the model in correctly classifying cases, while precision assesses the proportion of correctly identified positive cases out of all predicted positives. Recall, also known as sensitivity, indicates the model’s ability to correctly detect positive cases, and the F1-score provides a harmonic mean between precision and recall, ensuring a balanced evaluation.

To further assess the model’s discriminative power, we generated a Receiver Operating Characteristic (ROC) curve, which illustrates the trade-off between sensitivity and specificity across different classification thresholds. The Area Under the Curve (AUC) value quantifies the model’s ability to distinguish between benign and malignant cases, with a higher AUC indicating superior classification performance. Figure 5 presents the ROC curve, demonstrating the classifier’s effectiveness in minimizing false positives while maximizing true positive rates.

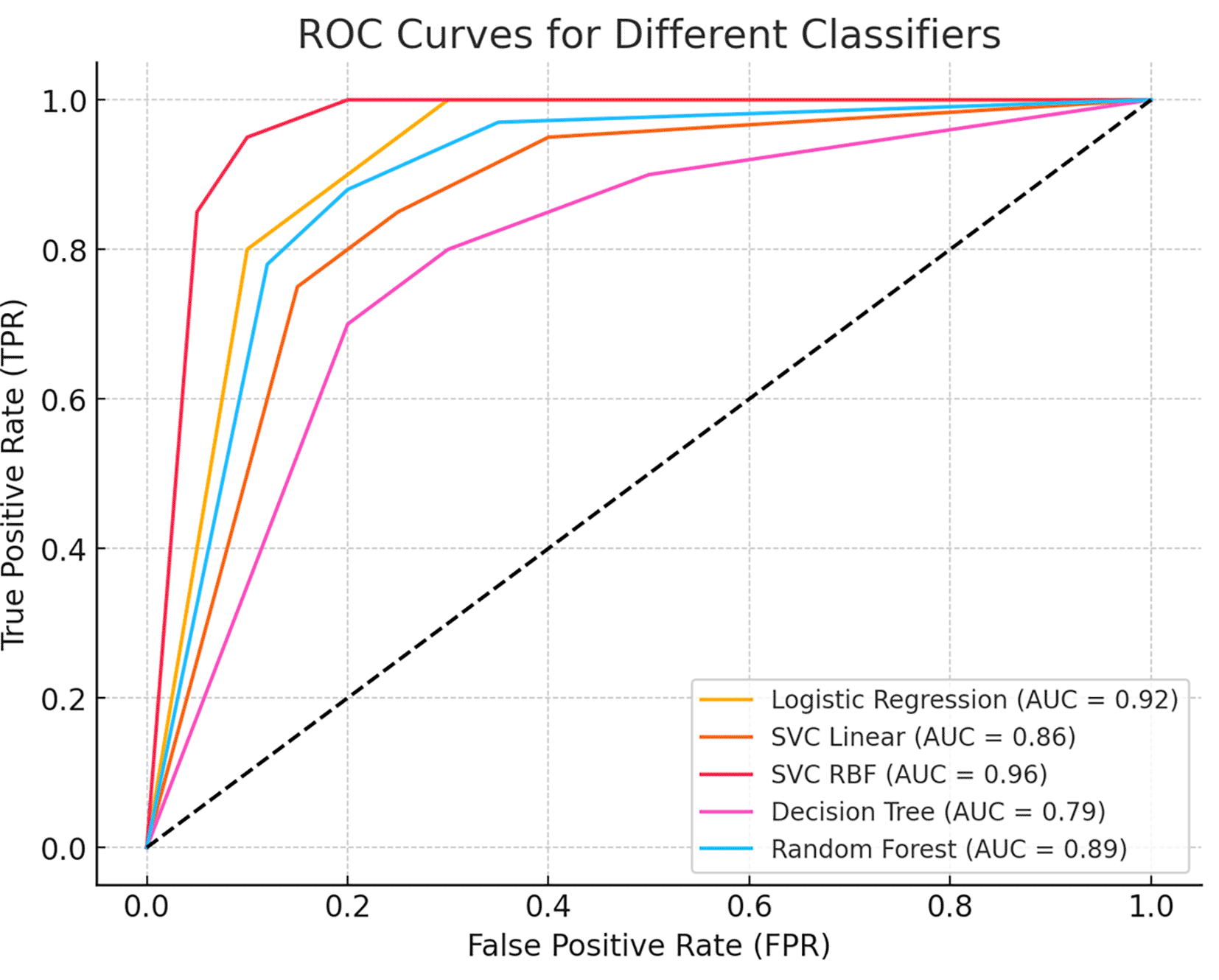

Figure 5. Receiver Operating Characteristic (ROC) curve for the classification model.

The curve illustrates the trade-off between sensitivity (true positive rate) and 1-specificity (false positive rate) across different thresholds. The Area Under the Curve (AUC) value indicates the model’s ability to distinguish between benign and malignant cases, with higher AUC values representing better classification performance.

3.7 Additional performance metrics

To further assess the quality of predictions, additional metrics such as precision, sensitivity (recall), F1 score, and specificity were calculated using the classification report function from the sklearn metrics package. These metrics evaluate the balance between true positive predictions and false positives/negatives, providing a comprehensive assessment of the classification algorithms The Support Vector Classifier with Radial Basis Function (SVC RBF) demonstrated the highest testing accuracy (0.9868) and consistently high precision, recall, F1 score, and specificity, establishing itself as the most robust classifier in this study. Logistic Regression performed comparably, achieving a testing accuracy of 0.9825, indicating reliable classification performance. In contrast, the Decision Tree Classifier, despite achieving the highest training accuracy (1.0), exhibited the lowest testing accuracy (0.9429), suggesting potential overfitting during training. The Random Forest classifier displayed a balanced performance, with a testing accuracy of 0.9561 and comparable metrics across precision, recall, and F1 score, making it a reliable but less optimal choice than SVC RBF and Logistic Regression in Table 2.

3.8 Statistical validation of classifier performance

To evaluate the robustness and consistency of the developed machine learning models, five-fold cross-validation was performed. Mean Accuracy, Standard Deviation (STD), and Root Mean Square Error (RMSE) were calculated for each classifier. Mean accuracy represents the average predictive performance across the validation folds, whereas the standard deviation reflects the variability of model performance. RMSE was used as an additional measure of prediction error, with lower values indicating better model reliability.

As shown in Table 3, Logistic Regression achieved the highest mean accuracy (97.89%) with the lowest standard deviation (0.0147) and RMSE (0.0248), indicating stable and consistent performance. SVC-RBF achieved a mean accuracy of 97.37% with an RMSE of 0.0353, demonstrating strong predictive capability across the validation folds. In contrast, the Decision Tree classifier exhibited the lowest mean accuracy (92.80%) and the highest RMSE (0.0756), indicating comparatively greater prediction variability.

4.1 Strength and limitations of the study

A major strength of this study is the systematic evaluation and comparison of multiple machine learning algorithms for breast cancer classification using a standardized benchmark dataset. Comprehensive exploratory data analysis, robust data preprocessing, feature selection, hyperparameter tuning, and five-fold cross-validation were performed to improve model reliability and reduce bias. The SVC-RBF model demonstrated excellent diagnostic performance, achieving high accuracy, sensitivity, specificity, F1-score, and ROC-AUC values, highlighting its potential utility in supporting early breast cancer diagnosis.

However, several limitations should be acknowledged. The study relied on the Wisconsin Breast Cancer Diagnostic dataset, which is limited in size and diversity and may restrict the generalizability of the findings to broader clinical populations. External validation using independent or multicentre datasets was not performed. Although the SVC-RBF model achieved excellent predictive performance, its black-box nature limits interpretability. Advanced dimensionality reduction techniques such as PCA or t-SNE were not explored, and formal overfitting assessments, including learning curve or bias-variance analyses, were not conducted. In addition, feature selection was primarily based on correlation analysis and exploratory visualization and may not fully capture complex feature interactions. Statistical significance testing for feature-level separability was also not performed. Future studies should incorporate larger and more diverse datasets, external validation, advanced explainable AI methods such as SHAP, ensemble learning approaches, and multimodal data sources to further improve model robustness, interpretability, and clinical applicability.
