Nocturnal Hypertension and Attenuated Nocturnal Blood Pressure Dipping is Common in Pediatric Lupus

[version 2; peer review: 3 approved, 1 approved with reservations]
PUBLISHED 23 Nov 2015
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the Lupus nephritis and neuropsychiatric lupus collection.

Abstract

Hypertension is an important manifestation of systemic lupus erythematosus (SLE) but reports of prevalence vary between 20-70% in published reports of adult and pediatric patients. For both children and adults with SLE, the clinical diagnosis and management of hypertension has traditionally been based on guidelines developed for the general population. In clinical trials, the criteria used for defining participants with hypertension are mostly undefined. As a first step towards formally assessing the blood pressure (BP) patterns of children diagnosed with SLE, 24-hr ambulatory BP monitoring data was analyzed on clinic patients who presented with prehypertension or stage I hypertension. In this pediatric SLE cohort (n=10), 20% met daytime criteria for a diagnosis of hypertension. Patterns of BP elevation varied widely with white coat, masked, isolated systolic, and diastolic nocturnal hypertension all identified. Nocturnal hypertension was detected in 60% and attenuated nocturnal BP dipping in 90% of both hypertensive and normotensive SLE patients. In SLE patients, the median nighttime systolic and diastolic loads were 25% and 15.5% compared with median daily loads of 12.5% and 11.5%. Daytime and nighttime systolic and diastolic BP load and nocturnal dipping was compared to a control population consisting of 85 non-SLE patients under 21 years old with prehypertension or stage 1 hypertension presenting to hypertension clinic. Median systolic BP dipped 5.3 mmHg in SLE patients compared to 11.9 mmHg in non-lupus (p-value = 0.001). Median diastolic BP dipped 12.9 mmHg versus 18.5 mmHg in non-lupus (p-value = 0.003). Patterns of BP dysregulation in pediatric SLE merit further exploration. Children with or without SLE displaying prehypertensive or stage 1 casual BP measurements had similar rates of hypertension by ambulatory BP monitoring. However, regardless of BP diagnosis, and independent of kidney involvement, there was an increased proportion with attenuated nocturnal dipping and nocturnal hypertension in SLE patients.

Keywords

Hypertension, Blood pressure, SLE, Lupus, Pediatric, ABPM, White-coat, Prehypertension

Revised Amendments from Version 1

The revised manuscript takes into account the comments from the first three on-line reviews. It adds a requested comparison of the BP patterns between 2 sub-groups of lupus patients: non-renal pSLE patients vs. those with a history of lupus nephritis which were in remission at time of BP monitoring. It also includes a brief literature review in the discussion on the effect of glucocorticoids on BP patterns, which might provide one possible explanation for the findings described in our pediatric lupus patient cohort.

See the authors' detailed response to the review by Joseph Flynn

Introduction

Ambulatory blood pressure monitoring (ABPM) is preferred to casual clinic blood pressure (BP) monitoring in the diagnosis of hypertension (HTN). There are many shortfalls of casual BP readings, including the white coat effect, observer bias/measurement error, regression to the mean with repeated measurements, and variability of blood pressure over time (Flynn, 2011). Additionally, the published normative values for casual BP are based on the auscultation method, yet many clinic measurements are taken with oscillometric devices (Woroniecki & Flynn, 2005). Perhaps the most clinically relevant shortfall is the limited outcome data regarding casual BP measurements and end-organ damage or cardiovascular risk.

There is good evidence supporting the utility of ABPM findings in the prediction of cardiovascular outcomes, both in adults and children (Belsha et al., 1998; Lurbe et al., 2004; Pickering et al., 2006; Singh et al., 2013; Sorof et al., 2002). ABPM can account for the white coat effect as well as measurement and observer errors. Where casual BP measurements account for the magnitude of BP at single points in time, ABPM can define BP loads which measure the proportion of BPs that exceed a defined cutoff, typically the 95th percentile as defined by normative data, over a 24-hr period. Therefore ABPM provides a better appreciation of BP trends which can account for the dynamic nature of BP (such as circadian rhythms, nocturnal BP dipping) (Flynn, 2011).

Although ABPM is a valuable piece of the HTN evaluation, there are potential barriers to its widespread utilization related to both financial and clinical considerations. Insurance companies offer limited reimbursement for ABPM placement and interpretation (Swartz et al., 2008). Although there is vast evidence for normative values in adults; there is more limited normative data for ABPM interpretation in children. The current normative values are based on approximately 950 healthy children with limited variability in ethnicity/race (Wühl et al., 2002). Despite these obstacles, ABPM is considered the gold standard for diagnosis of HTN in both adults and pediatrics. It is useful in predicting cardiovascular risk related to HTN but is also helpful in assessing BP in special pediatric populations such as obesity, sickle cell disease, chronic kidney disease, end stage renal disease, and diabetes (Flynn, 2011). There is limited research on the use of ABPM in the pediatric systemic lupus erythematosus (SLE) population (Canpolat et al., 2013), though HTN occurs in 20–70% of these patients (Bogdanovic et al., 2004; Brunner et al., 2002; Lau et al., 2006; Ruggiero et al., 2013). There is also limited data regarding the management of HTN in the SLE population (Imai et al., 1989; Shaharir et al., 2015), with management traditionally based on guidelines developed for the general population (Tselios et al., 2014).

Cardiovascular disease is a leading cause of mortality in adults with SLE and though there are many non-traditional risk factors including altered renal function, impaired endothelial function, chronic inflammation, and an activated renin-angiotensin system (RAS) (Gustafsson et al., 2012; Kiani et al., 2008; Knight & Kaplan, 2013; Pieretti et al., 2007), HTN is still an important risk factor (Contreras et al., 2005; Ginzler et al., 1993; Petrin et al., 1993; Yang et al., 1994). Therefore the use of standardized definitions to define HTN in SLE patients is crucial in better understanding cardiovascular risk and preventing adverse outcomes. Although isolated nocturnal HTN is not considered sufficient for a diagnosis for systemic hypertension in the general population, it is known to associate with increased risk of cardiac outcomes (Yee, 2015). Additionally, attenuated nocturnal dipping, even in the setting of normal 24-hr BP, was noted to be an independent predictor of cardiovascular mortality in a large prospective cohort study in Japan (Ohkubo et al., 2002). Hence, it is also important to use ABPMs to characterize blood pressure patterns in SLE patients so that specific guidelines for ABPM interpretation can be established for this population.

Methods

Study population

BP patterns of the 10 SLE study participants (demographics summarized in Table 1) recruited from a single center were retrospectively reviewed using data from 24-hr ambulatory BP monitoring tests performed between February 2012 and April 2013. ABPM was routinely ordered only on SLE patients seen in a multispecialty pediatric lupus clinic who were not currently being treated for active lupus kidney disease (non-renal lupus or nephritis in remission) and with casual BP measurements in prehypertensive or stage 1 hypertensive range (National High BP Education Program Working Group on High BP in Children and Adolescents, 2004). The inclusion criteria for the SLE cohort were: (1) diagnosis of SLE by American College of Rheumatology (ACR) criteria, (2) age < 21 years, and (3) ABPM performed. There were 85 patients in the non-SLE cohort (43% female, race and ethnicity unknown). The inclusion criteria for the non-SLE cohort included: (1) age < 21 years and (2) ABPM performed. Exclusion criteria for both cohorts: (1) ABPM uninterpretable due to incomplete/missing data, (2) casual BP measurements all < 90th or all > 99th percentile for age, gender, and height, +5 mmHg (3) end stage renal disease, or (4) kidney transplant recipient. The mean age at ABPM for the non-SLE cohort was 12.4 ± 0.4 years, and the mean BMI was 25.1 ± 0.8 kg/m2 using the Mosteller formula. The study protocol was reviewed and approved by the Institutional Review Board for Baylor College of Medicine (H-32061).

Table 1. Pediatric SLE Cohort Demographics.

Patient CharacteristicsValues (n=10)
Age at ABPM (years)14.6 ± 0.3
Age at SLE Diagnosis (years)12.4 ± 1.0
BMI (kg/m2)25.1 ± 1.1
SLE ACR criteria met5.8 ± 0.4
Gender (% female)9 (90)
Race
   African American (%)4 (40)
   Hispanic (%)3 (30)
   Caucasian (%)3 (30)
Laboratory Findings (within 3 months
of ABPM)
eGFR (ml/min/1.73 m2)133 ± 6.2
C3 (mg/dL)83.4 ± 9.5
Sed Rate (mm/hr)58.7 ± 16.2
Hgb (g/dL)11.8 ± 0.5
Elevated CRP (%)1 (10)
Proteinuria (%)2 (20)
Positive ANA (%)10 (100)
Positive Anti-DS DNA Antibody (%)9 (90)
Positive Anti-phospholipid Antibody (%)9 (90)
Medications (at time of ABPM)
Prednisone dose (mg/kg/day)0.313 ± 0.07
IV corticosteroids (%)3 (30)
Hydroxychloroquine (%)9 (90)
Mycophenolate mofetile (%)3 (30)
Methotrexate (%)1 (10)
Azathioprine (%)1 (10)
Aspirin (%)7 (70)
ACE inhibitor (%)1 (10)

Participants. As this study was a retrospective chart review, there were no dropouts.

Sample size. As this was a pilot study, the sample size was not determined by formal power analysis. There were 11 consecutive SLE patients and 100 consecutive non-SLE patients with ABPM data identified, but 1 and 15 patients, respectively did not qualify based on the inclusion and exclusion criteria.

Blinding. All interpretation of ABPM data was performed at the time of clinical testing, prior to inception of the study. There was no formal blinding of ABPM data during the data analysis or sensitivity analysis phases.

Ambulatory Blood Pressure Monitoring

24-hr ABPM was performed using SpaceLabs 90217-1Q or 90217A-1 equipment. SpaceLabs Medical Software (version 90219) was used to evaluate the BP patterns. BP measurements were automatically measured every 20 minutes during the daytime and every 30 minutes during the nighttime over a 24-hr period. Mean diastolic and systolic BPs were calculated for both daytime and nighttime periods and compared to normative data for mean BPs based on age and gender (Wühl et al., 2002). BP loads were calculated for both diastolic and systolic BP, reflecting the percentage of BP measurements above the 95th percentile for gender and age. Blood pressure loads >25% were considered abnormal (Urbina et al., 2008). Additionally, nocturnal dipping of BP was defined as the difference between daytime and nighttime BPs. Nocturnal dipping <10% was considered abnormal (Urbina et al., 2008). American Heart Association (AHA) definitions were used to define normal blood pressure, masked, white-coat and sustained HTN (Flynn, 2011).

Clinical data

Demographic and clinical data was collected from medical records for the SLE cohort. Demographic data included race and age at diagnosis. Clinical data (from within 3 months of ABPM date) included height, weight, BMI, laboratory results, eGFR using the Schwartz formula (Schwartz et al., 2009), presence of proteinuria, medications at the time of ABPM, echocardiogram findings including left ventricular hypertrophy (LVH), left ventricular mass index (LVMI), and relative wall thickness (RWT), ACR criteria for SLE, and SLEDAI score (Systemic Lupus Erythematosus Disease Activity Index). Demographic information for the non-SLE cohort was obtained from the SpaceLabs software, including age at the time of ABPM, gender, height, and weight.

Statistical analysis

Statistical analysis was performed using SigmaPlot software (version 11.0). Patient characteristics and ABPM findings were analyzed using descriptive statistics (medians, and intra-quartile ranges). Fisher exact and Wilcoxon rank sum tests were used to characterize patient demographics and BP patterns. Statistical significance was defined as p-value ≤0.05 (two tailed).

Results

Patient and clinical characteristics

The study population consisted of ten patients, all of whom met ACR diagnostic criteria for SLE (Patient demographics in Table 1). Whereas 60% had a history of lupus nephritis, none were currently being treated for active kidney disease. At the time of ABPM, mean age of the SLE cohort was 14.6 years. The mean BMI was 25.1 kg/m2. Nine patients were female. Three SLE patients were Hispanic, three were Caucasian, and four were African American. The non-SLE control population consisted of 85 age- and BMI-matched pediatric patients with casual BP measurements between 90–99th percentile without kidney disease or diabetes.

Case #BP DiagnosisABPM DateAge at ABPMSBP loadDBP loadSBP AverageDBP AverageWake SBP loadWake DBP loadWake SBP AverageWake DBP AverageSleep SBP loadSleep DBP loadSleep SBP AverageSleep DBP AverageSBP DipDBP DipAttenuated DippingNocturnal HTNWake Sleep Method Adequate #/% ReadingsAge at SLE DiagnosisSLE VintageRaceGenderHeightWeightBMIeGFR (Schwartz formula)ProteinuriaHgbESRCRPtotal CholesterolLDLHDLTriglyceridesC3ANAAnti-double stranded DNA AbAnti-phospholipid antibodies Steroid dose with IV pulseOral Prednisone (mg/kg/day)AZAMMFHCQMTXRTXACEI/ARBaspirinLVH on echoLVMI on echoRWT on echoMalar RashDiscoid RashPhoto-sensitivity Mouth SoresSerositisArthritisRenal diseaseNeurologic diseaseHematologic diseaseAntinuclear antibodyImmunologic disease# SLEACR CriteriaOSA based on sleep study
1hypertension2/4/20121468%60%1318260%50%13183100%100%128792.3%4.9%YesYesreportedYesBased on 95%ile 140African AmericanFemale1.575321.5153Yes9.1121NormalN/AN/AN/AN/A471280YesYes00.79NoNoYesNoNoNoNoNo39.20.52YesNoYesNoYesYesYesNoYesYesYes8No
2masked HTN8/21/2012146%61%116780%61%1208312%62%111707.6%15.7%YesYesreportedYesBased on 95%ile 59African AmericanMale1.454722.4169No13.15NormalN/AN/AN/AN/A1061280YesYes00.11NoYesYesNoNoNoYesN/AN/AN/AYesNoNoYesYesYesNoNoYesYesYes7No
3normotension2/19/20131718%6%1226812%8%1267236%0%1135710.4%20.9%NoYesreportedYesBased on 95%ile 143African AmericanFemale1.537331.2114No9.979HighN/AN/AN/AN/A441280YesYesx1, 3 weeks prior0.14NoYesYesNoNoNoYesN/AN/AN/ANoNoNoNoYesYesYesNoYesYesYes6No
4normotension3/13/20121520%19%113679%15%1167135%23%109626.1%12.7%YesYesreportedYesBased on 95%ile 141HispanicFemale1.586224.8132No12.719NormalN/AN/AN/AN/A126640YesYesweekly0.49NoNoNoNoNoNoNoN/AN/AN/ANoNoYesYesNoNoYesNoYesYesYes6No
5normotension4/17/20121519%17%115690%3%1137064%50%11968-5.3%2.9%YesYesdefaultYesBased on 95%ile 141HispanicFemale1.546728.3109No13.6N/AN/A1747944253501280YesYes00.46NoNoYesNoNoNoYesN/AN/AN/AYesNoNoNoNoYesYesYesNoYesYes6No
6normotension5/23/2012157%3%109630%3%1106815%4%109581.0%14.8%YesNoreportedYesBased on 95%ile 150CaucasianFemale1.637628.6137Yes10.3122Normal1166614261901280YesNoweekly0.41NoYesYesNoNoNoNoNo35.250.40NoNoNoYesNoNoYesNoYesYesYes5No
7normotension8/21/2012140%0%101540%0%103580%0%97485.9%17.3%YesNoreportedYesBased on 95%ile 86CaucasianFemale1.444119.8131No11.4N/ANormalN/AN/AN/AN/A751280YesYes00.09NoNoYesNoNoNoYesN/AN/AN/AYesNoYesYesNoYesNoNoNoYesYes6No
8normotension3/13/20121426%25%1187112%17%1197363%44%115673.4%8.3%YesYesdefaultYesBased on 95%ile 131CaucasianFemale1.66425.0114No13.325NormalN/AN/AN/AN/A861280YesYes00.31YesNoYesNoNoYesYesN/AN/AN/AYesNoNoNoNoYesYesNoYesYesYes6No
9white coat1/31/2013133%6%106600%4%109628%8%101557.4%11.3%YesNodefaultNoBased on 95%ile 121African AmericanFemale1.596525.7129No12.640NormalN/AN/AN/AN/A1061280YesYes00.09NoNoYesNoNoNoYesN/AN/AN/ANoNoNoNoNoYesNoNoYesYesYes4No
10normotension4/12/2013152%4%106590%3%107628%8%102544.7%13.0%YesNoreportedYesBased on 95%ile 150HispanicFemale1.636323.7142No11.9N/AN/AN/AN/AN/AN/A1041280NoNo00.24NoNoYesYesNoNoYesNo42.860.39NoNoNoYesNoYesNoNoNoYesYes4No
Dataset 1.Raw ABPM Data for pSLE Cohort.
File contains the coded ambulatory blood pressure monitoring data for the pediatric SLE cohort abstracted from Space Labs software, using the default 95th percentile cutoff to distinguish normal versus high BP values. ABPM data was matched to demographic, clinical, and laboratory data abstracted from the electronic medical record. N/A (not available) indicates that data was sought but testing was not performed. BMI = body mass index, eGFR = estimated glomerular filtration rate, Hgb = hemoglobin, ESR = erythrocyte sedimentation rate, CRP = Creactive protein, LDL = low density lipoprotein, HDL = high density lipoprotein, ANA = anti-nuclear antibody, AZA = azathioprine, MTX = methotrexate, RTX = rituximab, ACEI = Angiotensin-converting enzyme inhibitor, ARB = angiotensin receptor blocker, LVH = left bentricular hypertrophy, LVMI = left ventricular mass index, RWT = right wall thickness, OSA = obstructive sleep apnea (Dataset 1: Campbell et al., 2015a).
Case #AgeDiagnosisSBP loadDBP loadSBP AverageDBP AverageWake SBP loadWake DBP loadWake SBP AverageWake DBP AverageSleep SBP loadSleep DBP loadSleep SBP AverageSleep DBP AverageSBP DipDBP DipNocturnal HTNAttenuated?Wake Sleep Method Low Success # Readings% sucessfulHeightWeightBMIGender
111Hypertension54%44%1277767%56%1358414%7%1095819.30%31.00%NoNodefaultNo57921.606726.2M
213Hypertension23%39%1247327%38%128757%33%1126412.60%14.70%YesNoreportedNo56901.665419.6M
314White Coat7%7%110570%6%1105930%10%11152-0.90%11.90%YesYesreported Yes45321.8111033.6M
516White Coat16%8%1226517%11%1307014%0%1065418.50%22.90%NoNoreportedNo49771.757624.8M
69normotension9%11%111688%13%1167411%6%1025712.10%23.00%NoNoreportedNo57921.435426.4F
717White Coat10%15%122740%14%1247933%17%118654.90%17.80%YesYesreportedYes41651.928523.1M
816White Coat2%5%115663%8%120710%0%1035514.20%22.60%NoNoreportedNo56921.725919.9F
912hypertension26%4%1206031%3%1276410%10%1044918.20%23.50%NoNoreportedYes46611.596324.9M
105normotension2%32%108723%22%113760%53%986513.30%14.50%YesNoreportedNo53461.112016.2M
1119White Coat2%7%117780%11%123836%0%1076913.10%16.90%NoNoreportedNo55891.525021.6F
1315White Coat9%21%116669%27%129758%12%1025621.00%25.40%NoNoreportedNo58421.715819.8M
1417Hypertension42%37%1308144%53%1399240%16%1206913.70%25.00%YesNoreportedNo 57931.544117.3M
1511White Coat14%15%1066418%15%111670%15%945715.40%15.00%NoNoreportedNo52841.558535.4F
1617normotension12%2%1216813%3%127758%0%1085415.00%28.00%NoNoreportedNo51771.838324.8M
1711normotension30%16%1166912%3%1146880%53%12071-5.20%-4.40%YesYesdefaultNo57631.737023.4M
1815normotension14%14%123667%0%1256825%38%120644.10%5.90%YesYesdefaultYes44721.829227.8M
1912normotension12%35%113705%27%1147027%53%110713.60%-1.40%YesYesdefaultNo52841.649836.4M
2016White Coat0%4%112600%3%117640%8%1035312.00%17.20%NoNoreportedNo49791.826720.2M
2111normotension11%6%113639%5%1166615%10%105579.50%13.70%NoYesreportedNo128911.537130.3F
229Hypertension32%20%1166836%21%1237426%17%1086012.20%19.00%NoNoreportedNo56901.536326.9M
239Hypertension44%28%1197142%22%1227448%38%115655.80%12.20%YesYesreportedNo57831.395126.4F
246normotension31%6%1146725%3%1177147%13%108617.70%14.10%YesYesreportedNo51821.272515.5F
2516White Coat2%7%115600%7%123676%6%1055014.70%25.40%NoNoreportedYes44591.8116149.1M
2610normotension31%45%1177421%17%1217641%70%113726.70%5.30%YesYesreportedNo51821.477434.2M
2716White Coat5%16%119673%9%126718%33%1085914.30%17.00%YesNoreportedYes44701.718027.4M
2811Hypertension67%32%1287376%36%1367940%20%1116018.40%24.10%YesNoreportedNo57901.585522.0M
296normotension0%4%99630%3%101670%6%94567.00%16.50%NoYesreportedNo50601.213121.2F
3015normotension2%11%116670%8%120737%20%1085610.10%23.30%NoNoreported No55861.696623.1M
3116hypertension15%26%1167218%30%122797%13%1045814.80%26.60%NoNodefaultNo55891.527231.2F
325Hypertension70%71%1268590%88%14210032%41%1056526.10%35.00%YesNodefaultNo63951.011615.7F
336normotension6%6%1026510%10%106700%0%945411.40%22.90%NoNoreported Yes47611.141914.6F
347White Coat5%5%102590%5%106649%5%99556.70%14.10%NoYesreportedYes42661.283219.5F
3515hypertension14%23%1127119%32%121785%5%965620.70%28.30%NoNoreported No56881.595019.8F
3716Hypertension71%24%1337080%30%1417747%7%1145519.20%28.60%YesNoreportedNo59941.696823.8F
3813Hypertension38%2%1225945%3%1346825%0%1074820.20%29.50%NoNoreportedYes45701.758427.4M
396Hypertension57%77%1218666%89%1269231%44%1127111.20%22.90%YesNoreportedNo60941.192215.5F
428hypertension29%12%1156630%13%1197028%11%108619.30%12.90%NoYesdefaultYes41651.436732.8M
436Hypertension44%33%1187350%42%1257935%18%1086313.60%20.30%YesNoreported Yes43431.173324.1F
448normotension10%2%1096113%3%113650%0%964615.10%29.30%NoNoreported No49741.425527.3F
458Hypertension36%11%1186739%13%1207120%0%1065011.70%29.60%NoNoreportedYes28361.282917.7F
4616Hypertension22%33%1297321%40%1348027%13%1195711.20%28.80%NoNoreportedNo58591.746722.1M
4813Hypertension86%57%1367890%54%1418277%65%1267110.70%13.50%YesNoreportedNo58911.596224.5F
4916White Coat2%5%115642%5%120690%6%1055612.60%18.90%NoNodefaultNo621001.8010331.8M
508Hypertension65%45%1237665%47%1288267%40%1146711.00%18.30%YesNoreported Yes49711.404422.4F
516hypertension69%21%1176450%20%1187279%21%116591.70%18.10%YesYesreportedYes29461.182316.5F
525white coat3%6%108634%4%112660%8%1005810.80%12.20%NoNoreportedYes36471.192215.5F
5313hypertension38%23%1276952%28%1387716%16%1125918.90%23.40%NoNoreportedYes48611.606927.0M
5417white coat2%2%114702%2%120770%0%1015515.90%28.60%NoNodefaultNo56901.655319.5F
5617hypertension47%26%1327850%38%1398640%0%1186015.20%30.30%YesNoreportedNo47771.657226.4F
5714normotension10%30%120723%23%1217430%50%119671.70%9.50%YesYesdefaultYes40601.6210439.6M
5813white coat4%16%104644%12%112736%20%1006010.80%17.90%NoNoreportedNo74701.628432.0F
6016white coat4%6%115632%5%119677%7%1055511.80%18.00%NoNoreportedNo55891.797222.5M
6216normotension9%30%122759%23%125788%54%113669.60%15.40%YesYesreportedNo57921.786018.9M
6418hypertension49%33%1307744%39%1338163%19%124706.80%13.60%YesYesdefaultNo55821.7811536.3M
6611hypertension29%33%1177234%30%1227719%38%110649.90%16.90%YesYesreportedYes49421.544117.3F
6714hypertension25%64%1177821%62%1248530%67%1107211.30%15.30%YesNoreportedNo56811.606826.6F
686normotension12%22%107698%8%1066920%50%10870-1.80%-1.40%YesYesreportedNo60971.232013.2F
6916hypertension35%43%1347734%45%1428439%39%1196416.20%23.90%YesNodefaultNo51821.7411237.0M
7114hypertension59%23%1276966%27%1347540%13%1145615.00%25.40%YesNoreportedNo56891.706622.8F
728hypertension53%23%1216932%16%1227087%33%119662.50%5.80%YesYesreportedYes40651.374926.1M
739white coat5%2%106594%2%110636%0%975111.90%19.10%NoNoreportedNo64931.384724.7F
7512hypertension54%26%1287059%32%1347739%8%1155314.20%31.20%YesNoreportedNo57861.688630.5M
779white coat20%2%1146021%3%1216618%0%1055213.30%21.30%NoNoreportedNo46791.364725.4M
788normotension6%25%1046810%26%108730%24%99618.00%17.00%NoYesdefaultNo48791.40199.7M
7917hypertension39%12%1347244%18%1458028%0%1175919.40%26.30%NoNoreportedNo52371.677526.9M
8017white coat23%2%1226425%3%1306915%0%1025221.60%24.70%NoNoreportedNo53851.8811933.7M
8110hypertension57%25%1247061%37%1307950%0%1145412.40%31.70%YesNoreportedNo56861.523816.4F
8216white coat2%5%112634%7%118690%0%1025113.60%26.10%NoNoreportedYes41671.678129.0M
8313normotension13%7%1206713%8%1277213%6%1085615.00%22.30%NoNoreportedNo55901.524218.2M
8416normotension39%22%1346829%14%1357156%33%131643.00%9.90%YesYesreportedYes23371.7611637.4M
8514hypertension29%31%1287118%32%1327650%29%122627.60%18.50%YesYesreportedYes42681.7513243.1M
869normotension3%7%102620%6%104668%8%97576.80%13.70%NoYesreportedYes29471.262817.6F
8716White Coat4%21%119702%12%126757%50%1076215.10%17.40%YesNoreportedNo56891.729632.4M
8817White Coat9%11%123777%12%1278120%10%1116412.60%21.00%NoNoreportedNo53781.705820.1M
898White Coat30%22%1147024%7%1187444%56%1066310.20%14.90%YesNoreported No60971.424321.3F
9014hypertension19%44%1207324%57%130816%18%1035820.80%28.40%NoNoreportedNo54901.7710031.9M
919White Coat7%9%109645%13%1147011%0%1015411.50%22.90%NoNoreportedNo57891.384624.2F
9212hypertension67%39%1387767%44%1418267%27%130687.90%17.10%YesYesdefaultNo54761.675921.2M
9313White Coat18%21%1167120%17%119749%36%1066211.00%16.30%YesNoreportedNo57841.647527.9F
9415hypertension32%3%1206538%4%1256914%0%1095612.90%18.90%NoNoreportedYes31501.8814641.3F
9514white coat7%2%120627%0%124668%8%1105411.30%18.20%NoNodefaultYes41731.787724.3M
9615White Coat7%7%119669%7%128690%7%1005921.90%14.50%NoNoreportedNo60951.676322.6M
9711White Coat18%11%1156417%3%1226919%19%1096010.70%13.10%NoNoreportedNo56891.414120.6M
9815white coat7%7%116640%5%1177027%13%113553.50%21.50%NoYesreportedNo54791.777624.3M
Dataset 2.Raw ABPM Data for non-SLE Cohort.
File contains the coded ambulatory blood pressure monitoring data and matched demographic data for the non-SLE pediatric cohort abstracted from Space Labs software, using the default 95th percentile cutoff to distinguish normal versus high BP values. Age is in years, BMI = body mass index (Dataset 2: Campbell et al., 2015b).

All of the SLE patients were antinuclear antibody (ANA) positive, nine were anti-double stranded DNA (anti-dsDNA) antibody positive, and nine tested positive for anti-phospholipid antibodies (aPL). Three SLE patients had echocardiograms and none had sonographic evidence of left ventricular hypertrophy based on adult criteria (LVMI 35.3, 39.2, and 42.9 g/m^2.7, with RWT of 0.40, 0.52, and 0.39). Two patients had proteinuria based on the SLE ACR definition (>0.5 g/day) at the time of ABPM. Among the seven patients with lab values available, the mean ESR was elevated at 58.71 mm/hr (normal <20) and the mean C3 was slightly low at 83.4 mg/dL (normal 90–200).

All SLE patients were prescribed prednisone at the time of ABPM with a mean dose of 0.31 ± 0.08 mg/kg/day. Three patients also received intravenous (IV) pulse steroids within the 3 months prior to ABPM. Two received weekly doses of IV solumedrol (30mg/kg/dose) and the third received a one-time dose in the week prior to ABPM placement. At the time of ABPM, only one was prescribed an ACE-inhibitor, and none were prescribed diuretics or any other anti-hypertensive. No one was treated with rituximab within the 2 years prior to the ABPM, though one patient did receive Rituximab following ABPM. The SLE patients met a median of six SLE ACR criteria for diagnosis of SLE. Five patients met criteria for malar rash; three met criteria for photosensitivity; five had mouth sores; three experienced serositis; eight had arthritis; six had renal involvement; seven met hematologic criteria; nine met immunologic criteria; and one met neurologic criteria. No patients were noted with a documented discoid rash.

ABPM findings

SLE patients tended to have lower daytime systolic blood pressure (SBP) and diastolic blood pressure (DBP) loads and higher nighttime systolic BP loads as compared to the non-SLE patients, and the decreased median SBP load was statistically significant (Table 2). Nighttime SBP and DBP loads were higher in SLE patients with a history of nephritis than in non-renal lupus patients, even though the nephritis was in remission at time of ABPM. The SLE cohort also showed a significantly higher rate of attenuated nocturnal dipping in both SBP and DBP, when compared to the non-SLE cohort (Figure 1). Ninety percent of SLE patients had attenuated nocturnal dipping compared to only 26% of non-SLE patients. SLE patients also had a higher rate of nocturnal HTN, whether in isolation or in conjunction with daytime HTN.

Table 2. Higher rates of Attenuated Systolic and Diastolic BP Dipping and Nocturnal Hypertension in Children with SLE.

Median Load* (%)SLENon-SLEp-valueNon-renal lupusLN in remission
24 hr SBP12.5180.22220
24 hr DBP 11.5160.45518
Daytime SBP 0180.01011
Daytime DBP 6130.25312
Nighttime SBP 25180.36850
Nighttime DBP 15.5130.59834
Median BP Dipping (%)SLENon-SLEp-valueNon-renal lupusLN in remission
Systolic 5.311.90.00173
Diastolic 12.918.50.0031411
BP Diagnosis* (%)SLENon-SLEp-valueNon-renal lupusLN in remission
Daytime and Nighttime Hypertension 20290.492517
Daytime Hypertension ( ± nighttime) 20420.102517
Daytime Hypertension only 0170.2000
Nighttime Hypertension (± daytime) 60390.512583
Nighttime Hypertension only 40210.45067
Normal Daytime and Nighttime BP 40300.747517
Attenuated Nocturnal Dipping 9026< 0.00110083

* based on definition of elevated BP as exceeding the 95th%tile for age and gender (Wuhl, 2002)


Figure 1. Attenuated BP dipping and trends toward less daytime and more nighttime HTN in pediatric SLE.

Box plots indicate median, 10th, 25th, 75th, and 90th percentile data, based on Wilcoxon Analysis. Dots indicate the outliers. Differences in %SBP dipping (p = 0.001) and %DBP dipping (p = 0.003) and daytime SBP load (p = 0.01) were statistically significant whereas differences in nighttime SBP load (p = 0.36) and DBP load (p = 0.59) failed to reach significance.

Specifically, only two SLE patients met ABPM criteria for both daytime and nighttime HTN; however four additional patients had isolated nocturnal HTN with normal daytime BPs. All of these patients had a history of nephritis. Nine of the SLE patients had attenuated nocturnal dipping, regardless of HTN diagnosis. Of the nine SLE patients with attenuated nocturnal dipping, two had proteinuria at the time of ABPM. The one patient with normal dipping had no proteinuria.

Relationships between ABPM findings and clinical characteristics

There were no statistically significant associations between most laboratory measures (complement 3 (C3), ANA, anti-dsDNA antibodies, aPL antibodies) and nocturnal HTN or attenuated nocturnal dipping. The two patients without aPL antibodies did not have nocturnal HTN, though they did have attenuated dipping (Table 3). The one patient who had normal nocturnal dipping was African American, had the highest BMI, low C3 levels, a SLEDAI score of 4, received a dose of pulse steroid within 3 weeks of ABPM, and met more than six SLE ACR criteria. She did have nocturnal and masked HTN. There were no obvious associations between ABPM findings and the presence of specific historical ACR criteria for SLE; however, this study is underpowered to perform formal statistical analysis. Of the six SLE patients who historically met diagnostic criteria for kidney disease, five had nocturnal HTN, while only one of the four patients without a history of nephritis had nocturnal HTN. Moreover, five of the six with a history of nephritis and all four of the non-renal SLE patients had attenuated nocturnal dipping.

Table 3. Individual ABPM and Clinical Laboratory Data for Pediatric SLE Cohort*.

#BP
Diagnosis
Age at
ABPM
Wake
SBP
load
Wake
DBP
load
Sleep
SBP
load
Sleep
DBP
load
SBP
Dip
DBP
Dip
Attenuated
Dipping
Nocturnal
HTN
BMIeGFRC3DNA
Ab
aPL
Ab
SLEDAI
Score
# ACR
criteria
met
1HTN1460%50%100%100%2%5%YesYes2215347YesYes158
2masked HTN140%61%12%62%8%16%YesYes22169106YesYes47
3normotension1712%8%36%0%10%21%NoYes3111444YesYes46
4normotension159%15%35%23%6%13%YesYes25132126YesYes46
5normotension150%3%64%50%-5%3%YesYes2810950YesYes106
6normotension150%3%15%4%1%15%YesNo2913790YesNo45
7normotension140%0%0%0%6%17%YesNo2013175YesYes86
8normotension1412%17%63%44%3%8%YesYes2511486YesYes86
10normotension150%3%8%8%5%13%YesNo24142104NoNo64
9white coat130%4%8%8%7%11%YesNo26129106YesYes44

* based on definition of elevated BP as exceeding the 95th%tile for age and gender (Wuhl, 2002)

There was also no significant difference in attenuated nocturnal dipping between SLE patients who received pulse corticosteroids within 3 months of ABPM and those who had not. Of the three patients who received pulse steroids, two had nocturnal HTN and one did not. Finally, there were no statistically significant association between use of specific immunosuppressive medication usage (azathioprine, mycophenolate mofetile, hydroxychloroquine, methotrexate) and either nocturnal HTN or attenuated nocturnal dipping. The patient who was on an ACE inhibitor at the time of ABPM did have attenuated nocturnal dipping and nocturnal HTN.

Attenuated dipping was not associated with disease duration. The patient with the longest SLE vintage (9 years from SLE diagnosis to time of ABPM) had both nocturnal HTN and attenuated nocturnal dipping, but the three patients with the shortest disease duration (<1 year from SLE diagnosis to time of ABPM) all had attenuated dipping.

The two SLE patients with daytime HTN also had nocturnal HTN and attenuated nocturnal dipping. They were both African American and one was the only male in the cohort. One patient’s disease duration was 9 years whereas the other was diagnosed in the past year. The patient with disease duration of < 1 year was on a higher oral steroid dose and had proteinuria and low C3 level. They both met more than six ACR diagnostic criteria.

All four of the patients with normal nocturnal BPs still had attenuated nocturnal dipping. Three of these patients’ disease duration was ≤ 1 year while the fourth was 6 years. Their SLEDAI scores ranged from 4–8 at the time of ABPM ± 10 days.

Sensitivity analysis

To determine whether disease-specific BP parameters might be influenced by the thresholds used to define hypertension during analysis of the ABPM data, a sensitivity analysis was performed. Since all patients in our pediatric SLE cohort lacked active nephritis and heart disease, a 95% cutoff was used to distinguish normal versus high BP. To test whether using a 90% cutoff would alter the results, all SLE patient ABPM data was re-interpreted. The data was also reanalyzed using BP loads of >30% (per institutional protocol) rather than 25% (Urbina et al., 2008) to define HTN. In addition, to test if the quality of the ABPM data affected the findings, the comparison between cohorts was repeated after ABPM tests were discarded if either <75% of attempted BP measurements were successful, <50 total measurements were successful, or both. Finally, since 90% of the SLE cohort was female, comparisons were made to the non-SLE controls after eliminating ABPM data from males in the non-SLE cohort. Results showed that decrease in prevalence of daytime SBP load in the SLE cohort lost significance using a 90% cutoff, whereas the increase in incidence of nocturnal HTN became significant using BP loads >30% to define hypertension (Figure 2). The attenuation of nighttime BP dipping in the SLE cohort and all other ABPM findings were not significantly altered by any of the changes.

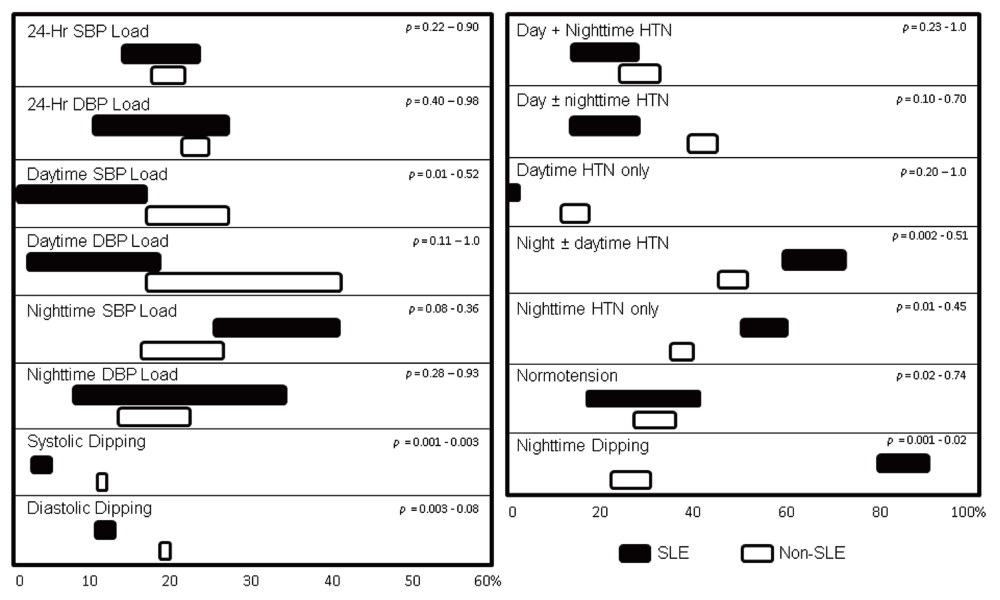

Figure 2. No major effects of methods for ABPM interpretation on results in SLE cohort.

Boxes represent the range of medians (left) or means (right) obtained from sensitivity analysis. Analyses were repeated comparing non-SLE to SLE cohort, using either 90th or 95th percentiles, and 25% or 30% load, in the definition for hypertension, and by restricting dataset to only include ABPM findings when success rates of measurements were >75%, when >50 total successful measurements were recorded, or both. Ranges of p-values are indicated.

Case #AgeDiagnosisSBP loadDBP loadSBP AverageDBP AverageWake SBP loadWake DBP loadWake SBP AverageWake DBP AverageSleep SBP loadSleep DBP loadSleep SBP AverageSleep DBP AverageSBP DipDBP DipNocturnal HTNAttenuated?Wake Sleep Method Low Success # Readings% sucessful
111Hypertension54%44%1277767%56%1358414%7%1095819.3%31.0%NoNodefaultNo5792
213Hypertension23%39%1247327%38%128757%33%1126412.6%14.7%YesNoreportedNo5690
69normotension9%11%111688%13%1167411%6%1025712.1%23.0%NoNoreportedNo5792
816White Coat2%5%115663%8%120710%0%1035514.2%22.6%NoNoreportedNo5692
105normotension2%32%108723%22%113760%53%986513.3%14.5%YesNoreportedNo5346
1119White Coat2%7%117780%11%123836%0%1076913.1%16.9%NoNoreportedNo5589
1315White Coat9%21%116669%27%129758%12%1025621.0%25.4%NoNoreportedNo5842
1417Hypertension42%37%1308144%53%1399240%16%1206913.7%25.0%YesNoreportedNo 5793
1511White Coat14%15%1066418%15%111670%15%945715.4%15.0%NoNoreportedNo5284
1617normotension12%2%1216813%3%127758%0%1085415.0%28.0%NoNoreportedNo5177
1711normotension30%16%1166912%3%1146880%53%12071-5.2%-4.4%YesYesdefaultNo5763
1912normotension12%35%113705%27%1147027%53%110713.6%-1.4%YesYesdefaultNo5284
2111normotension11%6%113639%5%1166615%10%105579.5%13.7%NoYesreportedNo12891
229Hypertension32%20%1166836%21%1237426%17%1086012.2%19.0%NoNoreportedNo5690
239Hypertension44%28%1197142%22%1227448%38%115655.8%12.2%YesYesreportedNo5783
246normotension31%6%1146725%3%1177147%13%108617.7%14.1%YesYesreportedNo5182
2610normotension31%45%1177421%17%1217641%70%113726.7%5.3%YesYesreportedNo5182
2811Hypertension67%32%1287376%36%1367940%20%1116018.4%24.1%YesNoreportedNo5790
296normotension0%4%99630%3%101670%6%94567.0%16.5%NoYesreportedNo5060
3015normotension2%11%116670%8%120737%20%1085610.1%23.3%NoNoreported No5586
3116hypertension15%26%1167218%30%122797%13%1045814.8%26.6%NoNodefaultNo5589
325Hypertension70%71%1268590%88%14210032%41%1056526.1%35.0%YesNodefaultNo6395
3515hypertension14%23%1127119%32%121785%5%965620.7%28.3%NoNoreported No5688
3716Hypertension71%24%1337080%30%1417747%7%1145519.2%28.6%YesNoreportedNo5994
396Hypertension57%77%1218666%89%1269231%44%1127111.2%22.9%YesNoreportedNo6094
4616Hypertension22%33%1297321%40%1348027%13%1195711.2%28.8%NoNoreportedNo5859
4813Hypertension86%57%1367890%54%1418277%65%1267110.7%13.5%YesNoreportedNo5891
4916White Coat2%5%115642%5%120690%6%1055612.6%18.9%NoNodefaultNo62100
5417white coat2%2%114702%2%120770%0%1015515.9%28.6%NoNodefaultNo5690
5813white coat4%16%104644%12%112736%20%1006010.8%17.9%NoNoreportedNo7470
6016white coat4%6%115632%5%119677%7%1055511.8%18.0%NoNoreportedNo5589
6216normotension9%30%122759%23%125788%54%113669.6%15.4%YesYesreportedNo5792
6418hypertension49%33%1307744%39%1338163%19%124706.8%13.6%YesYesdefaultNo5582
6714hypertension25%64%1177821%62%1248530%67%1107211.3%15.3%YesNoreportedNo5681
686normotension12%22%107698%8%1066920%50%10870-1.8%-1.4%YesYesreportedNo6097
6916hypertension35%43%1347734%45%1428439%39%1196416.2%23.9%YesNodefaultNo5182
7114hypertension59%23%1276966%27%1347540%13%1145615.0%25.4%YesNoreportedNo5689
739white coat5%2%106594%2%110636%0%975111.9%19.1%NoNoreportedNo6493
7512hypertension54%26%1287059%32%1347739%8%1155314.2%31.2%YesNoreportedNo5786
7917hypertension39%12%1347244%18%1458028%0%1175919.4%26.3%NoNoreportedNo5237
8017white coat23%2%1226425%3%1306915%0%1025221.6%24.7%NoNoreportedNo5385
8110hypertension57%25%1247061%37%1307950%0%1145412.4%31.7%YesNoreportedNo5686
8313normotension13%7%1206713%8%1277213%6%1085615.0%22.3%NoNoreportedNo5590
8716White Coat4%21%119702%12%126757%50%1076215.1%17.4%YesNoreportedNo5689
8817White Coat9%11%123777%12%1278120%10%1116412.6%21.0%NoNoreportedNo5378
898White Coat30%22%1147024%7%1187444%56%1066310.2%14.9%YesNoreported No6097
9014hypertension19%44%1207324%57%130816%18%1035820.8%28.4%NoNoreportedNo5490
919White Coat7%9%109645%13%1147011%0%1015411.5%22.9%NoNoreportedNo5789
9212hypertension67%39%1387767%44%1418267%27%130687.9%17.1%YesYesdefaultNo5476
9313White Coat18%21%1167120%17%119749%36%1066211.0%16.3%YesNoreportedNo5784
9615White Coat7%7%119669%7%128690%7%1005921.9%14.5%NoNoreportedNo6095
9711White Coat18%11%1156417%3%1226919%19%1096010.7%13.1%NoNoreportedNo5689
9815white coat7%7%116640%5%1177027%13%113553.5%21.5%NoYesreportedNo5479
9915hypertension49%51%1287841%43%1308173%73%121707.0%13.6%YesYesreportedNo5977
Mean25.8%23.9%26.2%24.1%24.0%22.7%12.5%19.5%
Stdev22.7%18.2%25.7%21.2%21.7%21.6%5.7%8.2%
SEM3.1%2.5%3.5%2.9%3.0%2.9%0.8%1.1%
p value
Median18.0%21.5%18.5%17.5%17.0%14.0%12.3%19.1%
25th%7.0%7.0%5.0%7.0%7.0%6.0%9.9%14.6%
75th%42.5%33.5%42.5%37.3%40.0%39.5%15.2%25.4%
Dataset 3.Raw Data: Sensitivity Analysis: non-SLE greater than 50 successful readings.
File contains the coded ambulatory blood pressure monitoring data and matched demographic data for the subset of the non-SLE pediatric cohort meeting a more stringent criterion of ABPM data quality, in particular the successful completion of 50 or more BP measurements within the 24-hour monitoring period. ABPM data was abstracted from Space Labs software, using a 90th percentile cutoff to distinguish normal versus high BP values. Age is in years, BMI = body mass index (Dataset 3: Campbell et al., 2015c).
Case #AgeDiagnosisSBP loadDBP loadSBP AverageDBP AverageWake SBP loadWake DBP loadWake SBP AverageWake DBP AverageSleep SBP loadSleep DBP loadSleep SBP AverageSleep DBP AverageSBP DipDBP DipNocturnal HTNAttenuated?Wake Sleep Method Low Success # Readings% sucessful
111Hypertension54%44%1277767%56%1358414%7%1095819.3%31.0%NoNodefaultNo5792
213Hypertension23%39%1247327%38%128757%33%1126412.6%14.7%YesNoreportedNo5690
516White Coat16%8%1226517%11%1307014%0%1065418.5%22.9%NoNoreportedNo4977
69normotension9%11%111688%13%1167411%6%1025712.1%23.0%NoNoreportedNo5792
816White Coat2%5%115663%8%120710%0%1035514.2%22.6%NoNoreportedNo5692
1119White Coat2%7%117780%11%123836%0%1076913.1%16.9%NoNoreportedNo5589
1417Hypertension42%37%1308144%53%1399240%16%1206913.7%25.0%YesNoreportedNo 5793
1511White Coat14%15%1066418%15%111670%15%945715.4%15.0%NoNoreportedNo5284
1617normotension12%2%1216813%3%127758%0%1085415.0%28.0%NoNoreportedNo5177
1912normotension12%35%113705%27%1147027%53%110713.6%-1.4%YesYesdefaultNo5284
2016White Coat0%4%112600%3%117640%8%1035312.0%17.2%NoNoreportedNo4979
2111normotension11%6%113639%5%1166615%10%105579.5%13.7%NoYesreportedNo12891
229Hypertension32%20%1166836%21%1237426%17%1086012.2%19.0%NoNoreportedNo5690
239Hypertension44%28%1197142%22%1227448%38%115655.8%12.2%YesYesreportedNo5783
246normotension31%6%1146725%3%1177147%13%108617.7%14.1%YesYesreportedNo5182
2610normotension31%45%1177421%17%1217641%70%113726.7%5.3%YesYesreportedNo5182
2811Hypertension67%32%1287376%36%1367940%20%1116018.4%24.1%YesNoreportedNo5790
3015normotension2%11%116670%8%120737%20%1085610.1%23.3%NoNoreported No5586
3116hypertension15%26%1167218%30%122797%13%1045814.8%26.6%NoNodefaultNo5589
325Hypertension70%71%1268590%88%14210032%41%1056526.1%35.0%YesNodefaultNo6395
3515hypertension14%23%1127119%32%121785%5%965620.7%28.3%NoNoreported No5688
3716Hypertension71%24%1337080%30%1417747%7%1145519.2%28.6%YesNoreportedNo5994
396Hypertension57%77%1218666%89%1269231%44%1127111.2%22.9%YesNoreportedNo6094
4813Hypertension86%57%1367890%54%1418277%65%1267110.7%13.5%YesNoreportedNo5891
4916White Coat2%5%115642%5%120690%6%1055612.6%18.9%NoNodefaultNo62100
5417white coat2%2%114702%2%120770%0%1015515.9%28.6%NoNodefaultNo5690
5617hypertension47%26%1327850%38%1398640%0%1186015.2%30.3%YesNoreportedNo4777
6016white coat4%6%115632%5%119677%7%1055511.8%18.0%NoNoreportedNo5589
6216normotension9%30%122759%23%125788%54%113669.6%15.4%YesYesreportedNo5792
6418hypertension49%33%1307744%39%1338163%19%124706.8%13.6%YesYesdefaultNo5582
6714hypertension25%64%1177821%62%1248530%67%1107211.3%15.3%YesNoreportedNo5681
686normotension12%22%107698%8%1066920%50%10870-1.8%-1.4%YesYesreportedNo6097
6916hypertension35%43%1347734%45%1428439%39%1196416.2%23.9%YesNodefaultNo5182
7114hypertension59%23%1276966%27%1347540%13%1145615.0%25.4%YesNoreportedNo5689
739white coat5%2%106594%2%110636%0%975111.9%19.1%NoNoreportedNo6493
7512hypertension54%26%1287059%32%1347739%8%1155314.2%31.2%YesNoreportedNo5786
779white coat20%2%1146021%3%1216618%0%1055213.3%21.3%NoNoreportedNo4679
788normotension6%25%1046810%26%108730%24%99618.0%17.0%NoYesdefaultNo4879
8017white coat23%2%1226425%3%1306915%0%1025221.6%24.7%NoNoreportedNo5385
8110hypertension57%25%1247061%37%1307950%0%1145412.4%31.7%YesNoreportedNo5686
8313normotension13%7%1206713%8%1277213%6%1085615.0%22.3%NoNoreportedNo5590
8716White Coat4%21%119702%12%126757%50%1076215.1%17.4%YesNoreportedNo5689
8817White Coat9%11%123777%12%1278120%10%1116412.6%21.0%NoNoreportedNo5378
898White Coat30%22%1147024%7%1187444%56%1066310.2%14.9%YesNoreported No6097
9014hypertension19%44%1207324%57%130816%18%1035820.8%28.4%NoNoreportedNo5490
919White Coat7%9%109645%13%1147011%0%1015411.5%22.9%NoNoreportedNo5789
9212hypertension67%39%1387767%44%1418267%27%130687.9%17.1%YesYesdefaultNo5476
9313White Coat18%21%1167120%17%119749%36%1066211.0%16.3%YesNoreportedNo5784
9615White Coat7%7%119669%7%128690%7%1005921.9%14.5%NoNoreportedNo6095
9711White Coat18%11%1156417%3%1226919%19%1096010.7%13.1%NoNoreportedNo5689
9815white coat7%7%116640%5%1177027%13%113553.5%21.5%NoYesreportedNo5479
9915hypertension49%51%1287841%43%1308173%73%121707.0%13.6%YesYesreportedNo5977
Mean26.4%23.4%27.3%24.2%23.5%21.2%12.8%20.0%
Stdev22.9%18.7%25.9%21.6%20.6%21.5%5.1%7.6%
SEM3.2%2.6%3.6%3.0%2.9%3.0%0.7%1.1%
p value
Median18.0%22.0%19.5%17.0%16.5%13.0%12.5%2010.0%
25th%7.5%7.0%7.3%7.0%7.0%6.0%10.1%14.9%
Dataset 4.Raw Data: Sensitivity Analysis: non-SLE, greater than 75 percent successful.
File contains the coded ambulatory blood pressure monitoring data and matched demographic data for the subset of the pediatric SLE cohort meeting a more stringent criterion of ABPM data quality, in particular the successful completion of 75% or greater of the total attempted BP measurements within the 24-hour monitoring period. ABPM data was abstracted from Space Labs software, using a 90th percentile cutoff to distinguish normal versus high BP values. Age is in years, BMI = body mass index (Dataset 4: Campbell et al., 2015d).
Case #AgeHTNSBP loadDBP loadSBP AverageDBP AverageWake SBP loadWake DBP loadWake SBP AverageWake DBP AverageSleep SBP loadSleep DBP loadSleep SBP AverageSleep DBP AverageSBP DipDBP DipNocturnal HTNAttenuated?Wake Sleep methodLow Success# Readings% successful
114Hypertension77%70%1318271%63%13183100%100%128792.3%4.9%YesYesreportedNo6098Based on 90%ile
214Hypertension13%76%116787%75%1208319%77%111707.6%15.7%YesYesreportedNo5472Based on 90%ile
415normotension25%27%113679%21%1167146%35%109626.1%12.7%YesYesreportedNo5970Based on 90%ile
615normotension19%5%109630%3%1106841%7%109581.0%14.8%YesYesreportedNo5884Based on 90%ile
714normotension4%0%101544%0%103584%0%97485.9%17.3%NoYesreportedNo5181Based on 90%ile
814normotension33%33%1187117%20%1197375%69%115673.4%8.3%YesYesdefaultNo5792Based on 90%ile
317normotension 24%11%1226820%14%1267236%0%1135710.4%20.9%YesNoreportedNo6391Based on 90%ile
Mean27.9%31.7%18.3%27.9%45.9%41.1%5.2%13.5%
Stdev23.6%30.5%24.3%29.3%32.6%41.0%3.3%5.4%
SEM8.9%11.5%9.2%11.1%12.3%15.5%1.2%2.1%
p value0.81970.32790.44310.66940.02190.06510.00190.0661
Median24.0%27.0%9.0%19.5%41.0%35.0%5.9%14.8%
25th%13.0%5.0%4.0%3.0%19.0%0.0%2.3%8.3%
75th%33.0%70.0%20.0%63.0%75.0%77.0%7.6%17.3%
Mann Whitney U Statistic163.00175.00149.50188.50111.00155.0040.0094.00
Dataset 5.Raw Data: Sensitivity Analysis: pSLE greater than 50 successful readings.
File contains the coded ambulatory blood pressure monitoring data and matched demographic data for the subset of the pediatric SLE cohort meeting a more stringent criterion of ABPM data quality, in particular the successful completion of 50 or more BP measurements within the 24-hour monitoring period. ABPM data was abstracted from Space Labs software, using a 90th percentile cutoff to distinguish normal versus high BP values. Age is in years, BMI = body mass index (Dataset 5: Campbell et al., 2015e).
Case #AgeHTNSBP loadDBP loadSBP AverageDBP AverageWake SBP loadWake DBP loadWake SBP AverageWake DBP AverageSleep SBP loadSleep DBP loadSleep SBP AverageSleep DBP AverageSBP DipDBP DipNocturnal HTNAttenuated?Wake Sleep methodLow Success# Readings% successful
114Hypertension77%70%1318271%63%13183100%100%128792.3%4.9%YesYesreportedNo6098Based on 90%ile
515normotension26%21%115693%3%1137079%64%11968-5.3%2.9%YesYesdefaultNo4776Based on 90%ile
615normotension19%5%109630%3%1106841%7%109581.0%14.8%YesYesreportedNo5884Based on 90%ile
714normotension4%0%101544%0%103584%0%97485.9%17.3%NoYesreportedNo5181Based on 90%ile
814normotension33%33%1187117%20%1197375%69%115673.4%8.3%YesYesdefaultNo5792Based on 90%ile
1015normotension2%4%106590%3%107628%8%102544.7%13.0%NoYesreportedNo4980Based on 90%ile
317normotension 24%11%1226820%14%1267236%0%1135710.4%20.9%YesNoreportedNo6391Based on 90%ile
Mean26.4%20.6%16.4%15.1%49.0%35.4%3.2%11.7%
Stdev25.0%24.6%25.4%22.3%36.8%41.2%4.8%6.6%
SEM9.5%9.3%9.6%8.4%13.9%15.6%1.8%2.5%
p value0.99950.71520.29860.29940.00750.15330.00000.0085
Median24.0%11.0%4.0%3.0%41.0%7.7%3.4%13.0%
25th%4.0%4.0%0.0%2.8%7.7%0.0%1.0%4.9%
75th%33.0%33.0%20.0%19.5%79.0%68.8%5.9%17.3%
Mann Whitney U Statistic176.00145.50118.50113.00107.50167.0024.0070.00
Dataset 6.Raw Data: Sensitivity Analysis: pSLE greater than 75 percent successful.
File contains the coded ambulatory blood pressure monitoring data and matched demographic data for the subset of the pediatric SLE cohort meeting a more stringent criterion of ABPM data quality, in particular the successful completion of 75% or greater of the total attempted BP measurements within the 24-hour monitoring period. ABPM data was abstracted from Space Labs software, using a 90th percentile cutoff to distinguish normal versus high BP values. Age is in years, BMI = body mass index (Dataset 6: Campbell et al., 2015f).
Case #AgeBMIGenderHTNSBP loadDBP loadSBP AverageDBP AverageWake SBP loadWake DBP loadWake SBP AverageWake DBP AverageSleep SBP loadSleep DBP loadSleep SBP AverageSleep DBP AverageSBP DipDBP DipNocturnal HTNAttenuated?Wake Sleep methodLow Success# Readings% successful
11421.501Hypertension77%70%1318271%63%13183100%100%128792.3%4.9%YesYesreportedNo6098Based on 90%ile
21422.352Hypertension13%76%116787%75%1208319%77%111707.6%15.7%YesYesreportedNo5472Based on 90%ile
31731.181normotension 24%11%1226820%14%1267236%0%1135710.4%20.9%YesNoreportedNo6391Based on 90%ile
41524.841normotension25%27%113679%21%1167146%35%109626.1%12.7%YesYesreportedNo5970Based on 90%ile
51528.251normotension26%21%115693%3%1137079%64%11968-5.3%2.9%YesYesdefaultNo4776Based on 90%ile
61528.601normotension19%5%109630%3%1106841%7%109581.0%14.8%YesYesreportedNo5884Based on 90%ile
71419.771normotension4%0%101544%0%103584%0%97485.9%17.3%NoYesreportedNo5181Based on 90%ile
81425.001normotension33%33%1187117%20%1197375%69%115673.4%8.3%YesYesdefaultNo5792Based on 90%ile
91325.711white coat3%6%106600%4%109628%8%101557.4%11.3%NoYesdefaultYes3551Based on 90%ile
101523.711normotension2%4%106590%3%107628%8%102544.7%13.0%NoYesreportedNo4980Based on 90%ile
Dataset 7.Raw Data: Sensitivity Analysis: pSLE using 90th percentile.
File contains the coded ambulatory blood pressure monitoring data and matched demographic data for the entire pediatric SLE cohort abstracted from Space Labs software, using a looser 90th percentile cutoff to distinguish normal versus high BP values. The 90th percentile cutoff is commonly used to distinguish normal versus high BP values from casual BP measurements in populations at high risk for cardiovascular events, such as in individuals with congestive heart failure, diabetes, and chronic kidney disease. Age is in years, BMI = body mass index (Dataset 7: Campbell et al., 2015g).

Discussion/Conclusions

This study illustrates the potential benefit for further investigation of ABPM use in characterizing BP patterns in SLE patients. Our results show that pediatric SLE patients have a very high rate of attenuated nocturnal SBP and DBP dipping. This was associated with higher rates of nocturnal HTN (whether isolated or in conjunction with daytime HTN), though with standard ABPM-based definitions, this was not statistically significant. A previous study of subclinical cardiovascular disease in pediatric SLE patients reported similar findings with 14 of 21 patients having attenuated nocturnal dipping and higher nocturnal BPs when compared to daytime BPs (Canpolat et al., 2013). However the prior study’s primary focus was cardiovascular risk. There was no control group, and the relationships between ABPM findings and clinical characteristics tested were limited to echocardiogram findings. The small number of studies using ABPMs to characterize BPs in other pediatric chronic illnesses, such as sickle cell disease, has been revealing. This is the first study to investigate the relationship between BP characteristics on ABPM and clinical characteristics in the pediatric SLE population.

SLE patients are at increased risk for death and cardiovascular disease is a leading cause of mortality in this population. This is related to both traditional and non-traditional risk factors in adult patients (Knight & Kaplan, 2013). In a study of 94 adults with SLE, correlations were noted between intima-medial thickness and clinical disease activity scores (Oryoji et al., 2013). Similarly, in a separate study of 64 adults with SLE and nephritis in complete remission, 53% were hypertensive (Shaharir et al., 2015), and the risk factors identified included disease duration (odds ratio (OR) 1.06), longer duration interval to achieving remission (OR 1.10), and the number of disease relapses (OR 2.5). There were no associations between histological classes of nephritis, body mass index, or waist circumference. A study of 51 children with SLE also demonstrated that functional and morphological cardiovascular changes were independent of traditional risk factors such as daytime HTN, hypertriglyceridemia, diabetes, and chronic kidney disease (Sozeri et al., 2013). In SLE, these changes in arterial stiffness, intima-media thickness, and LV mass (Canpolat et al., 2013; Oryoji et al., 2013; Sozeri et al., 2013) are likely to be almost entirely secondary to non-traditional factors, such as disease-related mechanisms like enhanced apoptosis, aPL antibodies, circulating immune complexes, and vasculitis.

Therefore it is important to understand the BP characteristics of these patients, particularly the nocturnal BP patterns, as our study shows that they differ from the general population. There was no effect on this altered ABPM blood pressure pattern in our cohort attributable to medication usage, complement cascade activation and hypocomplementemia, or titers of ANA, aPL antibodies, or anti-dsDNA antibodies. Future studies of ABPM testing in SLE populations can be designed to further assess clinical parameters such as degrees of systemic inflammation, interferon versus neutrophil signatures, or endothelial cell dysfunction, in order to try to understand the possible mechanisms for elevated nocturnal BPs and attenuated nocturnal dipping in SLE patients.

Based on our study, the duration of disease did not seem to play a role in the attenuated dipping, as this pattern was seen even within the first year after SLE diagnosis. Since 90% of SLE patients had attenuated dipping, compared with only 60% of patients meeting criteria for diagnosis of nocturnal hypertension, one might conclude that attenuated nocturnal BP dipping is an earlier change that progresses to nocturnal HTN in the setting of SLE. However, the SLE patient without attenuated dipping did have nocturnal hypertension. Therefore, it is more likely that the disease process in SLE leads to cardiovascular changes sufficient to cause elevated nighttime BP very early in the disease course. If nocturnal HTN or attenuated BP dipping turn out to be pathogenic in SLE, then monitoring for HTN solely with casual daytime clinic measurements may postpone possible interventions that could potentially reduce the increased cardiovascular risk faced by these patients.

One limitation of this study is the small number of patients in the SLE group and the resulting low power. Several findings trended toward significance and might become statistically significant with a larger study population. Second, most patients were taking prednisone at time of ABPM, and our study is unable to address the role of glucocorticoids versus the role of SLE on rhythmicity of BP. The only other study of ABPM in SLE involving a cohort of 10 adult patients from Japan looked before and after prednisolone treatment (Imai et al., 1989). These patients received a mean dose of 40 ± 17 mg/day for 58 ± 19 days between testing. The results showed an attenuated nocturnal dipping after treatment that was not identified beforehand. Therefore, the hypothalamic-pituitary-adrenal axis may also have impacted the results in our pediatric cohort. A previous study of ABPM in patients with Cushing’s Syndrome has shown attenuated nocturnal dipping, compared to control subjects and patients with essential HTN (Piovesan et al., 1990). Moreover, a study of 11 healthy males showed a less pronounced fall in nocturnal SBP after a 4 day course of oral prednisolone (Ivarsen et al., 1995). In a Czech cohort of 60 adults with rheumatoid arthritis, those taking only prednisone and nonsteroidal anti-inflammatories were more often non-dippers, but those taking nonsteroidals, prednisone and methotrexate more often showed excessive nocturnal dipping (Rihacek et al., 2009). Since the pediatric SLE patients described here were taking additional immunomodulatory agents as well as prednisone at time of ABPM, distinguishing the effects of disease and treatment would be difficult.

Although there were a limited number of statistically significant findings, strict inclusion of only SLE patients with prehypertension or stage 1 hypertension, without active nephritis, and most without anti-hypertensive medication, provided for a valid comparison between children with SLE and non-lupus controls. Our study does show that nocturnal HTN and attenuated nocturnal dipping do occur more frequently in pediatric SLE patients than in the non-SLE population. Further research is warranted regarding the association of these findings with other clinical characteristics.

Data availability

F1000Research: Dataset 1. Raw ABPM Data for pSLE Cohort, 10.5256/f1000research.6532.d49239 (Campbell et al., 2015a).

F1000Research: Dataset 2. Raw ABPM Data for non-SLE Cohort, 10.5256/f1000research.6532.d49240 (Campbell et al., 2015b).

F1000Research: Dataset 3. Raw Data: Sensitivity Analysis: non-SLE greater than 50 successful readings, 10.5256/f1000research.6532.d49241 (Campbell et al., 2015c).

F1000Research: Dataset 4. Raw Data: sensitivity analysis: non-SLE, greater than 75 percent successful, 10.5256/f1000research.6532.d49242 (Campbell et al., 2015d).

F1000Research: Dataset 5. Raw Data: Sensitivity Analysis: pSLE greater than 50 successful readings, 10.5256/f1000research.6532.d49257 (Campbell et al., 2015e).

F1000Research: Dataset 6. Raw Data: Sensitivity analysis: pSLE greater than 75 percent successful, 10.5256/f1000research.6532.d49258 (Campbell et al., 2015f).

F1000Research: Dataset 7. Raw Data: Sensitivity analysis: pSLE using 90th percentile, 10.5256/f1000research.6532.d49259 (Campbell et al., 2015g).

Consent

A waiver of consent was obtained from the Institutional Review Board for this study.

Comments on this article Comments (0)

Version 2
VERSION 2 PUBLISHED 23 Jun 2015
Comment
Author details Author details
Competing interests
Grant information
Copyright
Download

Export To
metrics
Views Downloads
F1000Research - -
PubMed Central
Data from PMC are received and updated monthly.
- -
Citations
CITE
how to cite this article
Campbell JF, Swartz SJ and Wenderfer SE. Nocturnal Hypertension and Attenuated Nocturnal Blood Pressure Dipping is Common in Pediatric Lupus [version 2; peer review: 3 approved, 1 approved with reservations]. F1000Research 2015, 4:164 (https://doi.org/10.12688/f1000research.6532.2)
NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.
track
receive updates on this article
Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Reviewer Status: ?
Key to Reviewer Statuses VIEW
ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions
Version 2
VERSION 2
PUBLISHED 23 Nov 2015
Revised
Views
12
Cite
Reviewer Report 30 Nov 2015
Rene VanDeVoorde, Division of Pediatric Nephrology and Hypertension, Cincinnati Children's Hospital Medical Center, Cincinnati, OH, USA
Approved
VIEWS 12
This retrospective study looked at the ambulatory blood pressure monitoring (ABPM) patterns in a small number of pediatric patients with Lupus (SLE) but not nephritis compared to a larger cohort of patients with similar casual blood pressure findings but without ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
VanDeVoorde R. Reviewer Report For: Nocturnal Hypertension and Attenuated Nocturnal Blood Pressure Dipping is Common in Pediatric Lupus [version 2; peer review: 3 approved, 1 approved with reservations]. F1000Research 2015, 4:164 (https://doi.org/10.5256/f1000research.8033.r10970)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Version 1
VERSION 1
PUBLISHED 23 Jun 2015
Views
10
Cite
Reviewer Report 16 Nov 2015
Coral Hanevold, Division of Nephrology, Seattle Children's Hospital, Seattle, WA, USA
Approved
VIEWS 10
Increased risk for cardiovascular disease is a significant cause of long term morbidity of SLE. In this small retrospective study the authors address one of the potential modifiable risk factors for CV disease in this population, hypertension. In this pilot ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Hanevold C. Reviewer Report For: Nocturnal Hypertension and Attenuated Nocturnal Blood Pressure Dipping is Common in Pediatric Lupus [version 2; peer review: 3 approved, 1 approved with reservations]. F1000Research 2015, 4:164 (https://doi.org/10.5256/f1000research.7012.r10968)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Views
18
Cite
Reviewer Report 03 Nov 2015
Joseph Flynn, Division of Nephrology, Seattle Children's Hospital, Seattle, WA, USA
Approved with Reservations
VIEWS 18
The authors present the results of a small retrospective case series of children with systemic lupus studied by Ambulatory Blood Pressure Monitoring (ABPM). Their major finding is that these patients have blunted nocturnal BP dipping, which has been associated with adverse ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Flynn J. Reviewer Report For: Nocturnal Hypertension and Attenuated Nocturnal Blood Pressure Dipping is Common in Pediatric Lupus [version 2; peer review: 3 approved, 1 approved with reservations]. F1000Research 2015, 4:164 (https://doi.org/10.5256/f1000research.7012.r10969)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
  • Author Response 23 Nov 2015
    Scott Wenderfer, Department of Pediatrics, Renal Section, Baylor College of Medicine, Houston, 77030, USA
    23 Nov 2015
    Author Response
    The authors appreciate the detailed and thorough reviews performed by all of the referees, including Dr. Flynn. We have submitted a modified and improved version of the manuscript addressing the comments ... Continue reading
COMMENTS ON THIS REPORT
  • Author Response 23 Nov 2015
    Scott Wenderfer, Department of Pediatrics, Renal Section, Baylor College of Medicine, Houston, 77030, USA
    23 Nov 2015
    Author Response
    The authors appreciate the detailed and thorough reviews performed by all of the referees, including Dr. Flynn. We have submitted a modified and improved version of the manuscript addressing the comments ... Continue reading
Views
9
Cite
Reviewer Report 17 Aug 2015
Joyce Popoola, Department of Renal Medicine and Transplantation, St George, London, UK
Approved
VIEWS 9
This is a retrospective study looking at nocturnal blood pressure dips in paediatric patients with lupus. It is descriptive in nature and looks at small numbers as it is a single centre review of a relatively rare condition in the ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Popoola J. Reviewer Report For: Nocturnal Hypertension and Attenuated Nocturnal Blood Pressure Dipping is Common in Pediatric Lupus [version 2; peer review: 3 approved, 1 approved with reservations]. F1000Research 2015, 4:164 (https://doi.org/10.5256/f1000research.7012.r9811)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.

Comments on this article Comments (0)

Version 2
VERSION 2 PUBLISHED 23 Jun 2015
Comment
Alongside their report, reviewers assign a status to the article:
Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions
Sign In
If you've forgotten your password, please enter your email address below and we'll send you instructions on how to reset your password.

The email address should be the one you originally registered with F1000.

Email address not valid, please try again

You registered with F1000 via Google, so we cannot reset your password.

To sign in, please click here.

If you still need help with your Google account password, please click here.

You registered with F1000 via Facebook, so we cannot reset your password.

To sign in, please click here.

If you still need help with your Facebook account password, please click here.

Code not correct, please try again
Email us for further assistance.
Server error, please try again.
