Research Note

Revised

RNA-seq assembler artifacts can bias expression counts and differential expression analysis - case study on the chickpea transcriptome emphasizes importance of freely accessible data for reproducibility

[version 2; peer review: 2 not approved]

Previously titled: RNA-seq assembler artifacts can bias expression counts and differential expression analysis - application of YeATS on the chickpea transcriptome

Sandeep Chakraborty

PUBLISHED 06 Dec 2016

Author details Author details

Celia Engineers, T. T. C Industrial Area, Rabale, Navi Mumbai, India

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

The unprecedented volume of genomic and transcriptomic data analyzed by software pipelines makes verification of inferences based on such data, albeit theoretically possible, a challenging proposition. The availability of intermediate data can immensely aid re-validation efforts. One such example is the transcriptome, assembled from raw RNA-seq reads, which is frequently used for annotation and quantification of genes transcribed. The quality of the assembled transcripts influences the accuracy of inferences based on them. Here the publicly available transcriptome from Cicer arietinum (ICC4958; Desi chickpea, http://www.nipgr.res.in/ctdb.html)¹ was analyzed using YeATS². This revealed that a majority of the highly expressed transcripts (HET) encoded multiple genes, strongly indicating that the counts may have been biased by the merging of different transcripts. TC00004 is ranked in the top five HET for all five tissues analyzed here, and encodes both a retinoblastoma-binding-like protein (E-value=0) and a senescence-associated protein (E-value= 5e-108). Fragmented transcripts are another source of error. The ribulose bisphosphate carboxylase small chain (RBCSC) protein is split into two transcripts with an overlapping amino acid sequence "ASNGGRVHC", TC13991 and TC23009, with length 201 and 332 nucleotides and expression counts 17.90 and 1403.8, respectively. The huge difference in counts indicates an erroneous normalization algorithm in determining counts. It is well known that RBCSC is highly expressed and expectedly TC23009 ranks fifth among HETs in the shoot. Furthermore, some transcripts are split into open reading frames that map to the same protein, although this should not have any significant bearing on the counts. It is proposed that studies analyzing differential expression based on the transcriptome should consider these artifacts, and providing intermediate assembled transcriptomes should be mandatory, possibly with a link to the raw sequence data (Bioproject).

Keywords

RNA-seq, transcriptome, Computational genomics, chickpea, Cicer arietinum, re-validation, Intermediate assembly data, Big Data, Bioproject

Corresponding author: Sandeep Chakraborty

Competing interests: No competing interests were disclosed.

Grant information: The author(s) declared that no grants were involved in supporting this work.

Copyright: © 2016 Chakraborty S. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

How to cite: Chakraborty S. RNA-seq assembler artifacts can bias expression counts and differential expression analysis - case study on the chickpea transcriptome emphasizes importance of freely accessible data for reproducibility [version 2; peer review: 2 not approved]. F1000Research 2016, 5:2394 (https://doi.org/10.12688/f1000research.9667.2) First published: 27 Sep 2016, 5:2394 (https://doi.org/10.12688/f1000research.9667.1) Latest published: 06 Dec 2016, 5:2394 (https://doi.org/10.12688/f1000research.9667.2)

Revised Amendments from Version 1

The revised manuscript has the following changes based on the referee suggestions:
1. Changed title.
2. Analyzed the ribulose bisphosphate carboxylase small chain genes to ascertain the nucleotide homology
with corresponding transcripts.
3. Major re-writing of the Methods section.
4. Minor corrections based on referee inputs.

See the author's detailed response to the review by Björn Voß

Introduction

The lack of reproducibility of results in biology is a contentious subject^3,4. In computational studies, the exact replication of the output of most computer programs is difficult as most non-trivial algorithms are nondeterministic. The problem is compounded by recent technological advances generating "Big Data" involving multiple programs and pipelines^5,6. However, inferences based on these results should not be subject to the same, or ideally any, unpredictability. The availability of software used at each stage and the intermediate data generated is key in enabling debugging and tracking the veracity of results by subsequent researchers⁷.

Chickpea (Cicer arietinum L.) is an important pulse crop having numerous nutritional and health benefits⁸. Several online resources exist for chickpea genomes and transcriptomes (http://www.cicer.info/databases.php, http://www.nipgr.res.in/ctdb.html, http://gigadb.org/dataset/100076, http://nipgr.res.in/CGAP/⁹). Interestingly, the 68th United Nations General Assembly has declared 2016 as the International Year of Pulses (IYP).

The transcriptome of chickpea has been sequenced¹ using RNA-seq^10,11. In contrast to other traditional methods like RNA:DNA hybridization¹² and short sequence-based approaches¹³, RNA-seq can detect transcripts with very low expression levels by increasing sequencing depth. YeATS is a work-flow for analyzing RNA-seq data², and was used to detect a second homolog of a polyphenol oxidase gene and ~130 genes in the large gallate 1-β-glucosyltransferase in walnut¹⁴. YeATS analysis of RNA-seq data from 20 different tissues of walnut in California unravelled detailed, tissue-specific information of ~400 transcripts encoded by a large family of resistance (R) genes and elucidated the biodiversity and possible plant–microbe interactions¹⁵.

In the current work, errors arising from the assembly step as identified by YeATS are shown to have a bearing on the transcript quantification. The chickpea transcriptome (http://www.nipgr.res.in/ctdb.html¹) and its quantification in different tissues provided by an online interface is analyzed. This demonstrates that transcripts which are tagged with high counts predominantly encode multiple genes. While some studies provide the assembled sequences^16,17, the author could not find the relevant data, even after personal communication¹⁸. It is also proposed that the availability of intermediate assembly sequences be made mandatory, in line with the recent initiative Global Open Data (GODAN:http://www.godan.info/).

Materials and methods

The transcriptome of the Cicer arietinum (transHybrid.fasta, ICC4958; Desi chickpea) “represents optimized de novo hybrid assembly of 454 and short-read sequence data. About 2 million 454 reads were assembled using Newbler v2.3 followed by hybrid assembly with 53 409 transcripts generated by optimized shortread data assembly reported previously¹ using TGICL program” (http://www.nipgr.res.in/ctdb.html¹). Quantification of transcripts in different tissues is provided by an online interface. The chickpea genome (Cicer_arietinum_GA_v1.0.fa) is obtained from http://gigadb.org/dataset/100076¹⁹.

There are three classes of errors. Type I error occurs when a single transcript has multiple ORFs with significant matches to different genes. In a Type II error a single gene is broken into two separate transcripts. For a type III error, a single transcript has multiple ORFs, but they all map to the same gene. Multiple sequence alignment was done using MAFFT (v7.123b)²⁰, and sequence alignment figures were generated using the ENDscript server²¹. ORFs were obtained using the ‘getorf’ utility in the EMBOSS suite²².

The focus of this study are highly expressed transcripts, which result from have Type I errors. The top five transcripts from different tissues are extracted from the online interface, and the three longest ORF from each transcript BLAST’ed to the ’nr’ BLAST database. These ORFs can overlap on different strands, with the assumption that the homology results will select a unique ORF. The transcripts having more than one unique ORF with a significant match (E-value=1E-8, BLAST bitscore=~75) are noted.

In order to analyze Type II errors, all transcripts need to be assigned to ORFs. YeATS first excluded transcripts that did not align to the chickpea genome (using BLAST), since transcriptomes can have contamination’s^15,23. These are not removed in some studies before making inferences¹⁶, which is worrying since there are mis-annotation of certain genes (a transcript, CSTC018609, encoding a heat shock protein from Cladosporium cladosporioides has been annotated as a saffron gene)²³. While using the full ’nr’ BLAST database is the best option, a smaller BLAST database of protein peptides (plantpep.fasta:1M seqeunces) using ~30 organisms (list.plants) from the Ensembl genome was created to reduce computational times²⁴.

Results and discussion

The chickpea transcriptome (transHybrid.fasta:n=34760¹) was first mapped to the chickpea genome (Cicer_arietinum_GA_v1.0.fa) obtained from http://gigadb.org/dataset/100076 using BLAST (E-value=1E-8, BLAST bitscore=~75). There were 60 unmapped transcripts, some of which are mitochondrial transcripts (list.mito in Dataset1), some are contamination (list.meta in Dataset1), and the rest have no match in the complete BLAST ‘nt’ database (list.nomatchinNT in Dataset 1). The metagenomic transcripts are removed from further processing.

Subsequently, the three longest ORFs from each transcript (list.3ORFS:n=104K in Dataset 1) was BLAST’ed²⁵ to a subset of plant proteins created from the Ensembl²⁴ database (E-value=1E-8, BLAST bitscore=~75).

Type I error: multiple ORFs mapping to different proteins

There are ~1300 transcripts encoding more than one significant peptide (see list.duplicate in Dataset 1). The top five highly expressed transcripts (HET) from five tissues flower bud (FB), mature leaf (ML), root (RT), shoot (SH), young plant (YP) were obtained from http://www.nipgr.res.in/ctdb.html (tissues.txt in Dataset1). The number of transcripts encoding multiple genes, as found from ’list.duplicate’, were are follows FB:4, ML:5, RT:3, SH:4 YP:5, indicating an over-representation of merged transcripts in HET.

The top five HET in the root, and the genes encoded by them are listed in Table 1. The ORFs of TC00004 encoded in the reverse direction map to a partial retinoblastoma-binding-like protein (~500 out of 549 amino acids) and the complete senescence-associated protein (157 amino acids) (Figure 1). TC00004 is computed to be highly transcribed (ranked in the top five) in all five tissues studied here (tissues.txt in Dataset 1). The top ranking transcript, TC00002, has two ORFs - ORF.11 and ORF.38 (TC00002.orf in Dataset 1) - which align to an ATP synthase subunit beta (327 aa) and senescence-associated protein (615 aa), respectively. This transcript is highly fragmented and encodes on both strands in an overlapping manner.

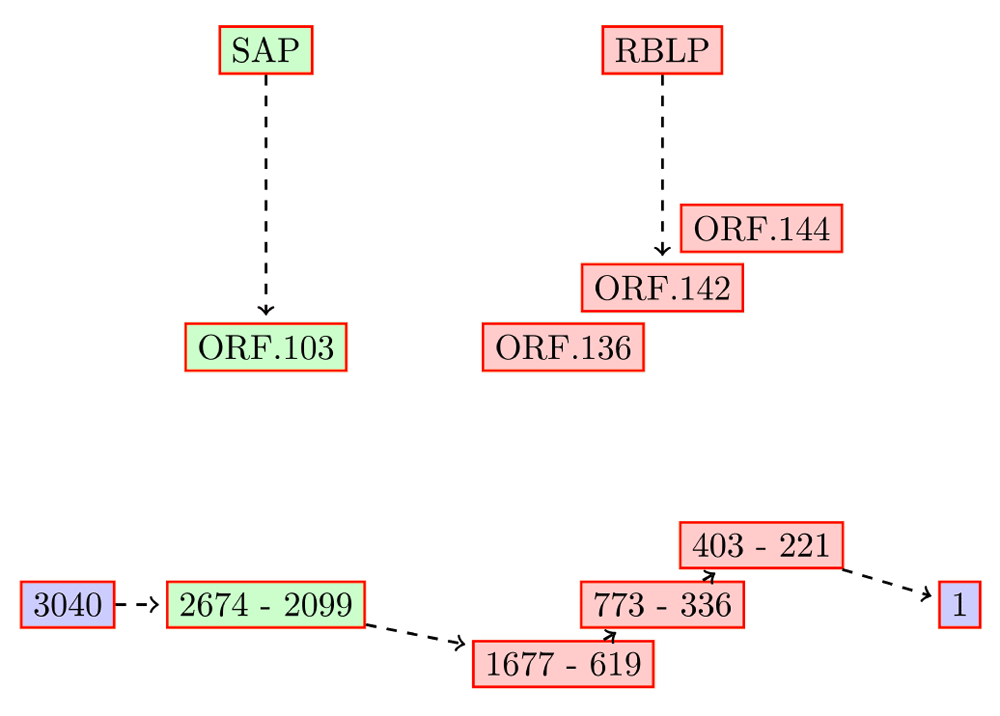

Figure 1. Type I error: different ORFs from the same transcript map to the different protein: TC00004 (3040 nt long) has ORFs encoded in the reverse direction (3040− >1) that map to different proteins: retinoblastoma-binding-like protein (RBLP: 549 aa) and the complete senescence-associated protein (SAP: 157 aa).

The RBLP ORFs are fragmented, and combine to ~500 aa. TC00004 is computed to be highly transcribed (ranked in the top five) in all five tissues studied here.

Table 1. Five highly expressed transcripts in the root of Chickpea: These are obtained from the online interface http://www.nipgr.res.in/ctdb.html.

TrLen: length of transcript, PLen: length of the full protein, OLen: length of ORF, RPKM: Reads Per Kilobase of transcript per Million mapped reads. Three out of the five transcripts have Type I errors, where two different transcripts are merged.

TrID	TrLen	PLen	OLen	Accession	Description	E-value	RPKM
TC00002	894	615 327	79 70	XP_013443004.1 CEG35068.1	senescence-associated [M. truncatula] ATP synthase subunit beta [P. halstedii]	1e-28 3e-36	25543
TC00004	3040	549 157	353 193	XP_003628041.1 XP_013443005.1	retinoblastoma-binding-like [M. truncatula] senescence-associated [M. truncatula]	0 5e-108	10290
TC22821	1303	303	323	XP_004488666.1	chitinase 2-like [C. arietinum]	0	6162
TC07055	652	115	121	AII99866.1	seed storage/ltp family [C. arietinum]	5e-74	4998
TC00120	3859	378 138	163 108	CDY45505.1 YP_173374.1	BnaCnng12640D [B. napus] hypothetical NitaMp027 [N. tabacum]	1e-109 1e-20	4681

When two genes are adjacent to each other in the genome, and are both transcribed it is possible that an assembler merges these into one transcript. Also, it is possible that these loci are under the same transcriptional control and the expression counts are correct. Thus, high levels of expression of one gene should correlate with high expression level of the other, assuming a proper normalization. However, the over-representation of such merged transcripts in HET suggests that there might be some errors in counting.

Type II error: fragmented ORFs of the same protein encoded by different transcripts

There are transcripts that encode fragmented ORFs which map to the same protein. YeATS has a merging algorithm that identifies overlapping amino acid sequences in transcripts. For example, TC13991 (47 aa) and TC23009 (110 aa) have an overlapping amino acid sequence "ASNGGRVHC", and both map to a ribulose bisphosphate carboxylase small chain (RBCSC, 180 aa) family protein (Figure 2). There are three genes coding for RBCSC in chickpea. RBCSC-A and RBCSC-B map to chromosome 2 (CA2 in Cicer_arietinum_GA_v1.0.fa), and share a high degree of homology. Furthermore, there are two transcripts that map to RBCSC-A and B (TC23009 and TC01487). However, the high degree of homology of these genes make it difficult to assign each exactly to the two genomic regions (Table 2 and Table 3). Another gene RBCSC-C maps to SCAFFOLD2575 in the genome and is not considered further. The TC01487 ORF has slightly more homology to the RBCSC-A ORF, although the nucleotide sequences show that it more similar to RBCSC-B. The high sequence homology notwithstanding, TC23009 and transcripts encode significantly different amino acid sequences (40% identity), and there is an extra intron in TC23009 (Table 3). The N-terminal fragment TC13991 is slightly biased towards RBCSC-A both through nucleotide sequences and ORFs. Therefore, since the amino acid sequences from the end of TC13991 ORF and the beginning of TC23009 ORF overlap, TC23009 can be assigned to RBCSC-A. However, the expression counts of TC13991 and TC23009 are not in agreement (Table 4). TC13991 has a count of 17.90, while TC23009 has a count of 1403.8. The large difference indicates an erroneous normalization algorithm, since there is only one expressed transcript of this gene (the ORF of TC13991 has no other significant match among other transcripts, E-value=1E-8, BLAST bitscore=~75). TC23009 is ranked fifth among HET in the shoot, while all better ranked transcripts as transcripts having Type I errors. Even if TC13991 were to correspond to RBCSC-B, the absence of the N-terminal of RBCSC-A that has a high level of expression is a concern. Furthermore, there is a missing 22 aa stretch in the C-terminal peptide "IGFDNVRQVQCISFIAHTPKEF", which has no match in the transcripts. A similar scenario with fragmented transcripts and a missing fragment was detected by YeATS in a polyphenol oxidase gene in walnut¹⁴.

Figure 2. Type II error: different transcripts that encode fragmented ORFs which map to the same protein: TC13991 and TC23009 have an overlapping amino acid sequence "ASNGGRVHC", and should have been ideally merged.

Also, their counts are significantly different - TC13991 has a count of 17.90, while TC23009 has a count of 1403.8, indicating an erroneous normalization algorithm. The ORF of TC13991 does not have other significant matches among other transcripts. Furthermore, the C-terminal peptide "IGFDNVRQVQCISFIAHTPKEF" has no matches in the transcripts.

Table 2. Nucleotide mapping of ribulose bisphosphate carboxylase small chain (RBCSC) transcripts to the chickpea genome: RBCSC has three genes in the genome.

Two (RBCSC-A and RBCSC-B) of them map to chromosome 2, and the third (RBCSC-C) to SCAFFOLD2575. The transcripts mapping to RBCSC-A and RBCSC-B are TC13991, TC23009 and TC01487. TC13991 and TC23009 can be merged into one transcript based on an overlapping amino acid sequence "ASNGGRVHC". There is no other transcript homologous to TC13991 - either through nucleotide or peptide BLAST. TRS: transcript, FR: Fragment.

TRS	TRS FR	Genomic FR	Length	%	Gene
TC13991 (nt len=201)	1::44 37::201 1::44 37::201	248692::248735 248695::248531 ?? 258193::258029	44 166 ?? 166	100 99 ?? 92	RBCSC-A RBCSC-A ?? RBCSC-B
TC23009 (nt len=332)	1::35 34::168 163::332 1::35 34::168 163::332	248559::248525 247928::247794 247519::247350 258057::258023 257583::257449 257168::256999	35 135 170 35 135 170	100 100 98 100 100 99	RBCSC-A RBCSC-A RBCSC-A RBCSC-B RBCSC-B RBCSC-B
TC01487 (nt len=617)	1::569 569::617 1::569 569::617	247928::247366 ?? 257583::257015 256986::257034	574 ?? 569 49	97 ?? 99 100	RBCSC-A ?? RBCSC-B RBCSC-B

Table 3. ORFs encoding ribulose bisphosphate carboxylase small chain (RBCSC) mapping to two genomic region on chromosome 2 : The two RBCSC genes under consideration are highly homologous, making it difficult to assign transcripts TC23009 and TC01487 exactly to the two genomic regions uniquely.

For example, TC23009 has the exact homologies to both genomic regions, and has an intron (of length 131 nt in RBCSC-A and 137 nt in RBCSC-B). TC01487 does not have an intron. However, as mentioned previously, TC13991 and TC23009 can be merged based on a overlapping sequence. GS: start in genomic sequence of ORF in chromosome 2, GE: end in genomic sequence of ORF in chromosome 2, BBS = BLAST bitscore.

Transcript	GS	GE	BBS	E-value	Gene
TC23009 (ORF len=110)	247636 247928 257285 257583	247286 247767 256935 257422	120 91.3 120 91.3	1e-35 6e-25 1e-35 6e-25	RBCSC-A RBCSC-A RBCSC-B RBCSC-B
TC01487 (ORF len=106)	247636 257285	247286 256935	191 183	2e-63 3e-60	RBCSC-A RBCSC-B
TC13991 (ORF len=47)	248724 258216	248515 257986	80.9 79.3	1e-21 5e-21	RBCSC-A RBCSC-B

Table 4. Expression profiles of different ribulose bisphosphate carboxylase small chain (RBCSC) proteins in different tissues: Counts are in RPKM (Reads Per Kilobase of transcript per Million mapped reads).

Although TC13991 and TC23009 map to the same gene, there is a huge discrepancy in their counts.

Gene	Transcript	Length (nt)	Shoot	Root	Mature leaf	Flower bud	Young pod
RBCSC-A	TC13991 TC23009	201 332	17.9 1403.8	0 0	0 441.5	0 99.5	0 153.8
RBCSC-B	TC01487	617	49.2	0	23.2	0	3.7
RBCSC-C	TC10770	538	17.9	0	0	0	11

Type III error: multiple ORFs mapping to the same protein

There are ~3000 transcripts which encode more than one ORFs mapping to the same peptide (list.splitORF in Dataset 1). TC01688 is one such transcript having ORF.70 and ORF.89 (see TC01688.orf in Dataset 1) mapping to an aspartyl protease family protein (TAIRid:AT1G05840.1) with BLAST bitscores 250 and 285, respectively. Merging ORF.70 and ORF.89 (inserting ‘ZZZ’) results in an increased BLAST bitscore of 507 (Figure 3). This should have minimal effects on the counts, unless Type I or Type II also occur simultaneously.

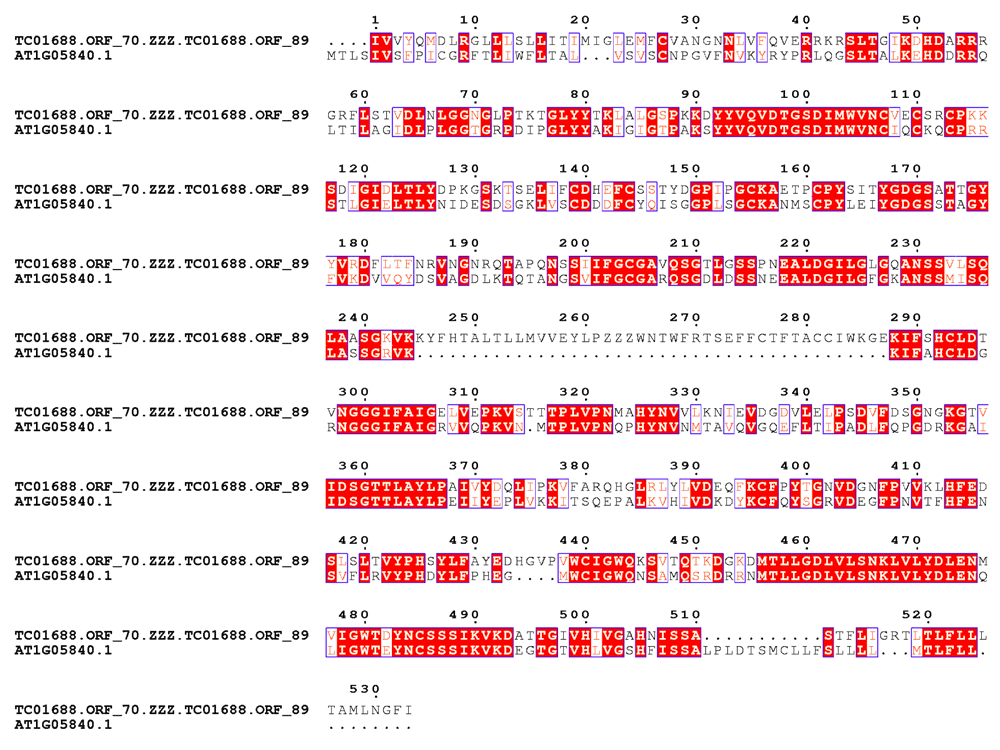

Figure 3. Type III error: multiple ORFs from the same transcript mapping to the same protein: An aspartyl protease (TC01688) has ORF.70 and ORF.89 mapping to TAIRid:AT1G05840.1 with BLAST bitscores 250 and 285, respectively.

The BLAST bitscore of the merged ORF increases to 507. Errors like this should have minimal effects on the counts, unless Type I or Type II also occur simultaneously.

Dataset 1.Raw data for YeATS on chickpea transcriptome.

A description of each file is provided in the text file 'Dataset_Description'.

Conclusions

In the current work, assembler errors have been categorized into three types. These errors have been analyzed for the chickpea transcriptome sequence, and anomalies in the quantification have been detected. The availability of assembled transcriptome sequence has enabled such analysis. It is proposed that sequences of assembled transcriptomes be linked to the Bioproject. Such initiatives have been adopted in the Global Open Data (http://www.godan.info/pages/statement-purpose) to “to make agricultural and nutritionally relevant data available, accessible, and usable for unrestricted use worldwide”.

Data availability

F1000Research: Dataset 1. Raw data for YeATS on chickpea transcriptome, 10.5256/f1000research.9667.d136816²⁶

Competing interests

No competing interests were disclosed.

Grant information

The author(s) declared that no grants were involved in supporting this work.

Acknowledgements

I gratefully acknowledge Mridul Bhattacharjee and Nitin Salaye for logistic support.

Faculty Opinions recommended

References

1. Garg R, Patel RK, Tyagi AK, et al.: De novo assembly of chickpea transcriptome using short reads for gene discovery and marker identification. DNA Res. 2011; 18(1): 53–63. PubMed Abstract | Publisher Full Text | Free Full Text
2. Chakraborty S, Britton M, Wegrzyn J, et al.: YeATS - a tool suite for analyzing RNA-seq derived transcriptome identifies a highly transcribed putative extensin in heartwood/sapwood transition zone in black walnut [version 2; referees: 3 approved]. F1000Res. 2015; 4: 155. PubMed Abstract | Publisher Full Text | Free Full Text
3. Moonesinghe R, Khoury MJ, Janssens AC: Most published research findings are false-but a little replication goes a long way. PLoS Med. 2007; 4(2): e28. PubMed Abstract | Publisher Full Text | Free Full Text
4. Ioannidis JP: How to make more published research true. PLoS Med. 2014; 11(10): e1001747. PubMed Abstract | Publisher Full Text | Free Full Text
5. Marx V: Biology: The big challenges of big data. Nature. 2013; 498(7453): 255–260. PubMed Abstract | Publisher Full Text
6. Stephens ZD, Lee SY, Faghri F, et al.: Big Data: Astronomical or Genomical? PLoS Biol. 2015; 13(7): e1002195. PubMed Abstract | Publisher Full Text | Free Full Text
7. Hurley DG, Budden DM, Crampin EJ: Virtual Reference Environments: a simple way to make research reproducible. Brief Bioinform. 2015; 16(5): 901–903. PubMed Abstract | Publisher Full Text | Free Full Text
8. Jukanti AK, Gaur PM, Gowda CL, et al.: Nutritional quality and health benefits of chickpea (Cicer arietinum L.): a review. Br J Nutr. 2012; 108(Suppl 1): S11–S26. PubMed Abstract | Publisher Full Text
9. Jain M, Misra G, Patel RK, et al.: A draft genome sequence of the pulse crop chickpea (Cicer arietinum L.). Plant J. 2013; 74(5): 715–729. PubMed Abstract | Publisher Full Text
10. Wang Z, Gerstein M, Snyder M: RNA-seq: a revolutionary tool for transcriptomics. Nat Rev Genet. 2009; 10(1): 57–63. PubMed Abstract | Publisher Full Text | Free Full Text
11. Flintoft L: Transcriptomics: digging deep with RNA-seq. Nat Rev Genet. 2008; 9(8): 568. Publisher Full Text
12. Clark TA, Sugnet CW, Ares M Jr: Genomewide analysis of mRNA processing in yeast using splicing-specific microarrays. Science. 2002; 296(5569): 907–910. PubMed Abstract | Publisher Full Text
13. Kodzius R, Kojima M, Nishiyori H, et al.: CAGE: cap analysis of gene expression. Nat Methods. 2006; 3(3): 211–222. PubMed Abstract | Publisher Full Text
14. Martínez-García PJ, Crepeau MW, Puiu D, et al.: The walnut (Juglans regia) genome sequence reveals diversity in genes coding for the biosynthesis of non-structural polyphenols. Plant J. 2016; 87(5): 507–32. PubMed Abstract | Publisher Full Text
15. Chakraborty S, Britton M, Martínez-García PJ, et al.: Deep RNA-Seq profile reveals biodiversity, plant-microbe interactions and a large family of NBS-LRR resistance genes in walnut (Juglans regia) tissues. AMB Express. 2016; 6(1): 12. PubMed Abstract | Publisher Full Text | Free Full Text
16. Jain M, Srivastava PL, Verma M, et al.: De novo transcriptome assembly and comprehensive expression profiling in Crocus sativus to gain insights into apocarotenoid biosynthesis. Sci Rep. 2016; 6: 22456. PubMed Abstract | Publisher Full Text | Free Full Text
17. Hara Y, Tatsumi K, Yoshida M, et al.: Optimizing and benchmarking de novo transcriptome sequencing: from library preparation to assembly evaluation. BMC Genomics. 2015; 16(1): 977. PubMed Abstract | Publisher Full Text | Free Full Text
18. Baba SA, Mohiuddin T, Basu S, et al.: Comprehensive transcriptome analysis of Crocus sativus for discovery and expression of genes involved in apocarotenoid biosynthesis. BMC Genomics. 2015; 16(1): 698. PubMed Abstract | Publisher Full Text | Free Full Text
19. Varshney RK, Song C, Saxena RK, et al.: Genomic data of the chickpea (Cicer arietinum).2014. Publisher Full Text
20. Katoh K, Standley DM: MAFFT multiple sequence alignment software version 7: improvements in performance and usability. Mol Biol Evol. 2013; 30(4): 772–780. PubMed Abstract | Publisher Full Text | Free Full Text
21. Robert X, Gouet P: Deciphering key features in protein structures with the new ENDscript server. Nucleic Acids Res. 2014; 42(Web Server issue): W320–W324. PubMed Abstract | Publisher Full Text | Free Full Text
22. Rice P, Longden I, Bleasby A: EMBOSS: the European Molecular Biology Open Software Suite. Trends Genet. 2000; 16(6): 276–277. PubMed Abstract | Publisher Full Text
23. Chakraborty S: Transcriptome from saffron (Crocus sativus) plants in jammu and kashmir reveals abundant soybean mosaic virus transcripts and several putative pathogen bacterial and fungal genera. bioRxiv. 2016; 079186. Publisher Full Text
24. Kersey PJ, Allen JE, Armean I, et al.: Ensembl Genomes 2016: more genomes, more complexity. Nucleic Acids Res. 2016; 44(D1): D574–D580. PubMed Abstract | Publisher Full Text | Free Full Text
25. Camacho C, Madden T, Ma N, et al.: BLAST Command Line Applications User Manual.2013. Reference Source
26. Chakraborty S: Dataset 1 in: RNA-seq assembler artifacts can bias expression counts and differential expression analysis - case study on the chickpea transcriptome emphasizes importance of freely accessible data for reproducibility. F1000Research. 2016. Data Source
