Software Tool Article

epiflows: an R package for risk assessment of travel-related spread of disease

[version 1; peer review: 2 approved with reservations]
* Equal contributors
PUBLISHED 31 Aug 2018
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the RPackage gateway.

This article is included in the Emerging Diseases and Outbreaks gateway.

Abstract

As international travel increases worldwide, new surveillance tools are needed to help identify locations where diseases are most likely to be spread and prevention measures need to be implemented. In this paper we present epiflows, an R package for risk assessment of travel-related spread of disease. epiflows produces estimates of the expected number of symptomatic and/or asymptomatic infections that could be introduced to other locations from the source of infection. Estimates (average and confidence intervals) of the number of infections introduced elsewhere are obtained by integrating data on the cumulative number of cases reported, population movement, length of stay and information on the distributions of the incubation and infectious periods of the disease. The package also provides tools for geocoding and visualization. We illustrate the use of epiflows by assessing the risk of travel-related spread of yellow fever cases in Southeast Brazil in December 2016 to May 2017.

Keywords

disease surveillance, outbreaks, epidemics, infectious, R, RECON

Introduction

Infectious disease outbreaks cause significant suffering and mortality in the affected populations, and damage the health, social and economic well-being of the families affected by diseases as well as producing significant economic costs for local and national governments. As we have seen with Ebola and SARS, disease outbreaks can spread beyond national borders1. Travelers can acquire a disease while staying in a foreign country, and then seed new outbreaks in their home country after their return. As international travel increases worldwide, new surveillance tools are needed to help identify locations where diseases are most likely to be spread and prevention measures need to be implemented. This is essential to limit the global spread of local outbreaks.

Recently, Dorigatti et al.2 developed a method to assess the risk of travel-related international spread of disease by integrating epidemiological and travel (by air, land and water) volume. The model developed by Dorigatti et al.2 estimates the expected number of infections introduced elsewhere by taking into account population flows, lengths of stay, as well as the variability of the disease incubation and infectious periods. The method was applied to quantify the risk of spread of a recent outbreak of yellow fever in Southeast Brazil in December 2016 to May 2017, and was able to identify the countries that could have received travel-related disease cases capable of seeding local transmission.

In this paper we present epiflows, an R package that implements the method presented by Dorigatti et al.2 for risk assessment of travel-related spread of disease. Using data on population movement between the location that is source of the infection and other locations, lengths of stay, as well as information about the disease incubation and infectious period distributions, the package allows the estimation of the number of (symptomatic and/or asymptomatic) infections that could be spread to other locations together with uncertainty measures. The package also provides tools for geocoding and visualization of population flows.

The remainder of the paper is organized as follows. First, we briefly describe the modelling framework that is implemented in the epiflows package. Second, we introduce the main components of epiflows including instructions for installation and main functions. Third, we illustrate the use of the package via the assessment of the risk of travel-related spread of yellow fever cases due to population flows between Southeast Brazil and other countries in December 2016 to May 2017. Specifically, we discuss the data required and show how to perform the statistical analyses, how to interpret the results, and the visualization options. Finally, the conclusions are presented.

Model

In this Section we explain the modelling framework presented in 2 for estimating the expected number of infections departing from one infectious location during the incubation or infectious periods. These cases comprise exportations and importations. Exportations refer to the infected residents of the infectious location (i.e. location with sustained disease transmission) that travel to other locations. Importations (also referred to as returning travelers) are people that are infected during a temporary stay in the infectious location and then return to their home location. The following Sections describe how to model exportations and importations to produce the total number of expected cases that could be spread to other locations together with uncertainty measures.

Exportations

Let CS,W denote the cumulative number of infections in location S in time window W. Here, W denotes the temporal window between the first and the last disease case in location S. Note that Dorigatti et al.2 calculated CS,W by multiplying the number of confirmed and reported yellow fever cases by 10 to account for underreporting of asymptomatic and mild yellow fever cases.

Let popS be the resident population of the infectious location S, and TS,DW the number of residents of location S travelling to location D in time window W. The per capita probability that a resident from the infectious location travelled to other location D during the time window W is given by

pD=TS,DWpopS

The method assumes that the incubation period TE and the infectious period TI follow specific probability distributions. Using these, we can calculate the probability pi that an infection incubated or is infectious in time window W as

pi=minimum(TE+TIW,1)

Finally, the number of residents of the infectious location S that are infected and travel abroad during their incubation or infectious period during the time window W can be calculated as

                                                                                                                          ES,D = CS,W × pD × pi.

That is, ES,D is a product of the cumulative number of infections in location S in time window W, the per capita probability that a resident of S travels to location D, and the probability that an infection incubated or is infectious in time window W.

Note here that if travel data are expressed annually (TS,DA) instead of in the time window W, travel data in the time window can be obtained as TS,DW = (TS,DA × W)/365.

Importations

Let TO,SW be the number of travelers visiting location S from location O in time window W, and let LO denote the average length of stay. The per capita risk of infection of travelers visiting location S during their stay can be calculated as

λS=CS,W×LOpopS×W

The probability of returning to the home location while incubating or infectious is given by

pl=minimum(TE+TILO,1)

Finally, the expected number of travelers infected during their stay in the infectious location and returning to their home location before the end of the infectious period can be calculated as the product of the number of travelers, the per capita risk of infection and the probability of returning home while incubating or infectious,

IS,O=TO,SW×λS×pl

Note that, similarly to exportations, if travel data are expressed annually (TO,SA) instead of in the time window W, travel data in the time window can be obtained as TO,SW = (TO,SA × W)/365.

Total number of exportations and importations

Finally, the expected number of infections departing from the infectious location S to location O during the incubation or infectious periods can be computed as the sum of the number of infected residents of S travelling during their incubation or infectious periods, and the travelers from abroad that are infected during their stay in S and return to their origin location before the end of the infectious period. That is,

TS,O=ES,O+IS,O

Average estimates and the relative uncertainty are calculated by taking into account the variability of the incubation and infectious periods. Specifically, the method samples a large number of times from the incubation and infectious distributions, which produces a full distribution for pi (the probability that a disease case is incubated or infectious in the time window considered) and pl (the probability of returning to the home location while incubating or infectious). This, in turn, creates variability in exportations ES,O and importations IS,O, and finally in the total number of infections introduced in location O, TS,O.

Methods

Implementation

The R package epiflows [17] is hosted in the Comprehensive R Archive Network (CRAN) which is the main repository for R packages: http://CRAN.R-project.org/package=epiflows. Users can install epiflows in R by executing the following code:

install.packages("epiflows")

There is also a development version from GitHub which can be accessed at https://github.com/reconhub/epiflows. This version of the package may contain new features which are not incorporated in the version on CRAN yet but may be useful for some users. GitHub also includes issue tracking where users can note problems or suggestions for improvements. This development version from GitHub can be installed by using the install_github() function from the R package devtools3:

install.packages("devtools")
library("devtools")
install_github("reconhub/epiflows")

When installing epiflows, other R packages which epiflows depends on are also automatically installed. These packages include sp4 for manipulating spatial objects; geosphere5 for calculating distances between locations; and leaflet6 for visualization.

Operation

The main function of the package is estimate_risk_spread() which calculates the mean and 95% confidence intervals of the number of cases spread to different locations from an infectious location. It is also possible to use this function to produce a data frame with all simulations (not just the mean and 95% confidence intervals that is computed from the simulations). This permits the user to aggregate the estimates and calculate confidence intervals with different levels using single simulations. To execute this function the following information is needed:

  • population of the infectious location,

  • number of infections in the infectious location, and the first and last dates of reported cases,

  • number of travelers between the infectious location and other locations,

  • average length of stay of travelers from other locations visiting the infectious location,

  • distributions of the incubation and infectious periods,

  • number of simulations to be drawn from the incubation and infectious period distributions,

  • logical value indicating whether the returned object should be a data frame with all simulations, or a data frame with the mean and lower and upper limits of a 95% confidence interval of the number of infections spread to each location.

Other useful functions are plot() which produces visualizations of population flows between locations, and add_coordinates() which finds the coordinates of the locations.

Use cases

In this Section we provide an example on how to use epiflows to calculate the number of yellow fever cases spreading from south-east Brazil to other countries due to human movement. We show how to define the arguments of the estimate_risk_spread() function, interpret the results, and make visualizations with the population flows.

Data

We use the data YF_Brazil which is contained in the epiflows package as data(YF_Brazil). YF_Brazil is a list containing the population size, the assumed number of yellow fever infections, dates of first and last case reporting, number of travelers and length of stay for the states of Espirito Santo, Minas Gerais, Rio de Janeiro, Sao Paulo, and for the whole region of Southeast Brazil (which comprises the four states of Espirito Santo, Minas Gerais, Rio de Janeiro and Sao Paulo) in the period December 2016 to May 2017 [15], [16].

Following Dorigatti et al.2, the total number of yellow fever infections in each of the Brazilian states was calculated by multiplying the cumulative number of confirmed yellow fever cases reported in 7 by 10 to account for underreporting of asymptomatic and mild yellow fever cases. The dates of first and last case reported in each state were derived as described by Dorigatti et al.2. Population data were obtained from the Brazilian Institute of Geography and Statistics website8. YF_Brazil also contains the number of travelers in the specified time window between the states of Espirito Santo, Minas Gerais, Rio de Janeiro, Sao Paulo (and the whole Southeast Brazilian region) and other countries. These estimates were obtained from World Tourism Organization data on the volume of air, land and water border crossings for Brazil for the year 20159, having assumed that travelers were distributed across the Brazilian states according to the relative population density and having accounted for information on the monthly distribution of tourism and on the average duration of stay of international visitors to Brazil10, as detailed in 2.

YF_Brazil$states is a data frame that contains, for each Brazilian state considered in our example, the code (location_code), the population (location_population), the number of assumed infections in the time window (num_cases_time_window), and the dates of the first and last case reported (first_date_cases and last_date_cases, respectively).

library("epiflows")

## epiflows is loaded with the following global variables in `global_vars()`:
## coordinates, pop_size, duration_stay, first_date, last_date, num_cases

data("YF_Brazil")

YF_Brazil$states

##                      location_code location_population
## Espirito Santo      Espirito Santo             3973697
## Minas Gerais          Minas Gerais            20997560
## Rio de Janeiro      Rio de Janeiro            16635996
## Sao Paulo                Sao Paulo            44749699
## Southeast Brazil  Southeast Brazil            86356952
##                   num_cases_time_window first_date_cases  last_date_cases
## Espirito Santo                     2600       2017-01-04       2017-04-30
## Minas Gerais                       4870       2016-12-19       2017-04-20
## Rio de Janeiro                      170       2017-02-19       2017-05-10
## Sao Paulo                           200       2016-12-17       2017-04-20
## Southeast Brazil                   7840       2016-12-17       2017-05-10

YF_Brazil$T_D represents TS,DW and contains the number of travelers from each of the Brazilian states to other countries. YF_Brazil$T_O represents TO,SW and contains the number of travelers from other countries to each of the Brazilian states.

YF_Brazil$T_D

##                       Italy     Spain  Portugal   Germany United Kingdom
## Espirito Santo     2827.572  3270.500  3264.182  1897.668       1985.482
## Minas Gerais      15714.103 18175.655 18140.543 10546.202      11034.228
## Rio de Janeiro     8163.938  9442.787  9424.545  5479.062       5732.606
## Sao Paulo         34038.681 39370.707 39294.650 22844.371      23901.496
## Southeast Brazil  76281.763 88231.000 88060.554 51194.959      53564.010
##                   United States of America  Argentina     Chile   Uruguay
## Espirito Santo                    13597.39   5898.905  2794.168  2629.526
## Minas Gerais                      75566.85  32782.895 15528.462 14613.472
## Rio de Janeiro                    39259.20  17031.678  8067.493  7592.129
## Sao Paulo                        163687.11  71011.787 33636.561 31654.581
## Southeast Brazil                 366828.00 159139.665 75380.598 70938.918
##                    Paraguay
## Espirito Santo     1164.344
## Minas Gerais       6470.791
## Rio de Janeiro     3361.766
## Sao Paulo         14016.531
## Southeast Brazil  31411.489

YF_Brazil$T_O

##                       Italy     Spain  Portugal   Germany United Kingdom
## Espirito Santo     1566.257  1170.954  1258.379  1740.967       1467.435
## Minas Gerais       9196.588  6875.487  7388.819 10222.433       8616.336
## Rio de Janeiro     4812.885  3598.175  3866.818  5349.744       4509.219
## Sao Paulo         19950.571 14915.302 16028.896 22175.981      18691.803
## Southeast Brazil  41998.783 31398.827 33743.100 46683.586      39348.898
##                   United States of America Argentina     Chile   Uruguay
## Espirito Santo                    4464.246  16125.23  2375.037  2072.586
## Minas Gerais                     26212.701  94682.45 13945.500 12169.597
## Rio de Janeiro                   13717.991  49550.52	 7298.151  6368.761
## Sao Paulo                        56864.386 205398.89 30252.597 26400.052
## Southeast Brazil                119707.601 432393.80 63686.009 55575.856
##                    Paraguay
## Espirito Santo     2340.148
## Minas Gerais      13740.640
## Rio de Janeiro     7190.941
## Sao Paulo         29808.186
## Southeast Brazil  62750.462

Finally, YF_Brazil$length_of_stay is a vector with the lengths of stay (in days) of the travelers visiting Brazil from other countries.

YF_Brazil$length_of_stay

##    	              Italy		 Spain		        Portugal
##    	               30.1		  27.2		            27.2
##    	            Germany	United Kingdom	United States of America
##    	               22.3		  19.5		            18.5
##    	          Argentina		 Chile		         Uruguay
##    	               10.9		  10.3		             8.0
##    	           Paraguay
##    	                7.3

The epiflows object

To aid in data organization between flows and metadata, we have implemented the “epiflows” object. This inherits the “epicontacts” object from the epicontacts package11, storing three elements:

  • 1. flows — a data frame defining the number of cases flowing from one location to another

  • 2. locations — a data frame listing the locations present in flows and relevant metadata.

  • 3. vars — a dictionary mapping column names in locations to known global variables defined in global_vars(). These global variables are used as default values in estimate_risk_spread().

An epiflows object can be created with the make_epiflows() function by providing a data frame flows with the number of travelers between locations, a data frame locations with information about the locations, and the names of the columns of data frame locations indicating the name of each variable.

In the data frame flows each row represents the number of travelers from one location to the next. flows has at least three columns: columns from and to indicating where the flow starts and ends, respectively, and column n indicating the number of travelers that are in the flow. We can create a data frame YF_flows with the population flows of the Brazil data as follows.

from     <- as.data.frame.table(YF_Brazil$T_D, stringsAsFactors = FALSE)
to       <- as.data.frame.table(t(YF_Brazil$T_O), stringsAsFactors = FALSE)
YF_flows <- rbind(from, to)
colnames(YF_flows) <- c("from", "to", "n")

head(YF_flows)

##               from    to         n
## 1   Espirito Santo Italy  2827.572
## 2     Minas Gerais Italy 15714.103
## 3   Rio de Janeiro Italy  8163.938
## 4        Sao Paulo Italy 34038.681
## 5 Southeast Brazil Italy 76281.763
## 6   Espirito Santo Spain  3270.500

In data frame locations each row represents a location, and columns specify useful information about the locations such as ID, population, number of cases, dates and length of stay. locations must contain at least one column specifying the location ID used in the flows data frame. We can create the data frame YF_locations by combining the data frame YF_Brazil$states containing the Brazil states information, and the vector YF_Brazil$length_of_stay containing the lengths of stay.

YF_locations <- YF_Brazil$states
los          <- data.frame(location_code = names(YF_Brazil$length_of_stay),
                              length_of_stay = YF_Brazil$length_of_stay)
YF_locations <- merge(YF_locations, los, by = "location_code", all = TRUE)

head(YF_locations)

##      location_code location_population num_cases_time_window
## 1   Espirito Santo             3973697                  2600
## 2     Minas Gerais            20997560                  4870
## 3   Rio de Janeiro            16635996                   170
## 4        Sao Paulo            44749699                   200
## 5 Southeast Brazil            86356952                  7840
## 6        Argentina                  NA                    NA
##   first_date_cases last_date_cases length_of_stay
## 1       2017-01-04      2017-04-30             NA
## 2       2016-12-19      2017-04-20             NA
## 3       2017-02-19      2017-05-10             NA
## 4       2016-12-17      2017-04-20             NA
## 5       2016-12-17      2017-05-10             NA
## 6             <NA>            <NA>           10.9

Then, we can create an epiflows object called Brazil_epiflows as follows.

Brazil_epiflows <- make_epiflows(flows         = YF_flows,
                                     locations     = YF_locations,
                                     pop_size      = "location_population",
                                     duration_stay = "length_of_stay",
                                     num_cases     = "num_cases_time_window",
                                     first_date    = "first_date_cases",
                                     last_date     = "last_date_cases"
)

Arguments of the estimate_risk_spread () function

The arguments that need to be specified in estimate_risk_spread() to calculate the cases or infections introduced in other countries are as follows. The first argument is an epiflows object containing the number of travelers between locations, the population size, the number of cases, and the first and last dates of reporting in the infectious location, and the average length of stay in days of travelers from other locations visiting the infectious location.

The second argument of estimate_risk_spread() is location_code which is a character string denoting the infectious location code. We also need to specify the incubation and infectious period distributions. Specifically, we need to provide functions with a single argument n that generate n random incubation and infectious periods. In this example, we assume that the incubation period TE is log-normally distributed with mean 4.6 days and variance 2.7 days, and that the infectious period TI is normally distributed with mean 4.5 days and variance 0.6 days. We can define functions incubation() and infectious() as

incubation <- function(n) {
  rlnorm(n, 1.46, 0.35)
}

infectious <- function(n) {
  rnorm(n, 4.5, 1.5/1.96)
}

Argument num_sim is the number of simulations to be drawn from the incubation and infectious period distributions. It is recommended to use at least 1,000 simulations. The last argument of estimate_risk_spread() is return_all_simulations. This is a logical value indicating whether the returned object should be a data frame with all simulations (return_all_simulations = TRUE), or a data frame with the mean and lower and upper limits of a 95% confidence interval of the number of infections spread to each location (return_all_simulations = FALSE).

Execution of the estimate_risk_spread() function

Once we have constructed the objects needed to call estimate_risk_spread() we can execute the function and obtain the estimated mean number of cases spread to each country and the 95% confidence intervals. The code to calculate the cases spread from Espirito Santo is the following:

set.seed(2018-07-25)
res <- estimate_risk_spread(Brazil_epiflows,
                               location_code = "Espirito Santo",
                               r_incubation = incubation,
                               r_infectious = infectious,
                               n_sim = 1e5
)

The results returned by estimate_risk_spread() are stored in the res object. This is a data frame with the columns mean_cases indicating the mean number of cases spread to each location, and lower_limit_95CI and upper_limit_95CI indicating the lower and upper limits of 95% confidence intervals. The result object is shown below.

res

##                          mean_cases lower_limit_95CI upper_limit_95CI
## Italy                     0.2233656        0.1520966        0.3078136
## Spain                     0.2255171        0.1537452        0.3126801
## Portugal                  0.2317019        0.1565528        0.3383112
## Germany                   0.1864162        0.1259548        0.2721890
## United Kingdom            0.1613418        0.1195261        0.2089475
## United States of America  0.9253419        0.6252207        1.3511047
## Argentina                 1.1283506        0.7623865        1.6475205
## Chile                     0.2648277        0.1789370        0.3866836
## Uruguay                   0.2408942        0.1627681        0.3517426
## Paraguay                  0.1619724        0.1213114        0.1926966

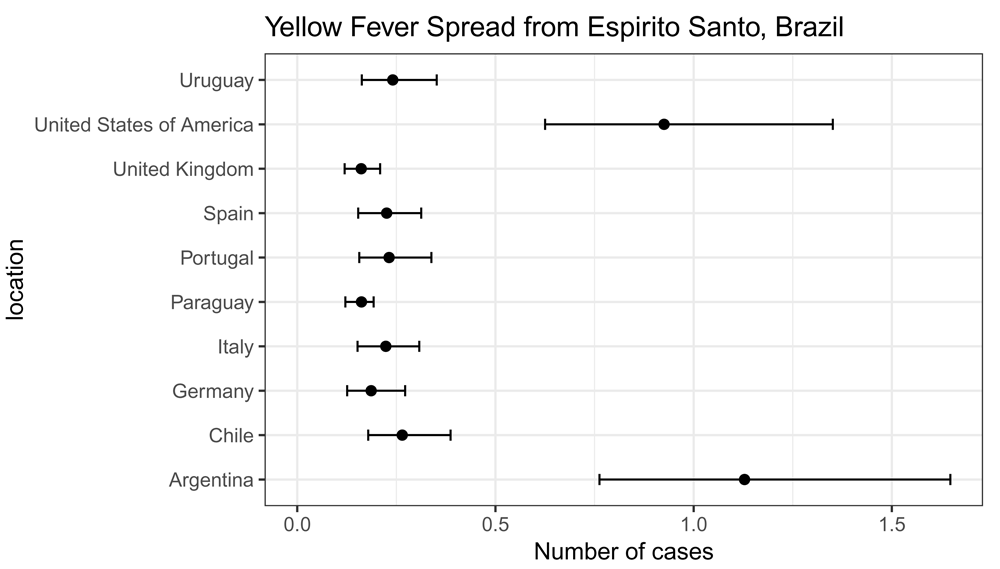

We can plot the results with ggplot() as follows (Figure 1).

library("ggplot2")
res$location <- rownames(res)
ggplot(res, aes(x = mean_cases, y = location)) +
  geom_point(size = 2) +
  geom_errorbarh(aes(xmin = lower_limit_95CI, xmax = upper_limit_95CI), height = .25) +
  theme_bw(base_size = 12, base_family = "Helvetica") +
  ggtitle("Yellow Fever Spread from Espirito Santo, Brazil") +
  xlab("Number of cases") +
  xlim(c(0, NA))


Figure 1. Mean number of yellow fever cases and 95% CI spread from Espirito Santo to other locations.

Note that if we set return_all_simulations equal to TRUE, the result object res will be a data frame with all simulations.

res <- estimate_risk_spread(Brazil_epiflows,
                               location_code = "Espirito Santo",
                               r_incubation = incubation,
                               r_infectious = infectious,
                               n_sim = 1e5,
                               return_all_simulations = TRUE
)

head(res)

##          Italy     Spain  Portugal   Germany United Kingdom
## [1,] 0.1946102 0.1967196 0.2003120 0.1611614      0.1483634
## [2,] 0.2861083 0.2875748 0.3035947 0.2442577      0.1937063
## [3,] 0.1883587 0.1904003 0.1938773 0.1559844      0.1455385
## [4,] 0.2128377 0.2151446 0.2190734 0.1762560      0.1566001
## [5,] 0.2087285 0.2109909 0.2148439 0.1728531      0.1547432
## [6,] 0.2747205 0.2744030 0.2853804 0.2296033      0.1857099
##      United States of America Argentina     Chile   Uruguay  Paraguay
## [1,]                0.7999806 0.9754866 0.2289530 0.2082646 0.1552200
## [2,]                1.2124582 1.4784567 0.3470033 0.3156478 0.1837588
## [3,]                0.7742827 0.9441508 0.2215983 0.2015745 0.1502338
## [4,]                0.8749078 1.0668519 0.2503970 0.2277709 0.1619986
## [5,]                0.8580163 1.0462546 0.2455627 0.2233735 0.1609097
## [6,]                1.1397160 1.3897558 0.3261846 0.2967103 0.1790695

Using res, we can calculate the mean and 95% confidence intervals as follows.

meancases <- colMeans(res, na.rm = TRUE)
quant     <- t(apply(res, 2, stats::quantile, c(.025, .975), na.rm = TRUE))
data.frame(mean_cases = meancases,
            lower_limit_95CI = quant[, 1],
            upper_limit_95CI = quant[, 2]
)

##			   mean_cases lower_limit_95CI upper_limit_95CI
## Italy		    0.2233975	     0.1522848	      0.3081296
## Spain		    0.2255621	     0.1539354	      0.3130456
## Portugal		    0.2317602	     0.1567465	      0.3388166
## Germany		    0.1864633	     0.1261107	      0.2725956
## United Kingdom	    0.1613646	     0.1196739	      0.2091694
## United States of America 0.9255753	     0.6259942	      1.3531231
## Argentina		    1.1286353	     0.7633297	      1.6499817
## Chile		    0.2648933	     0.1791584	      0.3872613
## Uruguay		    0.2409532	     0.1629695	      0.3522681
## Paraguay		    0.1619776	     0.1214615	      0.1928268

Visualize population flows

We can visualize flows of people travelling between locations using plot() and passing as first parameter an epiflows object containing the population flows, and as second parameter the type of plot we wish to produce. Population flows can be displayed on an interactive map, as a network or as a grid between origins and destinations as described in the following sections.

Flows displayed on an interactive map

We can visualize population flows on an interactive map using plot() with the parameter type = "map". For this option to work, the epiflows object needs to include the longitude and latitude of the locations in decimal degree format. If coordinates are known, they can be added to the epiflows object using the add_coordinates() function from the epiflows package. In our example, the longitude and latitude data are in the data frame YF_coordinates.

data("YF_coordinates")
head(YF_coordinates)

##		   id	    lon	      lat
## 1   Espirito Santo -40.30886 -19.18342
## 2	 Minas Gerais -44.55503 -18.51218
## 3   Rio de Janeiro -43.17290 -22.90685
## 4	    Sao Paulo -46.63331 -23.55052
## 5 Southeast Brazil -46.20915 -20.33318
## 6	    Argentina -63.61667 -38.41610

They can be added as follows.

Brazil_epiflows <- add_coordinates(Brazil_epiflows,
                                       coordinates = YF_coordinates[, -1])

If coordinates are unknown, we may resort to one of the freely available tools for geocoding. For example, we can use the geocode() function from the ggmap package12. This function finds the latitude and longitude of a given location using either the Data Science Toolkit or Google Maps. We can also use add_coordinates() which uses geocode() to find the coordinates and directly add them to the epiflows object as follows.

Brazil_epiflows <- add_coordinates(Brazil_epiflows, overwrite = TRUE)

Once we have assigned coordinates to the epiflows object, we can use plot() with type = "map" to visualize the population flows between locations in an interactive map (Figure 2).

plot(Brazil_epiflows, type = "map")

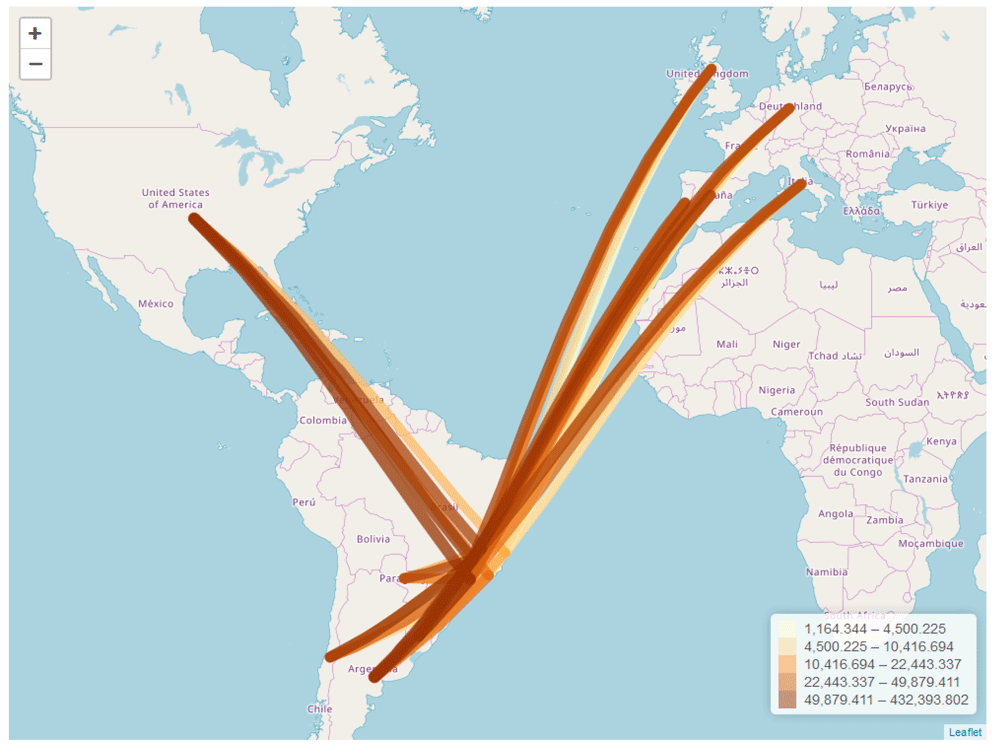

Figure 2. Population flows between Brazil states and other locations plotted using type = "map".

Interactive version of Figure 2

The produced map can be zoomed and permits an easy examination of flows. plot() uses the gcIntermediate() function from the geosphere package5 to obtain the great circle arcs between locations, and then uses the leaflet package6 to create an interactive map with the connection lines. The connection lines are coloured according to flow volume, and as the mouse passes over the lines, lines highlight and information about connections is shown. We can also include parameters to specify a title, the center of the map or a color palette. An interactive version of this visualization is shown here: https://www.repidemicsconsortium.org/epiflows/articles/introduction.html#introduction-epiflows-map.

Flows displayed as a network

Population flows can also be displayed as a dynamic network using plot() with type = "network" (Figure 3).

plot(Brazil_epiflows, type = "network")

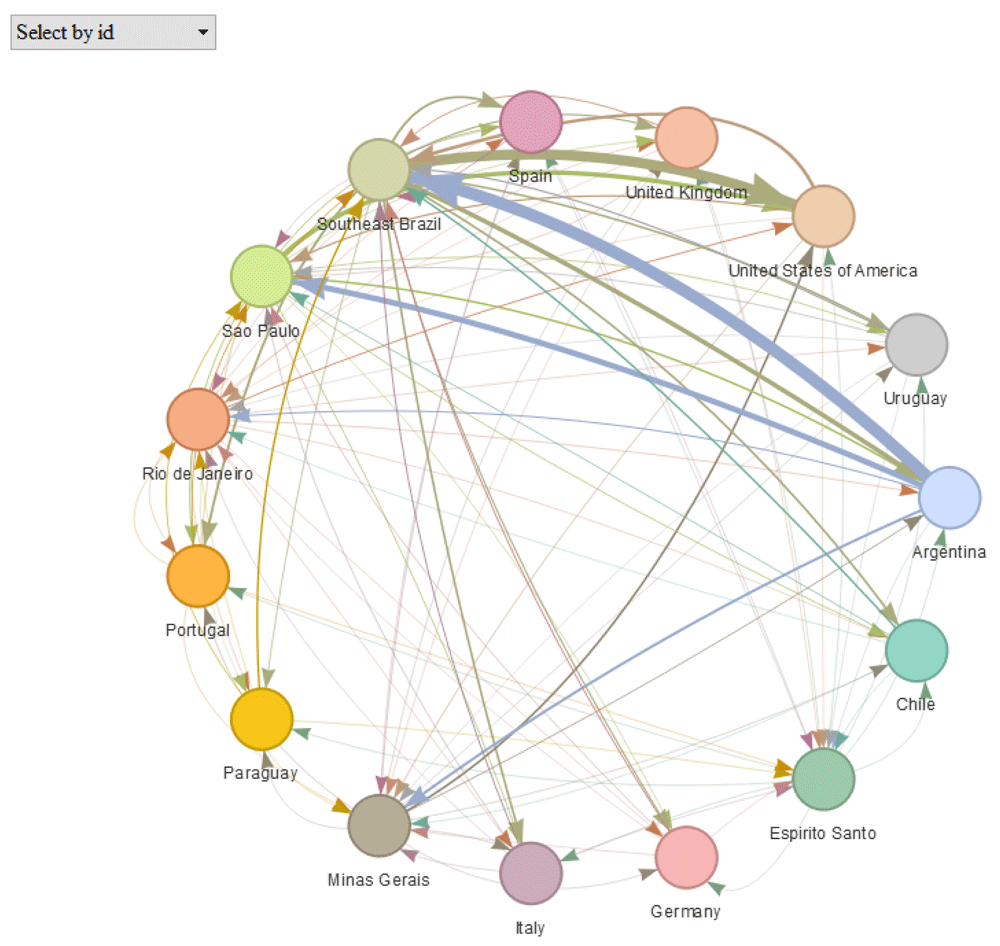

Figure 3. Population flows between Brazil states and other locations plotted using type = "network".

Interactive version of Figure 3

This option uses the package visNetwork13 to show the locations as nodes of a network and connections between them representing population flows. This plot is interactive and it is possible to highlight a given location and examine its population flows, as well as its population, number of cases, dates and length of stay. This type of plot can be used when coordinates of locations are missing. An interactive version of this plot can be viewed here: https://www.repidemicsconsortium.org/epiflows/articles/introduction.html#introduction-epiflows-vis.

Flows displayed as a grid between origins and destinations

Finally, population flows can also be shown as a grid between locations with the option type = "grid" (Figure 4).

plot(Brazil_epiflows, type = "grid")

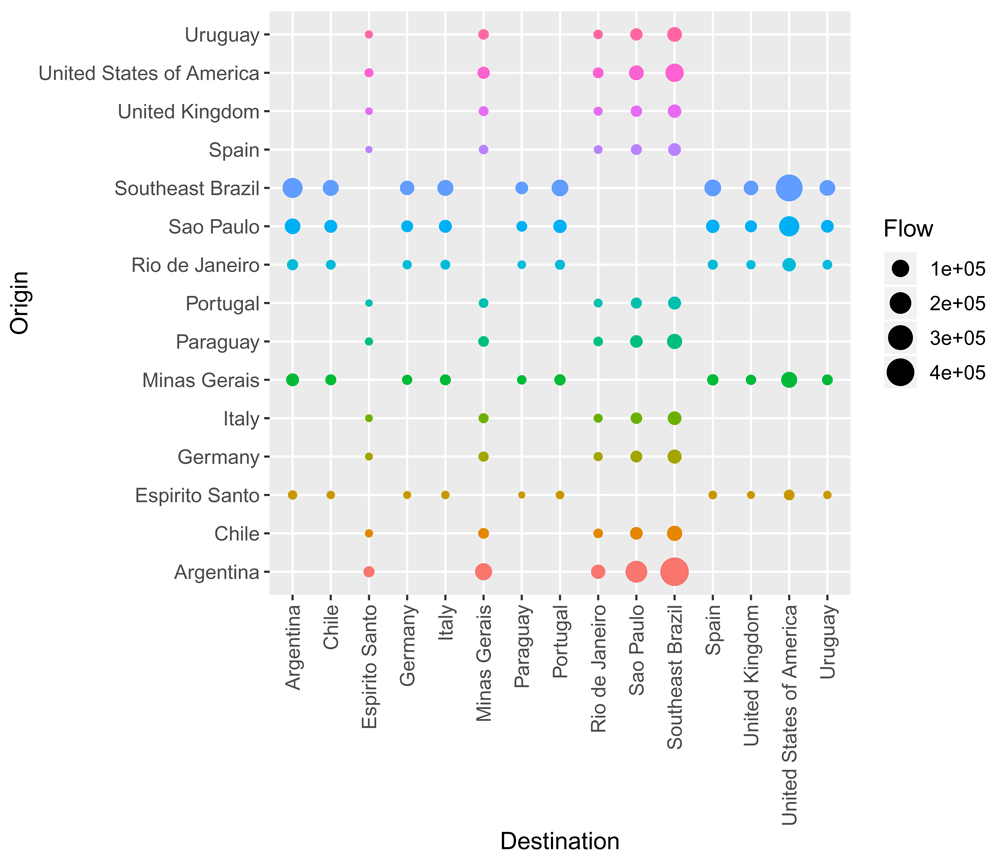

Figure 4. Population flows between Brazil states and other locations plotted using type = "grid".

This plot shows flows between locations as points by positioning origins and destination in y and x axes, respectively. When using this option, additional arguments can be passed to set the size, color or shape of the points as in function geom_point() of package ggplot214. As the network plot, the grid plot can be used when coordinates of locations are missing.

Dataset 1.Arrivals of non-resident tourists at Brazilian national borders by country of residence.
Annual volumes of air, land and water border crossings for Brazil relative to inbound tourism from years 2011 to 2015 obtained from the World Tourism Organisation (UNWTO).
Dataset 2.Trips abroad by Brazilian resident visitors to countries of destination.
Annual volumes of air, land and water border crossings for Brazil relative to outbound tourism from years 2011 to 2015 obtained from the World Tourism Organisation (UNWTO).

Summary

In this article we have presented the epiflows package for risk assessment of travel-related spread of disease. This package allows the estimation of the expected number of infections that could be introduced to other locations from the source of infection by integrating data on the number of cases reported, population movement, length of stay and information on the distributions of the incubation and infectious periods of the disease. The package also provides tools for geocoding and visualization which facilitate the interpretation of the results.

First, we presented how to estimate exportations, importations and total number of infections using the modelling framework introduced by Dorigatti et al.2. Then, we demonstrated the use of the package by assessing the risk of travel-related spread of yellow fever cases in Southeast Brazil in December 2016 to May 2017. Specifically, we have shown how to construct an epiflows object containing population flows and information about locations, and how to use the function estimate_risk_spread() to obtain the average and confidence intervals of the estimated number of infections introduced elsewhere. Finally, we have shown how to visualize the results and produce maps of the population flows.

International travel has an important role in the spread of infectious diseases across national borders. We think the epiflows package represents a useful tool for disease surveillance that can help public health officials identify locations where diseases are most likely to spread and prevention measures are most needed.

Data availability

Dataset 1. Arrivals of non-resident tourists at Brazilian national borders by country of residence. Annual volumes of air, land and water border crossings for Brazil relative to inbound tourism from years 2011 to 2015 obtained from the World Tourism Organisation. https://doi.org/10.5256/f1000research.16032.d21576315.

Dataset 2. Trips abroad by Brazilian resident visitors to countries of destination. Annual volumes of air, land and water border crossings for Brazil relative to outbound tourism from years 2011 to 2015 obtained from the World Tourism Organisation. https://doi.org/10.5256/f1000research.16032.d21576516.

Software availability

Comments on this article Comments (0)

Version 3
VERSION 3 PUBLISHED 31 Aug 2018
Comment
Author details Author details
Competing interests
Grant information
Copyright
Download

Export To
metrics
Views Downloads
F1000Research - -
PubMed Central
Data from PMC are received and updated monthly.
- -
Citations
CITE
how to cite this article
Moraga P, Dorigatti I, Kamvar ZN et al. epiflows: an R package for risk assessment of travel-related spread of disease [version 1; peer review: 2 approved with reservations]. F1000Research 2018, 7:1374 (https://doi.org/10.12688/f1000research.16032.1)
NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.
track
receive updates on this article
Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Reviewer Status: ?
Key to Reviewer Statuses VIEW
ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions
Version 1
VERSION 1
PUBLISHED 31 Aug 2018
Views
46
Cite
Reviewer Report 18 Oct 2018
Jon Zelner, Department of Epidemiology, University of Michigan, Ann Arbor, MI, USA
Approved with Reservations
VIEWS 46
In this paper, the authors have presented and provided use-case examples for an R package that allows the estimation of the number of infections spread via travel, given information on the prevalence of disease in the sending location and the ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Zelner J. Reviewer Report For: epiflows: an R package for risk assessment of travel-related spread of disease [version 1; peer review: 2 approved with reservations]. F1000Research 2018, 7:1374 (https://doi.org/10.5256/f1000research.17509.r38978)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
  • Author Response 02 Aug 2019
    Paula Moraga, Centre for Health Informatics, Computing and Statistics (CHICAS), Lancaster Medical School, Lancaster University, Lancaster, LA1 4YW, UK
    02 Aug 2019
    Author Response
    Thank you for your helpful and insightful comments. Please find our responses below.

    1. Thank you for pointing out the choice of incubation and infectious period distributions needs clarification. ... Continue reading
COMMENTS ON THIS REPORT
  • Author Response 02 Aug 2019
    Paula Moraga, Centre for Health Informatics, Computing and Statistics (CHICAS), Lancaster Medical School, Lancaster University, Lancaster, LA1 4YW, UK
    02 Aug 2019
    Author Response
    Thank you for your helpful and insightful comments. Please find our responses below.

    1. Thank you for pointing out the choice of incubation and infectious period distributions needs clarification. ... Continue reading
Views
71
Cite
Reviewer Report 09 Oct 2018
Noam Ross, EcoHealth Alliance, New York City, NY, USA
Approved with Reservations
VIEWS 71
The authors present and provide a tutorial to epiflows, an R package for calculating the risk of travel-related disease export from an epidemic area.  It is a useful implementation of an algorithm, with associated visualization tools.  It is technically sound ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Ross N. Reviewer Report For: epiflows: an R package for risk assessment of travel-related spread of disease [version 1; peer review: 2 approved with reservations]. F1000Research 2018, 7:1374 (https://doi.org/10.5256/f1000research.17509.r38778)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
  • Author Response 02 Aug 2019
    Paula Moraga, Centre for Health Informatics, Computing and Statistics (CHICAS), Lancaster Medical School, Lancaster University, Lancaster, LA1 4YW, UK
    02 Aug 2019
    Author Response
    Thank you for your thorough review and insightful comments. We address each comment separately below.

    1. In response to the comment regarding the `global_vars()`  function, we think this is ... Continue reading
COMMENTS ON THIS REPORT
  • Author Response 02 Aug 2019
    Paula Moraga, Centre for Health Informatics, Computing and Statistics (CHICAS), Lancaster Medical School, Lancaster University, Lancaster, LA1 4YW, UK
    02 Aug 2019
    Author Response
    Thank you for your thorough review and insightful comments. We address each comment separately below.

    1. In response to the comment regarding the `global_vars()`  function, we think this is ... Continue reading

Comments on this article Comments (0)

Version 3
VERSION 3 PUBLISHED 31 Aug 2018
Comment
Alongside their report, reviewers assign a status to the article:
Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions
Sign In
If you've forgotten your password, please enter your email address below and we'll send you instructions on how to reset your password.

The email address should be the one you originally registered with F1000.

Email address not valid, please try again

You registered with F1000 via Google, so we cannot reset your password.

To sign in, please click here.

If you still need help with your Google account password, please click here.

You registered with F1000 via Facebook, so we cannot reset your password.

To sign in, please click here.

If you still need help with your Facebook account password, please click here.

Code not correct, please try again
Email us for further assistance.
Server error, please try again.
