CompoundHetVIP: Compound Heterozygous Variant Identification Pipeline

[version 1; peer review: 1 approved, 1 approved with reservations]

Dustin B. Miller¹, Stephen R. Piccolo¹

PUBLISHED 08 Oct 2020

Author details Author details

¹ Department of Biology, Brigham Young University, Provo, UT, 84602, USA

Dustin B. Miller
Roles: Formal Analysis, Methodology, Software, Visualization, Writing – Original Draft Preparation

Stephen R. Piccolo
Roles: Project Administration, Supervision, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Bioinformatics gateway.

This article is included in the Software and Hardware Engineering gateway.

Abstract

A compound heterozygous (CH) variant occurs when a person inherits two alternate alleles, one from each parent, and these alleles occur at different positions within the same gene. Therefore, CH variant identification requires distinguishing maternally from paternally derived nucleotides, a process that requires numerous computational tools. Using such tools can be challenging and often introduce unforeseen challenges such as installation procedures that are operating-system specific, software dependencies, and format requirements for input files. To overcome these challenges, we developed Compound Heterozygous Variant Identification Pipeline (CompoundHetVIP), which uses a single Docker image to encapsulate commonly used software tools for phasing, annotating, and analyzing CH, homozygous alternate, and de novo variants in a series of 13 steps. To begin using our tool, researchers need only install the Docker engine and download the CompoundHetVIP Docker image. The tools provided in CompoundHetVIP can be applied to Illumina whole-genome sequencing data of individual samples or trios (a child and both parents), using VCF or gVCF files as initial input. Each step of the pipeline produces an analysis-ready output file that can be further evaluated. To illustrate its use, we applied CompoundHetVIP to data from a publicly available Ashkenazim trio and identified two genes with candidate CH variants and one gene with a candidate homozygous alternate variant after filtering. While this example uses genomic data from a healthy child, we anticipate that most researchers will use CompoundHetVIP to uncover missing heritability in human diseases and other phenotypes. CompoundHetVIP is open-source software and can be found at https://github.com/dmiller903/CompoundHetVIP; this repository also provides detailed, step-by-step examples.

Keywords

Genetics, compound heterozygous, genome analysis, trio, phasing, reproducibility

Corresponding author: Stephen R. Piccolo

Competing interests: No competing interests were disclosed.

Grant information: The author(s) declared that no grants were involved in supporting this work.

Copyright: © 2020 Miller DB and Piccolo SR. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Miller DB and Piccolo SR. CompoundHetVIP: Compound Heterozygous Variant Identification Pipeline [version 1; peer review: 1 approved, 1 approved with reservations]. F1000Research 2020, 9:1211 (https://doi.org/10.12688/f1000research.26848.1) First published: 08 Oct 2020, 9:1211 (https://doi.org/10.12688/f1000research.26848.1) Latest published: 10 Feb 2021, 9:1211 (https://doi.org/10.12688/f1000research.26848.2)

Introduction

A compound heterozygous (CH) variant occurs when a person inherits two alleles, one from each parent, and these alleles are located at different positions within the same gene¹. The compound effects of these alternate alleles may lead to phenotypic effects as seen in some cases of human disease, including ataxia telangiectasia, NGLY1 deficiency, and various types of pediatric cancer^2–4. For example, CH variants in the mismatch repair gene, MSH6, have been identified in pediatric patients with colorectal cancer, medulloblastoma, high-grade glioma, glioblastoma, non-Hodgkin’s lymphoma, and acute lymphoblastic leukemia⁴. To detect CH variants in whole-genome sequencing data, it is necessary to differentiate between paternally and maternally derived nucleotides¹. Laboratory-based methods such as fosmid-pool-based or linked-read sequencing can be used; however, if DNA libraries are prepared and sequenced without regard to nucleotide inheritance (as is done in most sequencing projects), computational methods can help determine parental inheritance through haplotype estimation (“phasing”)^5–7.

Available phasing tools require specific input file types (such as VCF or Plink files) and reference files which are not standardized across different phasing software. In addition, many phasing programs require that input files have been aligned to a specific reference genome, do not contain multiallelic positions, are free of repeat positions, and that each chromosome be phased separately^8–10. Figuring out how to prepare files for phasing can be challenging as passing files from program to program may result in unforeseen incompatibilities. Additionally, installing some programs can be challenging because of operating-system specific installation processes and software dependencies.

We have designed Compound Heterozygous Variant Identification Pipeline (CompoundHetVIP) to help researchers overcome these time-consuming challenges when identifying CH variants. CompoundHetVIP encapsulates specific versions of existing tools, required software dependencies, and custom Python scripts into a cohesive computational environment packaged as a Docker image¹¹. Accordingly, researchers need only install the Docker software and download the CompoundHetVIP Docker image to begin performing CH, homozygous alternate, and de novo analyses at the command line. Furthermore, because the source code for CompoundHetVIP is publicly available, other researchers will be able to reproduce the analyses and investigate the specific methodologies used.

Methods

Implementation

The functionality of CompoundHetVIP is divided into a series of 13 steps (Figure 1). For each step, a Python script is executed within a Docker container. These scripts provide logic for processing data files and invoking third-party tools. By breaking the pipeline into 13 steps, users have flexibility to perform the steps that are most relevant to their analysis. For example, researchers can use input data for an affected individual only or for a trio (an affected individual and both parents). If parental data are unavailable and the variant positions within the VCF file correspond to genome build GRCh37, users may skip the first three steps. A detailed, step-by-step guide is available on GitHub and as Extended data¹².

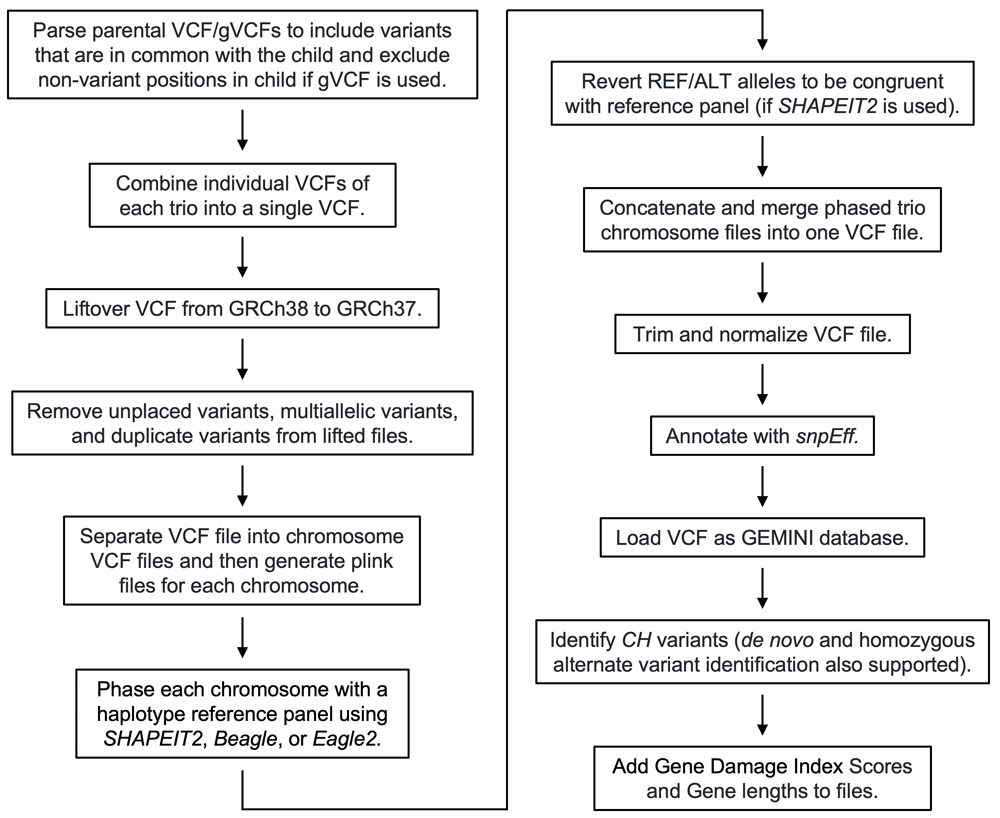

Figure 1. Flow diagram of CompoundHetVIP functionality.

Workflow

For step 1, the inputs can be either Variant Call Format (VCF)¹³ or gVCF¹⁴ files. VCF files contain variant sites only, whereas gVCF files include non-variant sites, too. For each parent of a trio being evaluated, our script retains nucleotide positions that are in common with the child. When gVCF files are used (whether for trios or individuals), our script removes all non-variant sites for the child (but retains these for the parents to support determination of CH status). When applied to trio data, some phasing tools, such as SHAPEIT2⁸, require a single input file for each trio. Therefore, in step 2 (used only when working with trios), we combine the variant files for each member of a trio into a single VCF file using either BCFtools (VCF input files)¹⁵ or GATK4 (gVCF input files)¹⁴. If GATK4 is used, joint-genotyping is also performed on the trio VCF.

The remaining steps can be applied either to trios or individuals. Some phasing and annotation programs require that data be aligned to genome build GRCh37; thus, we use this reference genome as our standard. For variant files that have been aligned to genome build GRCh38, step 3 uses Picard Tools¹⁶ to convert the data to GRCh37 positions using a lift-over process. During lift-over, some sites may be present in GRCh38, but their exact position in GRCh37 is unknown. To avoid ambiguity, these sites are removed during step 4. This step also removes positions that are multiallelic or duplicated to maintain compatibility with programs such as Plink2^17,18 and SHAPEIT2 (used in steps 5 and 6, respectively). For trio VCF files, sites that contain missing genotype information (i.e. "./.") for both parents are removed to improve phasing accuracy.

CompoundHetVIP can perform phasing using SHAPEIT2, Eagle2¹⁰, and/or Beagle⁹. Each of these programs requires that each chromosome be phased independently. Additionally, when using SHAPEIT2, it is recommended that PLINK files (.bed, .bim, .fam) be used as input for phasing. Therefore, step 5 divides a VCF file by chromosome into multiple files and creates the necessary PLINK files for each chromosome (when SHAPEIT2 is used for phasing).

Step 6 phases the variants in each chromosome. All supported phasing programs integrate the 1000 Genomes Project phase 3 haplotype reference panel¹⁹ and do not require sequence alignment files (.bam), such as those required by read-based programs^20,21. In some scenarios, SHAPEIT2 switches the REF and ALT alleles. Therefore, step 7 ensures that the REF/ALT alleles of the phased VCF files are congruent with those of the reference genome. Also, sites with Mendelian errors are removed.

To make subsequent analysis of the phased files easier, step 8 concatenates all phased chromosomes into a single file. If a user is analyzing multiple trios (or individuals), this script can also merge the data for these trios (or individuals) into a single VCF file.

Step 9 normalizes VCF files as recommended by GEMINI²² (used in step 11). Normalization involves left-alignment and trimming of variants²³. This process helps ensure that variants are represented at their left-most position, with as few nucleotides as possible, and unambiguously. This step uses vt tools²³. In step 10, SnpEff²⁴ provides information about the effects of variants on function for known genes. Then, in step 11, GEMINI²² loads the annotated VCF into a relational database. Step 12 uses a custom Python script to extract CH variant data from the database. Our provided script identifies CH variants and filters the data based on user-set thresholds for minor allele frequency (MAF) and Combined Annotation Dependent Depletion (CADD) scores²⁵. Variants with a MAF less than or equal to the user-set threshold and that are classified as loss of function or having “HIGH” putative impact severity are included in the final output. In addition, the final output includes variants with a CADD score greater than or equal to the user-set threshold, a MAF less than or equal to the user-set threshold, and a putative impact severity of “MED”. We consider the variants in the final output as candidates for further evaluation. For step 12, we provide two additional scripts that identify homozygous alternate variants and de novo variants using the same user-set thresholds as those described above.

Finally, in step 13, we add Gene Damage Index (GDI) scores²⁶ and gene-length information to the output files. GDI scores quantify accumulated mutational damage in healthy populations as a way to predict whether genes are likely to have disease-causing variants. Genes of longer length (e.g. TTN, MUC5B) tend to have more total damage but typically less disease-causing damage than shorter genes.

Operation

Because CompoundHetVIP executes all scripts within a Docker container, it can be executed on all major operating systems that are commonly used for scientific computing. Depending on input file sizes, the hardware needed to execute CompoundHetVIP will vary from user to user. Certain tasks, such as phasing (step 6), can be memory intensive. A minimum of 40 GB memory is recommended. When creating a relational database with GEMINI (step 11), there is no minimum processing core recommendation, but multiprocessing can significantly speed up the time it takes to load the database. Users can specify how many processing cores GEMINI can use when executing step 11.

Results

We applied CompoundHetVIP to high-confidence, VCF data that were generated with whole-genome sequencing data from an Ashkenazim trio available through the Genome in a Bottle Consortium²⁷. During step 6, we used SHAPEIT2 to phase the data. In the child of this trio, we identified a CH variant in two genes (FLNB and TTN) using a MAF threshold of 0.01 and a CADD score threshold of 15. Genes with a GDI score less than or equal to 13.84 are classified as being more likely to have disease-causing damage from variants²⁶. FLNB (6.2) was lower than this threshold but TTN (42.9) was not. FLNB has an important role in cytoskeleton development and variations in this gene have been associated with many skeletal disorders^28,29.

In addition, we identified two homozygous alternate variants in TBC1D2 using the same MAF and CADD thresholds that we used for CH variant identification. TBC1D2 had a GDI score of 9.7. TBC1D2 codes for a GTPase-activating protein and is involved in E-cadherin degradation³⁰. The role of this gene and how it may relate to human disease is not yet fully understood.

Using the same MAF and CADD thresholds described above, we sought to identify de novo variants in this trio. However, none passed these thresholds.

Conclusion

CompoundHetVIP provides the necessary tools for CH variant identification using VCF or gVCF files as initial input and is executed within a Docker container, which allows for cross-platform compatibility and reproducibility. CompoundHetVIP involves 13 steps (Figure 1) that include a breadth of tasks such as liftover, phasing, annotation, and variant summarization. Our results highlight that potentially damaging CH and homozygous alternate variants are observed in seemingly healthy individuals. However, we anticipate that most researchers will use CompoundHetVIP to identify variants in individuals with a known disease.

Data availability

Source data

VCF data used to generate the results were from an Ashkenazim trio, freely-available through the Genome in a Bottle Consortium at ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/release/AshkenazimTrio/²⁷:

Extended data

Zenodo: dmiller903/CompoundHetVIP: CompoundHetVIP Initial Release. https://doi.org/10.5281/zenodo.4021169¹².

This project contains the following extended data:

- CompoundHetVIP_example.pdf (detailed step-by-step example)

Software availability

Software available from: https://hub.docker.com/r/dmill903/compound-het-vip

Source code available from: https://github.com/dmiller903/CompoundHetVIP

Archived source code at time of publication: https://doi.org/10.5281/zenodo.4021169¹².

License: MIT
