‘The long tail of Covid-19’ - The detection of a prolonged inflammatory response after a SARS-CoV-2 infection in asymptomatic and mildly affected patients

Introduction

As more and more people are recovering from SARS-CoV-2 infection, one of the growing concerns is the increasing reports of the post viral fatigue symptoms or ‘long Covid’. This phenomenon is defined as not recovering for several weeks or months following the start of symptoms and whereby patients present with chronic and recurrent fatigue for weeks and even many months after a SARS-CoV-2 infection^1,2. Understanding the effects and complications of ‘long Covid’, and then managing it, is the next challenge for public health services. Currently the UK is increasing its testing capacity for virus detection and antibody detection, but there still remains a gap in the understanding and diagnosis of long Covid.

Work has been performed to characterise the inflammatory response to SARS-CoV-2 infection in relation to disease severity. There has been controversy as to whether severity is associated with a hyperinflammatory cytokine storm or failure of host protective immunity that results in unrestrained viral dissemination and organ injury. What has made addressing this question challenging has been the lack of diagnostic tools to evaluate immune function in Covid-19 infections. There are sets of simple but expensive immunoassay panels that are available to look at known key inflammatory proteins such as cytokine panels; however, these only give information on known pathways and limit discovery of novel or less defined inflammatory responses. Targeted proteomics using mass spectrometry to quantitate multiple diagnostic proteins can help address this. Novel assays for virus detection have been already developed using targeted mass spectrometry^3,4 but no assays are available to look at the symptoms for the diagnosis or understanding of ‘long Covid’.

From a previous study (unpublished reports) we developed a custom targeted mass spectrometry based assay panel that looks at up to 96 pro- and anti-inflammatory associated proteins (Figure 1a; see Table 1 on protocols.io⁵). Our hypothesis was long Covid symptoms could be related to a lingering ‘tail’ and an abnormal inflammatory response to an infection, by a type of virus the body has not seen before. We applied this assay to a cohort of samples taken from healthcare workers who had tested positive for SARS-CoV-2 infection by PCR and were either asymptomatic or had only a mild infection. Samples were taken at least 40–45 days post infection and demonstrated a positive antibody test. We compared these with serum from healthcare workers with a negative antibody test, no reported infection and no positive PCR test.

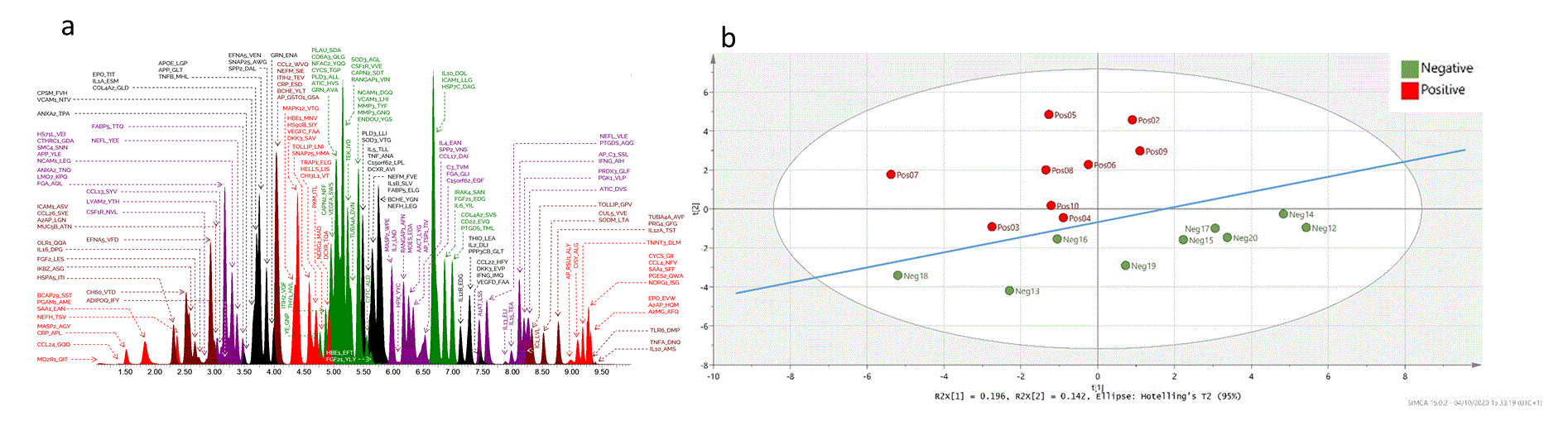

Figure 1. Multivariate analysis of post infection serum inflammation profile.

a) Representative overlaid chromatogram of the multiplex inflammation panel. Protein identifiers indicated by name and followed by first three amino acids of the peptide. b) Principle component analysis score plot of 10 SARS-Cov-2 infected patients >40 days post infection and 10 negative controls.

Methods

Results

Multivariate analysis of all inflammatory proteins measured in the control and SARS-CoV-2 positive patients are shown in Figure 1b and 1c. The score plot shows a clear separation of the positive and negative samples indicating the serum immune profile from people infected with SARS-CoV-2 is still significantly affected even 40 days post-infection. Figure 2 shows the univariate analysis of six proteins from our panel that were significantly altered. The majority of these proteins are either anti-inflammatory or associated with the stress response. Two proteins originate from the mitochondria, peroxiredoxin 3 (PRDX3) and carbamoyl phosphate synthase (CPS1). PRDX3 is a known antioxidant. Its increase in serum of patients infected with SARS-CoV-2 is likely indicative of continued mitochondrial stress response. CPS1 is a major mitochondrial urea cycle enzyme in hepatocytes. Serum CPS1 originates from the bile duct and is usually rapidly cleared by peripheral blood mononuclear cells⁶. It is possible that basal levels of CPS1 in serum are reduced in patients infected by SARS-CoV-2 due to increased circulation and activity of peripheral blood mononuclear cells.

Figure 2. Altered proteins in post infection serum.

Proteins significantly affected (p< 0.001) by non-parametric statistical analysis in the serum of >40 day post SARS-Cov-2 infected healthcare workers **** p<0.0001, ***p<0.001, **p<0.01, *p<0.01.

N-Myc downstream regulated gene 1 (NDRG1) is a cytosolic protein with many biological functions⁷. Its role in the immune response is undefined but deficiency of NDRG1 affects the differentiation process of macrophages⁸ and maturation of mast cells⁹. Collagen triple helix repeat containing 1 (CTHRC1) is anti-inflammatory and promotes wound healing by recruiting M2 macrophages and regulating the TGF-β and Notch pathways¹⁰. This increase of CTHRC1 indicates tissue damage has occurred even in moderately affected patients.

Cystatin C is a protease inhibitor and extracellular levels are used as a biomarker for disease prognosis in cancer, cardiovascular disease, and inflammatory lung disorders¹¹. In mice serum cystatin C is controlled by the anti-inflammatory cytokine IL10 of which increasing levels suppress cystatin C expression¹¹. A longitudinal study looking at immune mediators show IL10 levels are significantly elevated in only severe cases of SARS-CoV-2 infection at four weeks post infection and are not affected at four weeks in mild cases¹². This would corroborate with what we observe for cystatin C as the mild patients have increased cystatin C that is not being suppressed by higher IL10 levels. We also observe a slight reduction in serum progranulin. Progranulin plays a fundamental role in the immune response which is better defined within its role in neurodegenerative disorders¹³ but the relevance of serum progranulin is not fully understood. It appears to have a pro-inflammatory role in adipocytes in diabetes¹⁴ and an anti-inflammatory protective role in the vascular endothelium against inflammatory reactions¹⁵.

Conclusions

Remarkably, even in patients who have suffered from an asymptomatic or mild SARS-CoV-2 infection, after 40 days post-infection they still exhibit a significantly raised group of biomarkers involved in inflammation and the stress response. This initial data using a custom designed inflammatory marker panel applied to mildly affected patients identifies potential drug targets, provides insight into the post infection inflammatory response. This approach using targeted proteomic technology has potential for application on further well-defined sample cohorts to understand what is abnormal about post infection inflammatory response in ‘long Covid’ patients.
