In silico prediction of structure and function for a large family of transmembrane proteins that includes human Tmem41b

Multiple Sequence Alignment

A multiple sequence alignment was generated using PSI/TM-COFFEE variant (RRID:SCR_019024) with default settings (Floden et al., 2016).

Pfam database screening

Searches using the sequences of DedA domain proteins Tmem41b, YqjA, YdjX, Ydjz, Tvp38 and Mt2055 were made against the Pfam-A_v32.0 (RRID:SCR_004726) (El-Gebali et al., 2019) database using the HHPred (RRID:SCR_010276) v3.0 server (Zimmermann et al., 2018) with default parameters (-p 20 -Z 10000 -loc -z 1 -b 1 -B 10000 -ssm 2 -sc 1 -seq 1 -dbstrlen 10000 -norealign -maxres 32000 -contxt /cluster/toolkit/production/bioprogs/tools/hh-suite-build-new/data/context_data.crf) and eight iterations for MSA generation in the HHblits (Remmert et al., 2012) stage.

Contact map predictions

The DeepMetapsicov v1.0 server (Kandathil et al., 2019) was used to generate contact predictions with ConKit v0.12 (Simkovic et al., 2017b) utilised to visualise the contact maps. ConPlot (RRID:SCR_019216) was used to overlay additional prediction data (Sánchez Rodríguez et al., 2021).

Other prediction data

Transmembrane helical topology predictions were obtained from the Topcons server (Tsirigos et al., 2015). Secondary structure predictions were made employing a local installation of PSIPRED (RRID:SCR_010246) v4.0 (McGuffin et al., 2000). ConKit was also used to predict and visualise potential structural domain boundaries (Rigden, 2002; Simkovic et al., 2017a). Residue analysis of putative amphipathic regions were performed using HELIQUEST (Gautier et al., 2008) to determine the presence, direction and magnitude of any hydrophobic moment. Residue conservation was determined using the Consurf server (Ashkenazy et al., 2016).

Dataset for custom re-entrant database

A library of re-entrant loop pdb structures together with the putative re-entrant loop structures from the query protein models were clustered on their structural similarity. The library was built by obtaining a non-redundant (removing redundancy with a 40% sequence identity threshold) set of 125 chains from the PDBTM (RRID:SCR_011962) (Kozma et al., 2013) that contain at least one re-entrant loop. As this investigation focuses on re-entrant loops that are immediately preceded by a TM helix that is packed against the loop, all re-entrant loops (boundaries defined by PDBTM) in addition to the preceding 30 residues were extracted. The resulting 193 library entries (https://figshare.com/articles/dataset/repository_zip/14055212), supplemented with the re-entrant loop features (defined by the OMP server (Lomize et al., 2012) and accompanied by the preceding 30 residues) from the ab initio modelling underwent an all-against-all structural alignment using a local installation of Dali v4.0 (Holm & Laakso, 2016). The Z-scores for these alignments were then used for clustering with CLANS v1.0 (Frickey & Lupas, 2004) with a Z-score of 4.5 used as the cut-off threshold.

Model building

Ab initio models were built using the trRosetta (Yang et al., 2020) server with default settings. Conservation was mapped on to the models using the ConSurf server (Ashkenazy et al., 2016). Visualisation of models was achieved using PyMOL (RRID:SCR_000305) v2.3.0 (DeLano, 2002).

Structural alignments

Dali (RRID:SCR_013433) v4.0 (Holm & Laakso, 2016) was used to structurally align the output models and to query against the PDBTM (Kozma et al., 2013).

An earlier version of this article can be found on bioRxiv (doi: https://doi.org/10.1101/2020.06.27.174763)

Sequence comparisons suggest Pfam families PF09335 and PF06695 are related

HHpred (Zimmermann et al., 2018) was used to screen a selection of DedA proteins against the Pfam database (El-Gebali et al., 2019). Hits were observed in the same region against both PF09335 and the Pfam domain PF06695 (‘Sm_multidrug_ex’) which is strongly indicative of homology: a probability of 99.4% with an E-value of 9E-17 for the PF09335 hit and 98.3% and 2E-10 respectively for PF06695. A HHpred search against the Pfam database using a member of PF06695 - the short archaeal sequence Mt2055 (UniProt code W9DY28) (Apweiler et al., 2004) - returned similar results (Table 1). Figure 1 shows the MSA for the same sequences along with the matched regions of the two Pfam domains under investigation. The Mt2055 sequence originates from the unpublished draft genome of the archaebacterium Methanolobus tindarius DSM 2278. For many of the subsequent analyses, the shorter archaeal sequence was used initially but the clear homology among this set of proteins means that inferences can be drawn across the group.

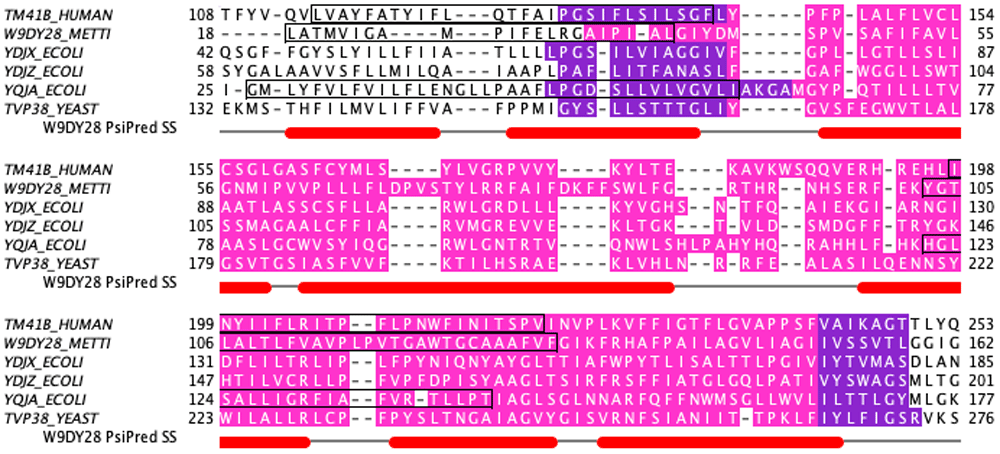

Figure 1. Multiple Sequence Alignment for query protein selection listed in Table 1.

Magenta highlights the regions matched by HHpred to the PF09665 Pfam domain while purple is used for additional residues included in the PF09335 Pfam domain matches. The black boxed regions represent the locations of the putative re-entrant loops as identified by the modeling of the respective proteins. The secondary structure for the archaeal W9DY29 sequence (Mt2055) is also depicted with the relative positions of alpha helices shown as red blocks.

There are no known experimental protein structures representing PF09335 or PF06695, but both Gremlin and DMPfold have constructed ab initio models for these Pfam domains (Greener et al., 2019; Ovchinnikov et al., 2017).

The predicted Pfam domains are inconsistent with a structural domain

Analysis of the HHpred results obtained for the archaeal protein Mt2055 revealed the presence of additional hits for both PF06695 and PF09335 Pfam domains, in which the C-terminal half of the domains aligned with the N-terminal half of the Archaea protein. For example, residues 1-69 of the archaeal protein aligned with residues 52-117 of the Pfam PF09335 profile with a probability of 74.15%. Interestingly, contact density analysis (Rigden, 2002; Sadowski, 2013) supported the existence of a domain boundary around residue 60, in broad agreement with the HHpred results (Figure 2). Both the HHpred and contact density results therefore pointed to a specific domain structure being present.

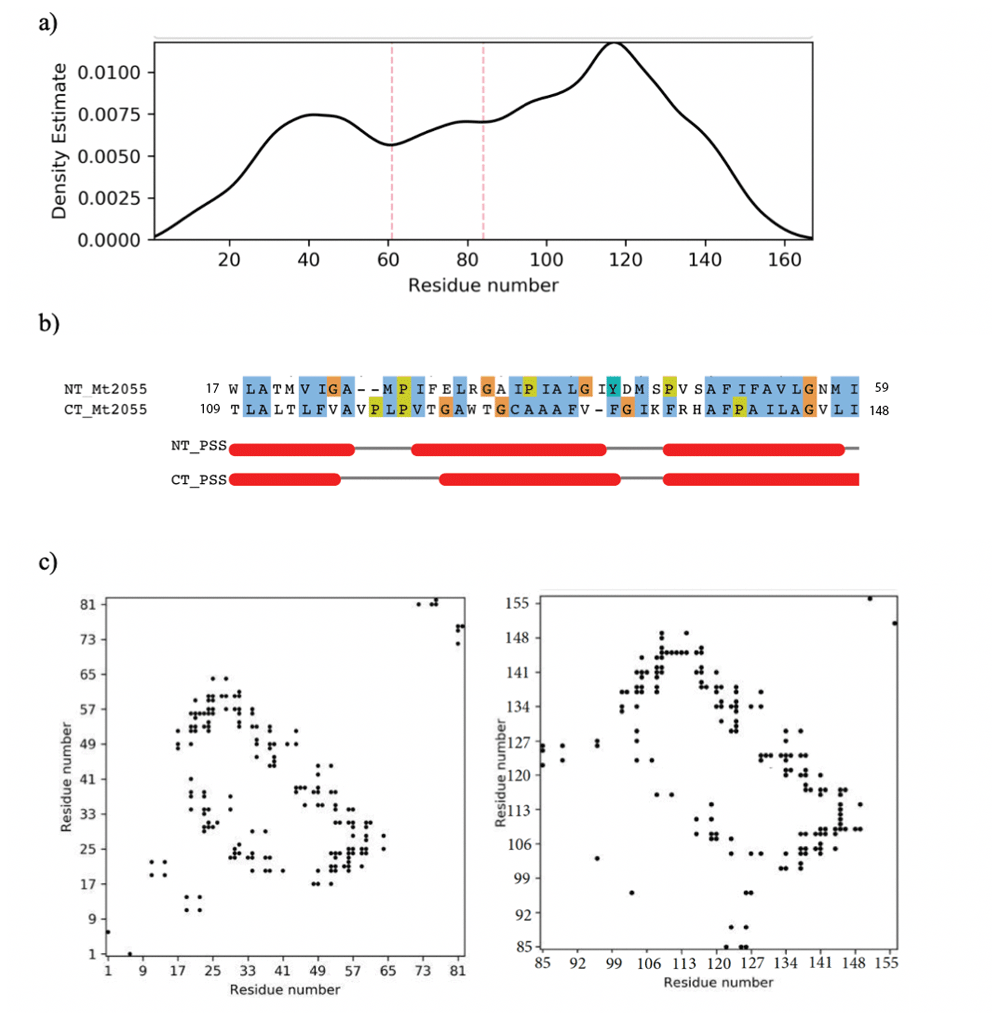

Figure 2. Mt2055 domain analysis.

(a) Contact density profile constructed by ConKit (Simkovic et al., 2017b) utilising DeepMetaPSICOV contact prediction. Solid black line represents contact density and dotted red lines mark density minima corresponding to possible domain boundaries. (b) HHalign alignments for the N-terminal and C-terminal Mt2055 halves, formatted using Jalview (Waterhouse et al., 2009) and coloured according to the ClustalX scheme. Red bars represent helical secondary structure. (c) Maps of predicted contacts generated by DeepMetaPSICOV and plotted using ConKit; left is N-terminal half (residues 1-84) and right is C-terminal half (residues 85-168). Black points represent predicted intramolecular contacts.

Sequence & contact prediction map analysis indicate that PF06695 is made up of a tandem repeat

When the Mt2055 sequence was split at residue 60-61, the resulting N-terminal region of 60 residues and the C-terminal section of 79 residues could be aligned using HHalign (Soding, 2005) with a 78% probability and an E-value of 1.9E-3. Examination of the map of predicted contacts for Mt2055 reveals features that are present in both the N- and C-terminal halves of the protein (Figure 2c). Taken together, these data strongly support the existence of a tandem repeat within the Mt2055 protein and hence across the PF06695 and PF09335 protein families.

Interestingly, an equivalent sequence analysis with HHpred of other PF09335 homologues including Tmem41b itself does not reveal a repeat. However, inspection of their corresponding predicted contact maps does reveal features repeated when N- and C-halves of the protein are compared (Figure 3). Apparently, evolutionary divergence has removed all trace of the repeat sequence signal in bacterial and eukaryotic proteins, although the feature remains visible by evolutionary covariance analysis.

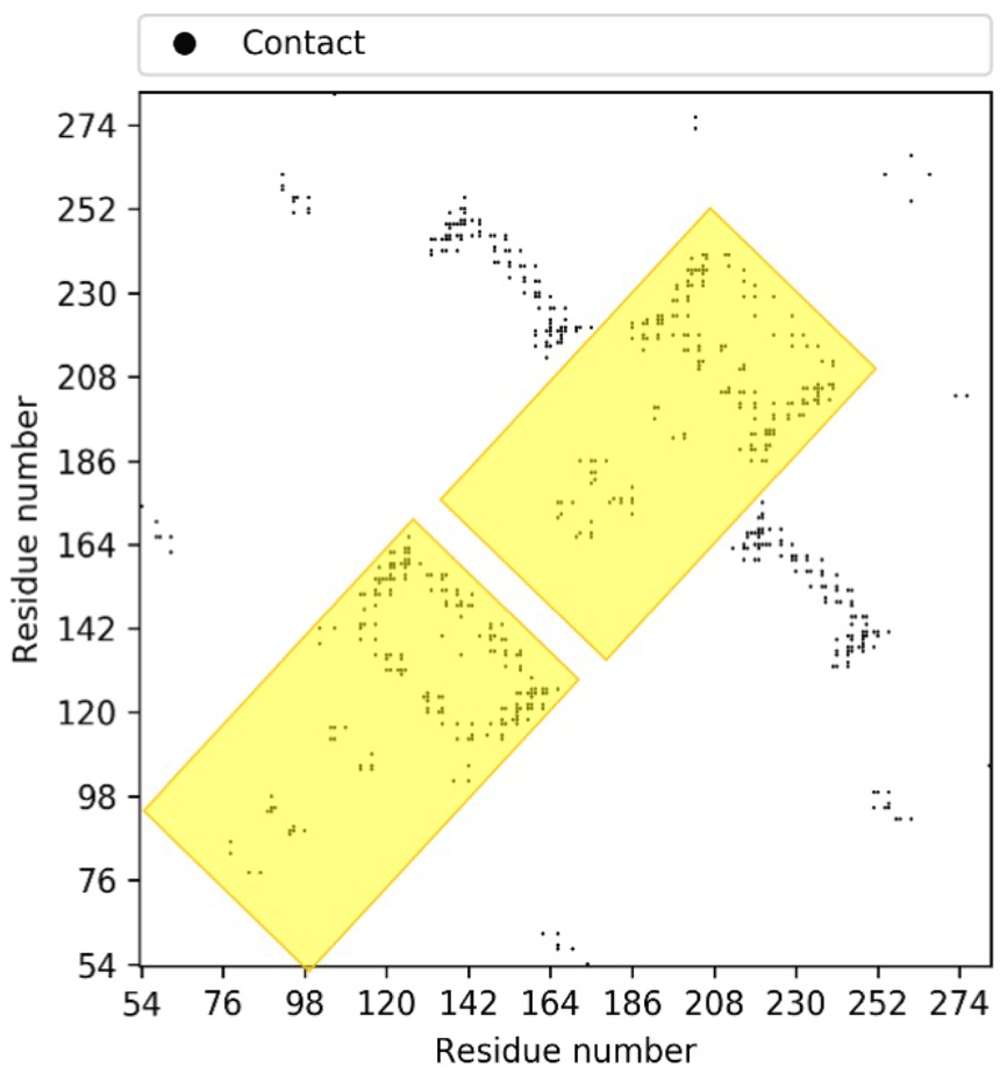

Figure 3. Tmem41b Contact map constructed using DeepMetaPSICOV and plotted using Conkit.

The highlighted areas represent repeat units that have been revealed through evolutionary covariance analysis.

Ab initio modelling of Mt2055 reveals an unusual topology

Several authors have deposited structures of uncharacterised Pfam families in databases (El-Gebali et al., 2019); however, Pfam domain boundaries for PF09335/PF06695, which define the limits of these previous modelling exercises, do not reflect the conserved structural domain that we predict. Given the fact that the available ab initio models were inconsistent with the transmembrane helix, secondary structure and contact predictions, we constructed our own models of Mt2055 as well as Tmem41b and YqjA with trRosetta. https://figshare.com/articles/dataset/repository_zip/14055212

The Mt2055, Tmem41b and YqjA models had estimated TM scores from the trRosetta server of 0.633, 0.624 and 0.635 respectively, suggesting that they were likely to have captured the native fold of the family. All-against-all pairwise structural superposition of the models with DALI gave a mean Z-score of 11.9 confirming their strong similarity. We also used satisfaction of predicted contacts to validate the models (Figure 4) (Simkovic et al., 2017a). This showed that 80% of the top L predicted contacts (where L is the length of the protein) are satisfied by the model contacts for both Mt2055 and YqjA and a value of 60% was achieved for Tmem41b suggestive of good quality models (de Oliveira et al., 2017).

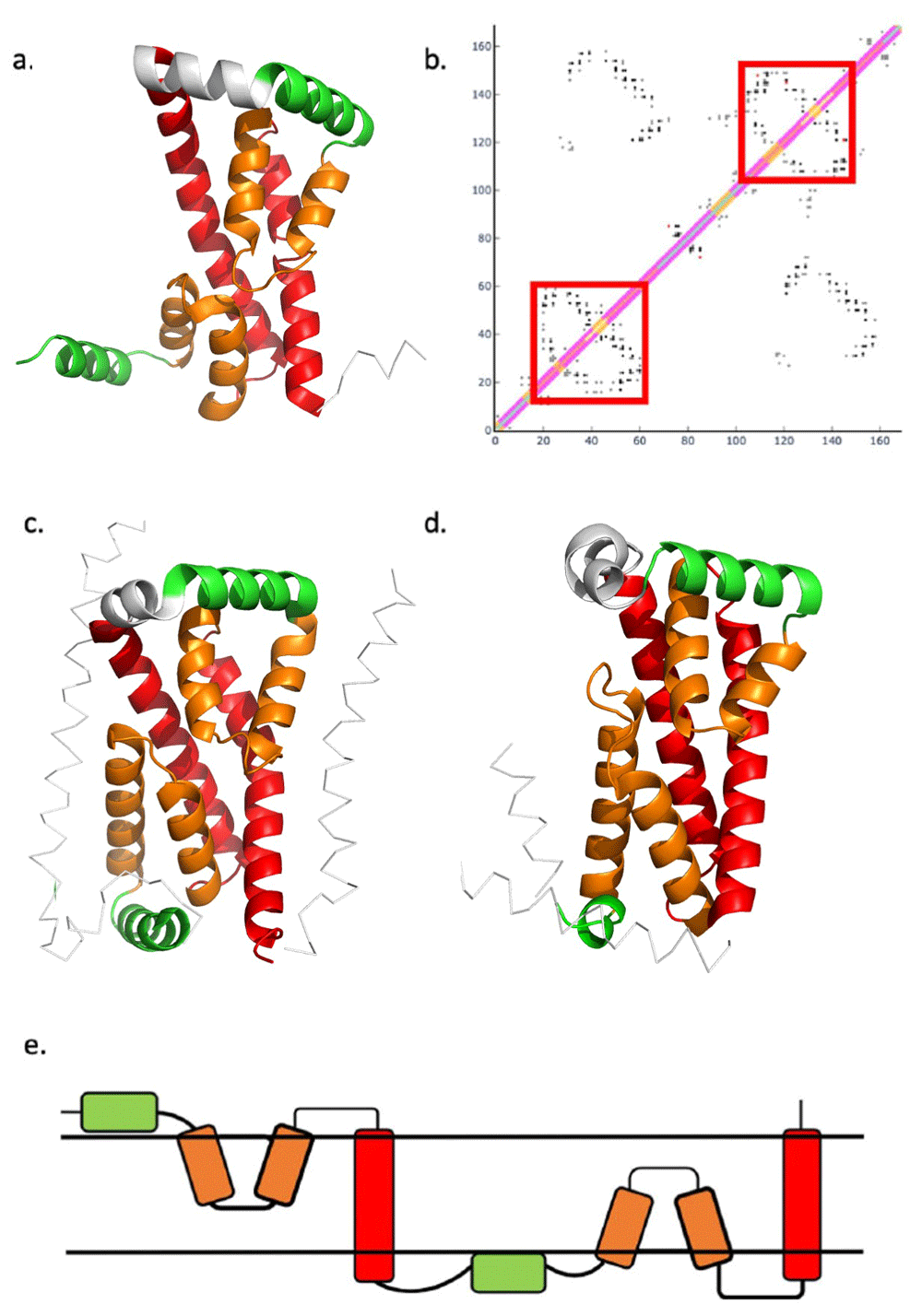

Figure 4.

(a) trRosetta model of MT2055 - amphipathic helix (green) and a re-entrant loop (orange) packed with a TM helix (red) (b) Superposition of DMP predicted contact map for Mt2055 and contacts from the Mt2055 model. Black points are matching contacts, red are mismatches and grey are contacts predicted but not present in the model. Diagonal is a visual representation of transmembrane helix and secondary structure prediction – central diagonal is the visualisation of the TopCons transmembrane prediction (orange being a TM helix) and the outer diagonals are the visual representation of the PSIPRED secondary structure prediction (pink – alpha helix and yellow – coil). Red boxes highlight the re-entrant loop and TM helix packing contact map signature. c) trRosetta model of Tmem41b only showing the conserved structural domain (residues 39-217) d) trRosetta model of YqjA only showing the conserved structural domain (residues 14-176). e) Proposed topology for (extended) DedA domain.

The models (Figure 3) contained interesting features: two inversely symmetrical repeated units each possessing a helix lying parallel to the membrane surface (green) and a re-entrant loop (orange) packed with a TM helix (red).

The presence of a re-entrant loop packed against each TM helix can also be seen on predicted contact maps for these proteins (Figure 4b). Interestingly, each of the re-entrant helices are predicted as a single transmembrane region in the TopCons predictions. When cross-referenced with the PSIPRED secondary structure prediction it is noted that there is a predicted two-residue region of coil around the mid-point of the first TM helix prediction. A similar observation can be made for the fourth TM helix prediction with the equivalent coil region being six residues in length (see the diagonal of Figure 4b) Such a prediction would more obviously be treated as indicative of some kind of kink in the helix (Law et al., 2016) but the explanation here is that these regions form re-entrant helices. Similar contact map features, indicative of re-entrant loops packing against TM helices, can be seen clearly on the contact maps of other DedA proteins (data not shown). The MSA in Figure 1 shows the relative positions of the re-entrant loops in their respective sequences.

In order to test for test whether the membrane-parallel helices (green in Figure 3) were amphipathic, an analysis of helical wheel diagrams for the fifteen residues preceding the putative re-entrant loops was performed with HELIQUEST (Gautier et al., 2008). The quantitative measures of the hydrophobic moment for the regions being analysed (Figure 5) support that they are indeed amphipathic helices. The hydrophobic moments ranged from 0.298 to 0.546.

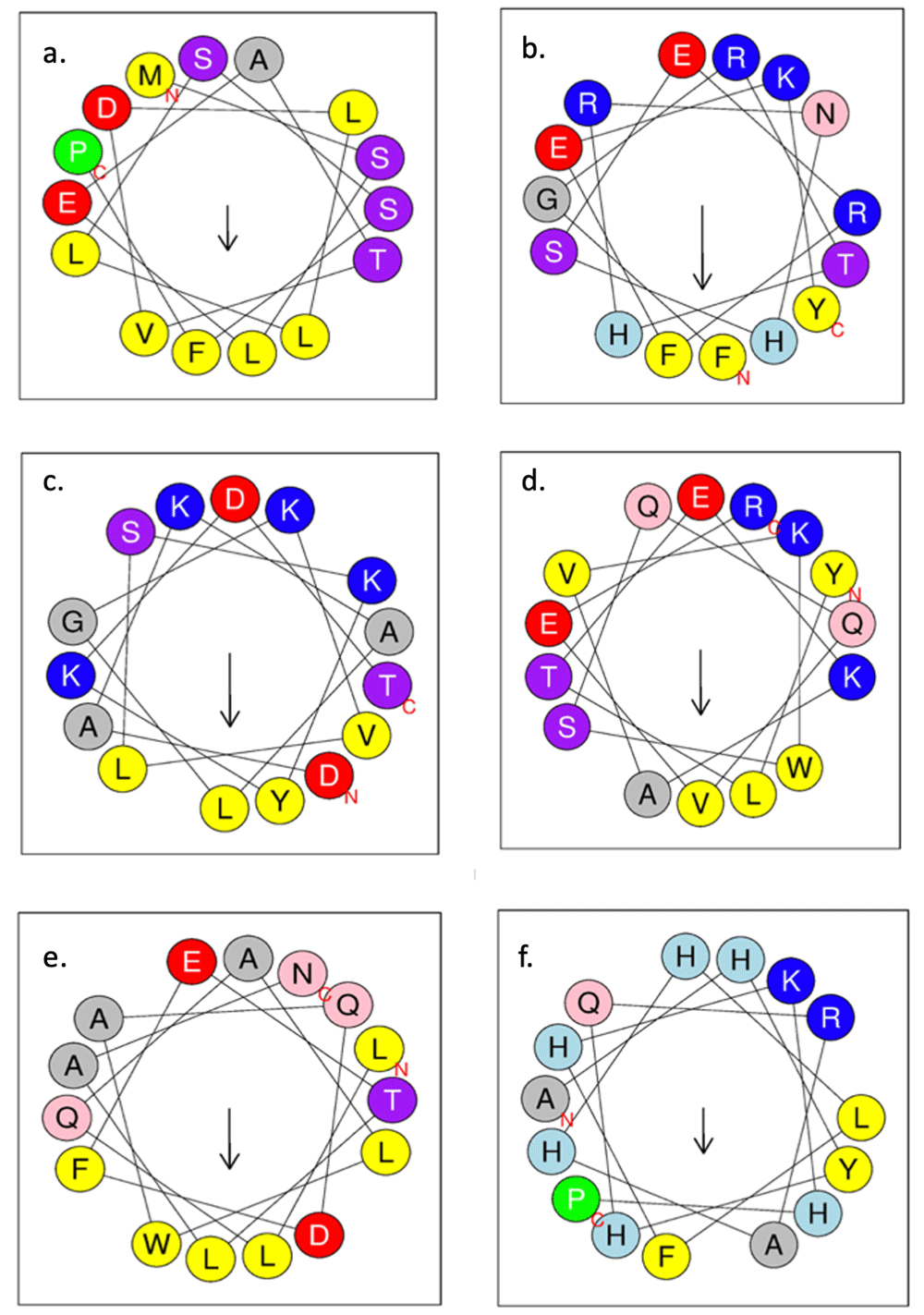

Figure 5. Helical wheel diagrams generated using the HELIQUEST server.

Hydrophobic residues are shown in yellow, serine and threonine in purple, basic residues in dark blue, acidic residues in red, asparagine and glutamine in pink, alanine and glycine in grey, histidine in light blue and proline in green circles. Arrows represent direction and magnitude of the hydrophobic moment and residue marked with ‘N’ is the N-terminal end of the putative amphipathic helix with the residue marked ‘C’ being the C-terminal end. (a) Mt2055 putative amphipathic helix 1 (hydrophobic moment of 0.298). (b) Mt2055 putative amphipathic helix 2 (hydrophobic moment of 0.546). (c) Tmem41b putative amphipathic helix 1 (hydrophobic moment of 0.471). (d) Tmem41b putative amphipathic helix 2 (hydrophobic moment of 0.420). (e). YqjA putative amphipathic helix 1 (hydrophobic moment of 0.295). (f) YqjA putative amphipathic helix 2 (hydrophobic moment of 0.396).

The predicted presence of the amphipathic-re-entrant loop-TM helix features in DedA domain proteins prompted a desire to map sequence conservation on to the ab initio models. Using the Consurf server to perform the mapping of sequence conservation onto the query models, it revealed that the re-entrant loop sequences are highly conserved. The high sequence conservation of re-entrant loops indicate that they are likely to be functionally and/or structurally important (Figure 6).

Figure 6.

trRosetta models with Consurf conservation mapping for (a) Mt2055 (b) Tmem41b (c) YqjA. Conservation is shown as a spectrum from purple (highly conserved) to blue (not conserved).

Re-entrant loops are also present in Cl^-/H⁺ Antiporters

The presence of re-entrant loops and the high density of conserved residues within them caused us to examine experimentally characterised re-entrant loops in the PDBTM database. A total of 193 non-redundant re-entrant helices were identified (see Methods). All 193 were clustered with the putative re-entrant loops from Mt2055, Tmem41b and YqjA using relative z-scores derived from an all-against-all DALI run and subsequently clustered in CLANS (Frickey & Lupas, 2004) with a z-score cut-off of 4.5.

As expected all six re-entrant structures from the query models clustered together. The CLC transporter re-entrant structures of 3orgA (re-entrant 1 and re-entrant 2), 7bxu and 5tqq also clustered with the queries. Additionally, the re-entrant structure from an Undecaprenyl pyrophosphate phosphatase (UppP) (6cb2) also clustered with the queries. UppP is an integral membrane protein that recycles lipid and has structural similarities to CLC transporters (Workman et al., 2018). Contact maps derived from the pdb files of CLC and UppP structures show the contact map signature corresponding to the re-entrant/TM helix structural feature. Interestingly, the UppP is more similar to the query proteins being only 271 residues in length and having only 6 TM helices.

Analysis of the Cl^-/H⁺ antiporter structures show that they contain a similar inverted repeat as we infer for the DedA homologues, resulting in pseudo-2-fold axis of symmetry running along the membrane (Duran & Meiler, 2013). Again similarly, the Cl^-/H⁺ antiporter 3orgA also contains the amphipathic helices on the N-terminal side of the re-entrant loops. The fact that the presence of the amphipathic helices is restricted only to 3orgA and not found in all homologues suggest that these features are not essential for function (Figure 7).

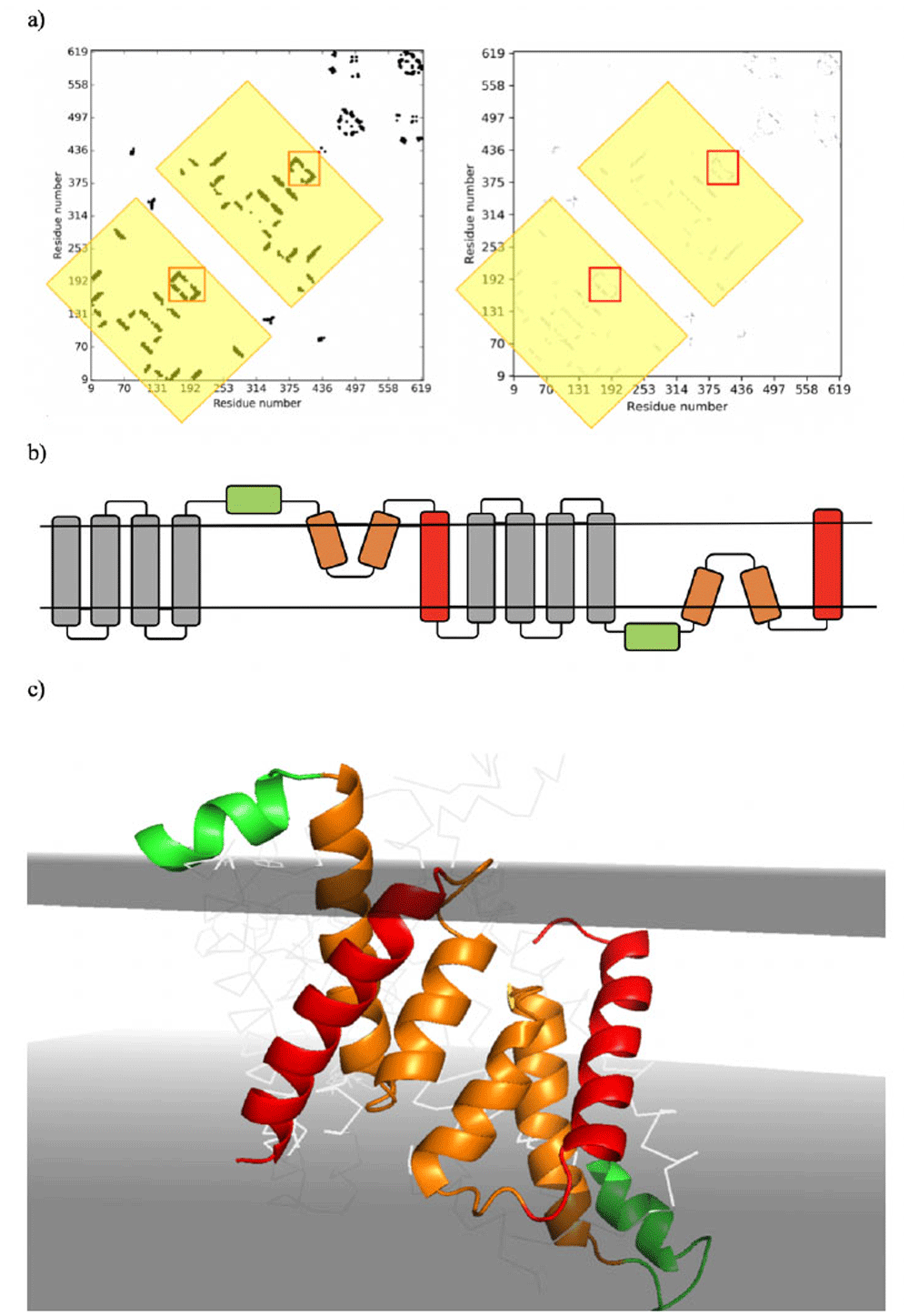

Figure 7.

(a) Left - Predicted Contact map with repeating units highlighted in yellow boxes, contact map signature of re-entrant loop packed with TM helix in red boxes.; Right - The Experimental Contact map obtained from the PDB structure with repeating units highlighted in yellow boxes, contact map signature of re-entrant loop packed with TM helix in red boxes. (b) Actual 3orgA topology; grey: TM Helices that are additional to the core; red: TM helices contributing to the formation of the core; orange; re-entrant loops contributing to the formation of the core; green: amphipathic helices contributing to the formation of the core. (c) The 2-fold pseudo symmetry of the amphipathic/re-entrant loop/TM helix core inverted repeat structure of 3orgA with membrane positions shown as grey planes obtained from PDBTM.

A possible antiporter role for DedA proteins

The presence of re-entrant loops in a transmembrane protein strongly indicates a transporter or pore functionality since this structural feature has, hitherto, only been found in proteins of this kind (Yan & Luo, 2010). The structural similarities between the DedA proteins and the Cl^-/H⁺ antiporters raise the possibility that the families studied here are, in fact, unsuspected distant homologues having this putative pore feature in common. In that regard it is relevant to recall a hypothesis that DedA proteins are H⁺ antiporters resulting from site directed mutagenesis (SDM) experiments (Kumar & Doerrler, 2014; Kumar et al., 2016).

A recent study has identified key residues (Figure 8) in the E. coli DedA protein YqjA that, when replaced in site directed mutagenesis experiments, resulted in properly folded (membrane localized) but non-functional proteins unable to complement alkaline pH sensitivity of E. coli YqjA mutant and antibiotic sensitivity of YqjA/YghB double mutant (Panta et al., 2019). Highlighting the essential residues (E39, D51, R130 and R136) on the YqjA model show that they come together in three-dimensional space with the N-terminal side of the first re-entrant possessing E39 and the C-terminal side possessing D51. R130 and R136 are similarly positioned on the second re-entrant loop (Figure 8). Re-entrant loops are known to form pores and here we have two proton-titratable residues (E39, D51) in close proximity to essential basic residues (R130 and R136) within a putative pore. This three-dimensional arrangement of key residues could serve a role in the coupling of the protonation status with the binding of a yet to be characterised substrate as is postulated for the multi-drug H⁺ antiporter MdfA (Heng et al., 2015) where these same residues are located inside a central cavity.

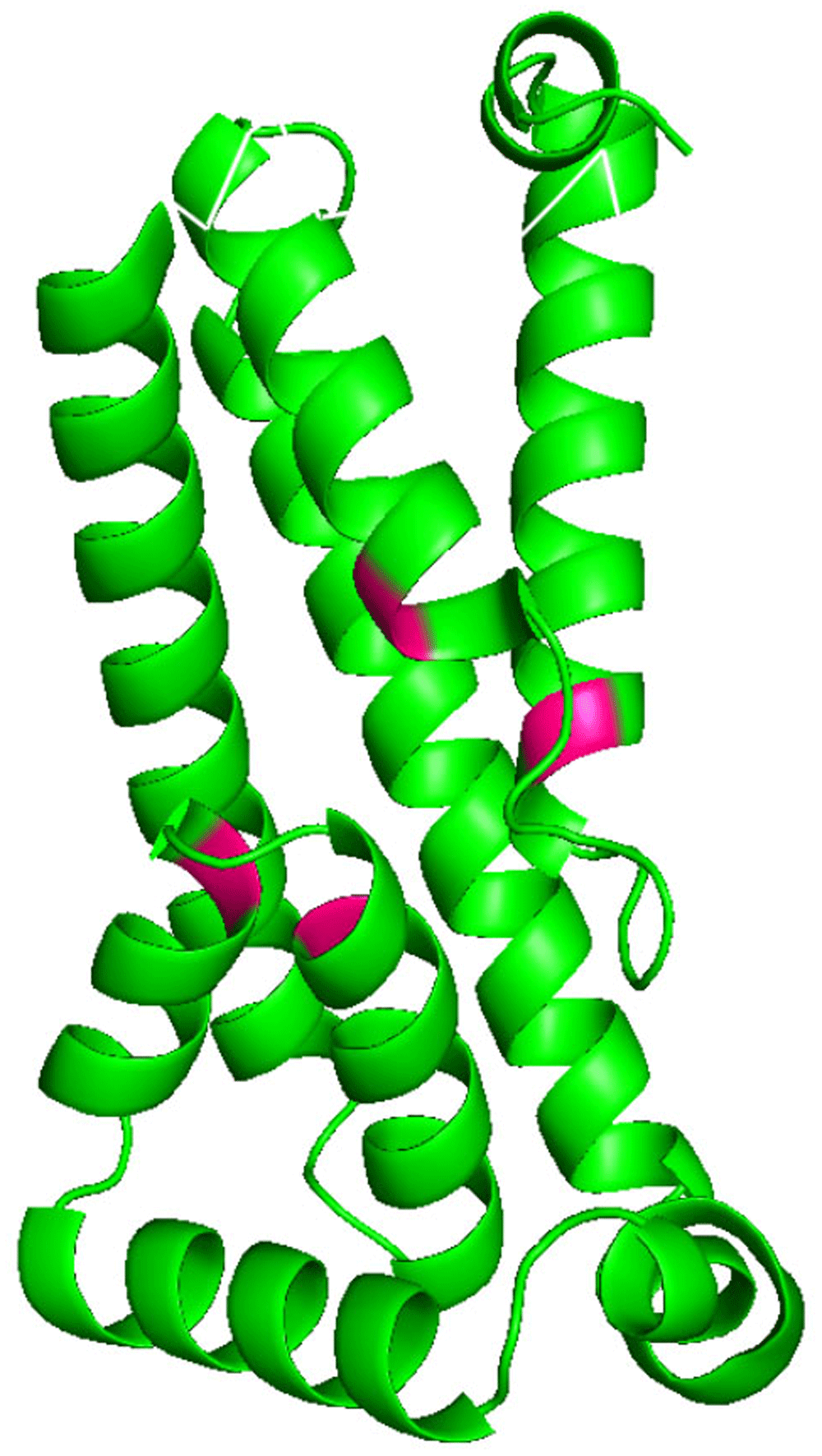

Figure 8. Essential residues determined by SDM experiments highlighted in pink on a truncated YqjA model.
