Jupyter notebook-based tools for building structured datasets from the Sequence Read Archive

Introduction

The Sequence Read Archive (SRA; Leinonen et al., 2011) is a large public repository that stores next-generation sequencing data from thousands of diverse scientific investigations. Despite its promise, reuse and re-analysis of SRA data has been challenged by the heterogeneity and poor quality of the metadata that describe its biological samples (Gonçalves & Musen, 2019). Recently, the MetaSRA project (Bernstein et al., 2017) standardized these metadata by annotating each sample with terms from biomedical ontologies including Cell Ontology (Bard et al., 2005), Uberon (Mungall et al., 2012), Disease Ontology (Schriml et al., 2019), Cellosaurus (Bairoch, 2018), and the Experimental Factors Ontology (Malone et al., 2010). The MetaSRA also features an interface (http://metasra.biostat.wisc.edu) for querying human RNA-seq samples using these ontology term annotations. However, the MetaSRA web interface is not capable of producing structured datasets such as those that match case samples associated with a target condition or disease with healthy control samples. Similarly, the MetaSRA is also not capable of searching for samples associated with a particular condition and/or tissue-type that are ordered according to a numeric property (e.g., age).

Construction of such datasets is non-trivial and requires further processing of the results provided by the MetaSRA website. Specifically, finding case and control samples for a given disease requires matching case samples to control samples according to their tissue or cell type. For example, if one were to naively search the MetaSRA for “liver cancer” samples, the results would include samples from Kim et al. (2020), which consist of isolated T cells from liver tumors. Therefore, only matched T cell samples would make for appropriate controls. Furthermore, given these search results, users may wish to further filter samples according to whether they are poorly annotated (i.e. , are missing cell type or tissue information), whether they are derived from a cell line, or whether they were experimentally treated. Moreover, given these results, the user may wish to explore other ontology terms associated with the search results within either the case or control samples to check for any variables that may confound downstream analyses. Finding longitudinal or time-series data presents similar challenges. To the best of our knowledge, no existing tool addresses these tasks.

To address these two tasks, we produced two Jupyter notebook-based tools. The first tool, called the Case-Control Finder, searches the SRA via the MetaSRA terms to produce matched-case and control samples for a given disease or condition where the cases and controls are matched by tissue and cell type. The second tool, called the Series Finder, finds ordered sets of samples for the purpose of answering biological questions pertaining to changes over a numerical property (e.g., time). More specifically, the Series Finder produces ordered sets of samples, where the order is determined based on a temporal property in the metadata as standardized by the MetaSRA’s real-valued properties. Examples of temporal properties include the age of a person from which a given sample originated or the time in which a given sample of cells have spent differentiating in vitro. These tools promise to facilitate the construction of suitable public datasets for secondary analyses.

Methods

The tools presented in this work were written in Python (v3.6) and make use of Python packages pandas (McKinney, 2011), Matplotlib (Hunter, 2007), and seaborn (https://seaborn.pydata.org). These notebooks can be run in the cloud via Google Colab. A link to these notebooks can be found in the README within the Github repository (https://github.com/mbernste/hypothesis-driven-SRA-queries).

Case-Control Finder

The Case-Control Finder implements the following steps to produce a dataset of matched-case control samples for a given disease (Figure 1A):

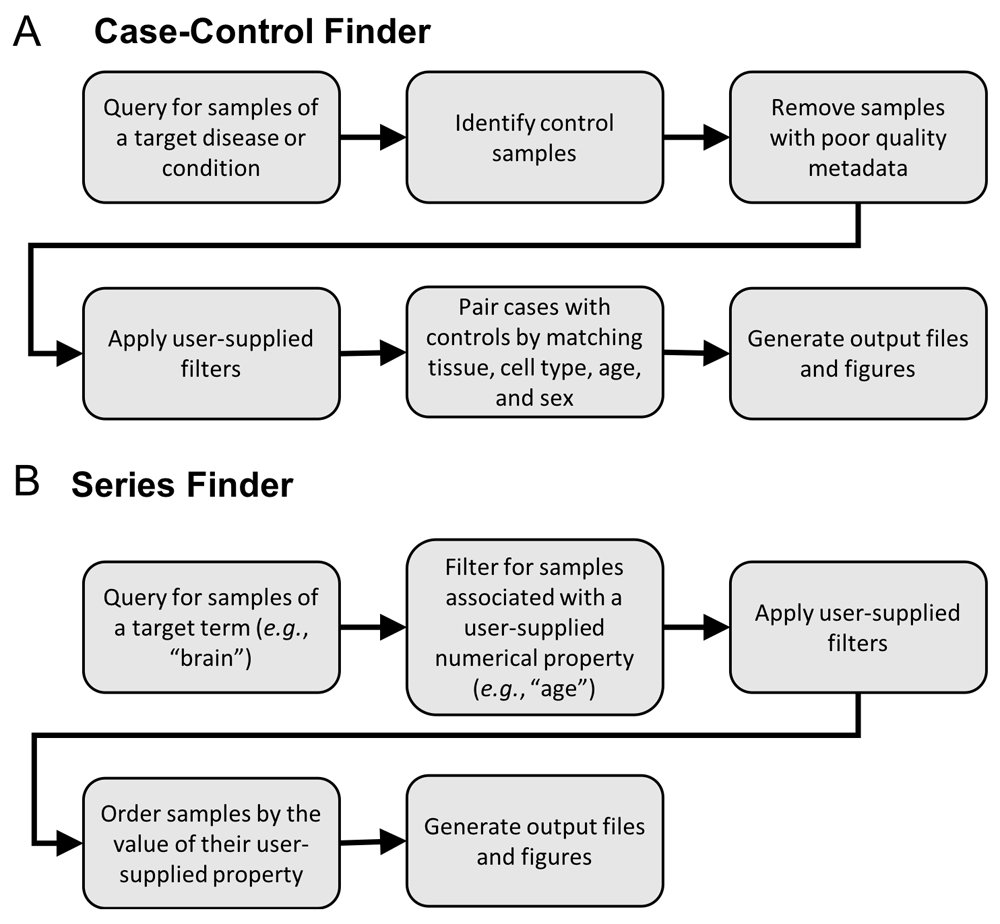

Figure 1. Data flows for hypothesis-driven query tools.

An overview of the backend processing functions called from the Jupyter notebooks.

• 1. Generate candidate case and control samples. Generate the set of candidate case samples by querying for all samples associated with a user-specified condition or disease using the MetaSRA-mapped ontology terms. Also, find all candidate control samples that are not associated with the target condition/disease.

• 2. Filter poorly annotated samples. Filter samples based on a metadata completeness threshold, which requires that all samples be associated with either a tissue term or a cell type term. The tissue/cell type information is required for downstream matching of case samples to control samples.

• 3. Apply user-specified filters. Further filter samples according to user-specified filtering parameters. The user can filter out cell line samples, treated samples, and in vitro differentiated samples. The user can also remove all diseased samples from the candidate control samples for the purpose of generating a healthy control-set.

• 4. Match by tissue, cell type, age, and sex. The candidate case samples are then matched with the candidate control samples by their tissue and cell type terms. Optionally, the user can also match samples by age and sex. Specifically, given that each sample can be associated with multiple ontology terms in the MetaSRA, a set of case samples is matched with a set of control samples when both sets of samples are labelled with the same set of tissue and cell type terms. For example, a set of case samples annotated with the set of terms “liver” and “epithelial cell” will be matched only to control samples also labeled strictly with these terms (Figure 2A). This ensures that case samples are matched with maximally similar control samples and mitigates matching samples from different tissue-types. For example, a set of case samples labelled with both the terms “liver” and “epithelial cell” will not be matched with a set of samples labelled only as “epithelial cell,” as there is no guarantee that the latter set of samples originate in the liver.

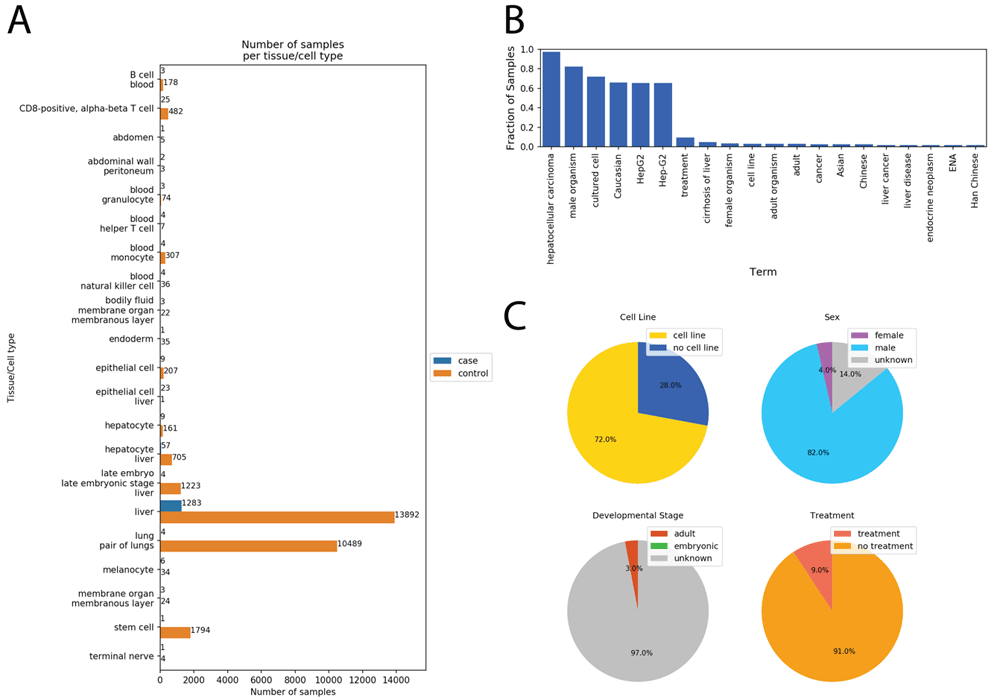

Figure 2. Example results from the Case-Control Finder.

Results from running the Case-Control Finder for the query “liver cancer.” (A) The Case-Control Finder displays the number of case/control samples matched by each tissue and cell type. (B) The user can select either the case samples or control samples for a given tissue or cell type and display the most common ontology terms associated with those selected samples. Displayed here are the most common terms associated with the case samples labeled as “liver.” (C) The notebook also displays four pie charts for viewing the fraction of samples belonging to a cell line (top left), each sex (top right), each developmental stage (bottom left), and whether they were given an experimental treatment (bottom right).

Once the dataset is constructed, the notebook enables the user to explore the samples for other MetaSRA mapped ontology terms within the data (Figure 2B and C). By presenting other common ontology terms in the data, the user may be able to identify variables that either confound analysis.

Results and use cases

We used the Case-Control Finder to query for samples of liver cancer RNA-seq samples matched with healthy control samples. This query resulted in 21 sets of samples representing different tissues or cell types including epithelial cells, hepatocytes, stem cells, and liver tissue (Figure 2A). The Case-Control Finder identified common terms associated with the case “liver cancer” samples (Figure 2B), and categorized these samples by cell line status, sex, developmental stage, and treatment status (Figure 2C).

We used the Series Finder to find all brain samples in the SRA ordered by the age of the sample donor. This query resulted in samples spanning many ages (Figure 3A). This dataset could prove useful for exploring gene expression-based signatures of aging. The Series Finder also identified common terms at each age (Figure 3B) and for each age’s sample-set, categorized those samples by cell line status, sex, developmental stage, and treatment status (Figure 3C).

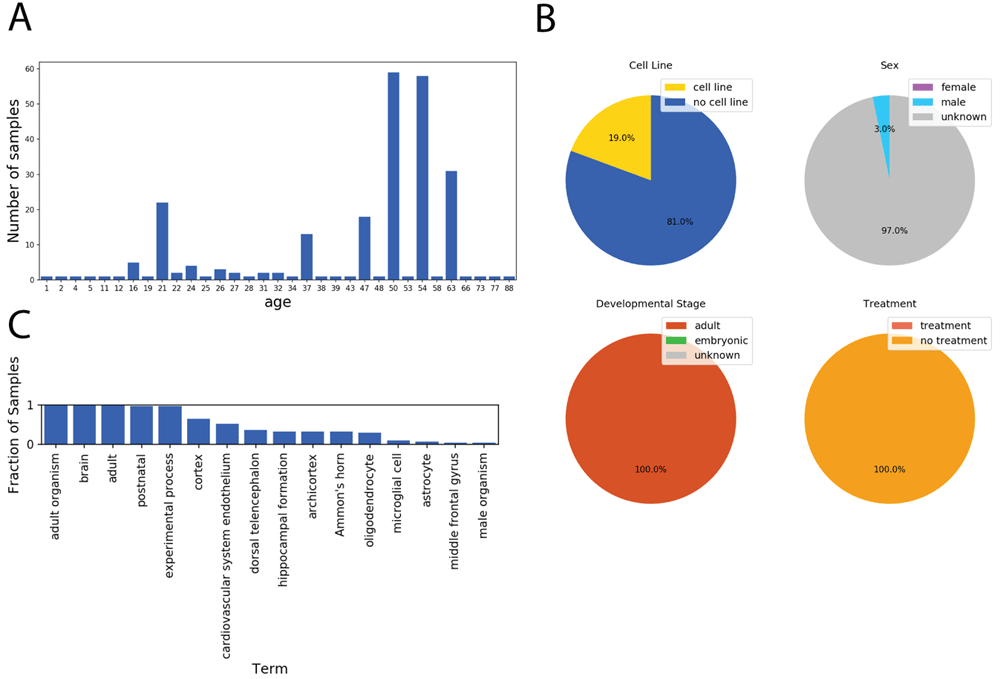

Figure 3. Example results from the Series Finder.

Results from running the Series Finder for the query “brain” sorted by “age,” where unit is specified as “year.” (A) The Series Finder displays the number of samples sorted by age. (B) The user can select samples associated with a given time point for further exploration. Here the samples annotated as “year = 63” are selected. The notebook then displays four pie charts for viewing the fraction of samples belonging to a cell line (top left), each sex (top right), each developmental stage (bottom left), and whether they were given an experimental treatment (bottom right). (C) Given the selected samples from (B), the notebook displays the most frequent terms associated with those selected samples.

Conclusion and future work

We implemented two Jupyter notebooks for performing hypothesis-driven queries of public RNA-seq samples in the SRA. These tools are built upon the standardized metadata provided by the MetaSRA project and enable querying of the metadata beyond what is natively possible via the MetaSRA website interface. Given the SRA accessions of the RNA-seq samples that these tools produce, a user can then retrieve the gene expression data for these samples in order to perform secondary analyses. Specifically, the user can either download and process the raw reads from the SRA, or they can obtain preprocessed gene expression profiles from recent mass preprocessing efforts such as recount2 (Collado-Torres, 2017), ARCHS4 (Lachmann et al., 2018), and refine.bio (Greene et al.). Finally, these notebooks come pre-packaged with metadata files from the latest version of the SRA, as provided by the SRAdb (Yuelin et al., 2013), and MetaSRA. When the MetaSRA releases a new version of annotated metadata, these notebooks will be updated to track the new release.

We also note a few limitations to this work. First given that the MetaSRA annotates the SRA samples using an automated computational pipeline, its annotations contain some errors. Errors in the MetaSRA may propagate to the results produced by these tools, and thus, the datasets produced by these tools are best utilized as sets of candidate datasets for downstream analysis. We point the reader to Bernstein et al. (2017) for an analysis of the MetaSRA’s accuracy. We also note that the SRA stores sequencing data for both bulk RNA-seq and single-cell RNA-seq samples; however, this information is not encoded in any standardized way within the SRA nor is it captured by the MetaSRA. Thus, results returned by these tools may include a mixture of both single-cell and bulk data. For these reasons, we encourage users to validate the results returned by these tools by consulting their entries in the SRA before proceeding with downstream analyses. Lastly, to facilitate access to these tools, it would benefit to implement them within an easy-to-use web interface rather than Jupyter notebooks. Future work will entail either integrating these tools into the MetaSRA website, or implementing a stand-alone web application for these tools using a platform such as R Shiny.

Data availability

The figures and datasets produced in the analyses can be found on GitHub: https://github.com/mbernste/hypothesis-driven-SRA-queries/tree/master/results

Software availability

All code is maintained on GitHub: https://github.com/mbernste/hypothesis-driven-SRA-queries

Archived code as at time of publication: https://doi.org/10.5281/zenodo.3957949 (Bernstein, 2020)
