Hobotnica: exploring molecular signature quality

[version 1; peer review: 2 approved with reservations]

Alexey Stupnikov ^1,2, Alexey Sizykh¹, Alexander Favorov^3,4, [...] Bahman Afsari³, Sarah Wheelan³, Luigi Marchionni⁵, Yulia Medvedeva^1,2,6

Alexey Stupnikov ^1,2, Alexey Sizykh¹, [...] Alexander Favorov^3,4, Bahman Afsari³, Sarah Wheelan³, Luigi Marchionni⁵, Yulia Medvedeva^1,2,6

PUBLISHED 08 Dec 2021

Author details Author details

¹ Moscow Institute of Physics and Technology, Moscow, Russian Federation
² National Medical Research Center for Endocrinology, Moscow, Russian Federation
³ Johns Hopkins University, Baltimore, USA
⁴ Vavilov Institute for General Genetics RAS, Moscow, Russian Federation
⁵ Weill Cornell Medicine, New York, USA
⁶ Center of Biotechnology RAS, Moscow, Russian Federation

Alexey Stupnikov
Roles: Conceptualization, Formal Analysis, Investigation, Methodology, Project Administration, Supervision, Writing – Original Draft Preparation, Writing – Review & Editing

Alexey Sizykh
Roles: Formal Analysis, Investigation, Software, Visualization

Alexander Favorov
Roles: Conceptualization

Bahman Afsari
Roles: Conceptualization, Writing – Original Draft Preparation

Sarah Wheelan
Roles: Conceptualization, Funding Acquisition, Writing – Original Draft Preparation

Luigi Marchionni
Roles: Conceptualization, Funding Acquisition, Methodology

Yulia Medvedeva
Roles: Funding Acquisition, Project Administration, Writing – Original Draft Preparation, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Bioinformatics gateway.

Abstract

A Molecular Features Set (MFS), is a result of a vast diversity of bioinformatics pipelines. The lack of a “gold standard” for most experimental data modalities makes it difficult to provide valid estimation for a particular MFS's quality. Yet, this goal can partially be achieved by analyzing inner-sample Distance Matrices (DM) and their power to distinguish between phenotypes.
The quality of a DM can be assessed by summarizing its power to quantify the differences of inner-phenotype and outer-phenotype distances. This estimation of the DM quality can be construed as a measure of the MFS's quality.
Here we propose Hobotnica, an approach to estimate MFSs quality by their ability to stratify data, and assign them significance scores, that allow for collating various signatures and comparing their quality for contrasting groups.

Keywords

Molecular signature, Distance Matrix, Differential Gene Expression, Gene Signature, Rank statistics

Corresponding authors: Alexey Stupnikov, Yulia Medvedeva

Competing interests: No competing interests were disclosed.

Grant information: This work was supported by Ministry of Science and Higher Education of the Russian Federation (agreement no. 075-15-2020-899) and by the NIH grants R01DE027809 and P30CA006973.

Copyright: © 2021 Stupnikov A et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Stupnikov A, Sizykh A, Favorov A et al. Hobotnica: exploring molecular signature quality [version 1; peer review: 2 approved with reservations]. F1000Research 2021, 10:1260 (https://doi.org/10.12688/f1000research.74846.1) First published: 08 Dec 2021, 10:1260 (https://doi.org/10.12688/f1000research.74846.1) Latest published: 16 Aug 2022, 10:1260 (https://doi.org/10.12688/f1000research.74846.2)

Introduction

A signature based on a predefined Molecular Features Set (MFS), which is designed to distinguish biological conditions or phenotypes from each other, is a crucial concept in bioinformatics and precision medicine. In this context, signatures typically originate from MFS from contrasting experimental data from two or more sample groups, which differ phenotypically. These MFS incorporate information on the differences between the groups. The nature of the MFS depends on the modality of the original data. For instance, the MFS provided by the Differential Gene Expression approach is a list of Differentially Expressed genes (DEG); Differential Methylation analysis provides Differentially Methylated Cytosines or regions (DMC and DMR) as MFS.

A significant number of mutational, expression and methylation-based signatures have recently been published and they are actively used in research and translational medicine. Examples of expression-based signatures involve gene sets for clinical prognosis (e.g., PAM50,¹ MammaPrint²), for pathways and gene enrichment analysis (e.g., MsigDB collections³), and for drug re-purposing (e.g., LINCS project⁴).

Direct quality assessment for MFS is currently hardly possible, since there are no ‘gold standard’ datasets where active Molecular Features are explicitly known. In this manuscript, we propose a novel approach - Hobotnica, that allows for measurement of MFS quality by addressing the key property of the signature, namely, its quality for data stratification.

Hobotnica leverages the quality of distance matrices obtained from any source, in order to assess the quality of the MFS from any data modality compared to a random MFS. In this study, we demonstrate its application to transcriptomic signatures.

Methods

Approach

The Hobotnica approach is as follows: For a given data set $W$ and a given MFS ( $S$ ) we derive the inter-sample distance matrix ( $DM (S, W)$ ). Then we assess the quality of $DM$ (and, thus, of $S$ ) with a summarizing function ( $α (DM (S)) = α (DM (S), Y)$ or by abuse of notation $α (DM (S))$ ) where ( $Y$ ) represents the labels of samples. In shorter notation,

(1)

\begin{array}{c} H : S \\ f (S| D) \to DM \\ g (DM| Y) \to α \end{array}

We desire the function $α$ to gauge if the inner-class samples are closer to each other than to outer-class samples. If no difference exists from one class to another, $α$ must be close to zero and as the difference grows, $α$ grows. In the ideal case of a perfect separation, $α$ reaches its maximum at 1:

• $α \in [0, 1]$
• $α \to 1 \Leftrightarrow$ High groups stratification quality
• $α \to 0 \Leftrightarrow$ Low groups stratification quality

Under the null hypothesis of Hobotnica (( $H_{0}$ )), no significant difference exists between $α (S)$ and the $α$ of an equal-sized general random set. On the contrary, the alternative ( $H_{A}$ ) hypothesizes that $S$ generates higher $α$ than most random $S^{'}$ of the same size. To estimate a null distribution for Hobotnica’s $α$ , we applied a permutation test. As our default options, we use Kendall distance as the distance measure and Mann-Whitney-Wilcoxon test as the summarizing function.

When instead of a single $MFS$ a set of hypotheses $\{H_{1} : {MFS}_{1} H_{2} : {MFS}_{2} \dots H_{n} : {MFS}_{n}\}$ is in place, for each Molecular Feature Set ${MFS}_{i}$ corresponding Distance Matrix ${DM}_{i}$ can be generated, and than, in turn, particular value of the measure $α_{i}$ :

(2)

\{\begin{cases} H_{1} : {MFS}_{1} \\ H_{2} : {MFS}_{2} \\ \dots \\ H_{n} : {MFS}_{n} \end{cases} \to \{\begin{cases} f ({MFS}_{1}| D) \to {DM}_{1} \\ f ({MFS}_{2}| D) \to {DM}_{2} \\ \dots \\ ({MFS}_{n}| D) \to {DM}_{n} \end{cases} \to \{\begin{cases} g ({DM}_{1}| A) \to α_{1} \\ g ({DM}_{2}| A) \to α_{2} \\ \dots \\ g ({DM}_{n}| A) \to α_{n} \end{cases} .

Thus, for every MFS ${MFS}_{i}$ from set of hypotheses $\{H_{1} : {MFS}_{1} H_{2} : {MFS}_{2} \dots H_{n} : {MFS}_{n}\}$ H-score $α_{i}$ may be computed, resulting in a set $⟨α_{1}, α_{2}, \dots α_{n}⟩$ . Comparing $α$ values allows for corresponding Feature Sets qualities ranking and selecting the most informative Signatures for the Data $D$ .

Validation

To validate our approach, we conducted three case studies.

In the first case study we extracted RNA-seq expression dataset for prostate cancer from the Cancer Genome Atlas (TCGA) on counts level.⁵ As MFSs, we recruited the C2 collection of molecular signatures from MSigDB,³^,⁶ that contains a number of prostate-related gene sets. This way, every candidate MFS (gene set from the collection) produced its specific H-score.

For the second case study, we recruited the PAM50 molecular signature,⁷ which was designed for classifying various breast cancer subtypes, as MFS. Then, we applied it to several datasets containing these breast cancer subtypes.⁵^,⁸^–¹¹

In the third case study, we explored H-scores delivered by various DGE approaches. We performed DGE analysis for two groups of mice samples with different response to MYC factor treatment (Mycfl/fl vs Myc $Δ$ IE, ERT2 genotypes)¹² with DESeq2¹³ and edgeR.¹⁴

The top 100 genes for each method were then retrieved. In addition, we extracted a list of genes genes with the highest variance in expression, as well as a number of random gene sets.

In each case, the counts were normalised to counts per million (cpm). For every geneset an H-score and its p-value with BH¹⁵ correction were computed.

Results

Prostate-related C2 gene sets clearly demonstrated highest H-score values and sufficient statistical significance (Table 1, Figure 1A), as well as data stratification (Figure 1B), which is expected for prostate cancer as opposed to control contrast. Gene sets not attributed to prostate cancer-related processes did not achieve statistically significant p-values (Table 1).

Table 1. Ten C2-chemical and genetic perturbations (GCP) Gene Signatures with the highest H-scores.

Signature	H-score	p-value
TOMLINS_PROSTATE_CANCER	0.795	0.025
WALLACE_PROSTATE_CANCER	0.747	0.025
OUYANG_PROSTATE_CANCER_PROGRESSION	0.745	0.025
LIU_PROSTATE_CANCER	0.735	0.025
PIEPOLI_LGI1_TARGETS	0.724	0.059
SMID_BREAST_CANCER_RELAPSE_IN_LIVER	0.712	0.164
TIMOFEEVA_GROWTH_STRESS_VIA_STAT1	0.708	0.240
GENTILE_UV_LOW_DOSE	0.705	0.308
JOHANSSON_BRAIN_CANCER_EARLY_VS_LATE	0.701	0.377
HOWLIN_CITED1_TARGETS_1	0.700	0.377

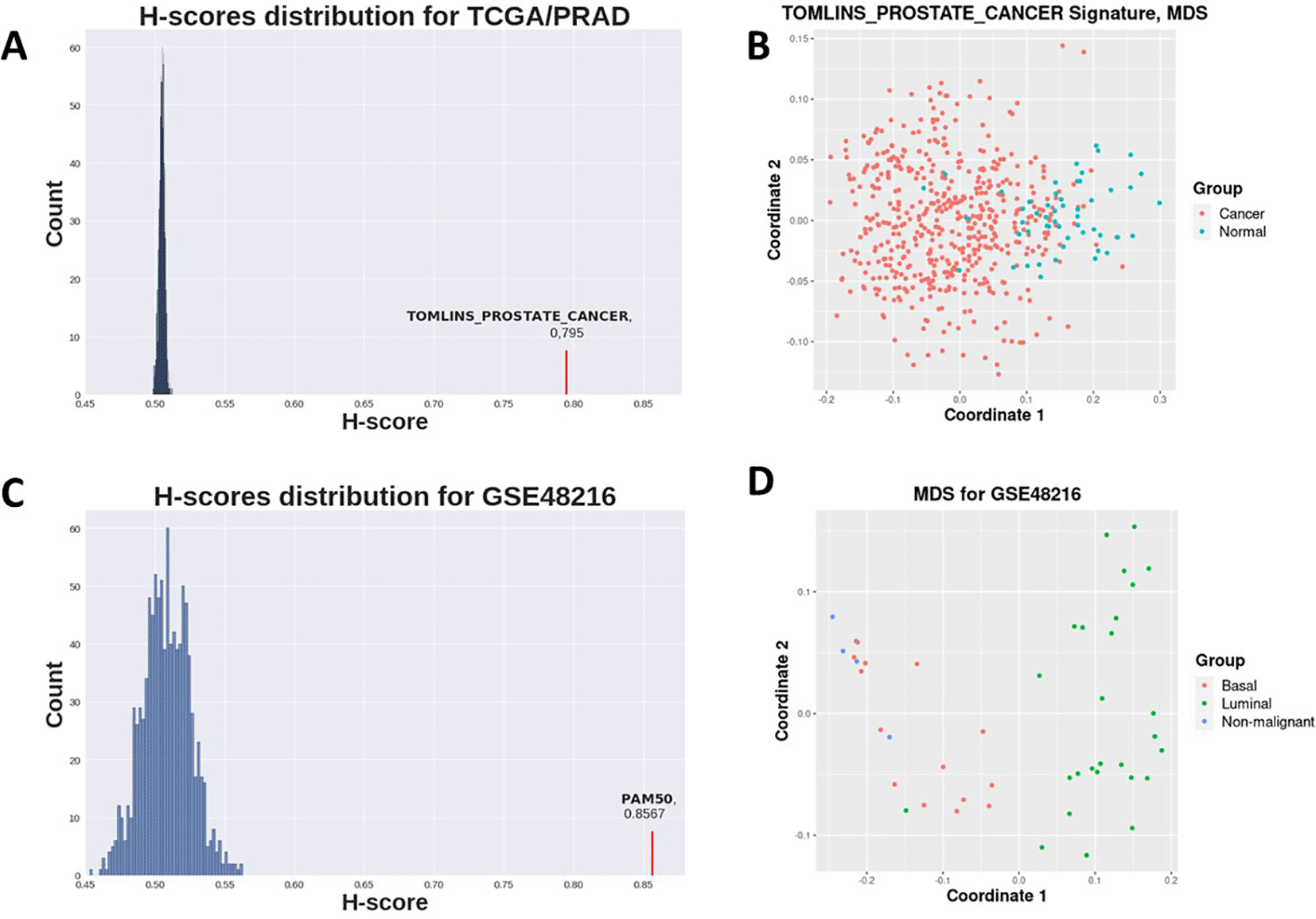

Figure 1. A: Distribution of H-scores for random genesets (blue) on TCGA prostate cancer vs normal dataset (see Table 1) and Tomlins prostate geneset H-score (red). B: MDS for TCGA prostate demonstrates samples separation with Tomlins geneset. C: Distribution of H-scores for random genesets (blue) on GSE48216 breast cancer dataset (see Table 2) and PAM50 geneset H-score (red). D: MDS for GSE48216 breast cancer dataset samples separation with PAM50 geneset.

H-scores for the PAM50 signature were evidently higher for all datasets in the second case study than those for random gene sets for the same datasets (Figure 2, Figure 1C). This implies that the PAM50 signature exhibits a high stratification quality for various breast cancer subtypes samples. PAM50-delivered H-scores also demonstrated highly statistically significant p-values (Table 2).

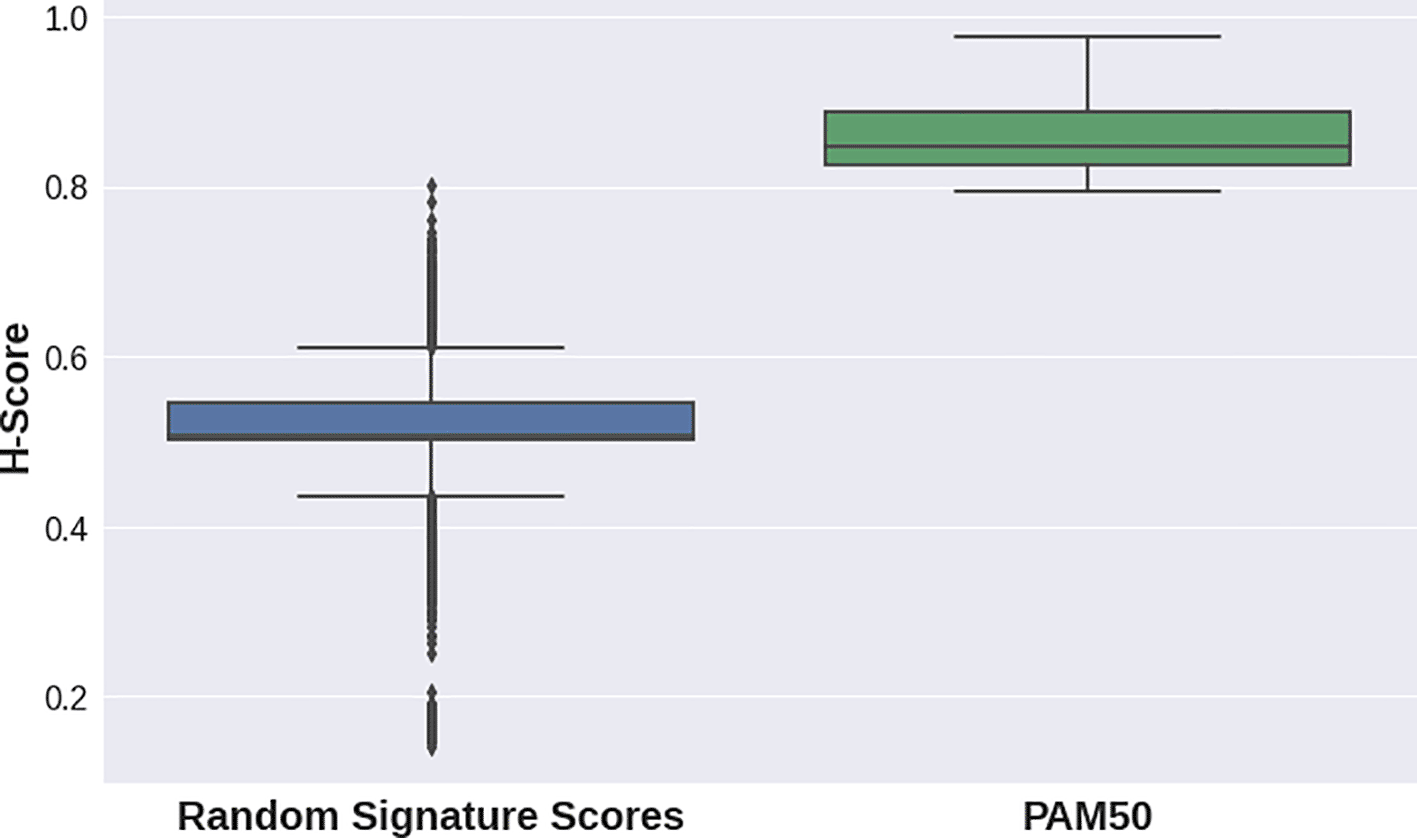

Figure 2. Distribution of random gene sets-delivered (blue) and PAM50 gene set-delivered (green) H-scores for breast cancer datasets (see Table 2).

Table 2. PAM50 results.

GEO Accession	Sample size	Groups in dataset	H-score	p-value
GSE58135	168	6	0.772	7e-4
GSE62944	1067	5	0.8892	0.0003
GSE48216	46	3	0.8567	0.0003
GSE80333	10	3	0.9765	0.0003

In the third case study, various DGE approaches resulted in gene sets that delivered significantly different H-scores (Figure 3). For this dataset, edgeR provided a signature with the best quality score, while DESeq2 still demonstrated a higher separation quality than that of random signatures. Genes with the highest variance showed lower scores compared to random gene sets. This result stresses the importance of the Hobotnica procedure to evaluate the quality of a particular DGE analysis.

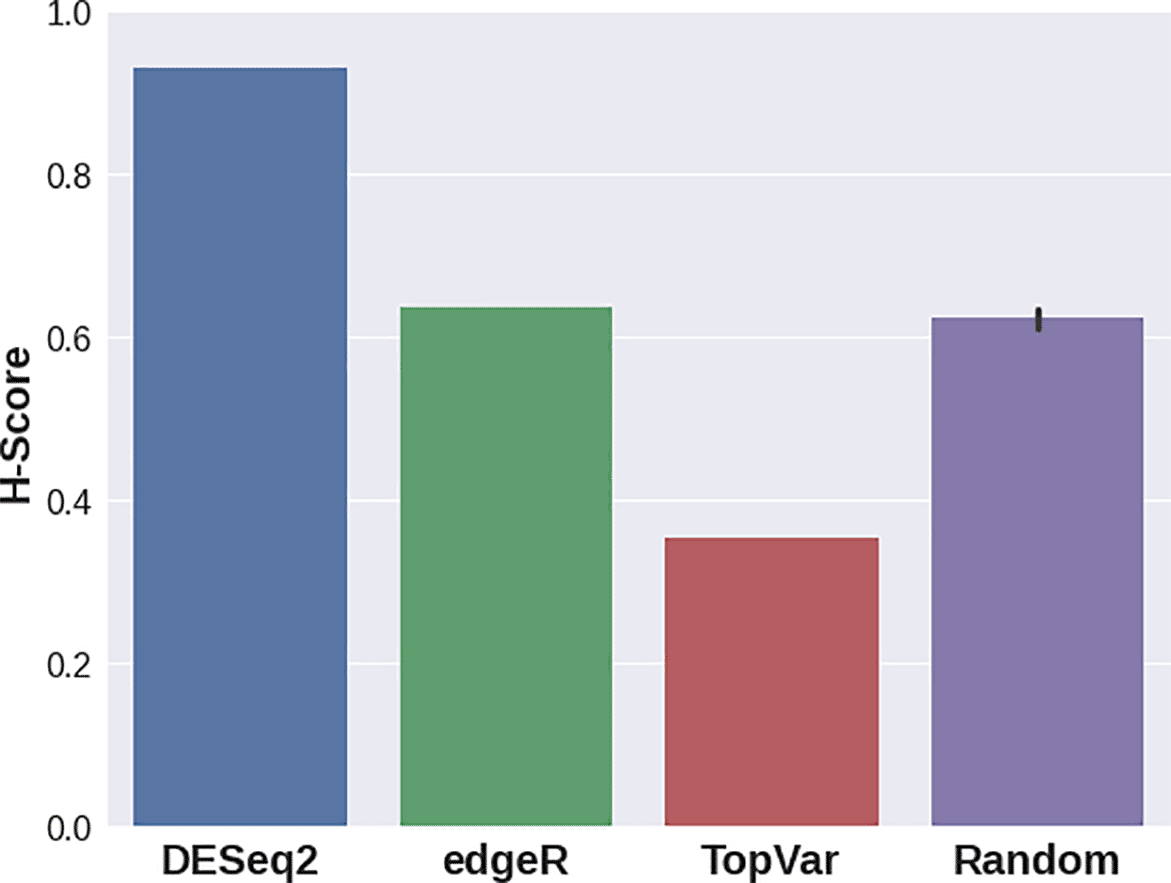

Figure 3. H-scores for the top 100 Gene Signatures delivered from DESeq2, edgeR, genes with highes variance and random gene sets applied to GSE155460 data.

Discussion

Hobotnica was designed to quantitatively evaluate MFS quality through their ability for data stratification, based on their inter-sample distance matrices, and to assess the statistical significance of the results. We demonstrated that Hobotnica can efficiently estimate the quality of a molecular signature in the context of expression data.

The suggested method can be used to evaluate various sorts of MFSs: those retrieved from DGE or DM analyses, Mutation/single nucleotide variation calling or pathways analysis, as well as data modalities of other types, that are suitable as differential problems.

A possible application of Hobotnica is evaluating a particular model’s performance (e.g., DGE model) for a particular dataset. This will allow researchers to choose a method that delivers a signature with the best data stratification from a number of proposed approaches.

Assessing H-score values for various lengths of the same set or signature can be explored with the proposed method, which will help to optimize MFS structure. Such procedures can be especially crucial in clinical applications.

Data availability

Underlying data

NCBI Gene Expression Omnibus: Alternatively processed and compiled RNA-Sequencing and clinical data for thousands of samples from The Cancer Genome Atlas, https://identifiers.org/ncbiprotein:GSE62944

NCBI Gene Expression Omnibus: Modeling precision treatment of breast cancer, https://identifiers.org/ncbiprotein:GSE48216

NCBI Gene Expression Omnibus:Spatial proximity to fibroblasts impacts molecular features and therapeutic sensitivity of breast cancer cells influencing clinical outcomes, https://identifiers.org/ncbiprotein:GSE80333

NCBI Gene Expression Omnibus: Next Generation Sequencing Analysis of Mycfl/fl and MycIE, ERT2 intestinal transcriptomes, https://identifiers.org/ncbiprotein:GSE155460

Extended data

Analysis code

Analysis code available from: https://github.com/lab-medvedeva/Hobotnica-main

Archived analysis code as at time of publication: https://doi.org/10.5281/zenodo.5656814

License: GNU General Public License v2.0

Competing interests

No competing interests were disclosed.

Grant information

This work was supported by Ministry of Science and Higher Education of the Russian Federation (agreement no. 075-15-2020-899) and by the NIH grants R01DE027809 and P30CA006973.

Acknowledgements

We thank Frank Emmert-Streib, Leslie Cope and Elana Fertig for fruitful discussions.

References

1. Parker JS, Mullins M, Cheang MCU, et al.: Supervised risk predictor of breast cancer based on intrinsic subtypes. J. Clin. Oncol. 2009; 27(8): 1160–1167. PubMed Abstract | Publisher Full Text | Free Full Text
2. Cardoso F, van’t Veer LJ, Bogaerts J, et al.: 70-gene signature as an aid to treatment decisions in earlystage breast cancer. N. Engl. J. Med. 2016; 375(8): 717–729. Publisher Full Text
3. Subramanian A, Tamayo P, Mootha VK, et al.: Gene set enrichment analysis: a knowledge-based approach for interpreting genome-wide expression profiles. Proc. Natl. Acad. Sci. 2005; 102(43): 15545–15550. PubMed Abstract | Publisher Full Text | Free Full Text
4. Liu C, Jing S, Yang F, et al.: Compound signature detection on lincs l1000 big data. Mol. BioSyst. 2015; 11(3): 714–722. PubMed Abstract | Publisher Full Text | Free Full Text
5. Rahman M, Jackson LK, Evan Johnson W, et al.: Alternative preprocessing of rna-sequencing data in the cancer genome atlas leads to improved analysis results. Bioinformatics. 2015; 31(22): 3666–3672. PubMed Abstract | Publisher Full Text | Free Full Text
6. Liberzon A, Subramanian A, Pinchback R, et al.: Molecular signatures database (MSigDB) 3.0. Bioinformatics. 05 2011; 27(12): 1739–1740. ISSN 1367-4803. PubMed Abstract | Publisher Full Text | Free Full Text
7. Parker JS, Mullins M, Cheang MCU, et al.: Supervised risk predictor of breast cancer based on intrinsic subtypes. J. Clin. Oncol. 2009; 27(8): 1160–1167. PubMed Abstract | Publisher Full Text
8. Varley KE, Gertz J, Roberts BS, et al.: Recurrent read-through fusion transcripts in breast cancer. Breast Cancer Res. Treat. 2014; 146(2): 287–297. PubMed Abstract | Publisher Full Text | Free Full Text
9. Marusyk A, Tabassum DP, Janiszewska M, et al.: Spatial proximity to fibroblasts impacts molecular features and therapeutic sensitivity of breast cancer cells influencing clinical outcomes. Cancer Res. 2016; 76(22): 6495–6506. PubMed Abstract | Publisher Full Text | Free Full Text
10. Daemen A, Griffith OL, Heiser LM, et al.: Modeling precision treatment of breast cancer. Genome Biol. 2013; 14(10): R110–R114. Publisher Full Text
11. Costello JC, Heiser LM, Georgii E, et al.: A community effort to assess and improve drug sensitivity prediction algorithms. Nat. Biotechnol. 2014; 32(12): 1202–1212. PubMed Abstract | Publisher Full Text | Free Full Text
12. Luo Y, Yang S, Wu X, et al.: Intestinal MYC modulates obesity-related metabolic dysfunction. Nat. Metab. July 2021; 3(7): 923–939. PubMed Abstract | Publisher Full Text
13. Love MI, Huber W, Anders S: Moderated estimation of fold change and dispersion for rna-seq data with deseq2. Genome Biol. 2014; 15(12): 1–21. Publisher Full Text
14. Robinson MD, McCarthy DJ, Smyth GK: edger: a bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics. 2010; 26(1): 139–140. PubMed Abstract | Publisher Full Text | Free Full Text
15. Benjamini Y, Hochberg Y: Controlling the false discovery rate: a practical and powerful approach to multiple testing. Journal of the Royal Statistical Society: Series B (Methodological). 1995; 57(1): 289–300.
