Anticancer activity of Caesalpinia sappan by downregulating mitochondrial genes in A549 lung cancer cell line

[version 2; peer review: 2 approved]

Nashi Widodo ¹, Sapti Puspitarini¹, Muhammad Hermawan Widyananda¹, [...] Adzral Alamsyah¹, Septian Tri Wicaksono², Masruri Masruri³, Yoga Dwi Jatmiko¹

Nashi Widodo ¹, Sapti Puspitarini¹, [...] Muhammad Hermawan Widyananda¹, Adzral Alamsyah¹, Septian Tri Wicaksono², Masruri Masruri³, Yoga Dwi Jatmiko¹

PUBLISHED 25 Aug 2022

Author details Author details

¹ Biology Department, Faculty of Mathematics and Natural Sciences, Brawijaya University, Malang, Indonesia
² Faculty of Mathematics and Natural Sciences, Maulana Malik Ibrahim State Islamic University Malang, Malang, Indonesia
³ Chemistry Department, Faculty of Mathematics and Natural Sciences, Brawijaya University, Malang, Indonesia

Nashi Widodo
Roles: Conceptualization, Resources, Software, Supervision, Validation, Writing – Original Draft Preparation, Writing – Review & Editing

Sapti Puspitarini
Roles: Methodology, Project Administration, Writing – Original Draft Preparation, Writing – Review & Editing

Muhammad Hermawan Widyananda
Roles: Data Curation, Writing – Original Draft Preparation

Adzral Alamsyah
Roles: Data Curation, Formal Analysis, Investigation, Methodology, Validation, Writing – Original Draft Preparation

Septian Tri Wicaksono
Roles: Data Curation, Formal Analysis, Methodology

Masruri Masruri
Roles: Funding Acquisition

Yoga Dwi Jatmiko
Roles: Funding Acquisition

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Cell & Molecular Biology gateway.

This article is included in the Oncology gateway.

Abstract

Background: The standardization and mechanism of action of Caesalpinia sappan as an anticancer agent are still lacking. This study aimed to understand the mechanism of action of C,sappan extract as an anticancer agent.
Methods: This study was conducted using the A549 lung cancer cell line to understand the mechanism of action of C. sappan extract as an anticancer agent. The cytotoxicity activity, cell cycle progression, apoptosis, protein-related apoptosis (i.e., BCL-2and BAX protein) assays, and RNA sequencing were performed level were measured. Moreover, the antioxidant activity, total flavonoids, and phenolics of C.sappan were also assessed.
Results: C.sappan has strong antioxidant activity (22.14 ± 0.93 ppm) total flavonoid content of (529.3 ± 4.56 mgQE/g), and phenolics content of (923.37 ± 5 mgGAE/g). The C.sappan ethanol extract inhibited cancer cell growth and arrested at G0/G1 phase of cell cycle, inducing apoptosis by increasing BAX/BCL-2 protein ratio in A549 lung cancer cell line. Furthermore, results from RNA sequencing analysis showed that C.sappan ethanol extract caused downregulation of genes acting on mitochondrial function including adenosine triphosphate (ATP) production and respiration.
Conclusions: This study demonstrated that C.sappan has the ability to inhibit cancer cell growth by inducing apoptosis and mitochondrial dysfunction in A549 cells.

Keywords

A549 cells, apoptosis, ATP production, Caesalpinia sappan, cytotoxicity, mitochondrial dysfunction

Corresponding author: Nashi Widodo

Competing interests: No competing interests were disclosed.

Grant information: This work was supported by the Directorate General Higher Education, Ministry of Research and Technology Republic of Indonesia, via a World Class Research grant assigned to Widodo, Yoga Dwi Jatmiko, and Masruri (grant number: 023/E4.1/AK.04.PT/2021).
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2022 Widodo N et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Widodo N, Puspitarini S, Widyananda MH et al. Anticancer activity of Caesalpinia sappan by downregulating mitochondrial genes in A549 lung cancer cell line [version 2; peer review: 2 approved]. F1000Research 2022, 11:169 (https://doi.org/10.12688/f1000research.76187.2) First published: 11 Feb 2022, 11:169 (https://doi.org/10.12688/f1000research.76187.1) Latest published: 25 Aug 2022, 11:169 (https://doi.org/10.12688/f1000research.76187.2)

Revised Amendments from Version 1

The new version of this article describes in more detail the methods used in the study, such as cell culture media conditions, cytotoxicity formulas, and dosage details. In addition, the latest article provides new information compared to previous studies, namely providing the mechanism of C. sappan extract in eliminating the lung cancer cell line A549.

To read any peer review reports and author responses for this article, follow the "read" links in the Open Peer Review table.

Introduction

Lung cancer is one of the most dangerous and leading causes of death globally.¹ In 2020, there were 247,270 new cases of lung cancer in the United States, wherein 130,430 and 116,930 cases were from man and women, respectively. Additionally, there were 140,7230 deaths from lung cancer, in which 76,370 and 64,360 were man and women, respectively.² Lung cancer is the 14^th leading cause of death in Indonesia. Based on the WHO data (2018), the death rate due to lung cancer in Indonesia is 33,296, and there were 29,921 deaths from March to November 2020.³

Lung cancer treatment still relies on radiation and chemotherapy, especially for the treatment of metastatic lung cancer.⁴^,⁵ Current treatment regiments for lung cancer includes drugs such as gefitinib, nivolumab, and erlotinib or monoclonal antibodies (cetuximab, bevacizumab), which block the growth and spread of cancer by interfering with specific molecules involved in tumor growth and development.⁶ However, these treatments are relatively expensive; hence, using traditional herbal medicine is an alternative option. The development of herbal medicines as anticancer agents not yet been explores, and it lacks standardization. Thus, it is essential to study the mechanism of action of herbs that have been empirically used as cancer treatments for the development of phytopharmaceuticals.⁷

Secang (Caesalpinia sappan), a plant from the Caesalpiniaceae family which is often used as a traditional drink and natural dye in certain regions of Indonesia, primarly using the heartwood. Secang is known to contain the active compound brazilin in addition to various other compounds that contain antitumor, antibacterial, antiviral, antioxidant, and immunostimulant properties.⁵^,⁸ However, standardization and development of the use of C. sappan as an anticancer agent are still lacking. Therefore, this study aimed to analyze the effect of ethanol extract of secang (C. sappan) on lung cancer cell culture (A549 cell line) in inhibiting cell growth and study its mechanism.

Methods

Plant and extraction

Dry powder of C. sappan stem was purchased from UPT Materia Medica Batu, Batu, Indonesia. The microwave-assisted extraction method was used for powder extraction by dissolving the powder in ethanol in a 1:10 ratio (herb: solvent; w/v) using a holding temperature of 50°C, warming at 50°C for 5 mins, holding time of 10 mins, cool down of 5 mins, and power of 1500 W. The extract was filtered using filter paper and then evaporated using a rotary vacuum evaporator (Buchi: Buchi R-210 Rotavapor System). The extract was freeze-dried until a dried extract was obtained.

Cytotoxicity assay

The A549 (lung cancer cell line) cells were obtained from the Japanese Collection of Research Bioresources Cell Bank, Japan. The cells were cultured on complete medium (DMEM (Gibco: 12800-017) + 10% fetal bovine serum (Gibco: 10270-098) + 1% penicillin-streptomycin (Gibco: 15140-122)) and incubated at 37°C and 5% CO₂. The cytotoxicity activity of C. sappan ethanol extract was tested using WST-1 (Sigma: 11644807001) with 5% concentration (v/v medium). The A549 cells were seeded on 96-well plates to approximately 7.500 cells/well. The concentrations of C. sappan ethanol extract used were 10 μg/mL, 20 μg/mL, 40 μg/mL, 80 μg/mL, 160 μg/mL, and 320 μg/mL. Then the cells were treated for 24 h. The absorbance was measured using an ELISA reader (BioTek ELx808) at a wavelength of 450 nm. Cell viability was adjusted using Equation (1). The IC₅₀ value was calculated from linear regression of the cytotoxicity chart using Equation (2).

(1)

% viability of cells = (\frac{Abstreatment - Absblanko}{Abscontrol - Absblanko}) \times 100 %

Where Abscontrol: absorbance of control; Absblanko: absorbance of blanko; Abstreatment: absorbance of treatment.

(2)

Y = ax + b, where Y = 50 %; x = {IC}_{50} dose

Cell cycle, apoptosis, and BAX/BCL-2 ratio assay

The cells were seeded to approximately 75.000 cells/well into 24-well plates. The extract doses for the cell apoptosis assay were obtained from the IC₅₀ values that is 0 (untreated extract), 22.6, 45.2, and 90.4 µg/mL. After incubation for 24 h, the treated A549 cells were harvested and incubated with the dyes for 30 min. The cells were then analyzed using the flow cytometer (BD FACSCalibur) with CellQuest software version 6.0. The cells were dyed using propidium iodide (BioLegend: 421301) for cell cycle assay and tested using annexin-V/propidium iodide dyes (BioLegend: 640932) for the cell apoptosis assay. For the BAX/BCL-2 assay, the cells were tested using BAX (SantaCruz: sc-20067) and BCL-2 (SantaCruz: sc-20067) antibodies.

2,2–Diphenyl-1-picrylhydrazyl (DPPH) scavenging activity assay

Approximately 100 μL of C. sappan ethanol extract solution was added to 100 μL DPPH (Sigma: D9132) solution with 0.4 mM concentration in 96-well plates. The sample was incubated for 30 min, and absorbance was measured using an ELISA reader (BioTek ELx808) with λ = 490 nm. The inhibition percentage of scavenging activity was adjusted using Equation (3). The IC₅₀ value was calculated from linear regression of the cytotoxicity chart using Equation (2).

(3)

% inhibiton : (\frac{Abstreatment - Absblanko}{Abscontrol - Absblanko}) \times 100 %

Total flavonoids assay

Total flavonoids were estimated using the aluminum chloride colorimetric assay.⁹ Quercetin (MarkHerb) was used as the standard. Approximately 50 μL of Caesalpinia sappan ethanol extract or standard was added to 10 μL of AlCl₃ (Smartlab: A-2070) (10% w/v) followed by 150 μL of 96% ethanol solution (SmartLab). The solution was then added to 10 μL of CH₃COONa (Sigma) with a 1M concentration. The solution was incubated at room temperature for 40 min and protected from light. The absorbance was measured using an ELISA reader (BioTek ELx808) at a wavelenght of λ = 405 nm. Total flavonoid contents were expressed in terms of quercetin equivalent (standard curve equation of quercetin; $y = 0.0023 + 0.0583 R^{2} = 0.9992$ ) mg QE/g of dry extract.

Total phenolic assay

The total phenolic content was estimated using the Folin–Ciocalteu. A sample or standard of 100 μL was added to 1.0 mL of the Folin–Ciocalteu reagent (Merck: 1090010500) (a ready-to-use reagent diluted tenfold with distilled water). After 5 min, 1.0 mL of Na₂CO₃ (Merck: 1063921000) (7.5% w/v) was added to the mixture and incubated at room temperature for 90 min in dark conditions. Total phenolic content was measured using spectrophotometry in λ = 725 nm. Gallic acid (MarkHerb) was used as standard. Gallic acid was expressed in terms of gallic acid equivalent (standard curve equation of gallic acid) mg GAE/g of dry extract.

RNA extraction, preparation, and transcriptome sequencing

The cells were seeded with a density of 2.2 × 10⁶ cells in a 100-mm dish. The cells were treated with 0 (control) and 45.2 ug/mL (IC₅₀) extract and incubated for 24 h. RNA extraction processing was conducted at PT Genetika Science, Jakarta. Briefly, total RNA was extracted using the Quick RNA MiniPrep Kit (Zymo Research, R1057) as per the manufacturer’s instructions. The integrity, contaminant, quantitation, and purity of RNA samples were evaluated before further use. The preparation and transcriptome sequencing of RNA was conducted at NovogeneAIT Genomics, Singapore. Briefly, the library preparation for Eukaryotic mRNA using polyA enrichment method (NEB). Sequencing was created using Illumina NovaSeq 6000 PE150.

Results

Antioxidant activity, total phenol, and flavonoid content

Table 1 presents the antioxidant activity and total phenol and flavonoid content of C. sappan.⁴⁵ The results showed that C. sappan ethanol extract contains an abundant amount of phenol and flavonoid. Besides that, the antioxidant activity of C. sappan ethanol extract has low IC₅₀ or strong activity of antioxidant. Bioactive compounds of C. sappan include phenol and flavonoid groups which have pharmacological activities, such as antioxidant and anticancer properties.

Table 1. Antioxidant activity and total phenol and flavonoid content of the samples.

DPPH=2,2–Diphenyl-1-picrylhydrazyl.

Sample	IC₅₀ of DPPH scavenging (ppm)	Total phenol (mgGAE/g)	Total flavonoid (mgQE/g)
Caesalpinia sappan	22.14 ± 0.93	923.37 ± 5	529.3 ± 4.56

Anticancer activity of C. sappan against A549 cells line

The anticancer activity of C. sappan ethanol extract against A549 cells line was determined from cytotoxicity effect, capability inducing apoptosis, inhibiting cell cycle phase, and Bax/Bcl2 ratio. The cytotoxicity effect of C. sappan ethanol extract on A549 cells confirmed that C. sappan ethanol extract could inhibit the growth of A549 cells (Figure 1A). The calculated IC₅₀ value from Figure 1A was around 45.19 ± 1.704 μg/mL. The IC₅₀ value was used as basic concentration for apoptosis, cell cycle, and Bax/Bcl2 assays. The extract’s capability to induce apoptosis on A549 cells was determined by annexin-V/PI dyes and analyzed by flow cytometry. The apoptosis assay showed that the treatment of C. sappan ethanol extract on A549 cells for 24 h indicated that the apoptotic cell percentage was increased compared with controls (Figure 1B). The ability of C. sappan ethanol extract to inhibit the cell cycle in A549 cells was evaluated from cell cycle assay using PI dyes. The result indicated that the extract could induce cell cycle arrest in G0/G1 compared with control (Figure 1C). The Bax/Bcl2 assay was conducted to analyze the protein associated with to apoptosis. The level of Bax increased compared with that of the control after 24 h of incubation with C. sappan ethanol extract. Moreover, theBcl2 level decreased compared with that of the control after 24 h of incubation with the extract. The result demonstrated that the C. sappan ethanol extract could induce apoptosis in A549 cells by increasing the Bax/Bcl2 protein ratio (Figure 1D). Cell morphology observations showed results that were directly proportional to the anticancer activity assay. The population of cells in the control group (0 μg/mL) has a normal form of cancer cells. The 22.6 μg/mL group reduced the cell population density compared with the control group, whereas the 45.2 μg/mL group reduced the cell density and altered cell shape to smaller and rounder cells, indicating cell death. The 90.4 μg/mL group had dominant dead cells (Figure 1E).

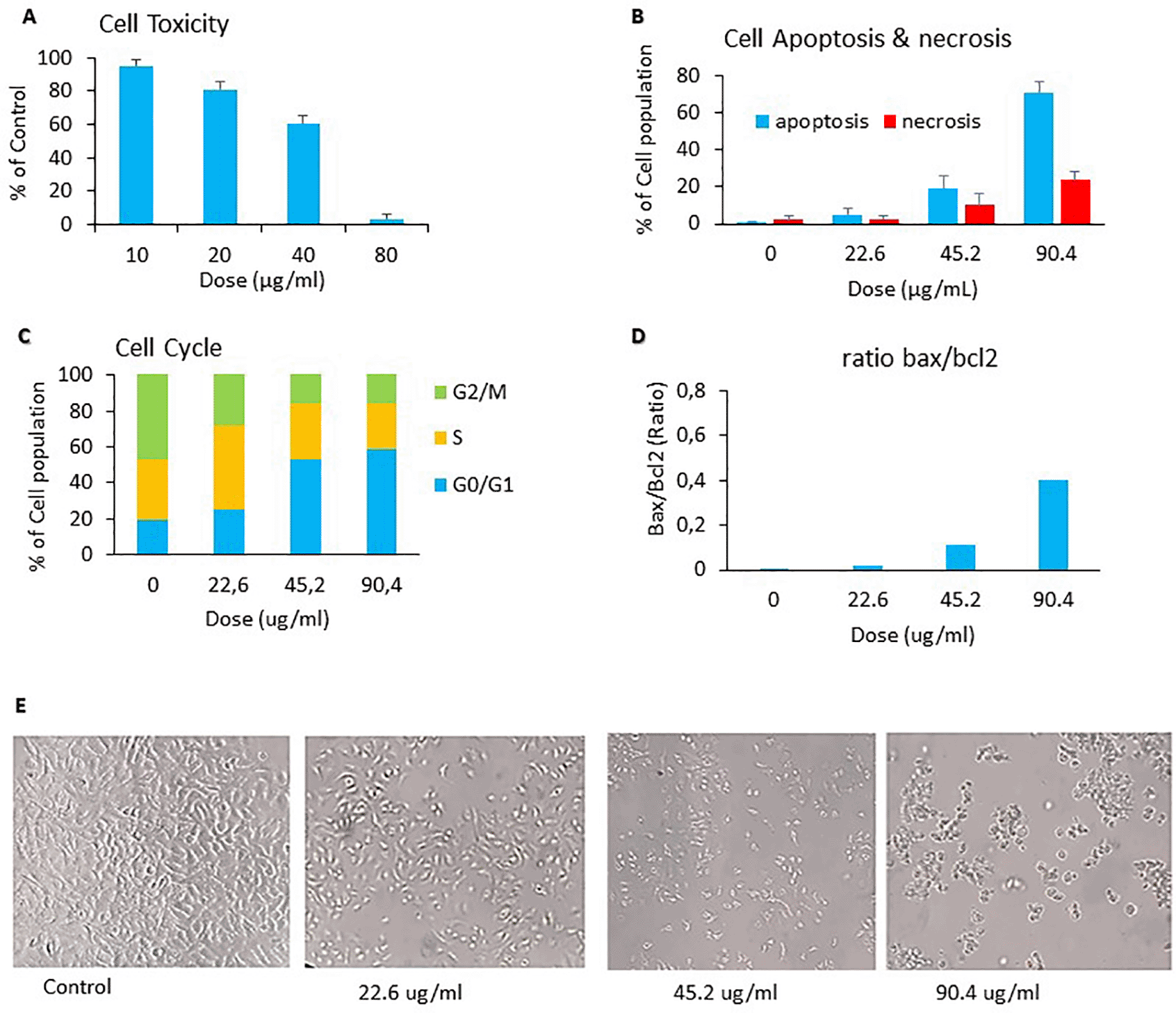

Figure 1. Anticancer activity of C. sappan against A549 cells line.

(A) Cytotoxicity assay; (B) apoptosis assay; (C) cell cycle assay; (D) BAX-BCL-2 assay; (E) cell morphology microcopies.

Effect of C. sappan extract on the gene expression profile of A549 cells

RNA-seq analysis results showed differences in gene expression profiles between the control and those treated with the extractat its IC₅₀ value. Pearson correlation was used to verify the results of RNA sequencing, in which the replication was reliable and the sample selection was correct. Pearson correlation was constructed from all gene expression data (FPKM) in each sample. The R2 value of the same sample is 1, indicating a perfect correlation which means that the method and sample used are correct. The value of R2 between the control and IC₅₀ is 0.937, which means that it is strongly correlated but not identical. The correlation value of 0.937 indicates a difference in gene expression between the control and IC₅₀ (Figure 2A). The analysis of co-expression Venn diagrams showed that 486 genes were expressed in the control group, 427 genes were expressed in C. sappan extract treatment, and 11238 genes were co-expressed in both groups (Figure 2B). Box and whisker plot were constructed to compare the distribution of gene expression in the two samples. The results showed a not-too-distant difference overall. The difference is seen in the value of log2(fpkm+1) 10, indicating a difference in expression between samples (Figure 2C). Comparison of gene expression between the control and IC₅₀ can also be seen in the gene expression heatmap. The gene expression heatmap was constructed using Log2(FPKM+1) values summed with color; red and blue indicate high expression and low expression, respectively. From the heatmap, it can be observed that there are differences in gene expression between the control and IC₅₀ (Figure 2D).

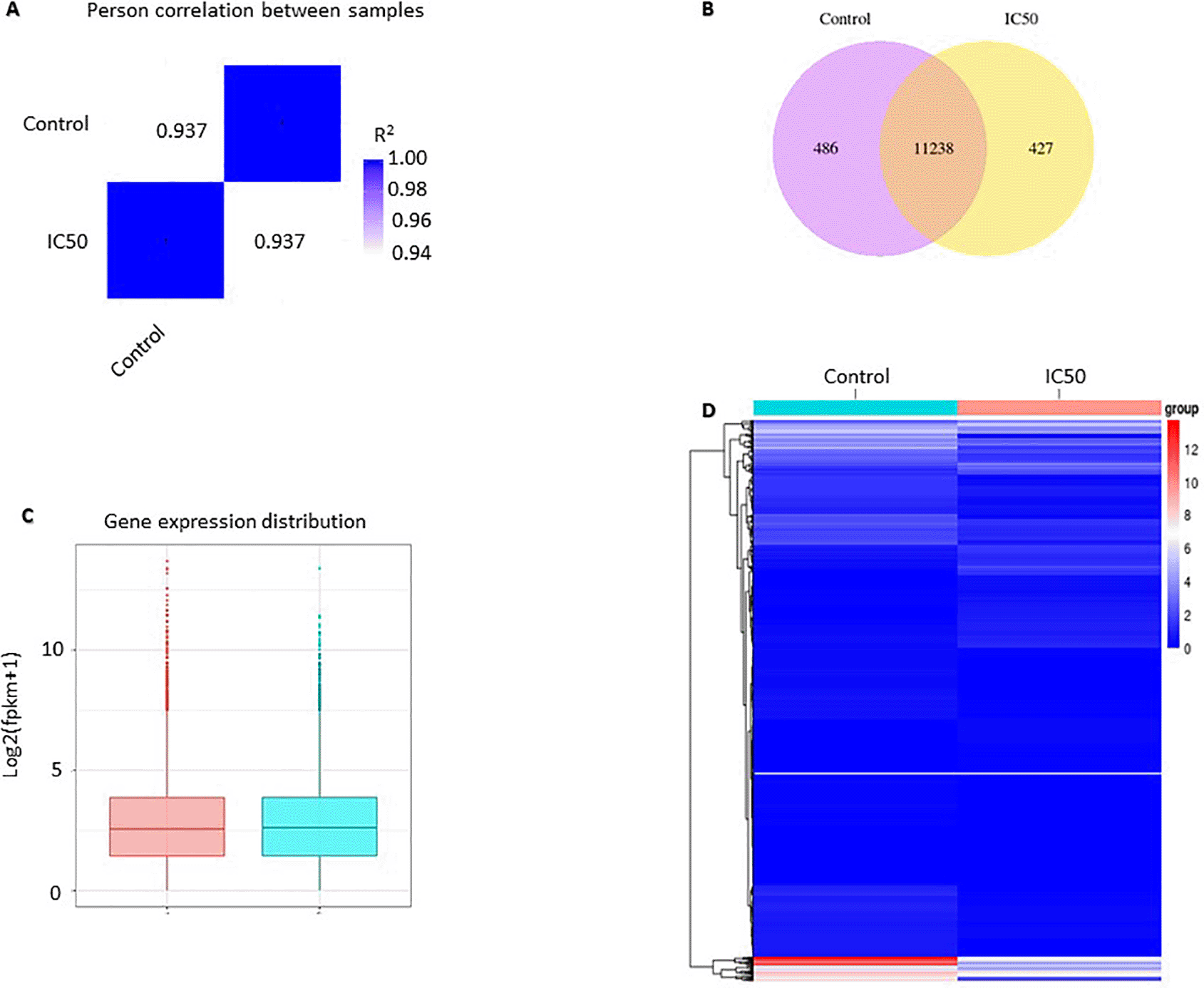

Figure 2. Gene expression profile of A549 cells after C. sappan extract treatment for 24 h.

(A) Pearson correlation; (B) co-expression Venn diagrams; (C) gene expression distribution; (D) heatmap analysis.

Changes in gene expression profile due to the extract treatment affect the biological processes of A549

Volcano plot of gene expression from RNA-seq analysis showed that C. sappan extract treatment of A549 cells resulted in the upregulation of 388 genes and downregulation of 669 genes compared with the control group (Figure 3A). Functional annotations were constructed from genes that had a sixfold increased expression and those that had a sixfold decreased expression compared with controls. The genes that have decreased expression have a role in adenosine 5'-triphosphate (ATP) synthesis and mitochondrial respiration (Figure 3C and D). This indicates a decrease in the production of ATP by the mitochondria. This decrease in ATP production is thought to cause apoptosis and cell cycle arrest in A549 cells. Further, genes that experience an extreme increase in expression are involved in the process of hemostasis and attachment as the cells attempt to survive (Figure 3B and C). The increase in some genes levels involved in the cell growth is the cell survival mechanism in response against the toxicity of the extract. However, these cell survival efforts were insufficient due to ATP depletion, so the cells experienced apoptosis, as evidenced by previous results.

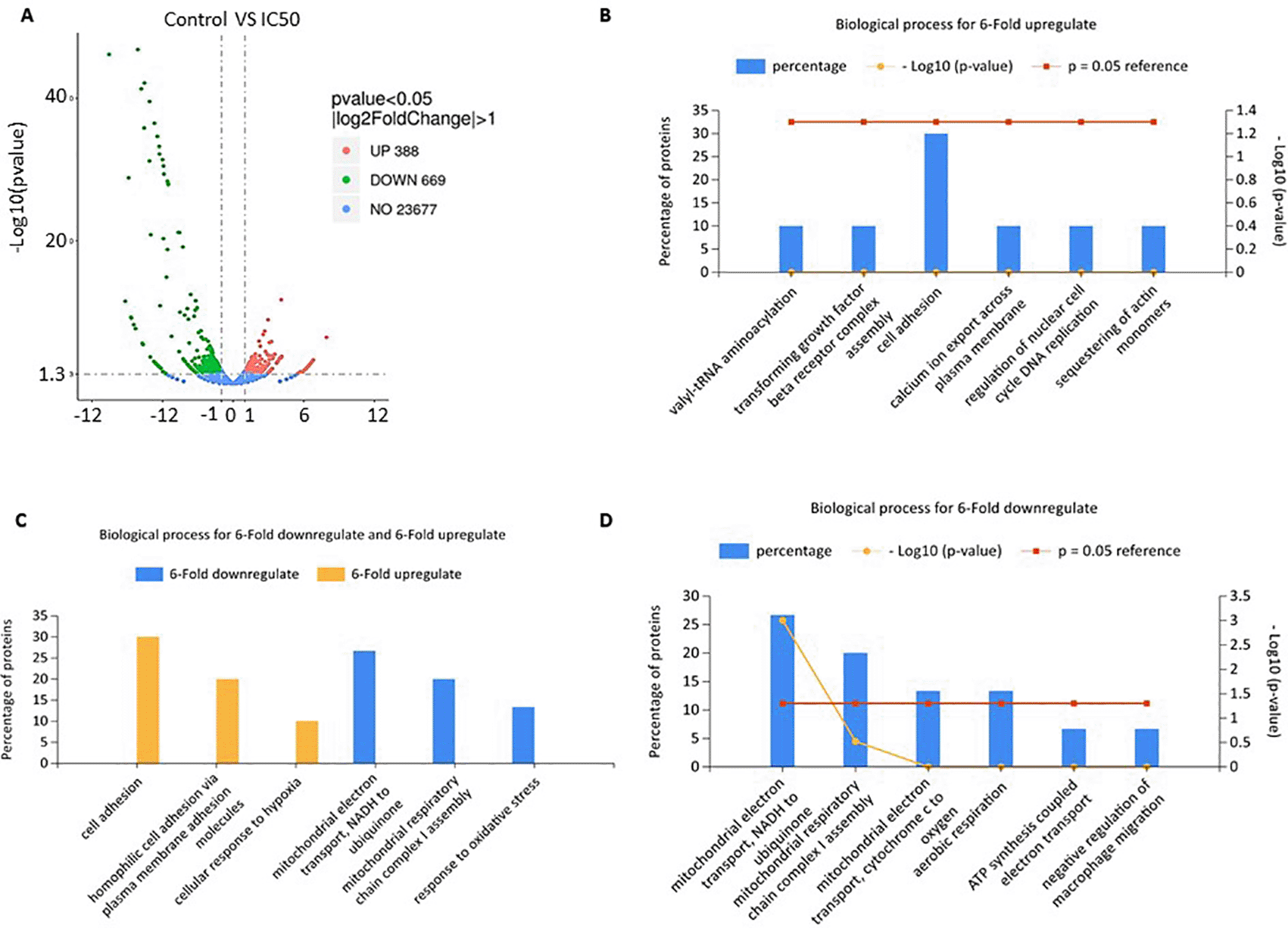

Figure 3. Gene expression profile affects the biological processes of A549 cells after C. sappan extract treatment for 24 h.

(A) Volcano plot; (B) biological processes for sixfold upregulation; (C) biological processes for sixfold up- and downregulation; (D) biological processes for sixfold downregulation.

Network analysis of sixfold up- and downregulated genes

Gene expression of A549 cells after treatment with C. sappan extract for 24 h is correlated with protein interactions that play a role in biological processes associated with cancer. Upregulated proteins play a role in cell adhesion, specifically, CDH15, CLDN6, and FMOD. In addition, there are also proteins, e.g., SLCA8A and GUCY2C, that interact with PDZD3, which play a role in maintaining intracellular ion homeostasis (Figure 4A). Although the proteins associated with cell survival are upregulated, the cells will die if the ATP concentration drastically drops. Meanwhile, proteins that play a role in the regulation of mitochondrial work are downregulated, including ARMCX1. In addition to proteins related to ATP production, proteins whose interactions with other proteins affect the growth of cancer cells are downregulated, including CEACAMP7 and RSPO4 that play a role in cancer cells; ZBTB8B that involved in cancer cell development; NXPH3 interacts with proteins associated with microtubule formation and metastasis; SOAT2 and FBXW12 proteins that interact with the cancer cell cycle and growth-related proteins (Figure 4B).

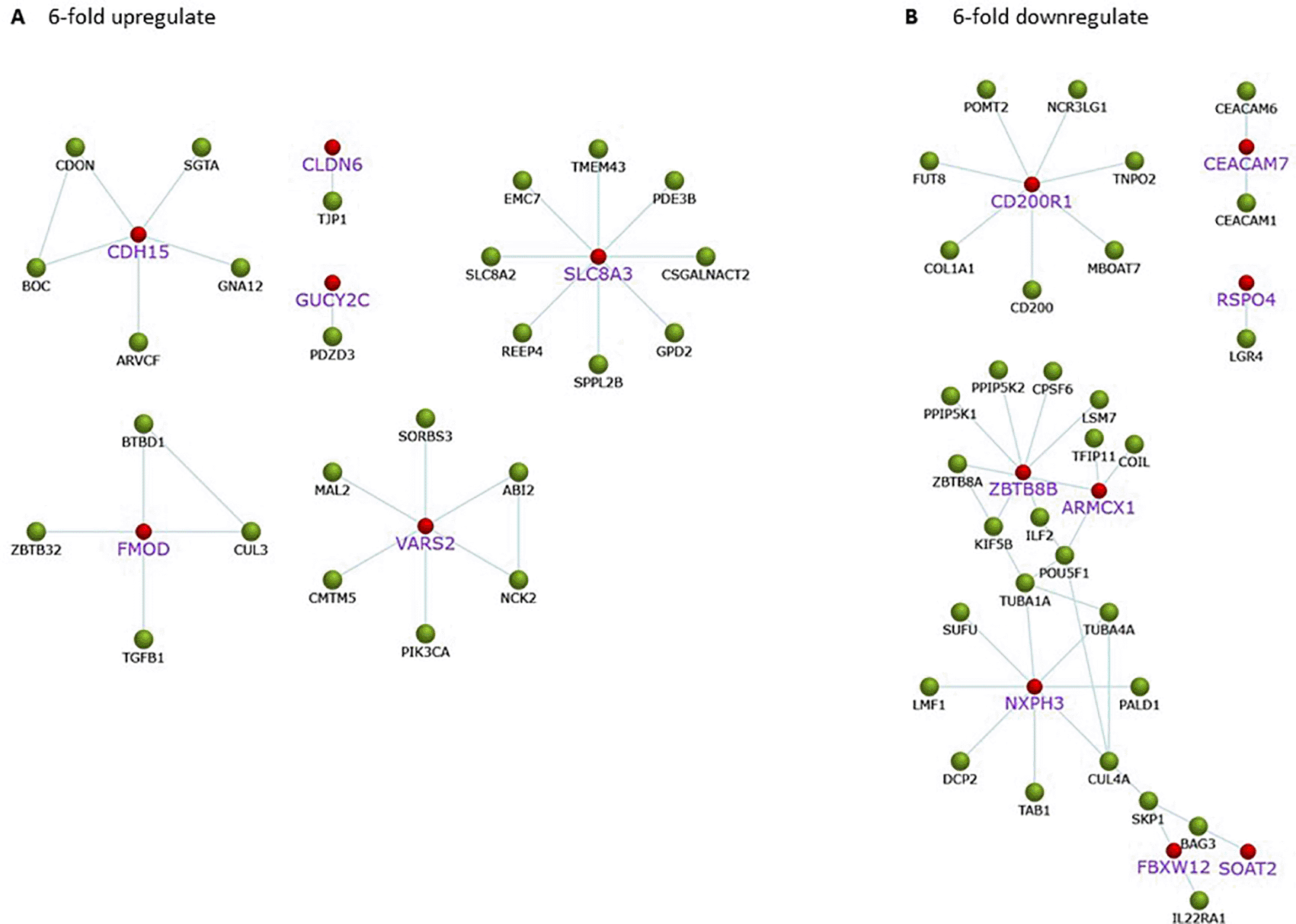

Figure 4. Protein interactions related to cancer on A549 cells after C. sappan extract treatment for 24 h.

The red mark for gene found upregulated or downregulated in the A549 cells after treatment with the extract. (A) 6-fold upregulate; (B) 6-fold downregulate.

Discussion

The ability of a substance as an anticancer agent can be seen from its ability to eliminate cancer cells. Cell death can be seen from various characteristics, including decreased cell viability, inhibited cell cycle processes, and increased apoptotic cells. Previous findings suggested that C. sappan extract reduced A549 cell viability but the mechanism didn’t revealed.¹⁰ This study provides a mechanism of C. sappan extract in eliminating the lung cancer cell line A549.

Herbal medicines have several functions in pharmacology due to their bioactive compound content. This study presents that the C. sappan contains a high phenol and flavonoid content. The phenolic group, including flavonoids and tannins, has proven to be anticancer agents¹¹ and have antioxidant¹² activity. The results indicated that one of the bioactive compounds could have therapeutic activity for several diseases, e.g., antioxidant and anticancer activities.

C. sappan ethanol extract was proven to induce cell death in A549 cells. The cytotoxicity of the extract in A549 cells was 45.19 ± 1.704 μg/mL, indicating it has strong cytotoxicity.¹³ This result is not far from the previous studies that treated T47D, PANC-1, and HeLa cells with C. sappan extract to obtain IC₅₀ values of 68.00, 43.6, and 40.88 μg/mL, respectively.¹⁴^-¹⁶ The extract could also significantly induce apoptosis by an analysis using Annexin-V. This apoptosis was verified by microscopic images and a high Bax/Bcl2 ratio. The apoptosis of A549 cells could be due to ATP depletion and mitochondrial dysfunction. Previous research has stated that hydroxy-chalcones group of compounds can cause ATP depletion, resulting in melanoma cell apoptosis.¹⁷ C. sappan extract also caused A549 cell arrest in the G1 phase, which was also thought to be due to ATP depletion. ATP is required in the cell cycle for the phosphorylation of the cyclin/cyclin-dependent kinase complex.¹⁸ The G1 phase is very sensitive to the availability of ATP. When the ATP content is too low, the cell will stop growing or prolong the duration of the phase until the amount of ATP is met.¹⁹

ATP is the main energy source for cells because it has a phosphoanhydride bond that contains a lot of energy.²⁰ Breaking this bond releases a huge amount of energy used for cellular processes.²¹ ATP is required for DNA replication, protein biosynthesis, biochemical transport, protein activation, and pathways in cells.²² ATP is synthesized in the mitochondria via oxidative phosphorylation that utilizes the proton gradient across the inner membrane of mitochondria.²³ The process involves electron transport, played by the protein complex I–IV.²⁴ Downregulating proteins that play a role in electron transport can reduce ATP production, resulting in the disruption of various cellular processes.²⁵ Previous research has suggested that prostate cancer cells can die due to ATP depletion in vitro.²⁶ In a previous study, downregulation of respiratory complex I mediated cell death.²⁵

The anticancer effect of C. sappan ethanol extract occurs via ATP depletion and mitochondrial dysfunction. The results of the functional annotation analysis of the RNA-seq showed that the proteins with decreased expression by sixfold compared to the control functioned as mitochondrial electron transport and ATP synthesis. Mitochondrial electron transport is played by the protein complex I–IV. RNA-seq results showed that in A549 cells, there was downregulation of the mitochondrial electron transport chain NADH to ubiquinone and the mitochondrial respiratory chain complex I assembly, both of which included protein complex I in the mitochondrial electron transport chain. Protein complex I transfers electrons from NADH to ubiquinone. Protein complex IV transfers electrons from cytochrome c to O₂ to produce H₂O. MET is played by protein complex I–IV. Meanwhile, upregulated genes have a role in cell adhesion and cell survival. Cell adhesion is needed by cancer cells for invasion and metastasis. Cellular adhesion is required for cell–cell interactions and interactions between cells with extracellular matrix components.²⁷ ATP depletion induces actin rearrangement, thereby reducing cell adhesion.²⁸ Cellular response to hypoxia is an adaptive response of cells due to a lack of oxygen to survive.²⁹ However, this biological process will not work in the presence of ATP depletion so that cells continue to undergo apoptosis, as happened in this study.

In addition to proteins that play a role in ATP synthesis, several proteins play a role in cancer growth that are downregulated. The downregulated protein is labeled in purple and in a larger font in Figure 4B. CD200R1 protein plays a role in modulating cancer immune microenvironments, which are generally overexpressed in NSCLC patients.³⁰ CD200R1, after binding to CD200, will suppress the antitumor response by modulating the activity of immune cells.³¹ CEACAM7 is a protein that plays a role in cell adhesion.³² RSPO4 is a protein that plays a role in activating the Wnt signaling pathway, which is an essential pathway for cell growth and development.³³ ARMCX1 plays a role in the regulation of mitochondrial transport.³⁴ The ZBTB8B protein interacts with proteins that play a role in mRNA processing and centrosome regulation during mitotic entry, such as, CPSF6, LSM, and KIF5B.³⁵^,³⁶ NXPH3 interacts with proteins related to the formation of microtubules such as TUBA1A and TUBA4A, where microtubules are indispensable during mitosis.³⁷ In addition, NXPH3 also interacts with CUL4A and the epithelial–mesenchymal transition-related protein that promotes cancer cell metastasis.³⁸ SOAT2 protein interacts with antiapoptotic protein BAG3.³⁹ FBXW12 interacts with SKP1 and IL22RA1, which plays a role in cell cycle progression and cancer cell growth induction.⁴⁰ Apart from downregulating genes, there are also several upregulating genes. As shown in the picture, upregulating genes play a role in survival, such as CDH15, CLDN6, and FMOD, which have an important role in cell adhesion.⁴¹^,⁴² SCL8A3 and PDZD3 proteins play a role in maintaining intracellular ion homeostasis.⁴³ In addition, VARS2, which is upregulated, plays a role in mitochondrial protein synthesis.⁴⁴ However, the cell survival effort did not go well due to the ATP depletion caused by the administration of C. sappan extract.

Conclusion

C. sappan has the capability to inhibit cancer cell growth by inducing apoptosis and downregulation of mitochondrial proteins on A549 cells, including ATP production, respiration, and mitochondrial function. The extract induced expression of genes that involved in the cell growth and cell survival mechanism. However the A549 cells were going to apoptosis after treatment, since the mitochondrial protein that play important role in ATP production were shut down by the extract activity. Further research should be carried out to validate the physiological work of C. sappan.

Data availability

Underlying data

Zenodo: Anticancer effect of Caesalpinia sappan by downregulating mitochondrial genes on A549 lung cancer cell line. https://doi.org/10.5281/zenodo.5732978.³⁹

This project contains the following underlying data:

- C. sappan data.xlsx
- Enrichment RNA Seq C. sappan.xlsx

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).

Acknowledgements

Author would thank to Brawijaya University for facilitating this research and Directorate General Higher Education, Ministry of National Education, Indonesia, for providing World Class Research grant.
