miND (miRNA NGS Discovery pipeline): a small RNA-seq analysis pipeline and report generator for microRNA biomarker discovery studies

Implementation

The pipeline is based on Snakemake (Köster & Rahmann, 2012), a scalable bioinformatics workflow engine which incorporates many features needed for reproducible computational analysis (Mölder et al., 2021). This includes handling the installation and provisioning of software tools via conda (“Anaconda Software Distribution,” 2020) and bioconda (Grüning et al., 2018) and overall the orchestration of individual steps of the pipeline to optimize usage of limited resources like central processing unit (CPU) and memory. Configuration files in yml format are used and contain settings for multithreading to adapt the pipeline for various computing platforms (Diendorfer et al., 2022).

Operation

The miND pipeline was developed and tested on Debian Linux (v11.2) running Snakemake (v6.0.5) and conda (v.4.10.3). The hardware requirements depend on the size of analyzed datasets, but in general it is recommended to provide at least 4 CPU cores and 8GB of memory. The pipeline will scale according to the available resources.

Data repository

The pipeline requires data from three reference data sets: (1) host genomes from ENSEMBL (Zerbino et al., 2018), (2) RNA sequences from RNAcentral (Sweeney et al., 2019), and (3) miRNA mature and precursor sequences from miRbase (Griffiths-Jones, 2004).

In order to download and prepare these datasets in the formats and structures required, miND provides separate workflows to build the data repository. These workflows can be executed with a shell script that will read configurations for each data source and then download, format and build the reference databases based on Snakemake workflows.

The data repository only has to be built once and will then provide the data needed for all future miND analysis runs. In case of updates of reference data sets, the repository can be rebuilt or extended by adding sources to the configuration files and running the build script again.

NGS raw data and metadata file

The miND pipeline requires two types of data for each experiment: raw NGS data and a meta data file with additional sample information. Raw data can be supplied either in fastq, fastq.gz or BAM (without alignments) files. The given format will be detected based on the file extensions.

Experimental meta data and details about the samples is provided in a XLS file containing three sheets: (1) Project details sheet, with general information and data of the project. This includes project title and comments but also settings relevant for the processing of the data like the sample species, adapter sequences, and cutoff levels for significance and quality filtering. (2) Sample group matrix sheet, which lists all samples that are part of this experiment and links them to additional group information. Up to five grouping variables can be set with unlimited levels each. The last sheet contains the (3) Contrast selection and allows the selection of groups and group-combinations based on the data provided in the sample group matrix sheet. The contrasts selected here will be used for the differential expression analysis.

Pipeline analysis steps

The overall flow of data through the pipeline is shown in Figure 1. This flow diagram outlines the most important steps of data processing in the miND pipeline, especially the quality control steps with FastQC (Andrews, 2010) and multiQC (Ewels et al., 2016), followed by hierarchical mapping using bowtie1 (Langmead et al., 2009) and miRDeep2 (Friedländer et al., 2012), where either mapped or unmapped reads are further processed by the next step. The final “R scripts processing” step includes multiple scripts that preprocess and analyze that data (including mapping statistics, unsupervised analysis methods and differential expression analysis) to then generate an interactive HTML report based on R markdown.

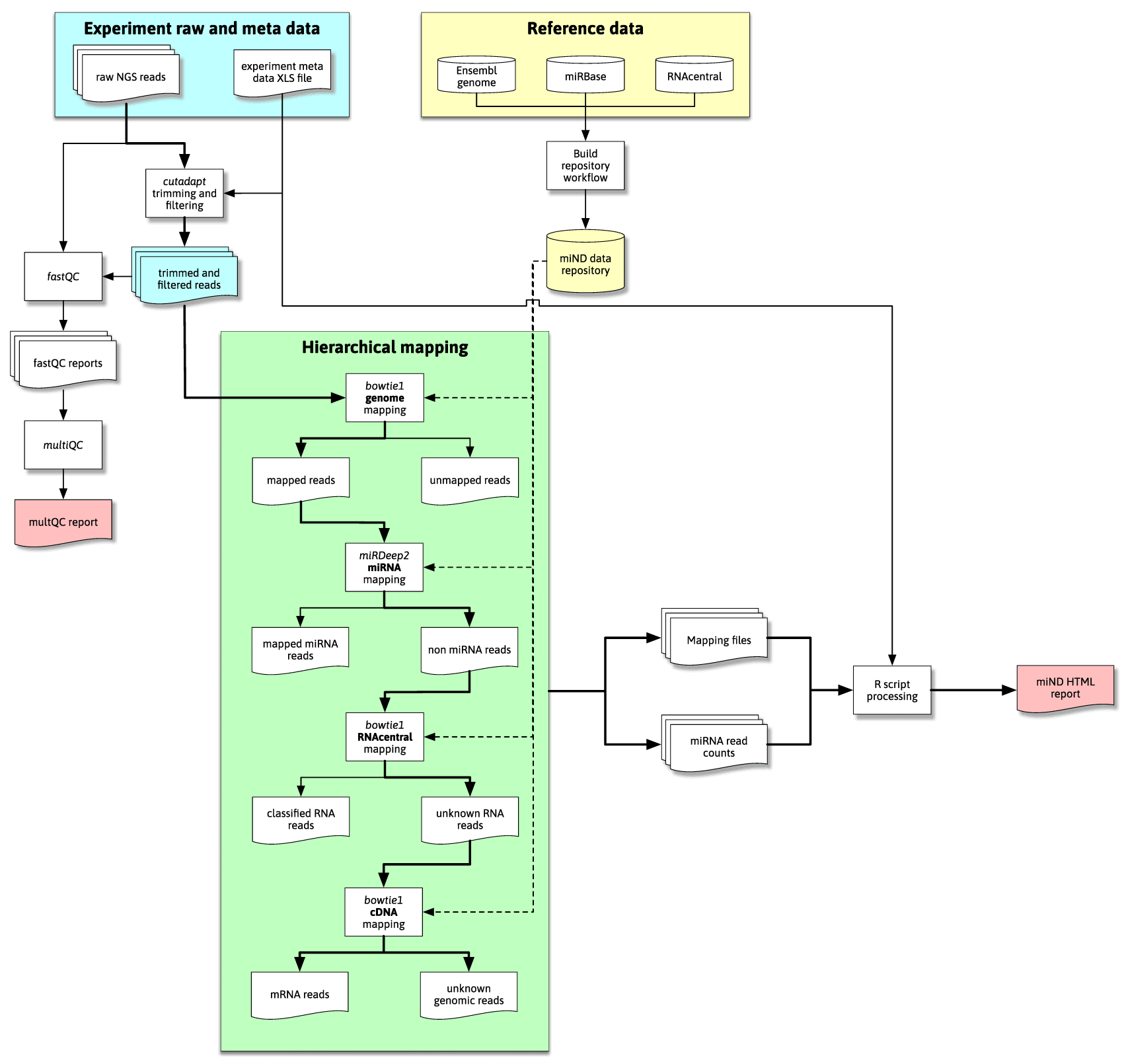

Figure 1. Flowchart representing the high-level steps of data processing through the pipeline.

Reference data is downloaded and processed by the repository build process (yellow area; top right) and then available for the miND pipeline in the repository/subfolder. Raw next-generations sequencing (NGS) data (blue area) is first adapter and quality trimmed and then handled by quality control (QC) tools and processed through hierarchical mapping steps (green area). These steps produce a set of mapping files that are then ingested and analyzed by R scripts, producing the miND report in the end.

The hierarchical mapping uses genome datasets from the prepared data repository (generated once before the initial run as described in the “Data repository” subsection) in a first step to filter out reads that to not map to the host organism’s genome (bowtie1, allowing for two mismatches). The genome-mapped reads are further processed by miRDeep2 to accurately quantify miRNAs. To identify further remaining (genome mapping but non-miRNA) reads, bowtie1 is used to first map against the RNAcentral database and then complementary DNA sequences (to assign mRNA reads), both steps allowing for one mismatch. Reads that remain unmapped after these hierarchical clustering are classified as either “unknown genomic” (if they mapped against the host genome) or “unmapped” (in case of reads that did not map against the host genome and were thus filtered in the first mapping step). The generated mapping files are processed by R scripts to prepare mapping statistics for the different RNA species in each sample.

The mapping process focuses on miRNAs and prioritizes them by using the specialized mapping tool miRDeep2 directly after an initial genome mapping step. It utilizes bowtie1 for mapping of the reads but performs a more sophisticated assignment of miRNA IDs to the reads. This includes detailed information of isomiRs (mature miRNAs with highly similar sequences) that is prepared for further analysis steps.

For the identification of other RNA species RNAcentral is used. This comprehensive database contains non-coding RNA (ncRNA) sequences from a broad range of species. This step focuses on the classification of reads and uses bowtie1 (allowing for one mismatch) reporting the first (best) hit. This limits the use of the mapping data to the required classification, as reads could map to multiple references which are not reported mainly for performance reasons.

Differential expression and independent filtering

miND pipeline uses the popular R package EdgeR (Robinson et al., 2009) for differential expression analysis (DEA) with the quasi-likelihood negative binomial generalized log-linear model functions provided by the package.

A central role of NGS data processing and especially in DEA is the filtering of reads with low expression levels. Those reads would otherwise increase the noise level in the data and result in a high rate of false positives in the following DEA. Recommendations on fixed reads per million reads (RPM) based cutoff values (e.g., filtering all reads with less than 10 RPM) do not adequately account for variations in library size and miRNA reads ratio in the library and are thus arbitrary cutoffs. The DEA package DESeq2 (Love et al., 2014) implements an independent filtering method that was adapted in miND to be used also with EdgeR. Assuming that most false-positives are caused by low abundant miRNAs, the algorithm removes quantiles of miRNAs from the low-abundance end and checks if the number of significant miRNAs increases after false-discovery rate (FDR) adjustment. This would be the case if mostly false positives have been removed because FDR adjustment would now be more sensitive and not remove as many true positives, increasing the overall number of significant results. This method works reliably if there are any true positive results. If the result set consist only of false positives, then even after removing the low abundant miRNAs, results would not increase the number of significant results (as there are no true positives to enrich). In this case our implementation of the algorithm has a fallback, where very lowly expressed miRNAs are pre-filtered prior to DEA and FDR adjustment: In a first step, miRNAs that are only expressed at very low levels are filtered, which is defined as RPM values that are lower than 10 divided by the smallest library size in at least half the number of samples of the smaller group. Those miRNAs carry no biological and statistical relevance (Chen et al., 2016) as they have very low read counts in both groups.

An exemplary relation between a given quantile cut-off and the resulting number of differentially expressed miRNAs after FDR is shown in Figure 2.

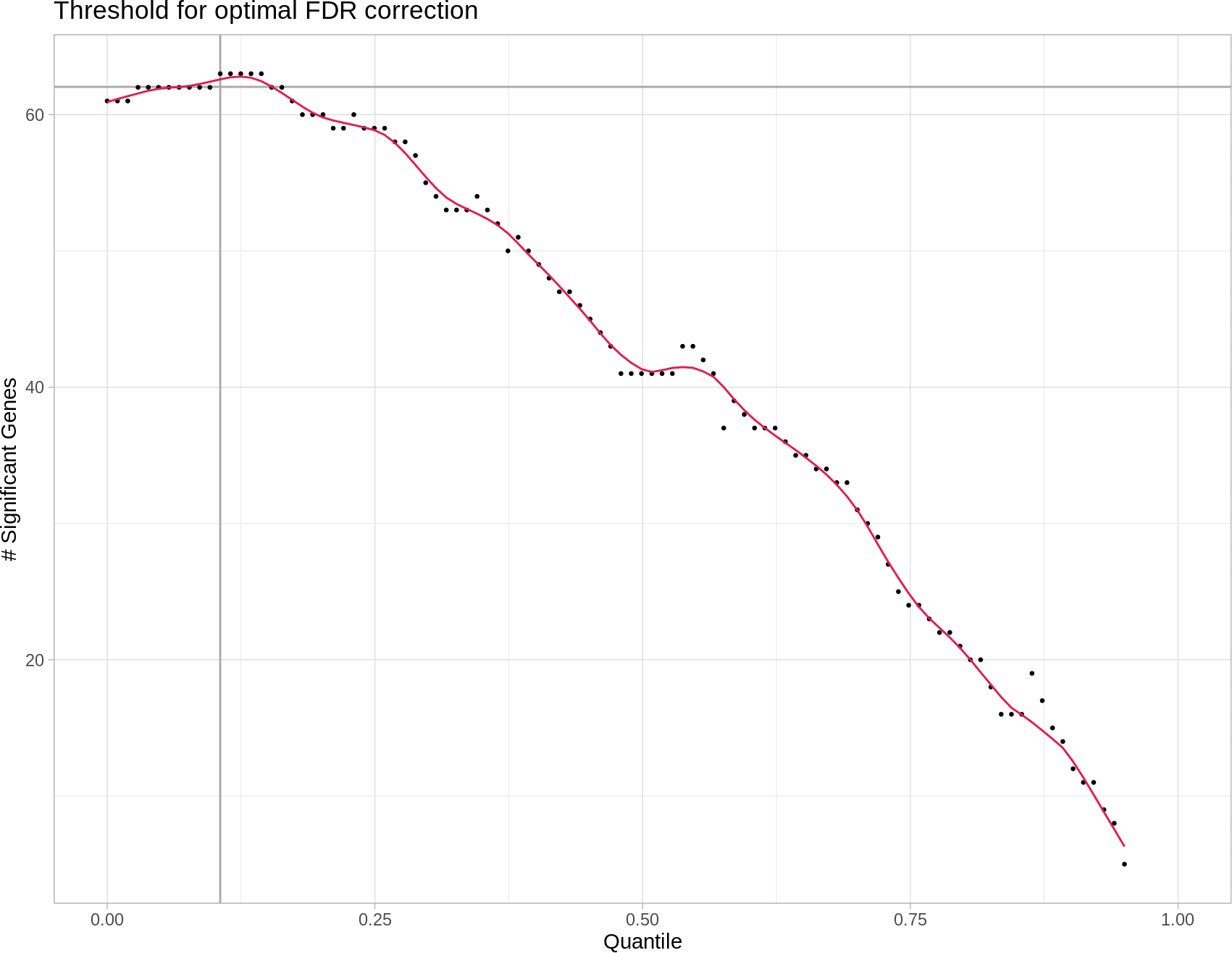

Figure 2. DESeq2's false discovery rate (FDR) based independent filtering method.

Each point represents the number of differentially expressed micro ribonucleic acids (miRNAs) after false discovery rate (FDR) adjustment and done in steps of increasingly stringent quantile-based reads filtering. With more and more low read count miRNAs removed from the differential expression analysis, the number of significant (FDR) differentially expressed (DE) miRNAs increases to the point where more and more true positives get removed, thus decreasing the total amount of DE miRNAs. This is shown in the graph as the maximum of the red line. The optimal quantile cutoff value is then determined by finding this maximum.

For differential expression the contrasts of interest can be selected in the experiment meta data XLS file (last sheet of the SampleContrastSheet.xlsx). Either groups or combinations of groups can be selected based on the group information provided for the samples. Each selected contrast will be part of the final interactive HTML report. In addition, a blocking factor can be selected if applicable. This blocking factor will be included in the model for the differential expression as additive factor and thus can be used e.g., for a paired experimental design or to account for batch effects.

Interactive HTML report and statistical analysis

Although DEA is a central point of biomarker discovery studies, other statistical methods are needed to put this analysis into context and ensure valid results. The miND pipeline report contains a series of additional graphs and tables to present the data in a way that is interactive and easy to browse. The main sections (see Figure 3) are (1) introduction, (2) data exploration (including a sample table, reads classification plots, miRNA mapping tables, heatmaps, principal component analysis (PCA) and t-distributed stochastic neighbor embedding (t-SNE plots)), (3) differential expression results, and (4) an appendix (references and run information).

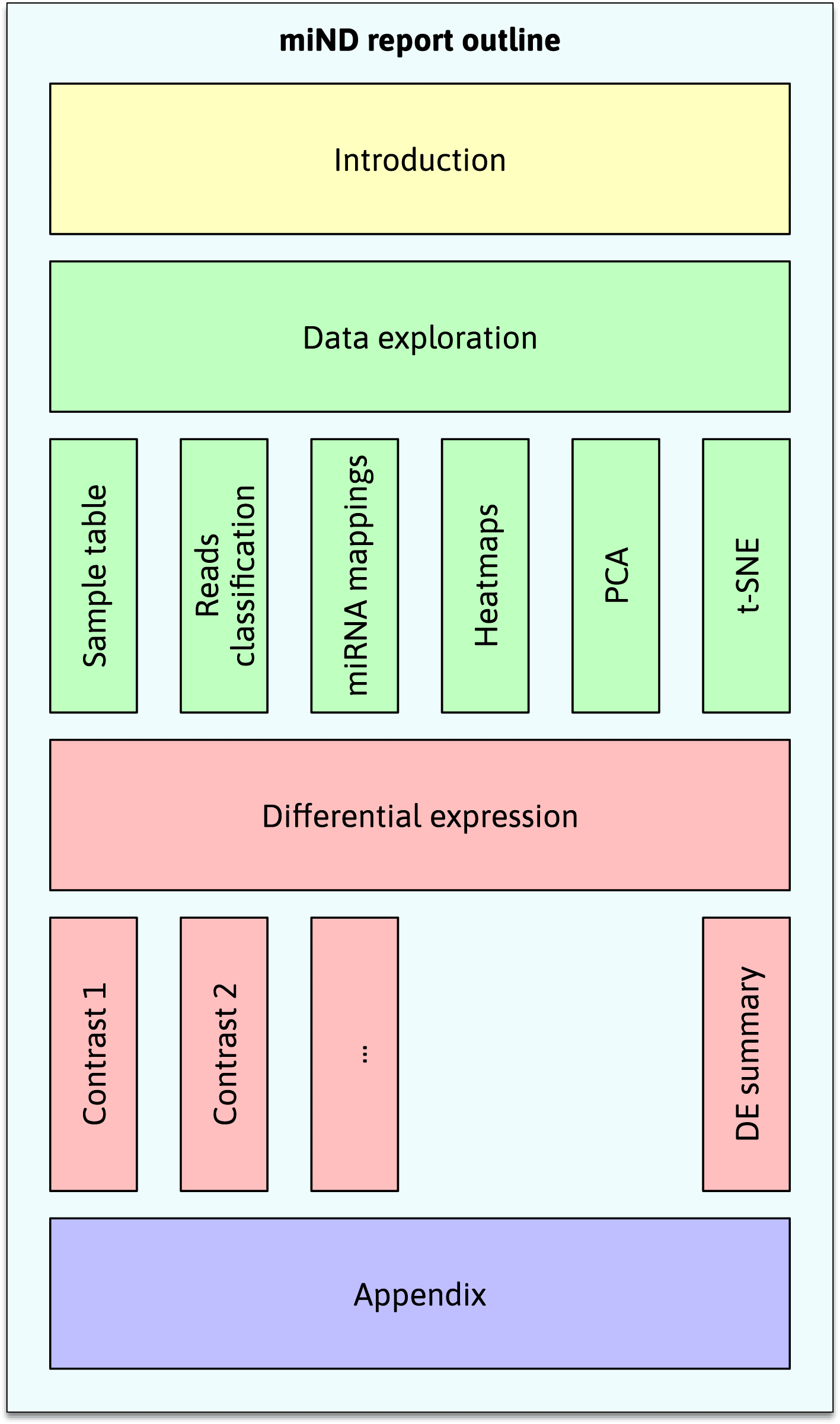

Figure 3. Outline of the interactive miND report.

The main sections (1) introduction, (2) data exploration, (3) differential expression, and (4) appendix each contain multiple subsections. The standardized structure of the report allows for the quick assessment and comparison of experiment results. t-distributed stochastic neighbor embedding (t-SNE), micro ribonucleic acids (miRNAs), differentially expressed (DE).

Reads classification plots

The reads classification plots (see Figure 4) present the amounts of reads mapped to different RNA species (miRNAs, tRNAs, piRNA, rRNA, lncRNA, etc.) based on the hierarchical mapping done by the miND pipeline. This is plotted as absolute reads but also as relative ratios (percent) to get a quick impression of the RNA classes that are present in the data set. Especially for samples with low numbers of miRNAs present (e.g. extracellular vesicles) these two graphs give important information about the success of library preparation and sequencing.

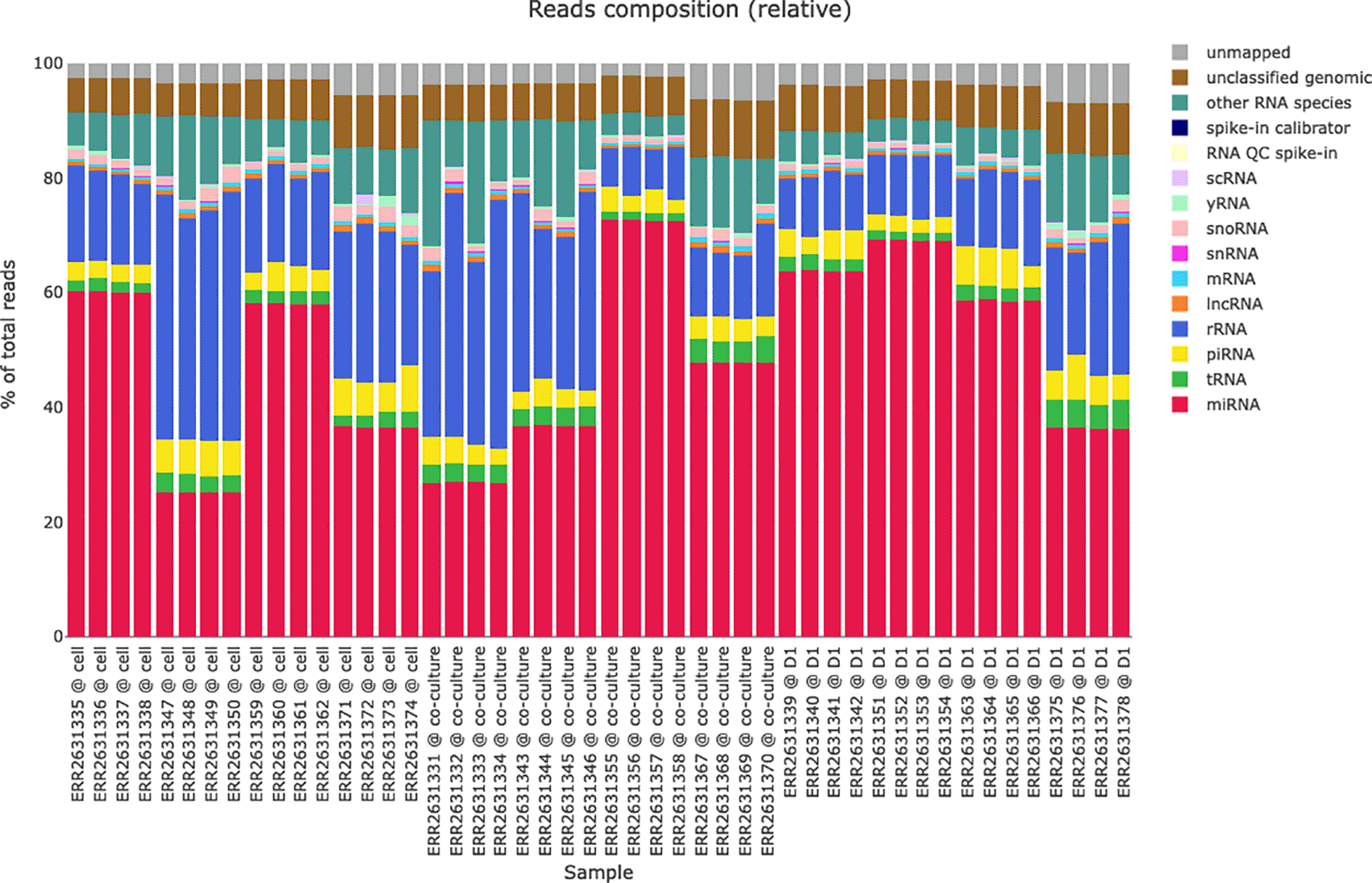

Figure 4. Reads classification of all samples scaled to 100% of total reads.

Each bar represents an individual sample, while colors of the bar charts give insights in the mapped ribonucleic acid (RNA) species. This representation helps with a quick identification of library prep or sequencing issues if the ratios or total number of reads are not as expected.

The data on which the reads classification plots are based on is also included in the HTML report and can be either browsed directly in the HTML file or (as all tables and figures) or exported in various data formats (CSV or XLS for tabular data and PNG for graphics) for further analysis or publications.

miRNA mappings table

The miRNA mappings table contains read counts for each miRNA that was found in at least one of the samples. The table is available with raw read counts but also as RPM (normalized to the total number of miRNAs mapped in each sample). Group information is included in this table, if provided by the experiment metadata XLS file.

A visualization of the miRNA mapping statistics helps in comparing the number if identified miRNAs in the samples (see Figure 5). For each sample the number of distinct miRNAs with a read count above 0 and above 10 is plotted to give an impression about the abundance of distinct miRNAs and their read counts in the samples.

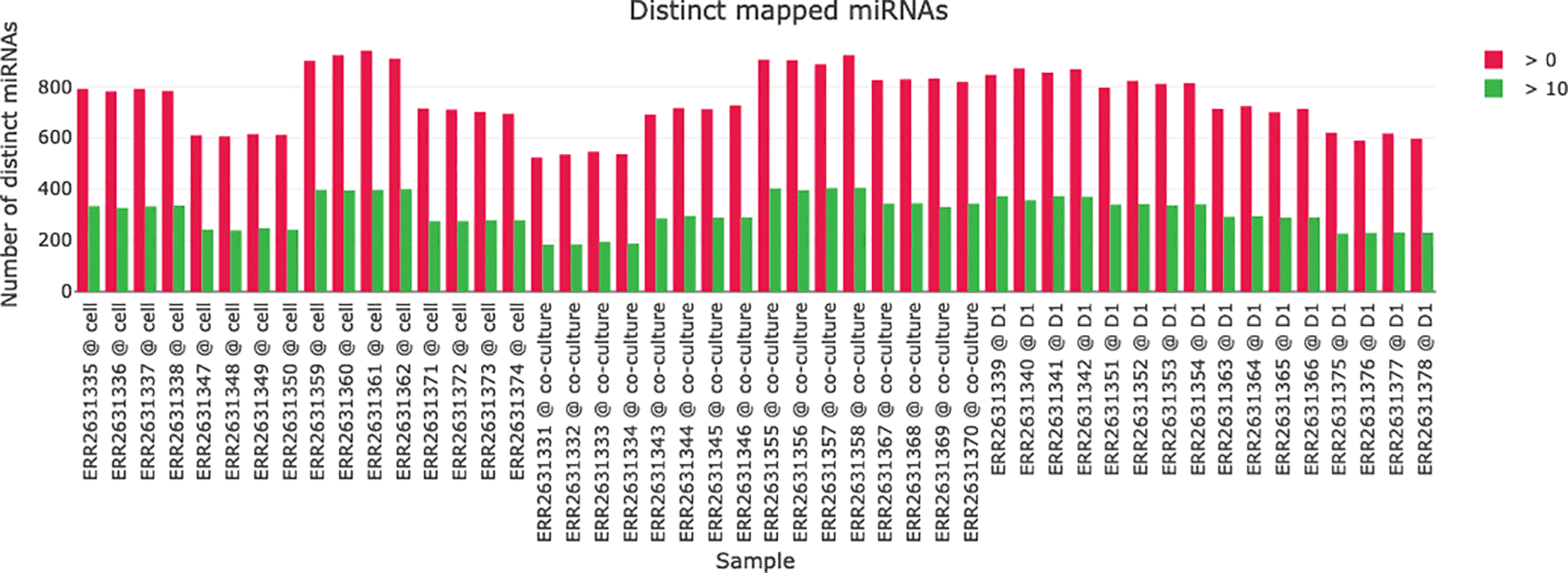

Figure 5. Distinct mapped micro ribonucleic acids (miRNAs) for each sample.

The number of identified miRNAs with either a read count above 0 (red) or 10 (green) is plotted for each sample.

Heatmaps, PCA and t-SNE plots

The heatmaps, PCA and t-SNE plots are part of the unsupervised clustering methods that are applied by the miND pipeline and included in the report. For better understanding of underlaying group relationships, any grouping information available in the meta data file will be included in the graphs. Two heatmaps are generated in the interactive HTML report. The first includes only the top 50 miRNAs based on the coefficient of variation (see Figure 6) while the second one contains all miRNAs that were detected in all samples. Both heatmaps are based on RPM normalized reads and scaled using the unit variance method for visualization. Clustering is based on complete clusters using Euclidean distances as these methods are applicable for most experimental setups. The group association of each sample is shown in the heatmaps with colored bars at the top to visualize clustering of samples based on the provided grouping information. Multiple groups are supported for heatmaps (no groups limit) and PCA/t-SNE (maximum of two groups are shown by colors and shapes).

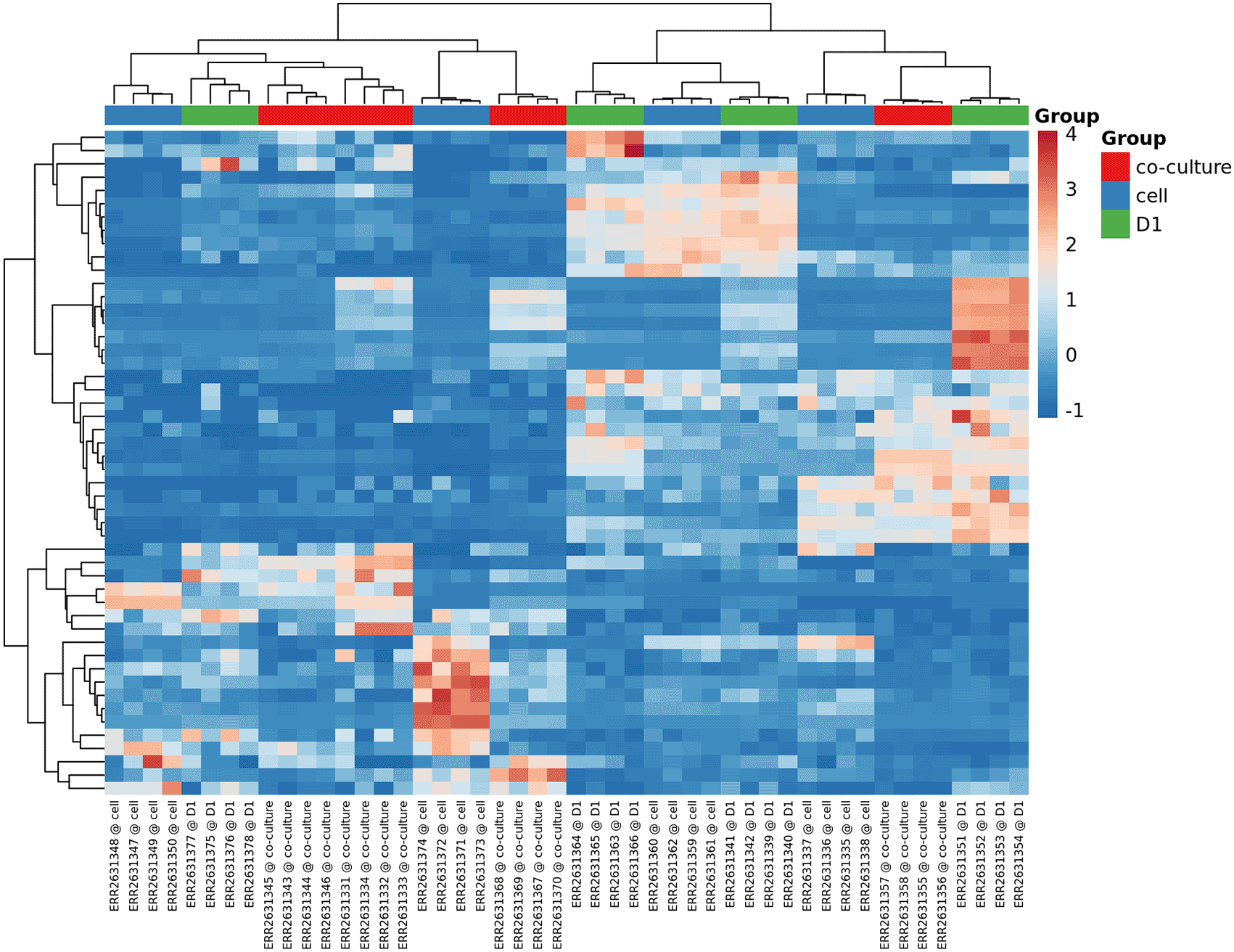

Figure 6. Heatmap of top 50 miRNAs.

Group information provided with the experiment meta data XLS file is included if available.

Source data

Mature and hairpin sequences of miRBase are available at: https://www.mirbase.org/ftp/22.1

Genome sequences (DNA and cDNA) is available at Ensembl (for human): http://ftp.ensembl.org/pub/release-105/fasta/homo_sapiens

Non-coding RNA sequences are available at RNAcentral: http://ftp.ebi.ac.uk/pub/databases/RNAcentral/current_release

Data associated with the example use case are not owned by the authors. Requirements to access these datasets is given in the protocol (https://dx.doi.org/10.17504/protocols.io.b3f6qjre).
