scANANSE gene regulatory network and motif analysis of single-cell clusters

Implementation

The scANANSE pipeline consists of two components: a package to export and import data from and towards single-cell objects, and a snakemake implementation of ANANSE called anansnake (Figure 1). Crucial steps before running scANANSE are pre-processing, quality control, and clustering of single-cell data. For these steps, a large number of well-described workflows are available (Zappia and Oshlack, 2018; Luecken and Theis, 2019; Baek and Lee, 2020).

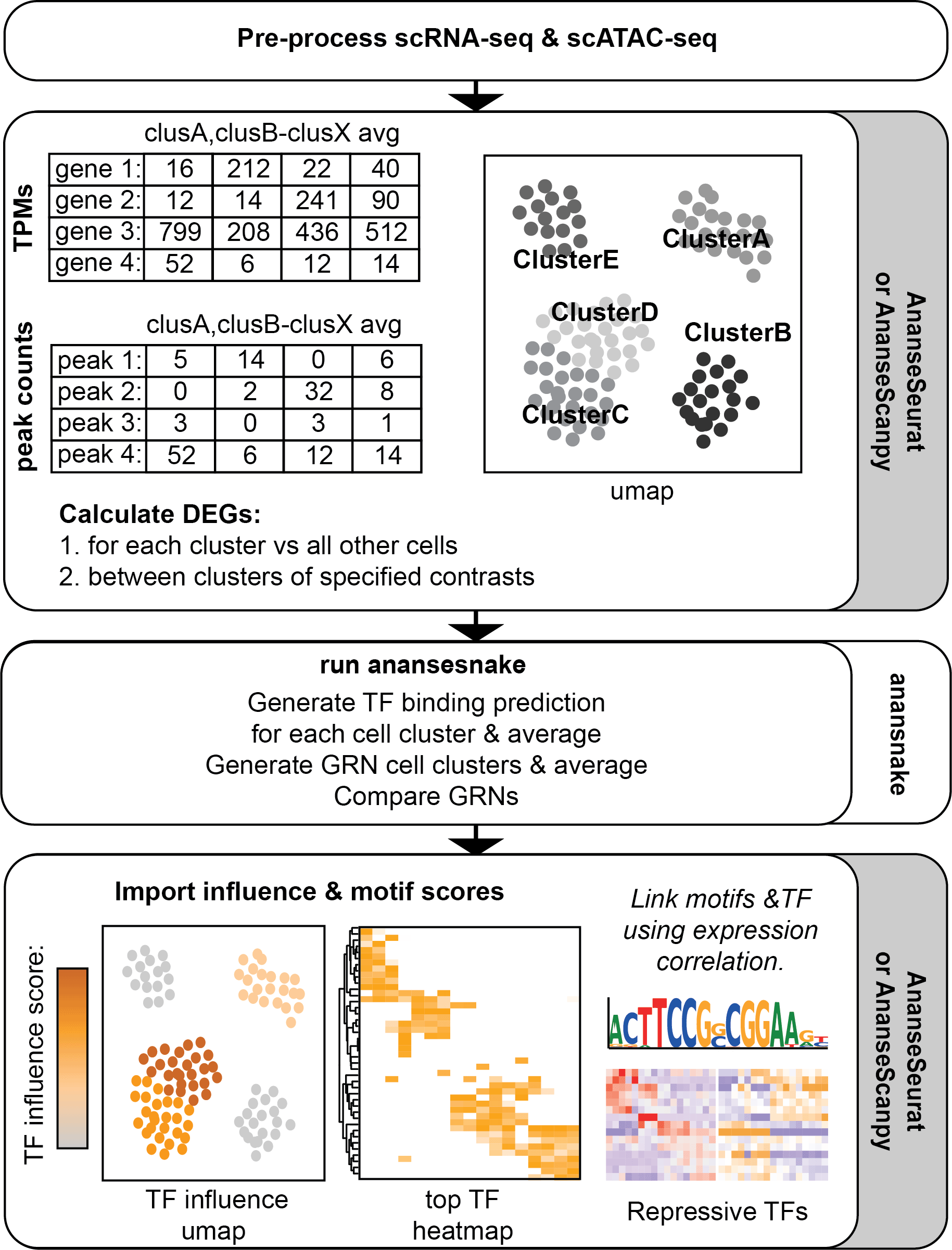

Figure 1. An overview of the single-cell ANANSE pipeline.

After pre-processing and clustering, data is exported using either AnanseSeurat or AnanseScanpy. Next, Anansnake automatically runs ANANSE after which the influence scores and motif enrichment results with AnanseSeurat or AnanseScanpy are imported. In parallel, Anansnake runs motif enrichment analysis using gimme maelstrom, and the motif results are imported and linked to the highest correlating TFs using the single-cell object scRNA-seq data.

scANANSE exports data from the single-cell object of choice. Transcripts Per Million (TPM), Differential Expressed Genes (DEGs) and peak counts need to be calculated based on the single-cell objects supplied. For Seurat objects (Hao et al., 2021) in the programming language R (R Core Team, 2021), the R package “AnanseSeurat” was developed to perform these steps. While for Scanpy objects (Wolf, Angerer and Theis, 2018) in the programming language Python (Van Rossum and Drake, 2009), the Python package “AnanseScanpy” was developed.

The TPM counts, DEGs, and ATAC peak counts can be exported from one single-cell object containing both the scRNA-seq data and scATAC-seq data, or from two separate single-cell objects. In the case of two single-cell objects, these objects need to share their cluster names, e.g. by transferring anchors between separate scRNA-seq and scATAC-seq datasets (Stuart et al., 2019). As such, scRNA-seq and scATAC-seq data from multiple studies or experiments can be combined and used as input.

By default, scANANSE compares each cluster to a GRN built from the average expression and gene accessibility of all clusters. This average network is used as a common comparison to compare all clusters. These comparisons result in an average GRN ‘TF-influence’ score. This score quantifies the importance of a TF driving the differences between a specific cluster and the average of all other cell clusters. In this way, the TF influence score can be compared across multiple clusters. In addition to this general approach, more detailed direct cluster-to-cluster GRN analyses are possible.

One downside of the GRN modelling of ANANSE is the lack of prediction of repressive TFs. This is based on underlying methods of ANANSE (Xu et al., 2021). To counteract this blind spot of the algorithm, motif enrichment with GimmeMotifs is performed in the scANANSE pipeline. It not only performs motif enrichment but is combined with a correlation of motif-z-scores and TF expression across clusters within the single-cell object. This addition enables the ability to predict repressive TFs.

Finally, both AnanseSeurat and AnanseScanpy can be used to import the TF influence and motif enrichment scores back into your single-cell object for further visualisation and analysis. All the source code and the conda environment YAML files used to generate the results presented in this article are available in Github and Zenodo (Arts et al., 2022).

Minimal system requirements

A computer running UNIX, Linux, Windows Subsystem for Linux (WSL) or Mac OS can run scANANSE. A minimum of 32 GB of RAM and 100 GB Of disk space is needed for a typical analysis, however, an amount of 64 GB of RAM is recommended to decrease runtime.

Part 1: Installation and setup

The package management system Conda is installed with two environments: anansnake and scANANSE. The following folder structure is used:

1a. Create folders

mkdir -p scANANSE/analysis
mkdir -p scANANSE/data

1b. Install Conda

The operating system and computing environment are set up as listed in the minimal system requirements. Next, Conda is installed.

# Install Conda
wget https://repo.anaconda.com/miniconda/Miniconda3-py38_4.12.0-Linux-x86_64.sh
bash Miniconda3-py38_4.12.0-Linux-x86_64.sh
rm Miniconda3-py38_4.12.0-Linux-x86_64.sh

# Configure Conda
conda config --add channels bioconda
conda config --add channels conda-forge
conda config --set channel_priority strict
conda install mamba -y

1c. Install the anansnake Conda environment

mamba create -n anansnake anansnake

1d. Install the R Conda environment

wget
https://raw.githubusercontent.com/JGASmits/AnanseSeurat/main/inst/scANANSE.yml
mamba env create -f scANANSE.yml

1e. Install hg38

The location where Genomepy installs genomes is set using the -g flag. Since UCSC has three annotations for hg38, the version with HGNC gene names is selected, using --UCSC-annotation. scANANSE requires HGNC gene names to run.

conda activate anansnake
genomepy install hg38 -g scANANSE/data --UCSC-annotation refGene

1f. Install AnanseSeurat and R packages

There are code blocks equivalent for exporting and visualising the data in python using Ananscanpy. See the extended data file “AnanseScanpy_equivalent.pdf” in the extended data (Arts et al., 2022) for these same steps but in Python. If RStudio needs to be installed on your system, see “install_Rstudio.pdf” in the extended data on Zenodo (Arts et al., 2022).

conda activate scANANSE
rstudio

From R (studio):

install.packages("AnanseSeurat")
remotes::install_github("mojaveazure/seurat-disk", upgrade = "never")

Part 2: Quality control and clustering of scRNA-seq and scATAC-seq data

In this example we use data from 10x pre-processed by a vignette from Signac (2022). This dataset comes with a vignette performing default quality control, clustering, and annotation from the PBMC atlas from Hao et al. (2021). Proper quality control and clustering are vital for all single-cell analyses for these topics, however, there already exist some excellent reviews about these topics (Zappia and Oshlack, 2018; Luecken and Theis, 2019; Baek and Lee, 2020).

2a. Download the raw data (optional)

cd scANANSE/data

wget
https://zenodo.org/record/7575107/files/pbmc_granulocyte_sorted_10k_filtered_feature_bc_matrix.h5
wget
https://zenodo.org/record/7575107/files/pbmc_granulocyte_sorted_10k_atac_fragments.tsv.gz
wget
https://zenodo.org/record/7575107/files/pbmc_granulocyte_sorted_10k_atac_fragments.tsv.gz.tbi
wget
https://zenodo.org/record/7575107/files/pbmc_multimodal.h5seurat

cd ../..

2b. Pre-process single-cell data (optional)

An R Markdown file with all subsequent steps in R, including the pre-processing is available and can be downloaded.

wget
https://raw.githubusercontent.com/JGASmits/AnanseSeurat/main/inst/scANANSE.Rmd -O scANANSE/scANANSE.Rmd

The pre-processing analysis follows the Signac multi-omics vignette (‘Signac’, 2022)

The QC steps can be skipped by downloading the processed Rds file.

wget
https://zenodo.org/record/7575107/files/preprocessed_PBMC.Rds

Alternatively, the processed h5ad objects for AnanseScanpy can be downloaded.

wget
https://zenodo.org/record/7575107/files/rna_PBMC.h5ad -O scANANSE/rna_PBMC.h5ad
wget
https://zenodo.org/record/7575107/files/atac_PBMC.h5ad -O scANANSE/atac_PBMC.h5ad

Part 3: Export single-cell cluster data

3a. Export cluster CPM, ATAC peak counts, and RNA-seq Counts

For the ATAC-seq data, a matrix containing the counts per peak per cluster is generated. For RNA-seq, CPM equivalent values are needed. Since the data is UMI normalised, CPM is already equivalent to regular depth normalised data (Phipson, Zappia and Oshlack, 2017). By default, scANANSE compares all clusters to a network based on the average values of all clusters. Additional comparisons can be specified, in this case, B-naive and B-memory cells were also specified to compare directly to each other.

conda activate scANANSE
rstudio

# Load the required R libraries
library(Seurat)
library(SeuratDisk)
library(stringr)
library(ComplexHeatmap)
library(circlize)
library(ggplot2)
library(AnanseSeurat)
library(SeuratDisk)

# Load pre-processed seurat object RDS file
rds_file <- './scANANSE/preprocessed_PBMC.Rds'
pbmc <- readRDS(rds_file)
export_CPM_scANANSE(pbmc,
 in_cells <- 25,
 output_dir ='./scANANSE/analysis',
 cluster_id = 'predicted.id',
 RNA_count_assay = 'RNA')

export_ATAC_scANANSE(pbmc,
 min_cells <- 25,
 output_dir ='./scANANSE/analysis',
 cluster_id = 'predicted.id',
 ATAC_peak_assay= 'peaks')

# Specify additional contrasts:
contrasts <- c('B-naive_B-memory',
         'B-memory_B-naive')
config_scANANSE(pbmc,
 min_cells <- 25,
 output_dir ='./scANANSE/analysis',
 cluster_id = 'predicted.id',
 additional_contrasts = contrasts)

DEGS_scANANSE(pbmc,
 min_cells <- 25,
 output_dir ='./scANANSE/analysis',
 cluster_id = 'predicted.id',
 additional_contrasts = contrasts)

3b. File examples

Part 4: Anansnake

Next, snakemake is run from within a screen session. This takes approximately 3 hours per cluster plus 2 hours for motif enrichment analysis, but this is also highly dependent on computer speed. With less than 64 GB of RAM available, we recommend downscaling the core number to a maximum of 6 cores. With more RAM and more cores available the core count should be increased to reduce analysis time.

Additionally, it is possible to add extra samples and/or networks to the anansnake run. This enables including other samples and other networks in your comparisons. When performing additional anansnake comparisons please go through the anansnake documentation in detail.

screen
conda activate anansnake

# Update the timestamps so snakemake doesn't try to regenerate the DEG files if you make changes to the config or sample file
for DEGfile in scANANSE/analysis/deseq2/*;do touch -m $DEGfile;done

anansnake \
--configfile scANANSE/analysis/config.yaml \
--resources mem_mb=48_000 --cores 12

Part 5: Import and visualise ANANSE results

5a. Import the ANANSE results

After running ANANSE with anansnake, the influence output is imported back into the single-cell object.

conda activate scANANSE
rstudio

pbmc <- import_seurat_scANANSE(
 pbmc,
 cluster_id = 'predicted.id',
 anansnake_inf_dir = "./scANANSE/analysis/influence"
)

# export the data per cluster from the single-cell object
TF_influence <- per_cluster_df(pbmc,
 assay = 'influence',
 cluster_id = 'predicted.id')

head(TF_influence)

5b. Top five influential TFs per cluster

Next, the top five TFs per cluster are identified from the influence table.

TF_influence$TF <- rownames(TF_influence)
TF_long <- reshape2::melt(TF_influence, id.vars = 'TF')
colnames(TF_long) <- c('TF','cluster', 'influence')
TF_influence$TF <- NULL
TF_long <- TF_long[order(TF_long$influence, decreasing = TRUE), ]

# get the top n TFs per cluster
topTF <- Reduce(rbind,
 by(TF_long,
  TF_long["cluster"],
  head,
  n = 5))# Top N highest TFs by cluster

top_TFs <- unique(topTF$TF)

TF_table <- topTF %>%
 dplyr::group_by(cluster) %>%
 dplyr::mutate('TopTFs' = paste0(TF, collapse = " "))

unique(TF_table[,c('cluster','TopTFs')])

5c. Heatmap of most influential TFs

An overview of the top TF and their various influences in the various clusters is visualised by a heatmap. The column and row dendrogram are manually swapped where appropriate resulting in the final TF influence heatmap (see Figure 2).

col_fun = circlize::colorRamp2(c(0, 1), c("white", "orange"))
mat <- as.matrix(TF_influence[rownames(TF_influence) %in% top_TFs,])

pdf('./scANANSE/analysis/ANANSE_Heatmap.pdf',width=16,height=8,paper='special')
ComplexHeatmap::Heatmap(mat, col = col_fun)
dev.off()

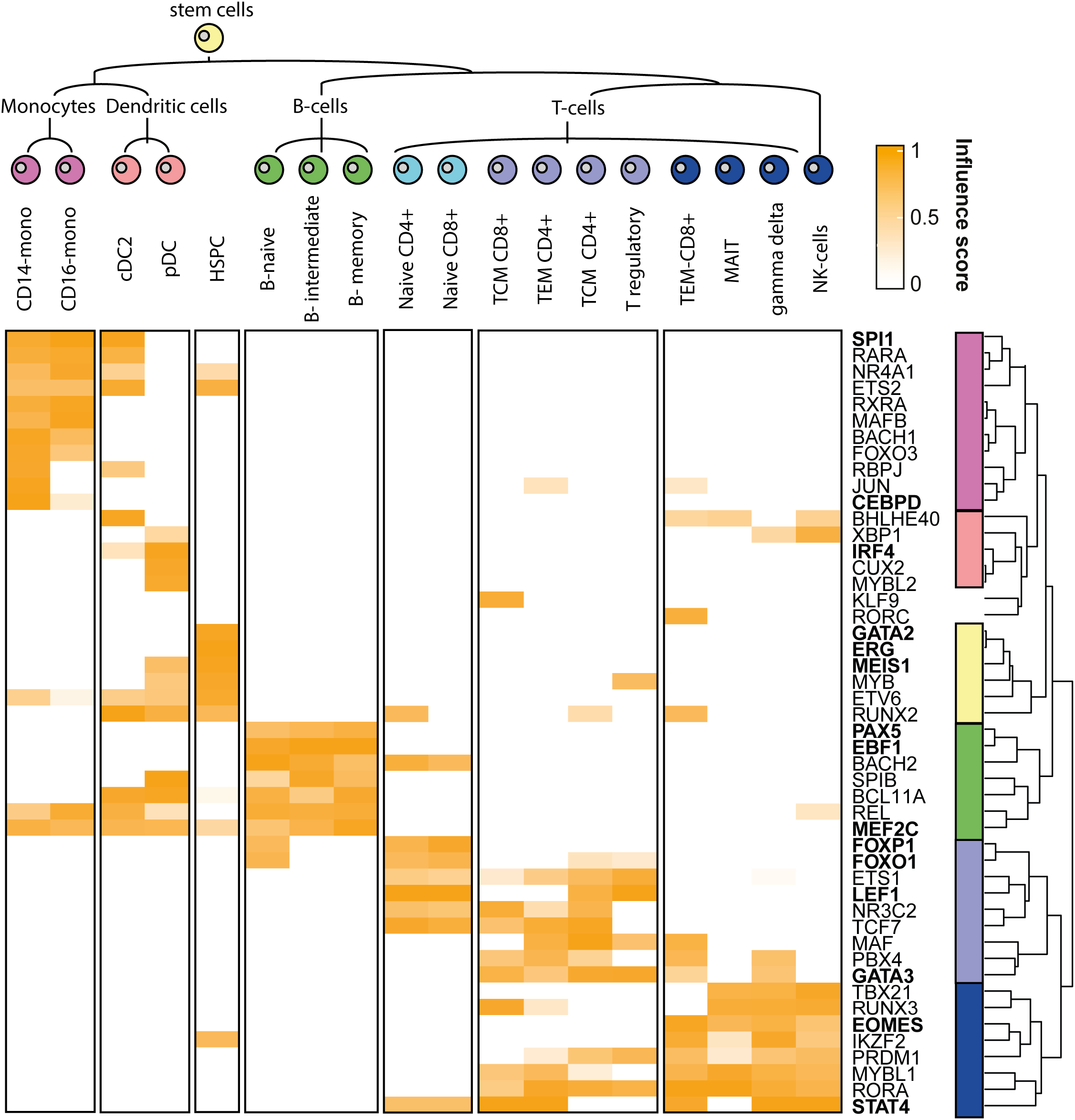

Figure 2. Heatmap of the influence scores.

This heatmap depicts the influence scores of the top five highest influential TFs per cluster. Referenced TFs in the text are in bold.

By using scANANSE, a large number of well-known hematopoiesis hallmark TFs is identified (see Figure 2 and Table 5). This demonstrates the ability of scANANSE to identify important TFs from single-cell data. Some well-known examples are:

Monocytes TFs include, SPI1 which is well known to regulate human monocyte differentiation towards dendritic cells and is identified in both monocytes and dendritic cells (Rosa et al., 2007; Novershtern et al., 2011; Zhu et al., 2012). While the CEBP gene family, including the identified CEBPD, is vital for the transduction of B-cells into macrophages (Bussmann et al., 2009).

Dendritic cell TFs including IRF4 (Tamura et al., 2005) were identified as driving Interferon producing pDCs (Siegal et al., 1999).

Hematopoietic stem cell TFs include GATA2 (Menendez-Gonzalez et al., 2019, p. 2), ERG (Knudsen et al., 2015) and MEIS1 (Novershtern et al., 2011; Ariki et al., 2014). All these factors are all well-known regulators of hematopoietic stem cell identity.

B-cell TFs include EBF1 and MEF2C. Both are well-known to drive the B-cell lineage (Kong et al., 2016; Bullerwell et al., 2021, p. 1), while PAX5 is another well-known B-cell fate driving factor (Enver, 1999, p. 5; Medvedovic et al., 2011, p. 5). In particular, PAX5 is an intriguing finding since it is not only well known to promote B-cell genes, but also to repress non-B-cell lineage genes (Boller and Grosschedl, 2014). This repressive property is however not included in the ANANSE analysis. And its prediction is likely attributed to the smaller effect of gene activation PAX6 has on specific target genes.

T-cell TFs include both GATA3 and LEF1, which are crucial for specifying the T-cell fate (Novershtern et al., 2011). Furthermore, more specific to naive T-cells, FOXO1 (Kerdiles et al., 2009, p. 1) and FOXP1 (Feng et al., 2010) are known to maintain naive T-cell quiescence.

Differentiated T-cell TFs include the well-known STAT4 (Novershtern et al., 2011; Suarez-Ramirez et al., 2014), and for both CD8+ T-cells and NK cells the well-known TF EOMES (Shimizu et al., 2019) are identified.

5d. Visualise TF expression and influence on a UMAP

The presence of the influence scores enabled clear visualisation of the influence and expression of specific TFs across the dataset. As an example, three TFs are visualised with a wide variety of influence and expression across clusters (see Figure 3).

highlight_TF1 <- c('STAT4','LEF1','MEF2C')

Annotated_plot <- DimPlot(pbmc,
 label = T,
 repel = TRUE,
 reduction = "umap")+ NoLegend()

DefaultAssay(object = pbmc) <- "RNA"
plot_expression <- FeaturePlot(pbmc,
 features = highlight_TF1,
 ncol = 1)

DefaultAssay(object = pbmc) <- "influence"
plot_ANANSE <- FeaturePlot(pbmc,
 ncol = 1,
 features = highlight_TF1,
 cols = c("darkgrey", "#fc8d59"))

pdf('./scANANSE/analysis/ANANSE_highlight.pdf',width=10,height=10,paper='special')
print(Annotated_plot)
print(plot_expression|plot_ANANSE)
dev.off()

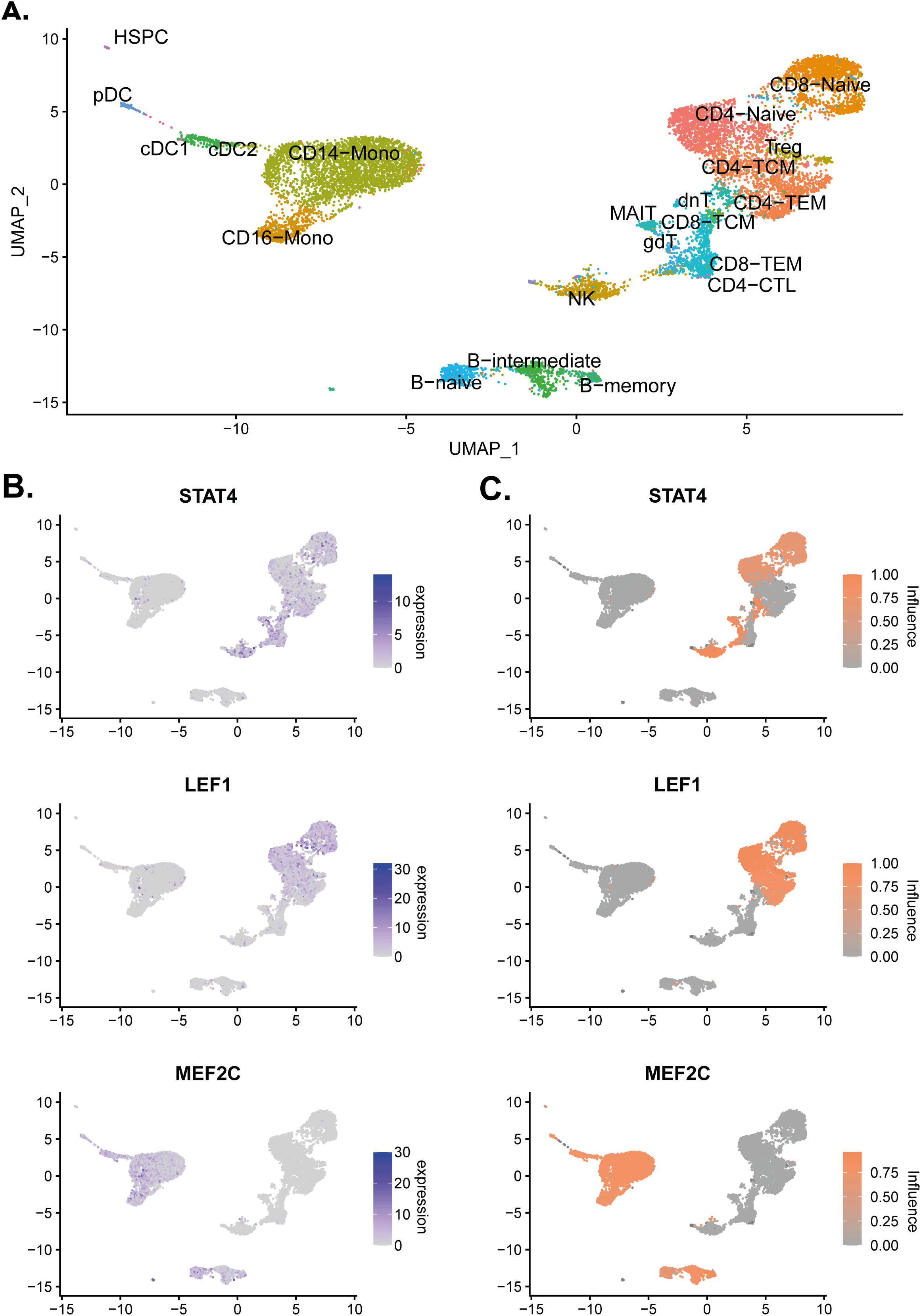

Figure 3. Expression and influence visualisation upon the UMAP.

(A) UMAP of the PBMC single-cell object with the cell identities labelled. (B) Normalised expression values of STAT4, LEF1, and MEF2C on the single-cell object. (C) Influence scores of STAT4, LEF1, and MEF2C on the single-cell object.

Part 6: Specific cluster comparison

Although all B-cell clusters were relatively similar when compared to the average network, it is possible to directly compare both clusters. This uncovers TFs driving more subtle differences between the cell types. This direct cluster-to-cluster comparison is performed by adding the two clusters in part 3 as an additional contrast.

When comparing Naive B-cells and Memory B-cells, FOXP1 and BACH2 were identified as important factors driving Memory B-cell maturation compared to naive B-cells. This is in line with previous publications (Itoh-Nakadai et al., 2014; Patzelt et al., 2018). Furthermore, EBF1 and SPIB were identified as driving Naive B-cells, this is also in line with previous research (Schmidlin et al., 2008; Györy et al., 2012). Thus, these results illustrate the possibility of running comparisons on similar clusters within single-cell datasets to further identify TF networks that define cell types (Figure 4).

MemoryInfluence <- read.table(
 './scANANSE/analysis/influence/anansesnake_B-memory_B-naive.tsv',
 header = T)
NaiveInfluence <- read.table(
 './scANANSE/analysis/influence/anansesnake_B-naive_B-memory.tsv',
 header = T)

NaiveInfluence$factor_fc <- NaiveInfluence$factor_fc* -1
B_comparison <- rbind(NaiveInfluence,MemoryInfluence)

ggplot(B_comparison, aes(factor_fc,influence_score)) +
 geom_point(aes(size = direct_targets, colour = influence_score)) +
 xlim(-2,2)+
 geom_text(
  aes(
   label=ifelse(factor_fc > 0.26|factor_fc < -0.5,as.character(factor),""),
  hjust = 0.5,
  vjust = 2
))

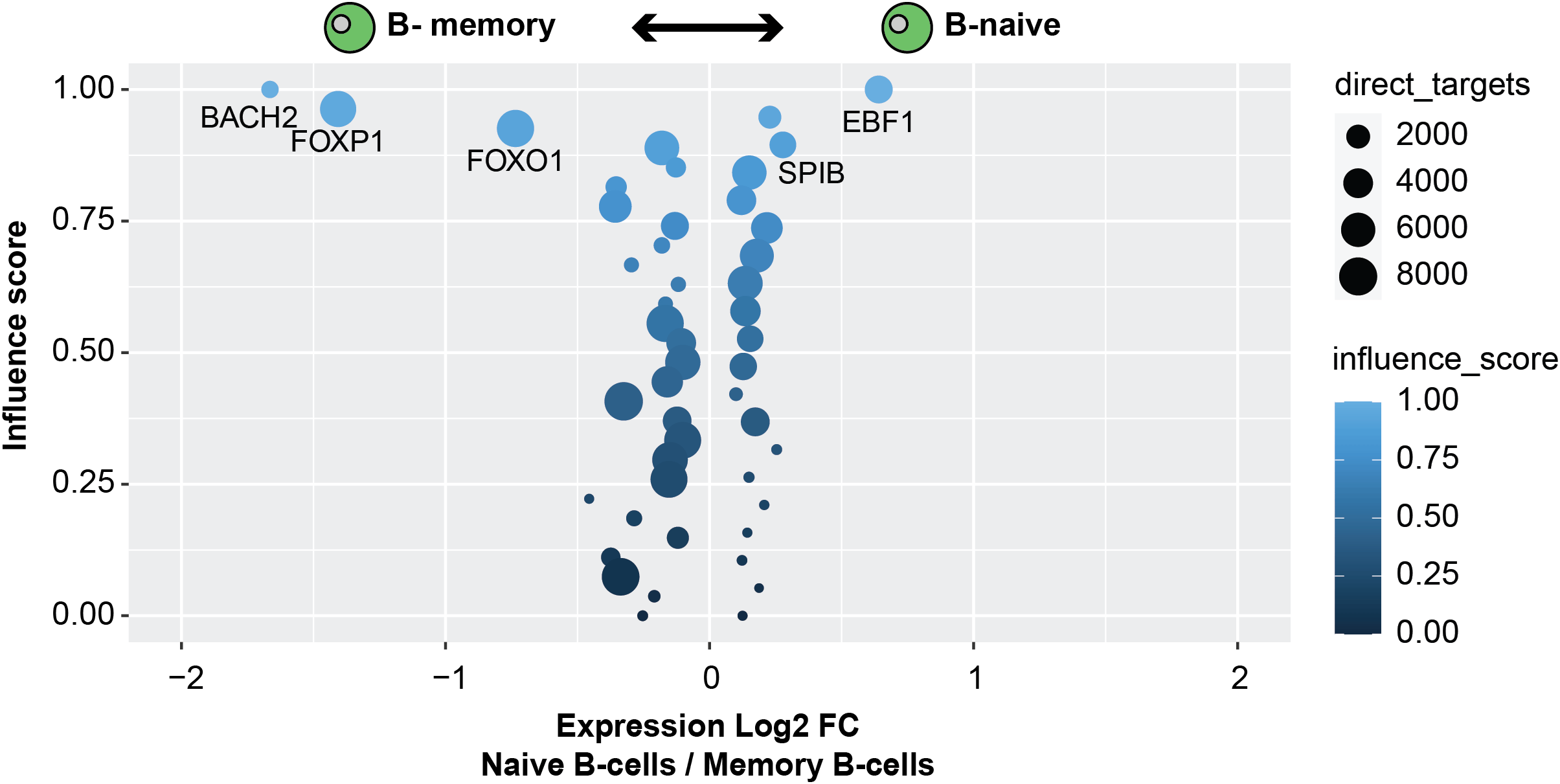

Figure 4. ANANSE can perform direct cluster-to-cluster comparisons.

The TF influence scores of TFs comparing Naive B-cells and Memory B-cells; higher influence of factors with negative fold changes are more important within memory B-cells; higher influence of factors with positive fold changes are more important in Memory B-cells. Circle size correlates with the number of direct target genes. Gene expression log2 fold change between Naive B-cells and memory B-cells on the X axis.

Optional part: Motif enrichment for predicting repressive factors

The original ANANSE method was not developed to reliably predict repressive factors (Xu et al., 2021). Instead motif enrichment can be used for identifying motifs with reduced accessibility, however due to the lack of a one-on-one link of motifs and TFs, and the difference of these interactions between tissues, it is tricky to reliably link motifs with their most relevant factors in the cell type of interest.

However, with single-cell cluster data, it is possible to link motifs and TFs based on motif and expression correlation across multiple clusters. This approach does enable scANANSE to identify potential repressive factors. It is however a step down from the GRN modelling approach, but for identifying potential repressive factors it is an easy step to incorporate, which we therefore choose to include.

We will first incorporate the enrichment result after running anansesnake.

Import motif enrichment scores

pbmc <- import_seurat_maelstrom(pbmc,
 cluster_id = 'predicted.id',
 maelstrom_file = './scANANSE/analysis/maelstrom/final.out.txt')

# export the data per cluster from the single-cell object
motif_scores <- per_cluster_df(pbmc,
 assay = 'maelstrom',
 cluster_id = 'predicted.id')

head(motif_scores)

Link TFs to motifs based on their correlation coefficient

The enriched motifs are linked to TFs based on the non-redundant motif-TF database generated by GimmeMotifs. A correlation score is calculated between the motif-z-scores and TF expression values. When multiple TFs map to the same motif of interest, the TF with the highest absolute correlation is linked to this motif. After linking all motifs, one TF can be linked to multiple motifs. In that case, there are multiple options for selecting the most relevant motif.

First of all, it is possible to take the mean motif score, secondly by selecting the motif with the most variable signal, or thirdly by selecting the motif with the highest absolute correlation between enrichment and expression. Here we use the motifs with the highest correlation to the expression.

Finally, two assays are added to the single-cell object, one consisting of a positive correlation with linked motifs, which indicates a TF promoting genome accessibility, and one assay consisting of a negative correlation with linked motifs, which indicates TFs repressing genome accessibility. A TF can be present in both assays when it is linked both with a motif with a positive correlation and a motif with a negative correlation.

pbmc <- Maelstrom_Motif2TF(pbmc,
 cluster_id = 'predicted.id',
 maelstrom_dir = './scANANSE/analysis/maelstrom/',
 RNA_expression_assay = "SCT",
 expr_tresh = 10,
 cor_tresh = 0.3,
 combine_motifs = 'max_cor')

Visualise TF expression and motif enrichment

Next, the top TFs of with a negative correlation were visualised as a heatmap (Figure 5A).

col_fun <- circlize::colorRamp2(c(-5,0,5), c('#998ec3','white','#f1a340'))
col_fun_cor <- circlize::colorRamp2(c(-1,0,1), c('#7b3294','#f7f7f7','#008837'))

for (regtype in c('TFcor','MotifTFanticor')){
 top_TFs <- head(pbmc@assays[[regtype]][[]],15)
 mat <- per_cluster_df(pbmc, assay = regtype, cluster_id = 'predicted.id')
 mat <- as.matrix(mat[rownames(mat) %in% rownames(top_TFs),])

 #get TF expression matrix
 exp_mat <- AverageExpression(pbmc,assay='SCT',
  slot = 'data',
  features = rownames(top_TFs),
  group.by = 'predicted.id')[[1]]

 exp_mat <- exp_mat[,colnames(exp_mat)]
 exp_mat <- as.matrix(t(scale(t(exp_mat))))
 #get correlation score
 row_ha = rowAnnotation(correlation = top_TFs$cor, col = list(correlation = col_fun_cor))
 print(Heatmap(exp_mat[,cluster_order], cluster_columns = F) + Heatmap(mat[,cluster_order], col = col_fun, cluster_columns = F, right_annotation = row_ha))
 }

This identified multiple repressive hallmark TFs (Figure 5A). Examples and well known important repressors driving hematopoiesis include PAX5 (Souabni et al., 2002, p. 1), STAT6 (Czimmerer et al., 2018), ID2 (Ji et al., 2008), and PRDM1 (Chan et al., 2009, p. 1; Nadeau and Martins, 2022).

TF_list <- c('PAX5','STAT6')
Factor_Motif_Plot(pbmc, TF_list, assay_maelstrom = 'MotifTFanticor', logo_dir = './scANANSE/analysis/maelstrom/logos/')

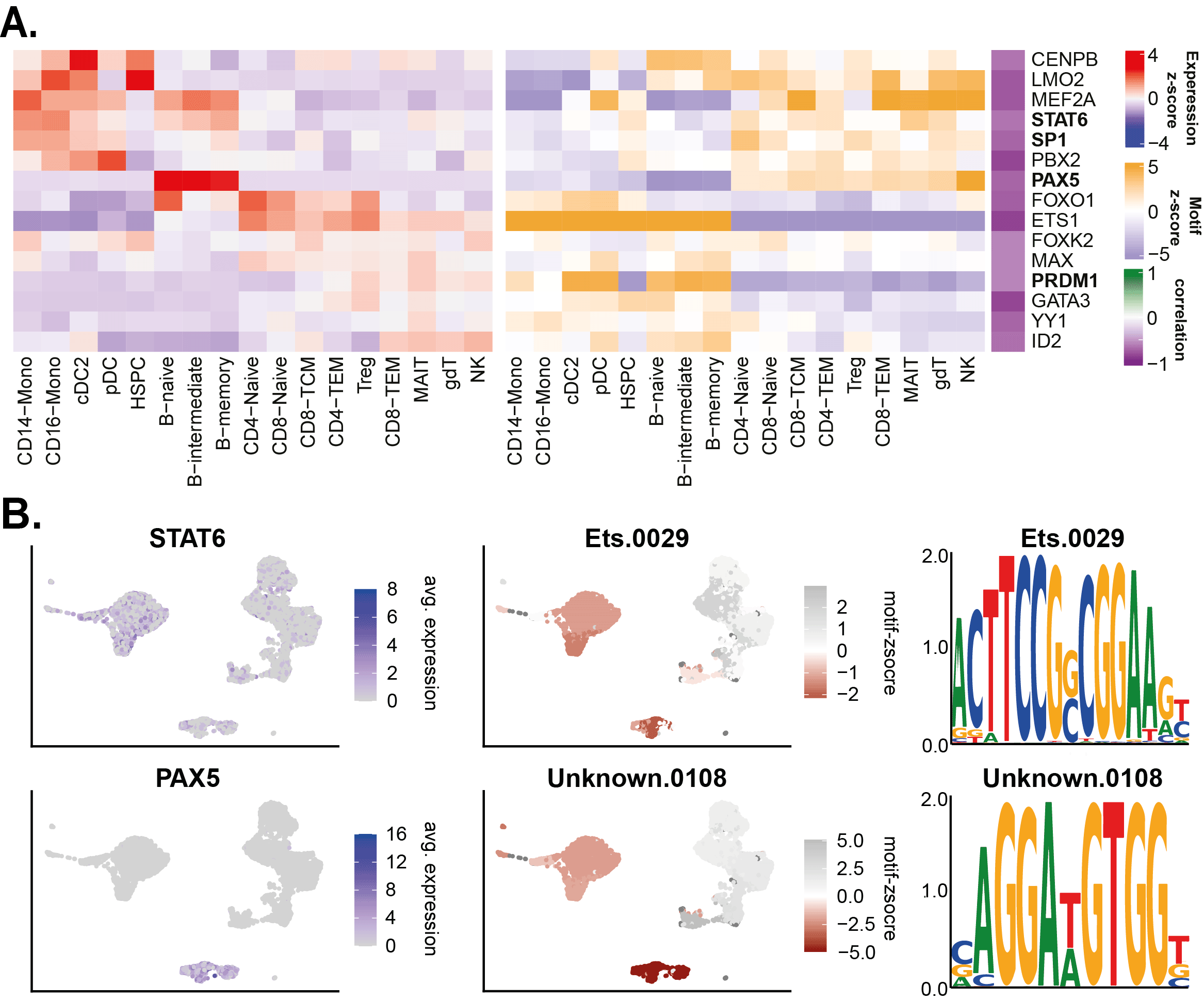

Figure 5. Motif enrichment repressive TFs.

(A) Heatmap of top negatively correlating motifs & TFs. (B) UMAP example of anti-correlation factors PAX5 and STAT6.
