Uncaria nervosa Elmer, a new herbal source for betulinic acid and ursolic acid: Metabolites profiling, isolation, and in vitro cytotoxicity studies against T47D breast cancer

Crude extraction and liquid-liquid fractionation

U. nervosa (1.932 g) leaves were macerated using the 2000 ml ethanol (Merck 1.00983.2500). The ethanol extract was fractionated using a separating funnel starting with 500 ml n-hexane (Merck 1.04367.2500), 500 ml ethyl acetate (Merck 1.09623.1000), and 500 ml butanol (Merck 1.01990.1000) as solvents. The three fractions were thickened using a rotary evaporator.

Metabolites profiling of ethanol extract

Ultra-High-Performance Liquid Chromatography (UHPLC)

The ethanol extract (20 mg) was cleaned up using SPE-polyamide and obtained 5.7 mg (28.5% recovery). SPE is carried out by rinsing using 3 ml methanol (Merck 1.06007.4000) and a conditioning process with water which aims to eliminate interference in the sample (2:98, v/v). The sample was filtered with a 0.45 μm UHPLC filter, then placed in an HPLC vial. The crude was transferred to the Eppendorf tube and dissolved in 1 mL of solvent mixture (80% methanol and 20% water). The tube was sonicated and the solution was filtered (0.22 μm) then put into an HPLC bottle. The stationary phase used was a Luna Omega C18 column (100 x 2.1 mm, 1.6 μm) with a diode array detector (DAD). The sample injected was 1 μL, the column temperature was 30°C, and the system flow rate was 0.28 mL/minute. Elution was carried out using deionized water (% A) and the organic solvent, acetonitrile (Merck, 1000304000), (% B) and solvent system: 0-30 minutes (5-100% B) and 30-40 minutes (100% B) (Ammar et al., 2024).

Liquid Chromatography Mass Spectrometry (LCMS)

LCMS analysis at a temperature of 30 °C. The sample (1000 ppm), was dissolved in a mixture of methanol and water, then injected 1 μL and the flow rate was set to 0.2 mL/min. LCMS grade water (% A) and methanol (% B) were used in the analysis, with elution systems of 0-30 minutes (10-100% B) and 30-35 minutes (100% B). The samples were filtered using positive ionization mode and analyzed using multistage mass spectrometry (MS/MS) data analysis.

Isolation and elucidation of bioactive compound

The ethyl acetate fraction was weighed as much as 20 g, preabsorbed using silica gel and then put into a chromatography column. The fraction was eluted using a step gradient polarity system solvent, using n-hexane 250 ml (Merck 1.04367.2500), ethyl acetate 250 ml (Merck 1.09623.1000), and methanol 250 ml (Merck 1.06007.4000). There were 11 sub-fractions obtained and the one that was continued for purification was sub-fraction E (HE 5:5). Purification was carried out using recycling preparative HPLC with 1000 ml acetonitrile (Merck, 1000304000) and distilled water as eluents (98:2) (Ammar et al., 2024). Elucidation of the structure of the isolated compound was carried out using a mass spectrometer, 1H- and 1D and 2D-NMR.

Cytotoxic assay against T47D cells

Cell lines and culture condition

T47D breast cancer cells are a collection of the Cancer Chemoprevention Research Center (CCRC) Gajah Mada University (UGM) Indonesia. T47D cancer cells were taken from the liquid nitrogen tank in a sterile manner, and then the cancer cells in a cyro tube were thawed over a wet bath at a temperature of 37°C for 2-3 minutes. Cancer cells were transferred into a falcon tube containing 9 mL of DMEM and centrifuged at 2000 rpm (10 minutes). The supernatant was removed by pipetting it, leaving a layer of pellets. Next, 2 mL of medium was added to the pellet layer and transferred into a flask, then incubated in a 5% CO₂ incubator at 37°C for 3-4 hours. The flask was observed under an inverted microscope to see whether the cells adhered to the bottom of the flask and formed a monolayer. The growth medium was changed once every two days, and when the number of cells in the flask reached 70-85% confluent, cell sub-culture was carried out.

Cell seeding

Cell of suspension (180 μL) was made in cell suspension medium, and put into each well except the wells in the first and last columns and the first and last row. The first and last columns, as well as the first and last rows, are blanks, which only contain 200 μL of medium, while the second and seventh columns are controls, which contain 200 μL of cell suspension. Incubate in a 5% CO₂ incubator at 37°C for 24 hours.

Cytotoxicity assay

Determination of cytotoxic activity was carried out on betulinic acid, ursolic acid and doxorubicin. The 96-well plate, which contains 180 μL of cell suspension and has been incubated for 24 hours, is removed from the incubator. The test solution (20 μL) for each concentration of 0.1-67 μg/mL was transferred into each well except the control well and blank well to obtain a test solution with a concentration of 100, 10, 1, and 0.1 μg/mL. The 96-well plate was again incubated for 48 hours in a 5% CO₂ incubator at 37°C. After that, the medium was discarded, then 100 μL of PBS (Sigma, P5119) was added to each well, and the PBS was removed by pipetting. 100 μL of 0.5 mg/mL MTT (Merck, M2003) solution was pipetted into each well and incubated for 4 hours in a 5% CO₂ incubator at 37°C. After 4 hours, a purple precipitate of formazan crystals will form. Then the cell condition is observed using an inverted microscope. The MTT reagent is discarded, so that what remains is only a purple precipitate of formazan crystals. The precipitate in each well was dissolved in 100 μL of DMSO, and its absorbance was measured using an ELISA reader spectrophotometer at λ 550 nm. Based on the absorbance value between the sample and control cells, the % viability value can be determined. The data is processed using graphPad prism software to obtain the IC₅₀ value. The cytotoxicity results for the chemicals strong cytotoxicity: IC₅₀<4 μg/mL (or IC₅₀<10 μM); moderate cytotoxicity: 4 μg/mL< IC₅₀<20 μg/mL (or 10 μM< IC₅₀<50 μM); low cytotoxicity: 20 μg/mL< IC₅₀<100 μg/mL (or 50 μM< IC₅₀<250 μM); no cytotoxicity: IC₅₀>100 μg/mL (or IC₅₀>250 μM) (Bonsou et al., 2022).

Statistical analysis

Data analysis of extract metabolites profiles and structure elucidation in the form of tables, graphs and images. IC₅₀ values of samples and controls were determined using statistical analysis GraphPad Prism Software V 9.0.0 (GraphPad Software LLC).

Metabolites profiling of ethanol extract

Determination of the metabolite profile of ethanol extract begins with the clean-up process of ethanol extract using the solid phase extraction (SPE) method. After the clean-up is complete, the extract is prepared for chromatogram determination using UHPLC. The chromatogram profile was monitored under a UV 254 lamp (Figure 1). The extract was prepared to determine the metabolite profile using LCMS. Raw data obtained from the instrument is processed by carrying out data conversion, data processing and metabolite annotation using the Sirius platform. In the ethanol extract, it is predicted that there are 9 compounds (Figure 2, Table 1), contained N-[(1,3-dimethyl-2,6-dioxo-7-prop-2-ynylpurin-8-yl) amino] formamide, 4-decylaniline, robinin, ceratodictyol, betulinic acid, ursolic acid, 7-methyl-N-[6-[(7-methyl-6-oxooctanoyl) amino] hexyl]-6-oxononanamide, hexadecanamide and 3,5,10-tris (acetyloxy)-2-hydroxy-4,14,16,16-tetramethyl-8-methylidene-13-oxo-15oxatetracyclo [9.4.1.0¹,¹⁴.0⁴,⁹] hexadecan-7-yl 3-phenylprop-2-enoate.

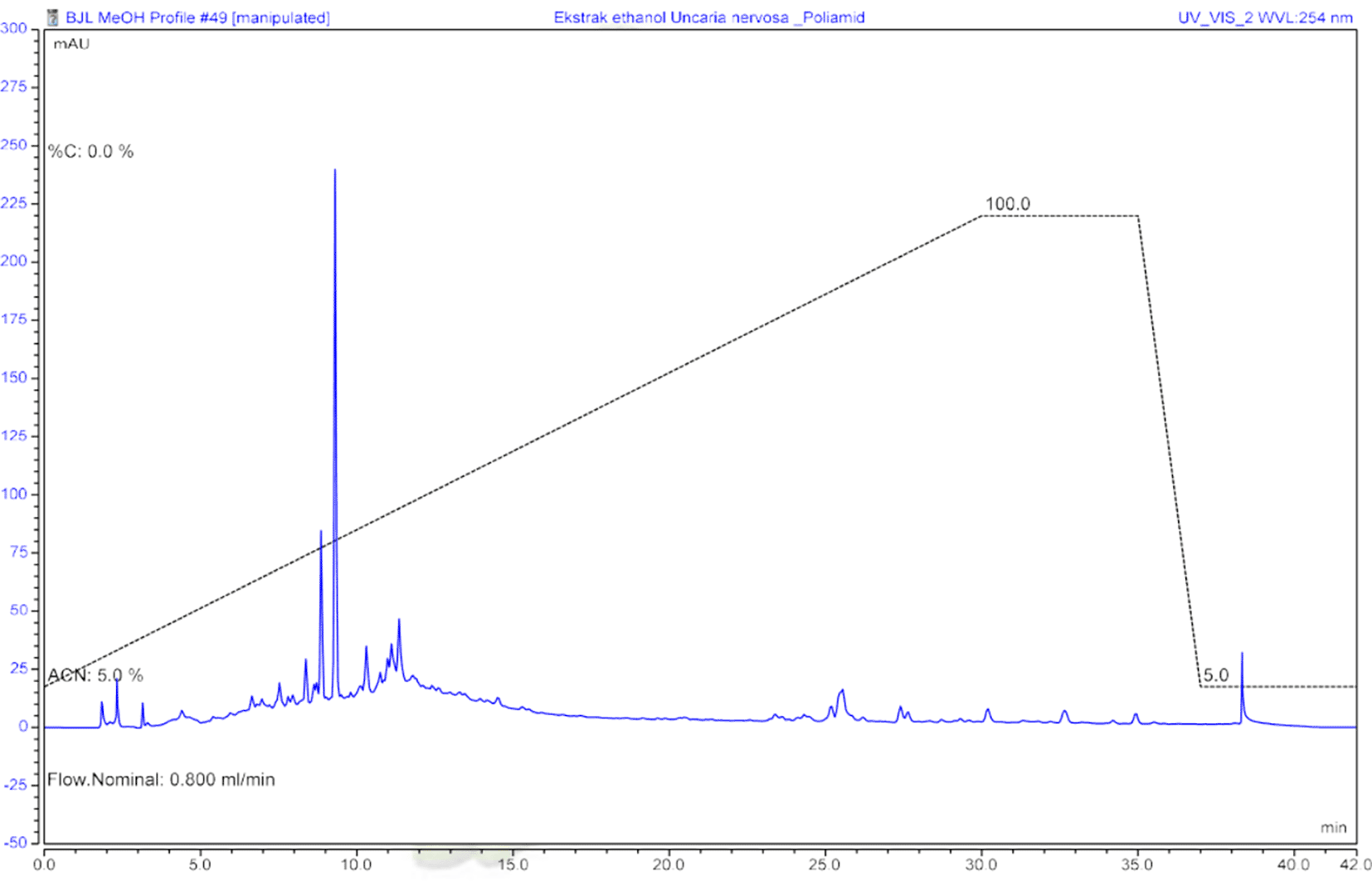

Figure 1. Chromatogram of ethanol extract of U. nervosa leaves at UV 254 nm.

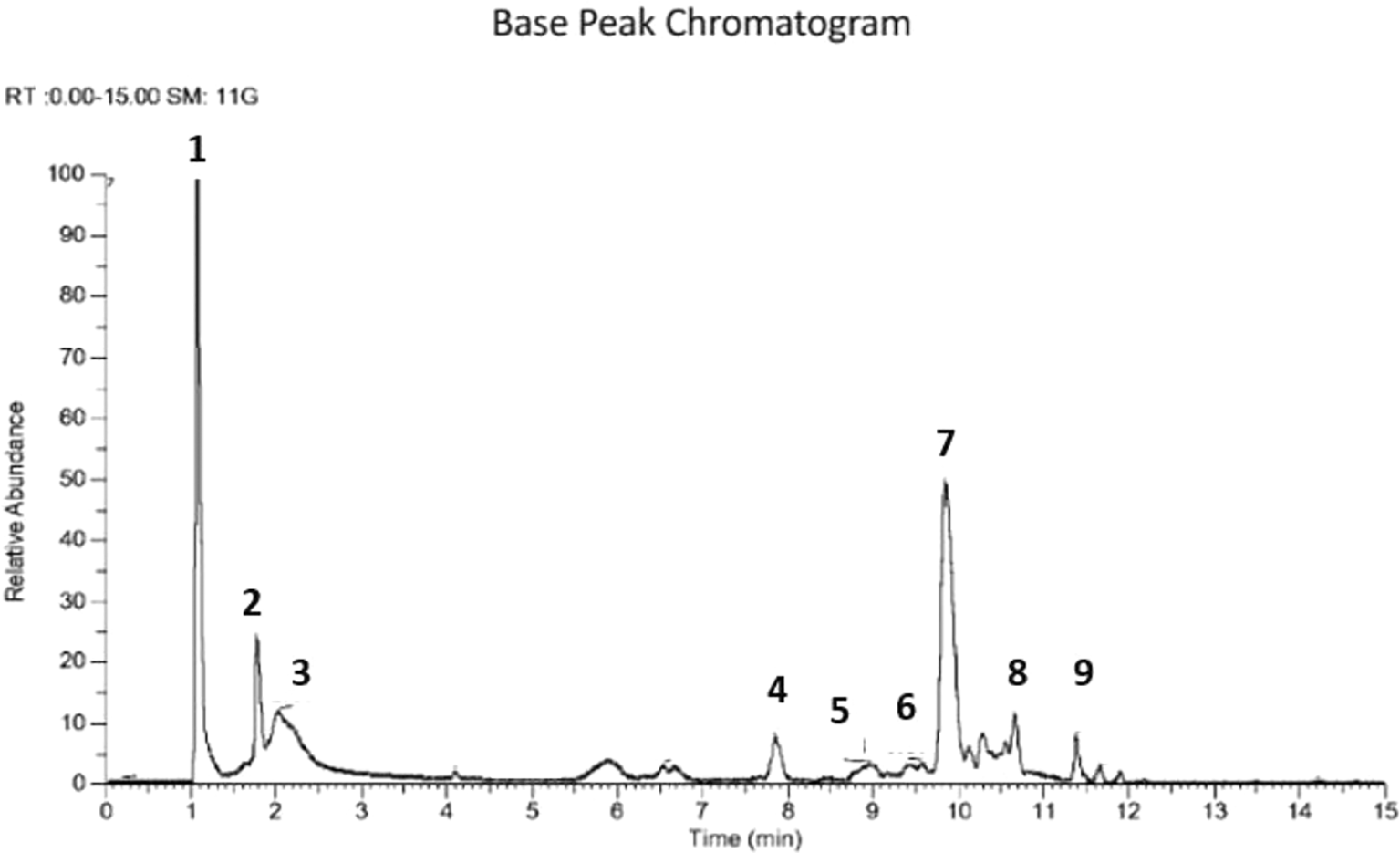

Figure 2. Base peak chromatogram of ethanol extract of the leaves of U. nervosa.

Isolation and structural elucidation of the isolated compounds

The ethanol extract of U. nervosa Elmer was separated using a fractionation method using n-hexane, ethyl acetate, and butanol as solvents. The isolation process was carried out on the ethyl acetate fraction using column chromatography. The column chromatography results obtained 11 subfractions, and based on monitoring the stain pattern using thin layer chromatography, the isolation was directed to subfraction E. The HPLC chromatogram of subfraction E can be seen in Figure 3.

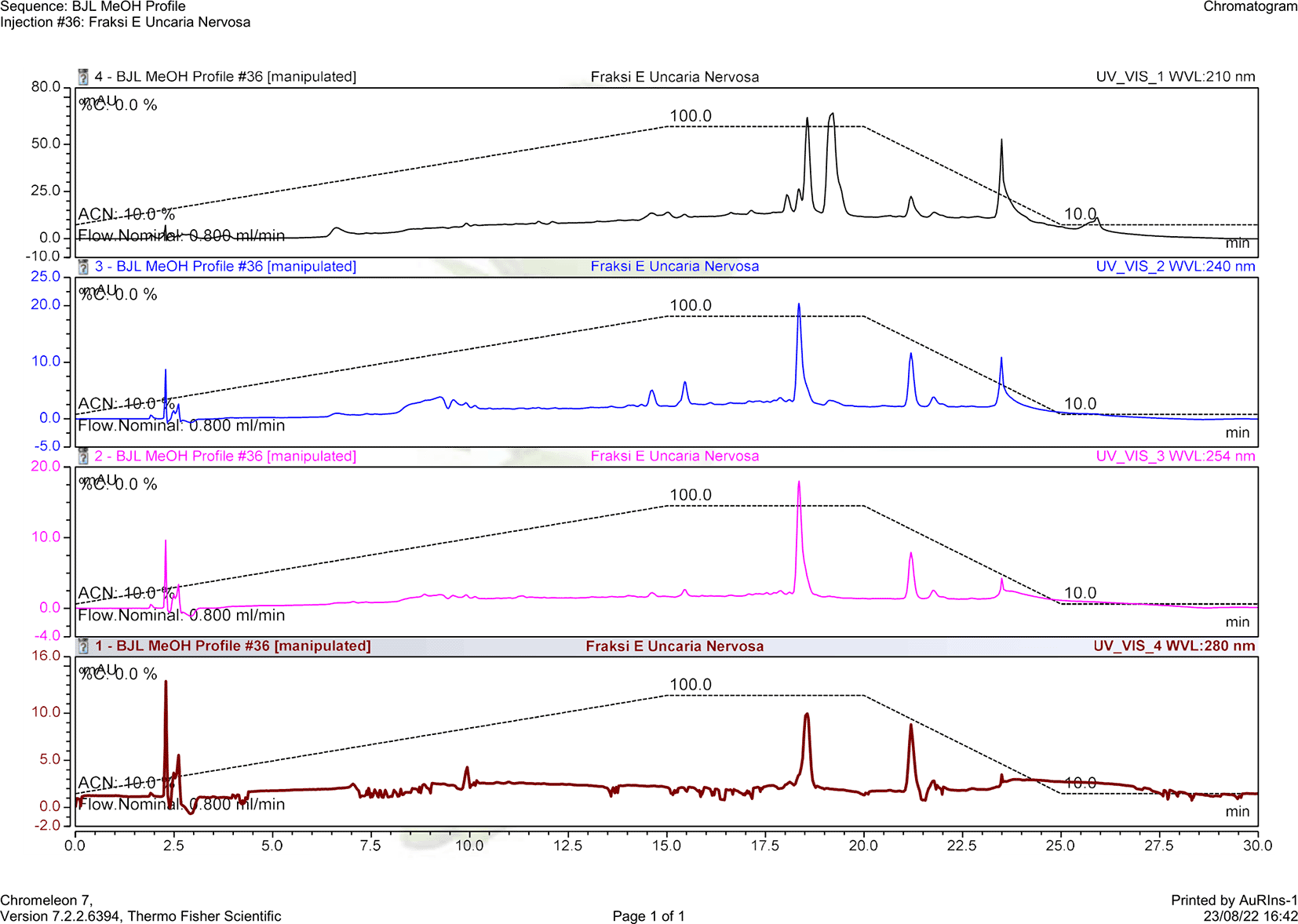

Figure 3. HPLC profile of U. nervosa Elmer subfraction E.

The isolation process for subfraction E was continued using a recycling preparative HPLC instrument, where the subfraction was dissolved in methanol and water using a C-18 column. The results of preparative HPLC recycling obtained six pure compounds (Figure 4), and those that were elucidated were UnE-3 and UnE-4. Compounds Un-E-3 and UnE-4 were monitored by 1H and 13 C NMR, 1D NMR, and 2D NMR (Figures 5,6,7,8). The compounds that have been isolated are betulinic acid (UnE-3) and ursolic acid (UnE-4), with chemical structures as shown in Figure 9.

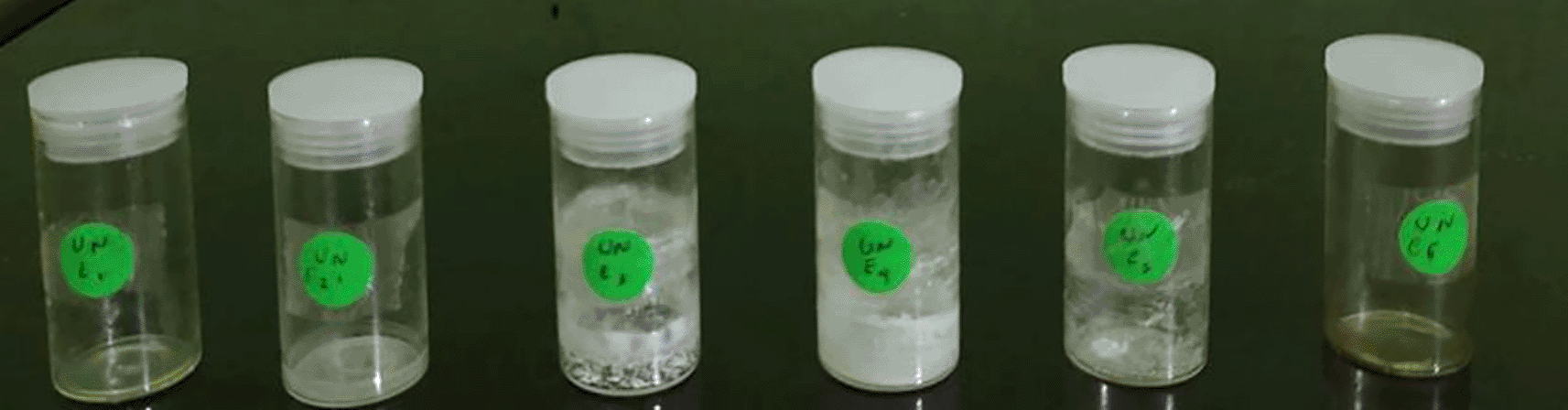

Figure 4. Six pure compounds from subfraction E.

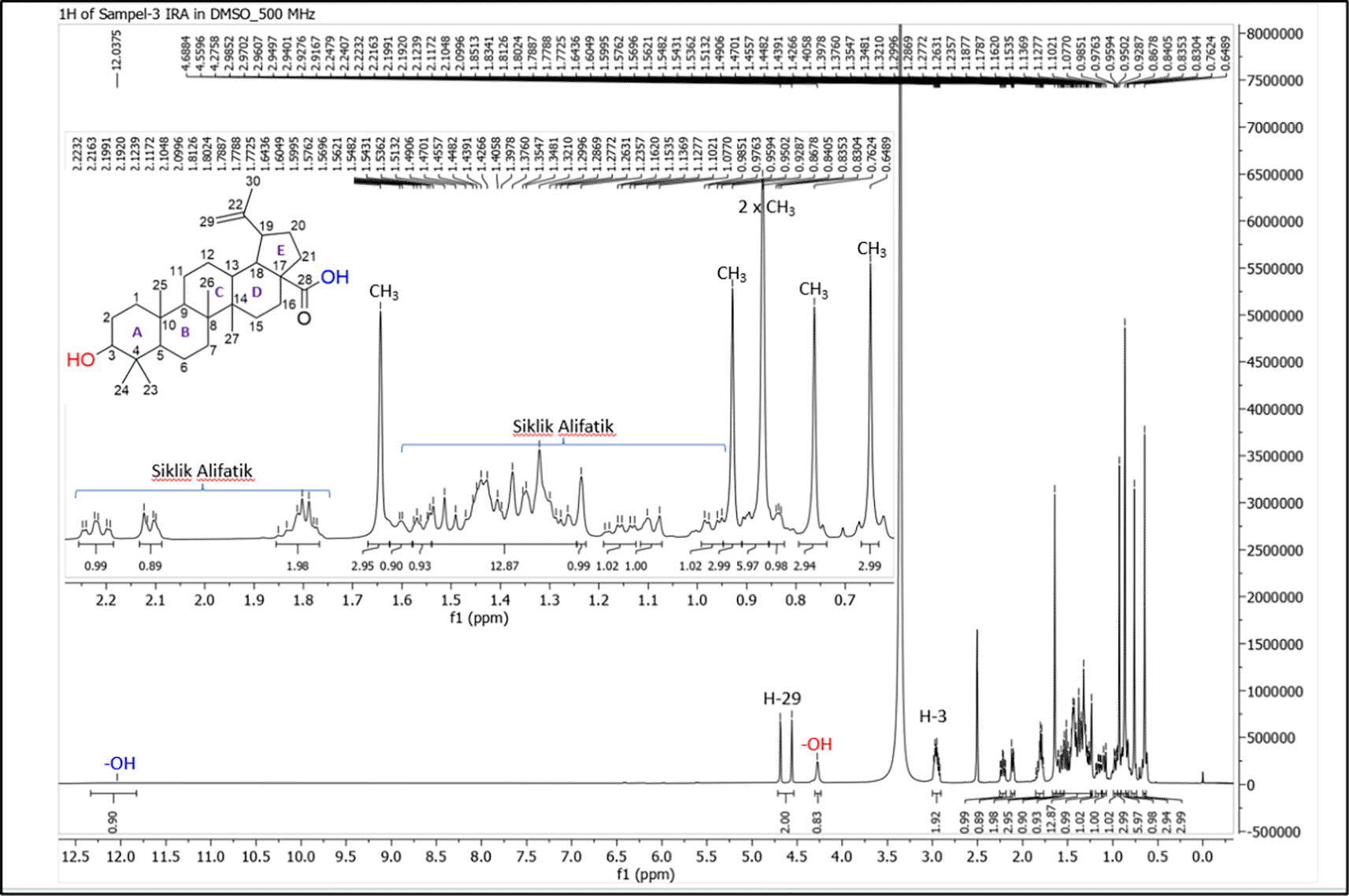

Figure 5. 1H NMR compound UnE-3.

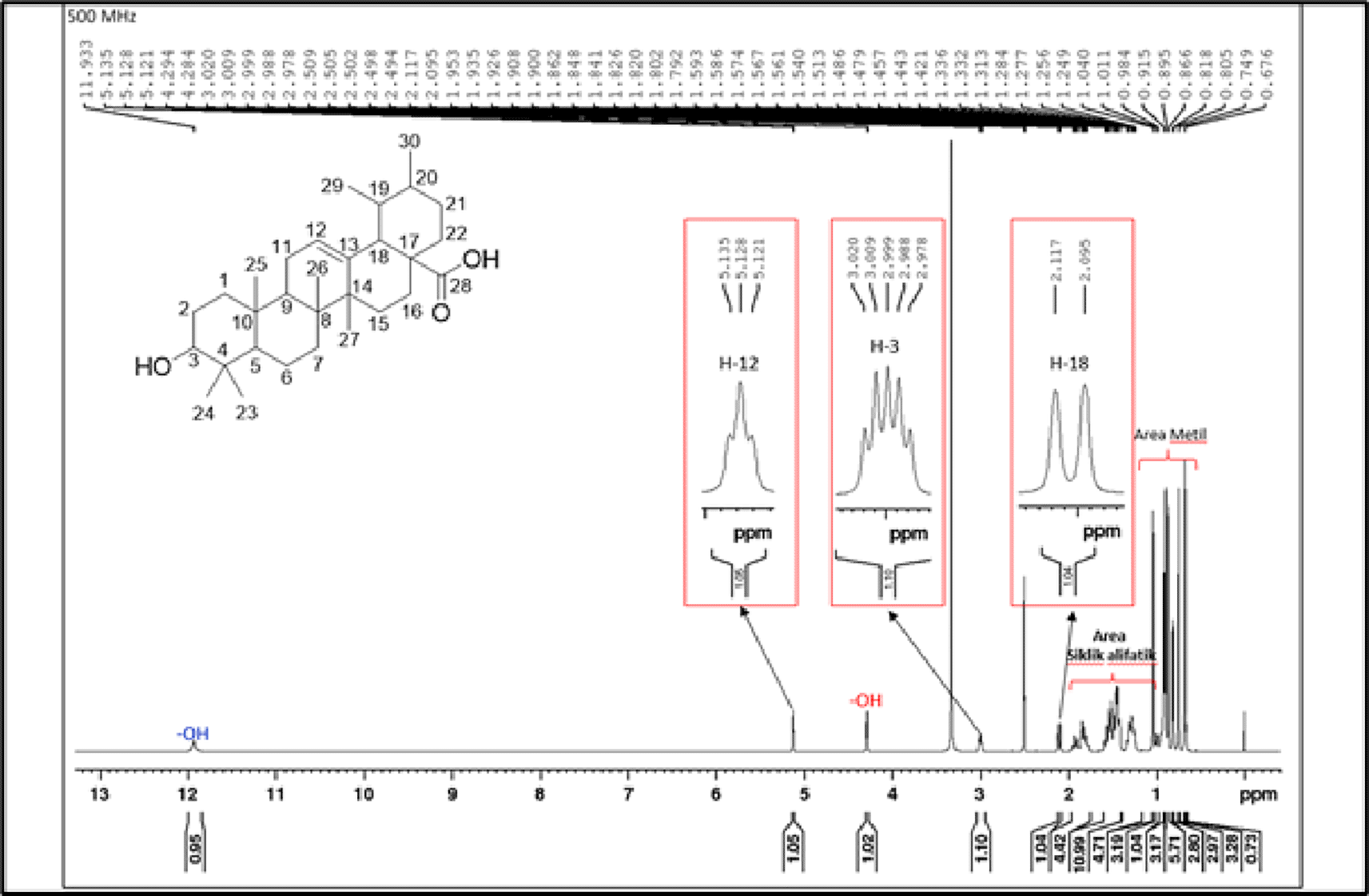

Figure 6. 1H NMR compound UnE-4.

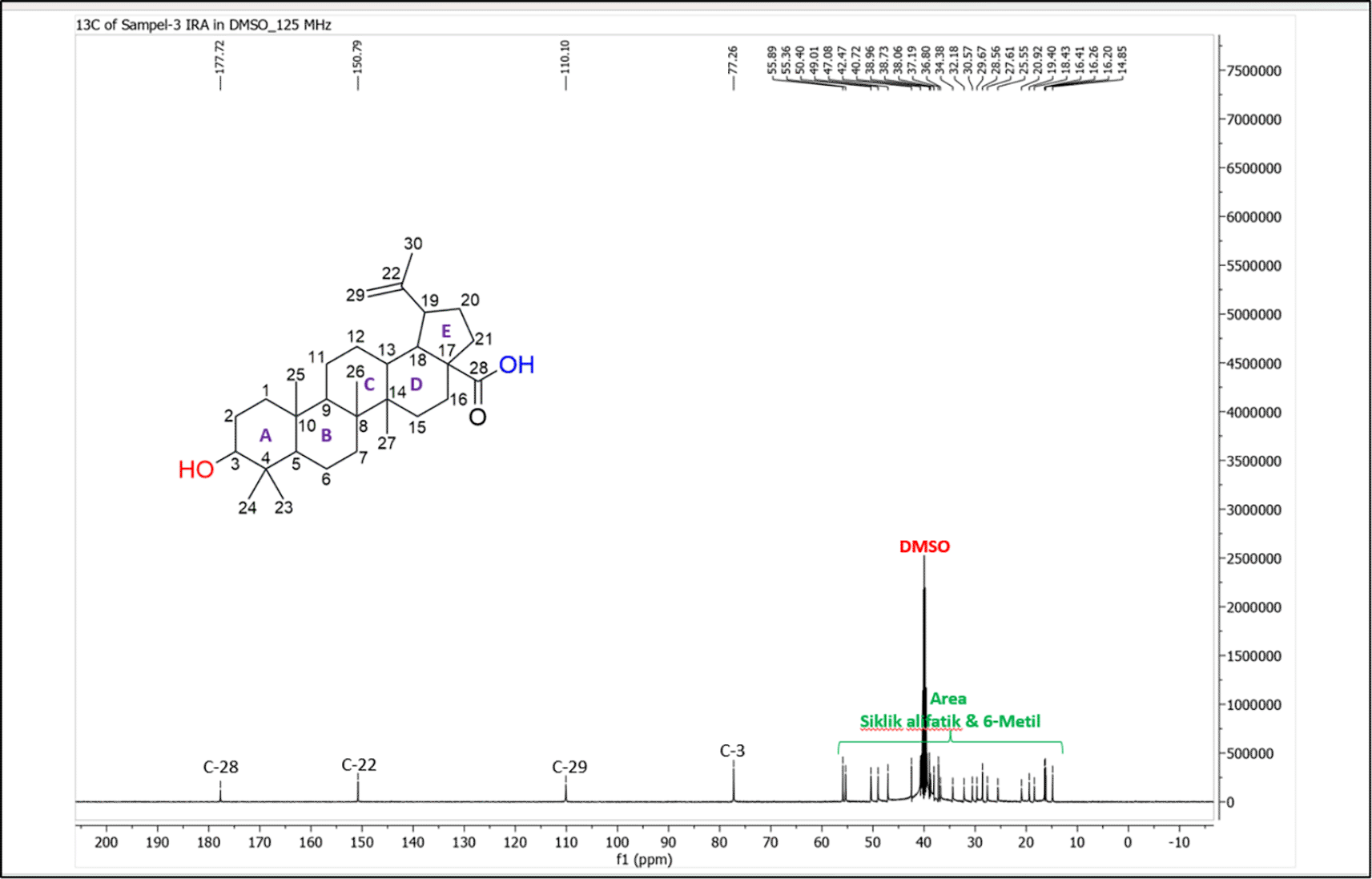

Figure 7. 13 C NMR compound UnE-3.

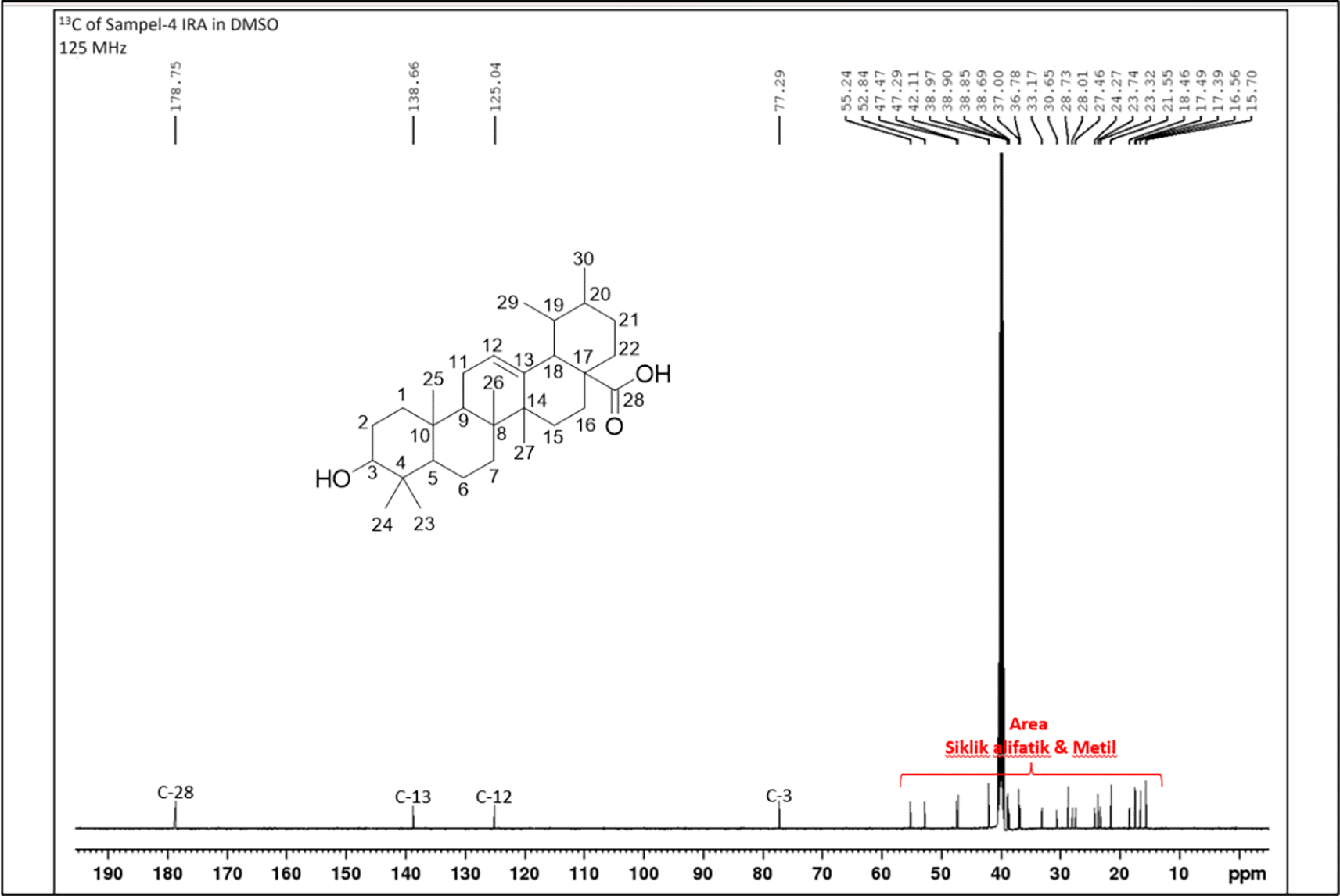

Figure 8. 13 C NMR compound UnE-4.

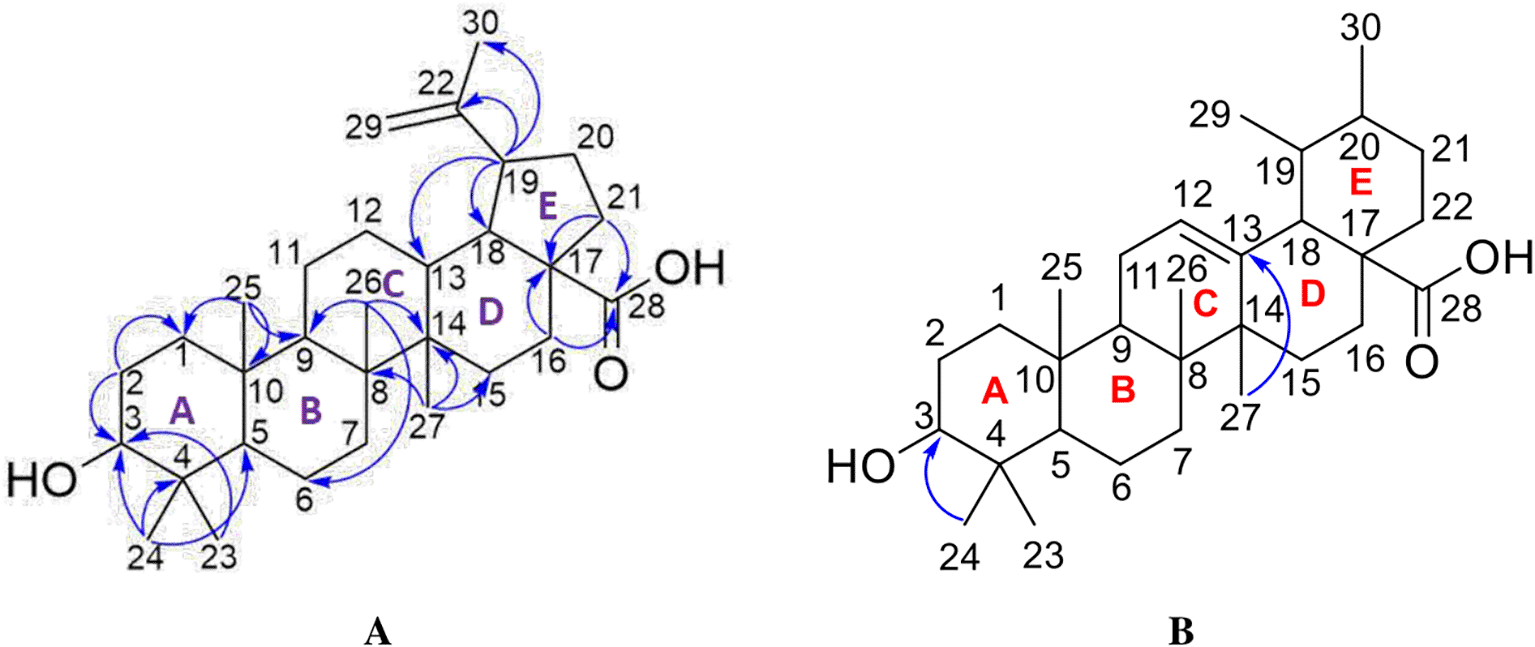

Figure 9. The structure of betulinic acid (A) and ursolic acid (B).

Cytotoxic activity betulinic acid and ursolic acid against T47D cells

The cytotoxic activity of betulinic acid (BA) and ursolic acid (UA) on human breast cancer cells (T47D) was determined using the MTT method. As a positive control, the reference standard doxorubicin was used (Numonov et al., 2020). Doxorubicin is one of the most widely used chemotherapy agents in the treatment of breast cancer. The results of the cytotoxic test showed that the IC₅₀ values for UA and doxorubicin were 14.70 ± 4.50 μg/ml and 0.15 ± 0.02, respectively. The IC₅₀ value for BA was not determined because the % viability at the highest concentration tested (53 μg/ml) was greater than 50%. The % viability values of UA and doxorubicin can be seen in Figures 10 and 11.

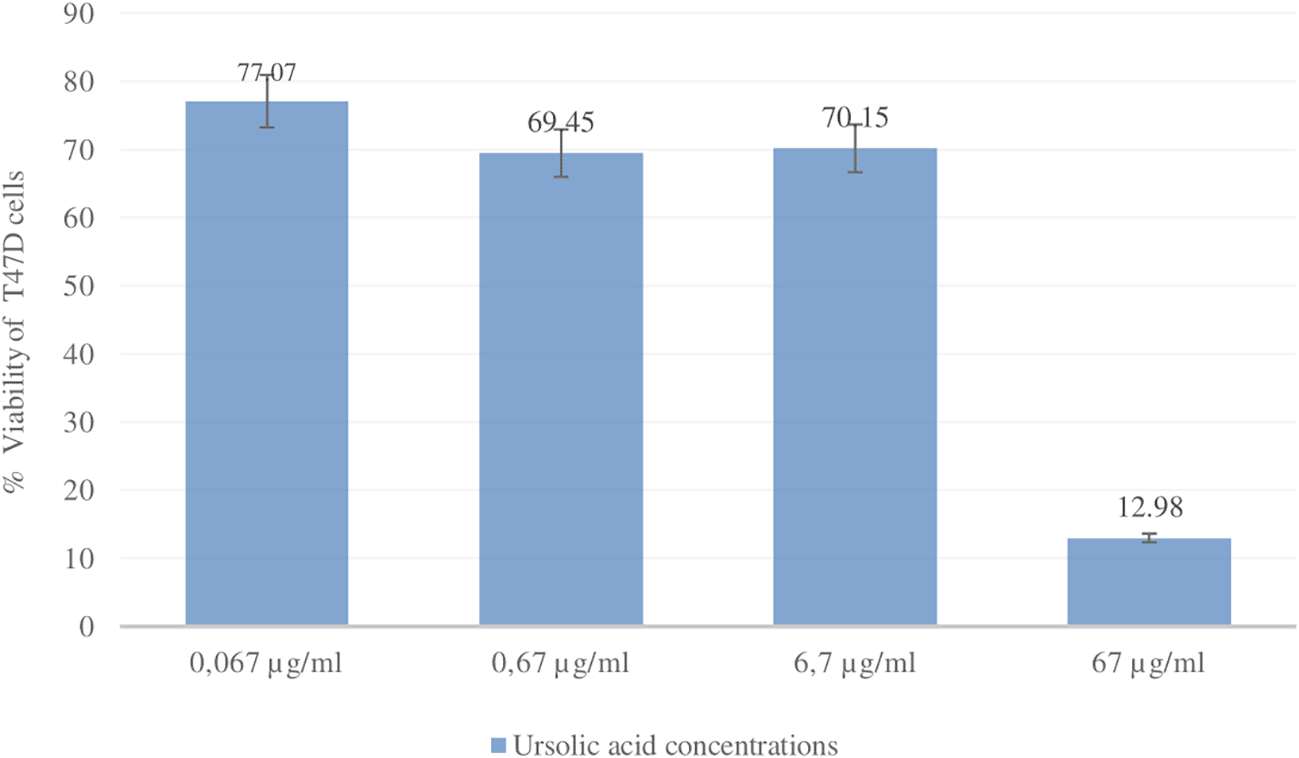

Figure 10. Graph of ursolic acid concentration (μg/ml) and % viability of T47D cells.

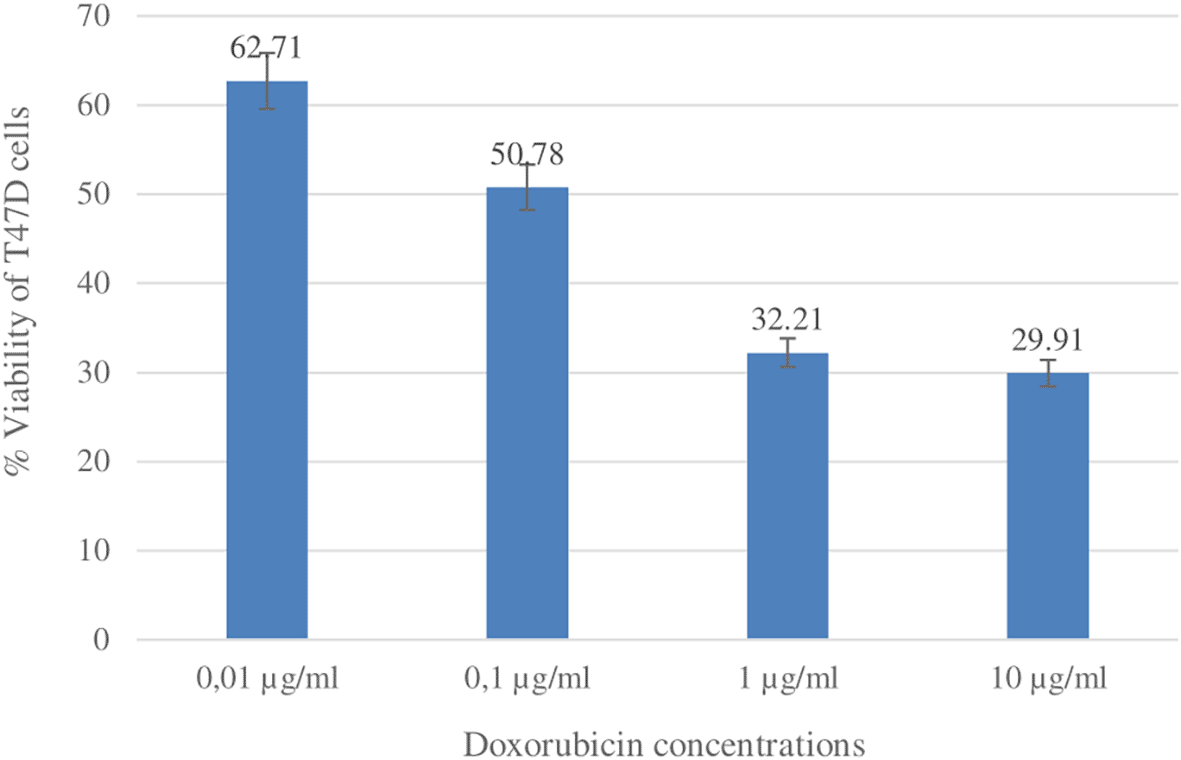

Figure 11. Graph of doxorubicin concentration (μg/ml) and % viability of T47D cells.

Metabolites profiling of ethanol extract

Determining the metabolite profile of the extract begins with clean-up of the ethanol extract using the Solid Phase Extraction method (SPE). The extraction method that can be used for the analysis, separation, and purification of samples in the industrial, pharmaceutical, and toxicological fields. In this research, a cartridge containing a polyamide stationary phase was used. The stages carried out are conditioning, equilibration, sample loading, elution, evaporation of solvent, and yield recovery (Abd Karim et al., 2022; Farré-Segura et al., 2022). Samples that have been cleaned up are prepared to determine the UHPLC profile and observed at 254 nm. In the chromatogram, it can be seen that in the ethanol extract, there are polar compounds with higher peaks than semi-polar and non-polar compounds. The metabolite profile of the ethanol extract was determined using LCMS/MS.

The ethanol extract data processing was carried out using the MZmine platform and compound identification using the Sirius platform (Pang et al., 2024; Zheng et al., 2023). The ethanol extract is predicted to contain 9 compounds consisting of alkaloids, terpenoids, and fatty acids among them N-[(1,3-dimethyl-2,6-dioxo-7-prop-2-ynylpurin-8-yl) amino] formamide, N-(3-phenylbutyl) hexan-2-amine, 1,1-dichloro-1-nitrosopropane, ceratodictyol, betulinic acid, ursolic acid, 7-methyl-N-[6-[(7-methyl-6-oxooctanoyl) amino] hexyl]-6-oxononanamide, nervisterol, and 3,5,10-tris (acetyloxy)-2-hydroxy-4,14,16,16-tetramethyl-8-methylidene-13-oxo-15oxatetracyclo [9.4.1.0¹,¹⁴.0⁴,⁹] hexadecan-7-yl 3-phenylprop-2-enoate. Based on the compounds predicted in the ethanol extract, there are 2 compounds that have been found in other species but have only just been discovered in this species, namely BA and UA. These two compounds are reported to have cytotoxic activity on several cancer cell (Alam et al., 2021; Lou et al., 2021).

Isolation and structural elucidation of the isolated compounds

The UnE-3 compound that has been isolated is a white powder. The molecular formula (C₃₀H₄₈O₃) has an M/Z of 456,684 MS (-mode) along with its 1H NMR and 13C NMR spectral data. The compound has a UV spectrum that only has one peak at a maximum absorption of 195.18 nm. This indicates that this compound does not have a conjugated chromophore. To support the UV data, 1D NMR analysis (1H, 13C, and APT NMR in DMSO as well as 2D (HSQC and HMBC) solvent) was carried out. 13C NMR, 125 MHz analysis was carried out to see the total number of carbons. 30 signals were seen, which were divided into 4 types. chemical shift, namely 1 signal at δC 177.72 ppm carbonyl area, 2 signals at δC 150.79 and 110.10 ppm sp2 area, 1 signal at δC 77.26 ppm, and the remaining 26 signals in sp3 area. From the results of the analysis of all spectroscopic data and comparison with the literature, it can be concluded that this compound is classified as a pentacyclic triterpenoid, which has the name betulinic acid (Rahmawati et al., 2024a).

BA is a pentacyclic triterpenoid compound and in U. nervosa leaves, it is the first to be reported. BA is a naturally occurring compound found primarily in the bark of certain trees, particularly in the white birch tree (Betula alba). However, it’s not present in high concentrations in most plants. Apart from white birch, BA has also been found in other plants such as white or silver birch (Betula pendula), sweet birch (Betula lenta), yellow birch (Betula alleghaniensis), white lupin (Lupinus albus), Syzygium species (Pai and Joshi, 2014), Paronema canescens (Muharni et al., 2021), Feretia canthioides (Egbubine et al., 2020), and Tetracarpidium conophorum (Kelly et al., 2021).

The second compound that has been isolated is UnE-4, which is a white powder and has the molecular formula (C₃₀H₄₈O₃) with m/z 456.66. This compound has a UV spectrum that only has one peak at a maximum absorption of 195.18 nm. This indicates that this compound does not have a conjugated chromophore. Furthermore, to support the UV data, 1D (1H and 13C NMR in DMSO solvent) and 2D (HMBC) NMR analysis was carried out. 13C NMR analysis, 125 MHz was carried out to see the total number of carbons which showed 30 signals which were divided into 4 types of chemical shifts, namely 1 signal at δC 178.75 ppm carbonyl area, 2 signals at δC 138.66 and 125.04 ppm sp2 area, 1 signal at δC 77.29 ppm and the remaining 26 signals in the sp3 area.

The 1H-NMR spectrum, 500 MHz there are several specific signals such as two hydroxy protons whose chemical environments are very different, namely at δH 11.93 (s, 1H) which usually bonds directly with the carbon sp2 carbonyl at C-28 while δH 4.29 (d, 1H) possibly binding to the sp3 carbon of methine at C-3. One sp2 area proton signals at δH 5.13 (t, J = 3.25 Hz, 1H) and the rest are aliphatic protons. HMBC data shows a long between H-24 and C-3 which confirms the position of the hydroxy methine which is in ring A. Furthermore, a long between H-27 and C-13 which turns off its position splits rings C and D. Based on Index calculations of Hydrogen Deficiency (IHD) obtained a value of 7 which is in good agreement with NMR data where 5 IHD comes from rings and 2 IHD from double bonds. From the results of the analysis of all spectroscopic data and comparison with the literature, it can be concluded that this compound is classified as a pentacyclic triterpenoid which has the name ursolic acid. UA has reportedly been isolated from several plants including Salvia officinalis (Jedinák et al., 2006), Apples peels (Yamaguchi et al., 2008), Arbutus pavarii (Groshi et al., 2022), and Uncaria macrophylla (Sun et al., 2012).

Cytotoxicity

Compounds that have been isolated from the ethanol extract of U. nervosa Elmer leaves are BA and UA. These two compounds were subjected to a cytotoxic test on T47D breast cancer cells using the MTT method and doxorubicin was used as a positive control. The test results show that ursolic acid has strong activity when compared with betulinic acid. The IC₅₀ values for ursolic acid and doxorubicin were 14.70 ± 4.50 μg/ml and 0.15 ± 0.02, respectively (Rahmawati et al., 2024b). BA and UA are the active compounds of pentacyclic triterpenoids which is a triterpene acid that is found in various fruits, vegetables and medicinal plants (Zafar et al., 2022; Maniyamma et al., 2022) and has been reported to have antidiabetic, anti-inflammatory, immunomodulatory, and anticancer activities (Alam et al., 2021; Numonov et al., 2020; Sianipar, 2021; Wang et al., 2020). BA and UA are from natural products against metastasis and was also investigated in studies conducted in the last decade (Khwaza et al., 2020; Naeem et al., 2022; Zafar et al., 2022).

Research related to the cytotoxic activity of BA includes the effects of skin carcinogenesis, where it was reported that BA can inhibit 70% of tumor development (Agame-Lagunes et al., 2021). Research on MDA-MB-231 breast cancer cells gave an IC₅₀ value of 38.81 ± 4.9 mg/mL (Qi et al., 2021). BA was also reported to inhibit the viability of HuCCA and BHK-21 cells and induce neoplastic cell apoptosis (Phonarknguen et al., 2022). Research related to the cytotoxic activity of UA has also been widely reported. UA is active in T47D breast cancer cells with an IC₅₀ value of 1.63 ± 0.62 μM (Numonov et al., 2020). UA increases cell sensitivity Triple-negative breast cancer (TNBC) to doxorubicin via signaling inactivation ZEB1-AS1/miR-186-5p/ABCC1 (Lu et al., 2022). UA formulated into nanoparticles provides an IC₅₀ value below 30 μM against pancreatic cancer cells AsPC-1 dan BxPC-3 (Markowski et al., 2021) and UA can significantly increase the drug sensitivity of human breast cancer cells MCF-7/MDA-MB-231 against Epirubicin (Wang et al., 2022).
