The complete genome sequences of Bacillus velezensis B26: a promising biocontrol agent and biofertilizer

Whole genome analysis of bacteria

The genome of B. velezensis B26 strain was analysed to explore its microbial genomic characteristics. HiMedia Laboratories Pvt Ltd, Maharashtra, INDIA performed the whole-genome analysis.

Sample preparation workflow

Genomic DNA (gDNA) from B. velezensis B26 was isolated using QIAamp DNA Mini Kit (Qiagen). The integrity of the gDNA was assessed spectrophotometrically to measure the A260/280 ratio and its concentration was measured using Qubit broad range dsDNA quantification kit (Thermo Fisher Scientific). For library preparation, 250ng of DNA was processed with the QIASeq FX DNA Kit (Qiagen), following manufacturer’s protocol to generate fragmented, adapter-ligated and indexed libraries. The Illumina NextSeq 550 with 300-cycle paired-end sequencing chemistry was employed for sequencing the finalized library.

Tapestation analysis of NGS libraries

For fragment analysis, 2 μL of high-sensitivity D1000 sample buffer and 2 μL of the final library sample were mixed using vortexer for 1 min. The mixture was then loaded onto the D1000 ScreenTape and analyzed using the Agilent 4200 TapeStation System. This system employs DNA electrophoresis to separate fragments up to 1000 base pairs. The trace analysis revealed an average fragment size of 301 base pairs, which, along with the library concentration, indicates the library’s suitability for next-generation sequencing.

Analysis workflow

In data analysis all reads are checked for quality and then the quality control (QC’)-quality reads are passed through the process flows simultaneously. The detailed steps involved in each process flow are included within each section below.

Reads quality control

Briefly, raw fastq files quality control were verified using FastQc v0.11.9 (Simon Andrews et al. 2010). FastQC report provided individual details on sequence counts, sequence quality histograms, per sequence quality scores, per base sequence content, per sequence GC content, per Base N content, sequence length distribution, sequence duplication levels, overrepresented sequences, adapter content and status checks. The details of individual reports were then added using MultiQC v1.12, to understand the quantity of data obtained for each of the paired read files for an individual sample (Ewels et al. 2016) (Supplementary file 1). Adapter trimming and quality filtering were performed using fastp tool (v0.12.4) (Chen et al. 2018). A quality score of Q30 or higher indicates a basecall accuracy of 99.9%, meaning that only 1 in 1000 bases is likely to be incorrect. The resulting files for each read (high quality, adapter-free reads) were used as input for downstream processing.

Genome assembly and annotations

A denovo assembly using a De-Brujin graph was performed to organize the short DNA reads into longer contiguous sequences, referred to as contigs. These contigs served as a starting material used for performing a genome annotation, facilitating the assignment of functional roles to various genomic regions of the organism under investigation.

The quality of the genome assemblies produced by the Spades (Bankevich et al. 2012) and Megahit (Li et al. 2015) assemblers was evaluated using the Quast tool (Gurevich et al. 2013). Compared with the megahit assembler, the Spades assembler had longer assembled contigs with better N50 values, the Megahit assembly exhibited better genome completeness and compatibility with annotation tools employed in the study. Thus, the Megahit assembly was selected for further downstream analyses.

RAST Server: Rapid annotations using subsystems technology

The RAST server is an automated platform developed for bacterial genome annotation. It detects protein-coding regions, along with genes coding for ribosomal and transfer RNAs, allots functional roles to these elements (Aziz et al. 2008). Additionally, it allows comparative analysis through the SEED environment (Overbeek et al. 2014). The RAST server remains a viable tool for efficient and reliable genome annotation.

Genome annotation was primarily carried out using NCBI Prokaryotic Genome Annotation Pipeline (PGAP), which provides standardized gene prediction and functional characterization. Besides PGAP tool, the RAST server was used to perform subsystem-based annotation. This analysis aids in identification of gene sets grouped under biologically relevant functional categories.

Pangenome analysis

Genome annotation was carried out using Prokka v1.14.6 (Seemann 2014). It generates standardized GFF3 files, which possess predicted coding sequences (CDS), rRNAs, tRNAs, and functional annotations. Pangenome analysis was subsequently performed using the Roary pipeline v3.13.0 (Page et al. 2015), which aids large-scale analysis of prokaryotic genomes by comparing orthologous genes across different strains. This analysis was carried out using minimum BLASTp identity threshold of 95% for gene clustering. This method facilitates the identification of both core genes (present in ≥99% of genomes), shell genes (present in ≥15% and <95%) and cloud genes (present in <15%), thus provides insights into genome conservation, diversity and evolutionary adaptation.

Whole genome analysis of B. velezensis B26

We performed a genome analysis of B. velezensis B26 to understand the biochemical potential of the organism. Importantly, the assembled genomes may not be 100% complete. However, the assembly generated here meets the standards acceptable to general bioinformatics repositories as part of the data gathered for publication. These whole-genome shotgun data have been provided with the accession number JAYKOV000000000 (NCBI database). The master record data is available from our various Entrez servers. The individual sequences are available from a hyperlink at the bottom of the WGS master record JAYKOV000000000.

The genome assembly method employed was Megahit v. 2023-07-12 tool, which resulted in a complete genome representation with a coverage of 100.0x using Illumina sequencing technology. Genome assemblies were initially produced using both Spades and Megahit, and their quality was evaluated using Quast tool. Although Spades produced longer assembled contigs and higher N50 values, the assembly generated by Megahit exhibited more completeness and was better suited for downstream tools. Therefore, the Megahit assembly was preferred for genome annotation and comparative analysis.

Genome annotation was carried out using the NCBI Prokaryotic Genome Annotation Pipeline (PGAP) (Haft et al. 2018; Li et al. 2021). The annotation results are summarized in Table 1, which provides an overview of the genome features and information. Table 2 summarizes key assembly statistics, including the number of contigs, total length of the sequenced genome, and the number of annotated proteins.

Identification of subsystem features by The RAST Server: Rapid Annotations using Subsystems Technology (RAST)

In addition to utilizing the NCBI PGAP, we also submitted the sequenced genome data of B. velezensis B26 to the RAST server. This service provides fully automated annotation for bacterial genomes. Using the RAST annotation platform, we recognized genes coding for proteins, ribosomal and transfer RNAs, assigned functional roles to these genes, and predicted the subsystems present in the B. velezensis B26 genome (Supplementary Table 1). Furthermore, the annotated genome is presented on a platform that allows for comparative analysis in the SEED environment (Figure 1).

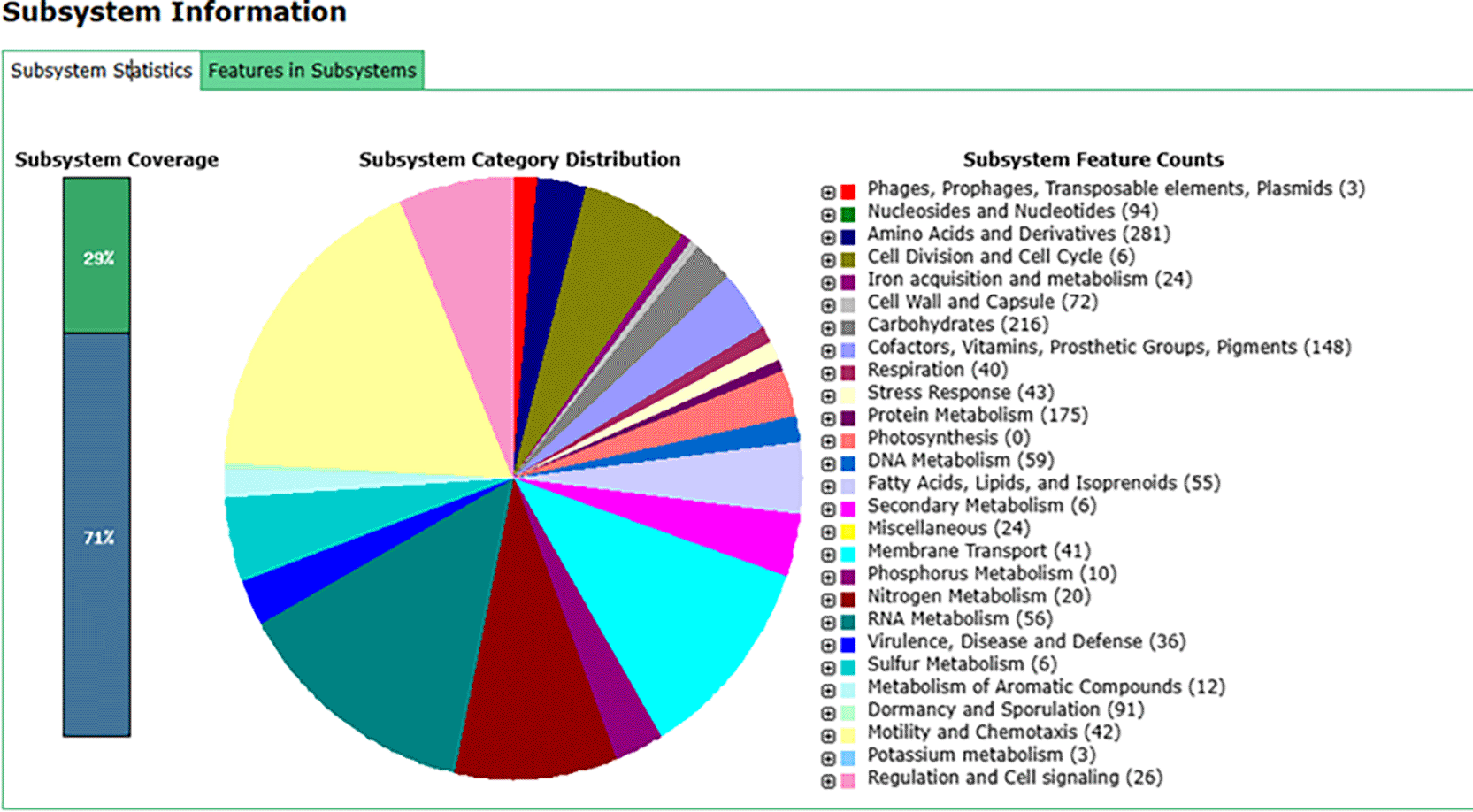

Figure 1. Subsystem statistics of the B. velezensis B26 genome annotations.

The genome of B. velezensis B26 was annotated using the RAST server, and the features in subsystem are compared within the SEED environment. The figure highlights key subsystems identified in the genome, including genes associated with carbohydrate metabolism, stress response, virulence, disease and defense, as well as genes involved in metabolism.

Our analysis revealed the presence of 216 genes involved in carbohydrate metabolism, 3 genes related to phages, prophages, transposable elements, and plasmids, 43 genes for stress response, and 35 genes linked to virulence, disease and defense. The genes related to the stress response and virulence might be responsible for the biocontrol properties of B. velezensis B26 (Supplementary Table 2).

Additionally, several genes involved in metabolic processes were identified, including 59 genes related to DNA metabolism, 10 related to phosphorus metabolism, 20 related to nitrogen metabolism, 6 related to sulfur metabolism, 12 related to metabolism of aromatic compounds, 3 related to potassium metabolism, 10 related to phosphorus metabolism, and 24 related to acquisition and metabolism. These metabolic pathways suggest potential biofertilizer activity (Supplementary Table 2).

Functional implications of subsystem genes

Subsystem-based genome annotation of B. velezensis B26 revealed gene sets that may contribute to its biocontrol and biofertilizer activities. The genome contains 43 genes related to stress response and 35 genes involved in virulence, disease, and defense, suggesting the strains ability to tolerate environmental stress and inhibit plant pathogens. Additionally, the presence of genes involved in phosphorus (10 genes), nitrogen (20 genes), and sulfur metabolism (6 genes) indicates the stains potential for nutrient acquisition and its role as a biofertilizer. Altogether, these gene sets provide valuable insights into the biotechnological potential of B. velezensis B26.

B. velezensis B26 pangenome analysis

Pangenome analysis provides valuable understandings into the genome of prokaryotes. Using Roary software, a large-scale pangenomes are constructed by identifying both core and accessory genes. This method aids in understanding the conserved genes within an organism, as well as accessory genome, to understand the fundamentals linked with natural selection and evolutionary dynamics.

Pangenome analysis of B. velezensis B26 identified a total of 5,576 genes. Among these genes, 3,480 genes were considered core genes, present in 99% to 100% of strains. Additionally, 1,143 genes were classified as shell genes, which were present in 15% to 95% of strains, while 953 genes were identified as cloud genes, found in fewer than 15% of the analyzed strains ( Figure 2, Table 3). These results indicate that a major portion of the B. velezensis B26 genome is conserved, while significant proportion of cloud genes (953 out of 5,576), may represent strain-specific or rare genes. Although many of the genes remains uncharacterized, these accessory genes might contribute to the distinctive biocontrol and plant growth promoting capabilities of B. velezensis B26.

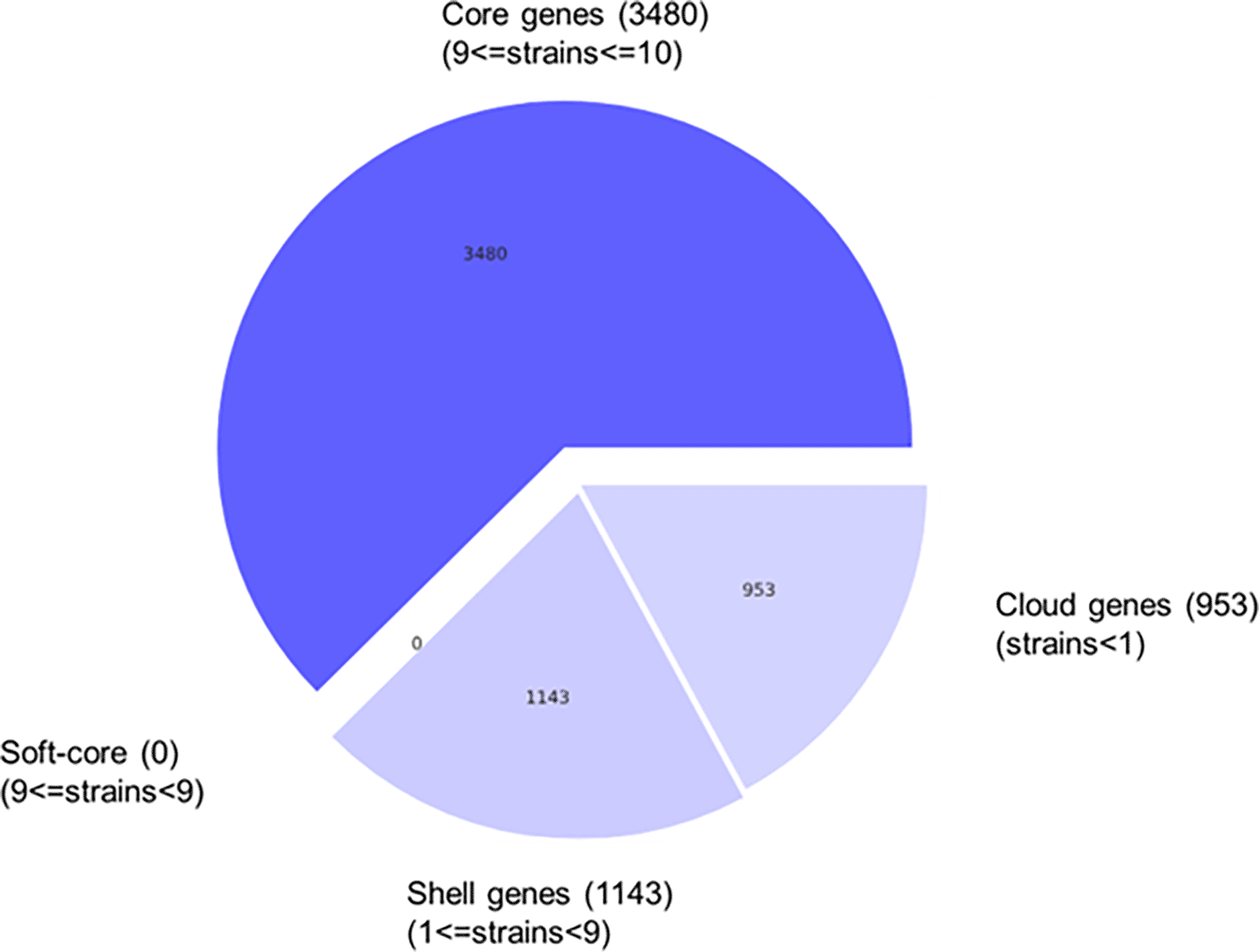

Figure 2. Pie chart represents group of genes. The pie chart represents groups of genes that were classified into various groups based on their prevalence in the pangenome analyzed.
